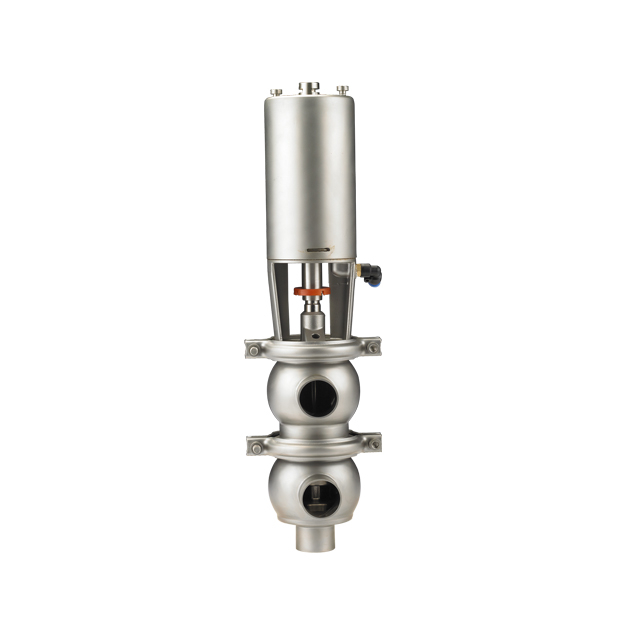

Stainless Steel Pressure Welding Flow Diversion Valve
The stainless steel flow diversion valve and shutoff valve is used to stop the liquid flowing or to change the flow direction in the system.There are lots of different housing combinations to meet different applications.
Working Principles
The sanitary reversing valve is operated by compressed air or manual handle. By controlling the relative position of the valve stem, the valve is opened or closed, or the flow direction is changed. When the sealing seat is pushed to the upper valve body, the valve is closed. When the piston is under the action of the spring, the piston pushes the sealing seat down and drives the valve stem to close the lower valve port.
For example, when processing the milk, the product medium with other media must be excluded. Double-acting valves can ensure this application, thus being able to install switchable flow paths for two incompatible media without risk of contamination even in the event of a leak. The seat also keeps the media separated from each other. So the flow diversion valve can be used for the fluid switching in the pipeline system without pollution or mixing.
Stainless Steel Flow Diversion Valve Specification Chart
Working Temperature | -10 ° to 120 ° |
Pressure | 10bar |
Work operate | Manual, pneumatic type |
Gasket | EPDM, Silicone, Viton according to FDA 177.2600 |
Valve body type | LL, LT, TL and TT type |
Connection mode | Clamped, welded, male threaded, female threaded, flange end, union connection |
Specification | 1/2"-4", DN15-DN100 |
Material quality | SUS304, SUS316L |
Surface | Mirror polished,Matte polished or sand blasting type |
inner surface | Ra 0.4um to meet the requirement of food industries |
| Standard | SMS,DIN,3A,ISO,RJT and so on |
| Required compressed air | 4-8Bar |
| Connection of compressed air | G 1/8’’ |
| Limit switch | 6-36V, DC 2nos of NPN or PNP( to be chose ) |
Normally closed valve is the standard version.The valve can be changed to normally open by simply reversing the position of the pneumatic actuator. | |
External position sensors is available if needed | |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. | |
C top control unit is available if needed. | |
Features
● Dealing material softly
● High precise casting body
● Easy installation and dis-assemble by loosening the clamp
● 360 degree adjustable body
● Ultimate in easy cleaning to assure hygienic application
● Simple to change the structure and low maintenance cost
● Cost-efficient leakage protection
● Ultra-thick Spherical valve body assures ideal fluidity
● Available with various housing design and flexible orientations such as LL, LT, TL and TT types
Application
The flow diversion valves are major used to reach the medium to reverse or stop the flow direction, because of good seal ability and clean ability, they are extensively used to different industry areas, such as food, beverage, dairy, pharmacy, chemical and so on.
