JONENG
8481804090

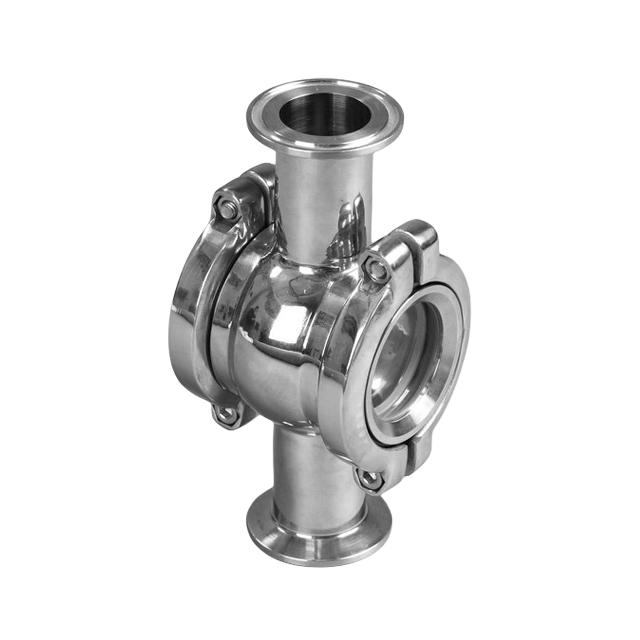

Stainless Steel Transparent Flat sight glass with Brush
The sight glass helps in providing the easy access for the visual observation of the liquids or any material in the tank, pipelines or the vessels. It also help in establishing the connection between 2 pipes and also visualizing the flow of material between them.The sight glasses are used for checking the liquid inside the system. For the pipelines, we have straight type, cross type, Ball cross type. For the tanks, we have union type sight glass.
Working Principles
Once the unit’s connection is established between the pipelines, product is allowed to flow through inside of the unit for easy visual examination and observation of the liquid flow. A secure seal enhances the safety, helps in quality control and resist corrosion.
Stainless Steel Sight Glass Specification Chart
Size | 1” to 6” |
End connections | Sanitary clamp, butt-weld, i-line or others on request. |
Guard | polycarbonate guard (protects from being broken or damaged) |
Seal material | PTFE, silicone,EPDM |
Studs and Nuts | AISI 304 |
| Flange | AISI304, AISI 316L |
Pressure | - up to 10 bar |
Temperature | - up to 250 F. |
Features
●Clarity, visibility
● leak resistance
● Compatibility
● Durability
● Ease of maintenance
● Safety, quality control and assurance
● Corrosion
● Erosion monitoring.
● High precise
Application
These are used in various industrial applications like chemical processing, pharmaceutical manufacturing, food industry, beverage, dairy, pharmacy, chemical, oil and gas industry, power generation, hygiene industry, laboratory equipments and others.
··
