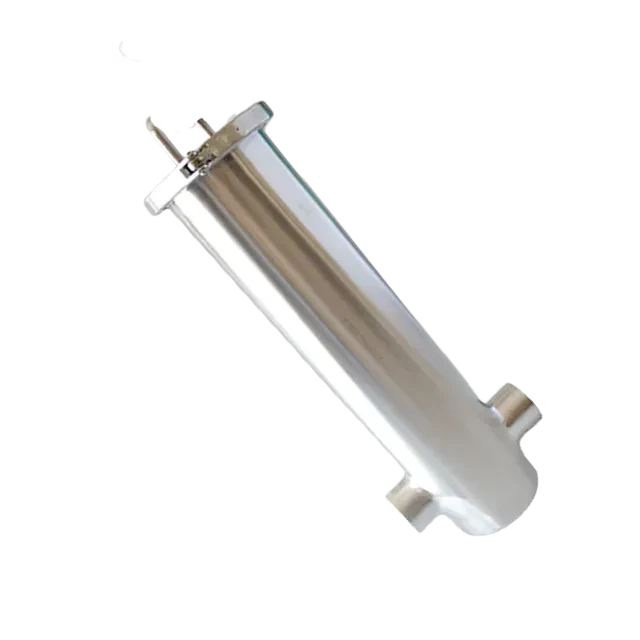

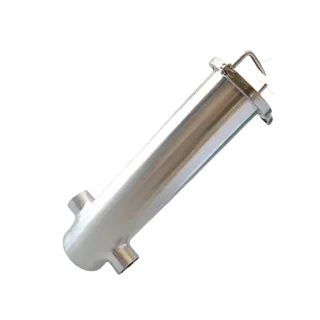

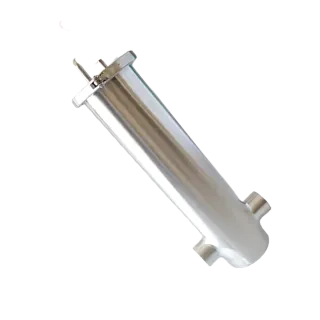

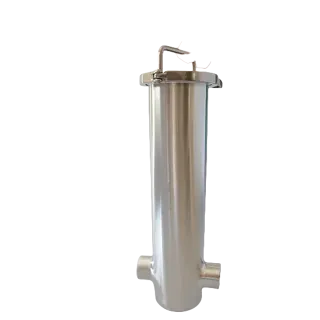

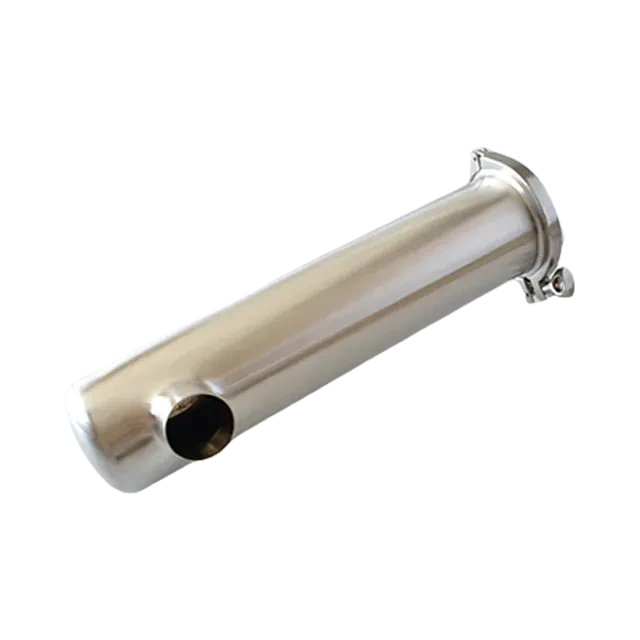

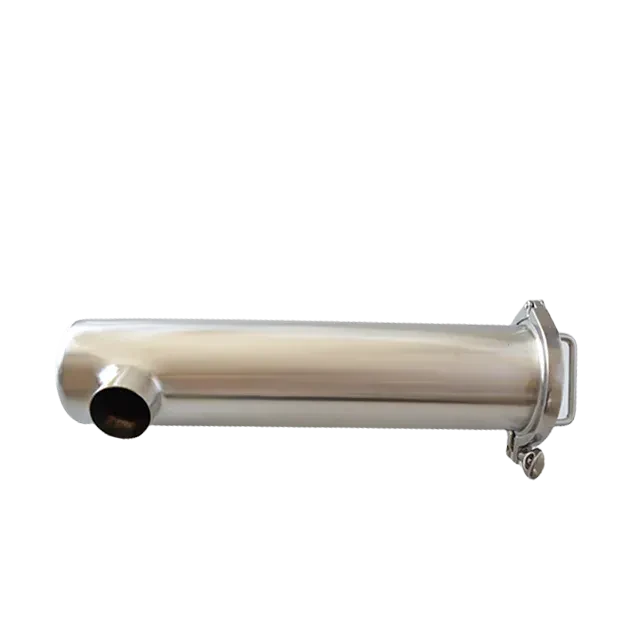

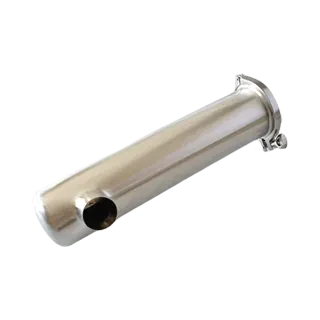

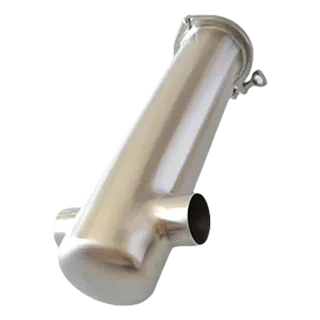

Stainless Steel Sanitary Single Core T-type Single Cartridge Filter

The working principle of the stainless steel sanitary T-type filter is to mechanically intercept and separate the fluid through the built-in filter. When the fluid enters the filter, it flows along the inlet pipe to the filter. The filter intercepts the particulate impurities or suspended matter in the liquid according to its pore size, and the pure liquid flows out from the outlet after passing through the filter. The intercepted impurities are retained inside the filter, and the filter needs to be cleaned or replaced regularly.

The options of the stainless steel sanitary T-type filter include:

Material: 304, 316L stainless steel.

Connection method: quick installation, thread, flange.

Filtration accuracy: 10μm to 500μm.

Surface treatment: polishing, brushing.

Size specification: customized according to the pipe diameter requirements (such as DN15-DN100).

Filter type: single layer, multi-layer, sintered mesh.

• The inner and outer surfaces of the stainless steel sanitary T-type filter are mirror-polished, with low surface roughness to reduce impurity accumulation.
• The stainless steel sanitary T-type filter provides a variety of filter screens with different precisions (10μm, 25μm, 50μm, etc.) to meet different filtering needs.
• The structure of the stainless steel sanitary T-type filter adopts a modular design, and the filter element and filter screen can be quickly disassembled, cleaned and replaced.
• The stainless steel sanitary T-type filter adopts a T-shaped structure design, and the fluid flows through the diversion and then flows out after passing through the filter screen.
• The stainless steel sanitary T-type filter adopts high-strength stainless steel, and the filter screen and structural parts have good pressure resistance and wear resistance.
• The stainless steel sanitary T-type filter has a simple design, easy disassembly and assembly, and is easy to clean and maintain regularly.

Stainless steel sanitary T-type filters are used in the following industries: Food industry: filter impurities in liquids such as juice and milk. Beverage industry: remove solid particles in beverages to ensure quality. Pharmaceutical industry: filter liquid medicine to ensure sterility and purity. Dairy industry: remove impurities in emulsions to ensure quality. Cosmetics industry: filter lotions, emulsions, etc. to ensure no impurities. Water treatment industry: purify water sources and remove suspended matter and impurities in water.
