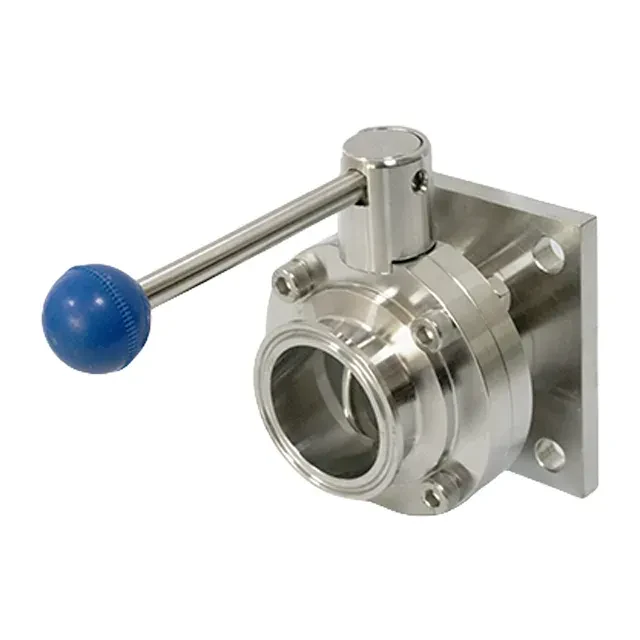

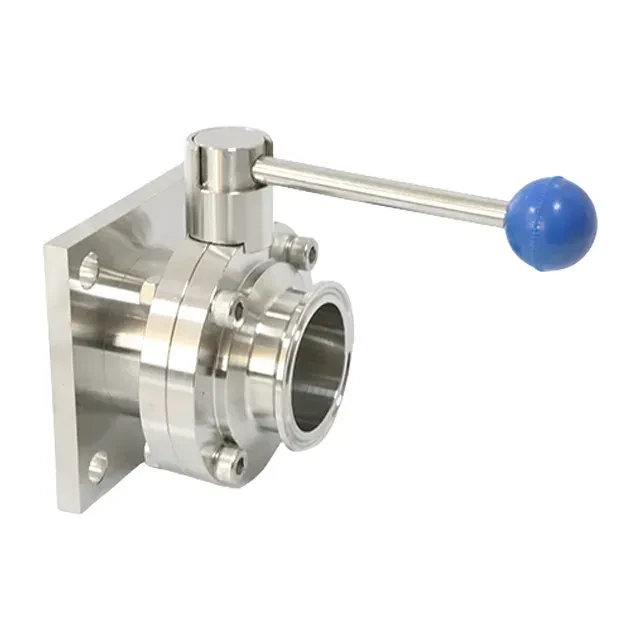

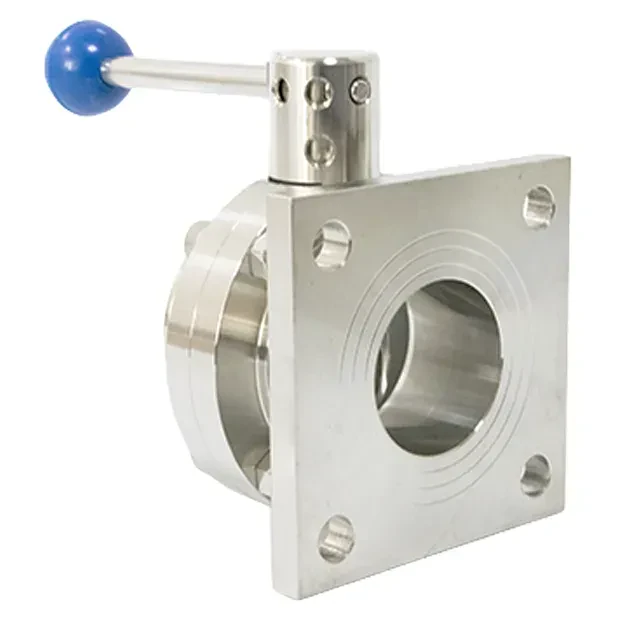

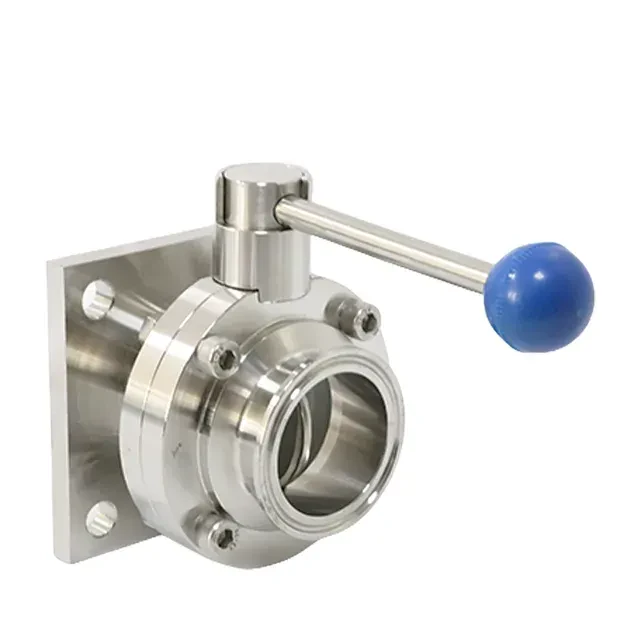

Flange-Clamped Sanitary Stainless Steel Manual Lever Butterfly Valve

The pneumatic actuator with a single spring return design or double air acting design. The compressed air pushes the core piston in the pneumatic actuator to compress downward to drive the rotary head so that the rotary head rotate 90 degree, and the square core is connected with the pneumatic actuator and valve disc to drive the valve to be open and close. The valve is opened or closed according to the flow of the control medium in the pipeline

The butterfly disk is installed in the diameter direction of the pipeline. When the butterfly valve in the pipeline, the disk rotates around the axis line, and the rotation angle range is between 0-90 degree. When the valve does not rotate at 0 degree, the valve disk is closed. When the valve rotates to 90 degree, the valve disk is opened absolutely.

       Sanitary outside polish (Ra ≤1.6 μm)

Valve parts

• Seats and seals comply with FDA approved
• Special gasket design, fluid free of residue
• Better acid proof, alkali proof
• Small torque, light weight,simple structure
• 360 degree installation
• 100% tested and inspected
• Cost-efficient leakage protection
• More than thirty thousand safety test
• Low pressure losses
• Thorough cleaning,Hygienic exterior design
• Minimize turbulence and maximize fluid flow trough

Sanitary Butterfly valve widely use in low and medium viscosity liquid for food and beverage, beer, dairy, pharmaceutical etc with high precision and purity requirements industries.
