Vanne papillon

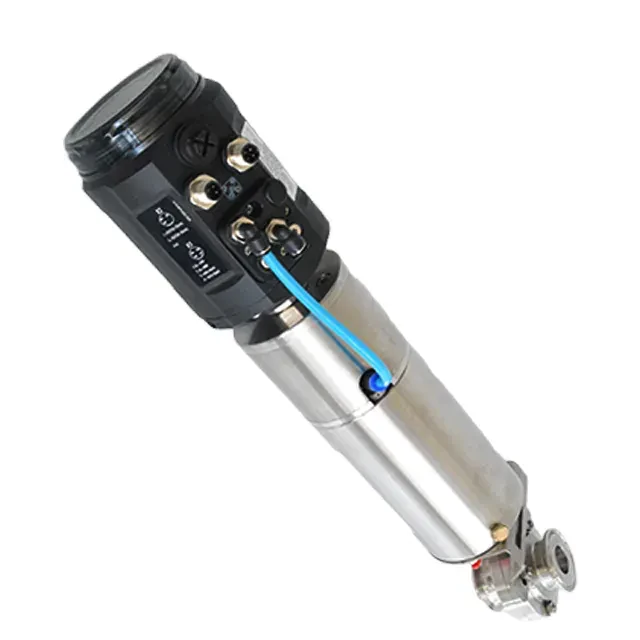

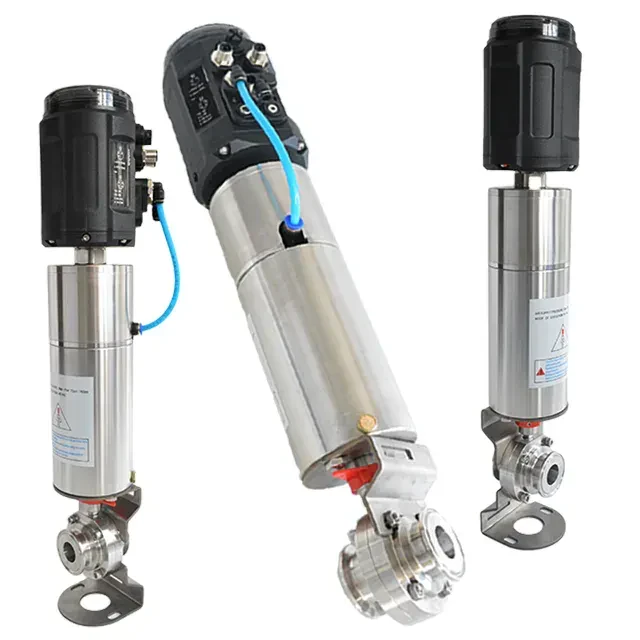

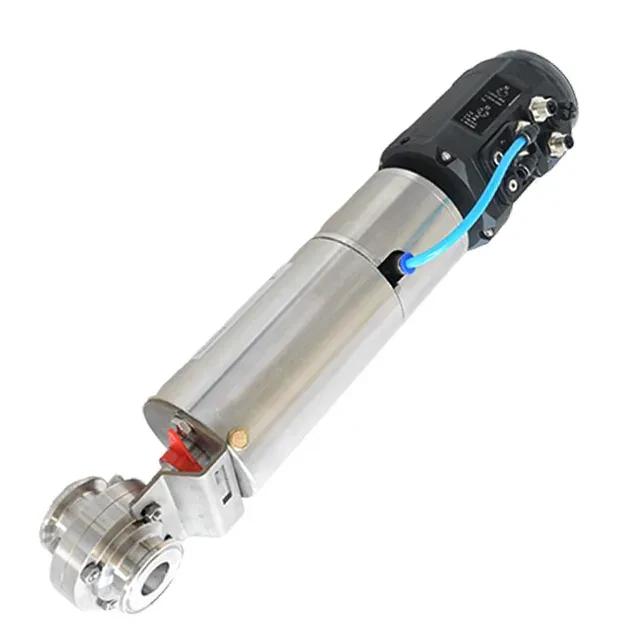

Stainless Steel Sanitary Pneumatic Butterfly Valve with Positioner Switch

Marque: JONENG
Référence: LD-535111498

Stainless Steel Sanitary Butterfly Valve is consist of four parts: handle, butterfly disc, sealing ring and valve flange. The butterfly valve can be controlled manually or with pneumatic actuator or electrical actuators. Not only simple in structure, low in material consumption, small in installation size, small in driving torque, easy and fast in operation, but also has good flow regulation function and closing and sealing characteristics at the same time.

The body of Sanitary threading butterfly valve use 304/316L stainless steel. Handles are in two materials, plastic or stainless steel. The sealing material will be EPDM or silicone or fluorine rubber as required.The inside and outside of the product are dealt with by high-grade polishing equipment to meet the brightness requirements.

Size	1”-4”, DN25-DN100
Working temperature	-10℃ to +120℃（EPDM）
Max. pressure	10bar（DN-25/100）
Min. pressure	0.2bar p.abs
Connection method	threaded
Body material	304stainless steel or 316 stainless steel
Seal material	EPDM,Silicone , Fluorine rubber
