Butterfly valve stem lift in a brewery

Where the valve sits

A brewery runs on transfers. Wort goes from the mash tun to the kettle, hot. Fermentation broth goes to maturation and sits there for weeks. Finished beer goes through filtration to the bottling hall. Every one of those moves is a valve opening and closing. Between the moves the same valve takes a caustic wash and a steam sterilisation.

Sanitary butterfly valves do most of that work. They are short and they barely restrict the flow. They open in a quarter turn, and they come apart in a minute for inspection. The lever-handled ones — the duckbill handles — are what you see standing in rows down a brewhouse. For the same reasons you see them in dairies, food plants and pharmaceutical suites.

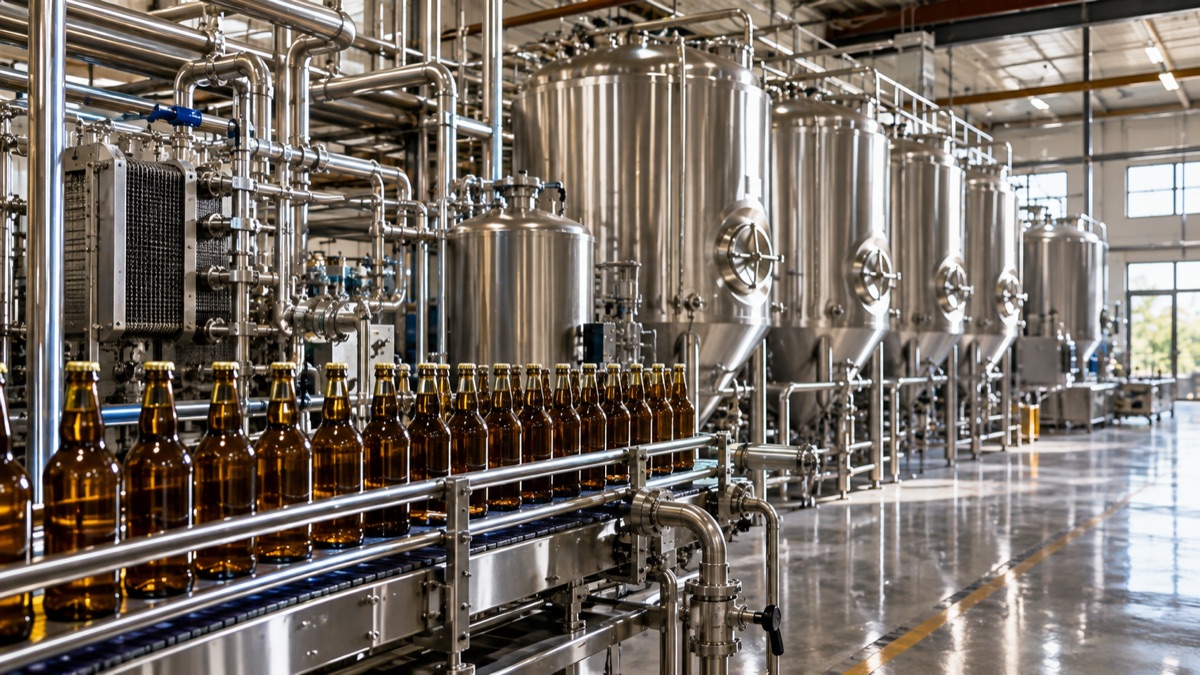

This customer is a Thai brewery running about 200,000 tonnes a year. The valves that gave trouble were on fermentation and on bottling, which are the two places on that line where a stop costs the most.

Why butterfly valve stem lift happens

A butterfly valve on brewing duty cycles constantly. It carries wort and fermentation broth against the disc all day, and it is thermally shocked twice a shift by CIP and SIP. After a year of that, the stems on the hardest-working valves began to move along their own axis rather than only turning about it.

Two things go wrong at once when a stem lifts. The seal between the body and the stem is designed to be held at a set compression. Let the stem rise and that compression falls, and media starts to find its way out around the stem. The lift also opens a gap at the joint between the stem and the disc. The disc no longer sits square in the seat. A disc even slightly off centre does not close on the full circumference of the seat. The valve then leaks through as well as past.

The brewery did not describe it in those terms. What it reported was beer where beer should not be. Handles gone stiff and occasionally jamming. Seals changed on valves less than a year old. The stiffness is the tell — a lifted stem raises operating torque, so this fault announces itself through the handle before anybody finds a puddle.

None of it stayed a valve problem for long. A weeping stem is a hygiene finding in a food safety audit. Residual sugars around a joint are exactly where an auditor expects to find something growing. And every seal change meant the line down, the section stripped, and cleaning validation run again before beer could move through it.

What we supplied

Sanitary butterfly valves with an anti-blowout stem, and a stem-to-disc joint made to fit rather than to clear.

The anti-blowout stem carries an axial limit inside the body. The stem can turn but it cannot climb, whatever the medium is doing and however many times a day it is cycled. Hold the stem in place and the seal below it stays at the compression it was designed to sit at. That removes the leak path rather than tightening against it.

The joint is the other half, and it is the half that gets skipped. A stem pinned through a disc has clearance by design, and clearance is free play for pressure to work on. Ours are machined on CNC and fitted. Stem and disc meet on a bearing face instead of through a hole and a pin. The disc sits where the stem says it sits, and torque stays smooth through the quarter turn. The sudden spikes that used to come from a shifted stem do not happen.

Both parts are checked the way everything here is checked. Stem and seat bores go against the drawing under dimensional inspection. The closed valve goes against its seat under pressure testing, before any of it ships.

What it changed

The stem lift stopped at the stations we supplied, and the fault chain running off it stopped with it.

Seals now go their intended life instead of being changed inside a year. The line is no longer taken down between brews for a job nobody planned. Operating torque came back to what a valve of that size should feel like. That is the brewery's own early warning that the fault has not returned. Fermentation and bottling hold their sequence, and the batch-to-batch consistency that kept slipping while valves were passing has settled.

Why this one came to us

A valve that holds its stem for five years is not a clever idea. It is a chain of unremarkable decisions nobody skipped.

We buy the way that requires. Supplier selection, enquiry, comparison, negotiation, incoming acceptance and return are a written procedure rather than a habit. A stem that walks usually started as bar stock that was not quite what the certificate said. Every incoming batch arrives with an inspection report. Anything on a special material has a first sample sealed and submitted before the rest is released to production. Chemical composition, mechanical properties and surface condition each have a number to meet.

Then the finished valve is pressure tested and leaves with its certificate. Bodies go out free of contamination, smooth, without cracks or burrs; flange faces without dents or scratches. Being difficult with a supplier about a screw is the cheapest way there is to be reliable to a brewery.

If your line is losing beer around a stem, it is worth checking whether the stem is still where it was fitted.
