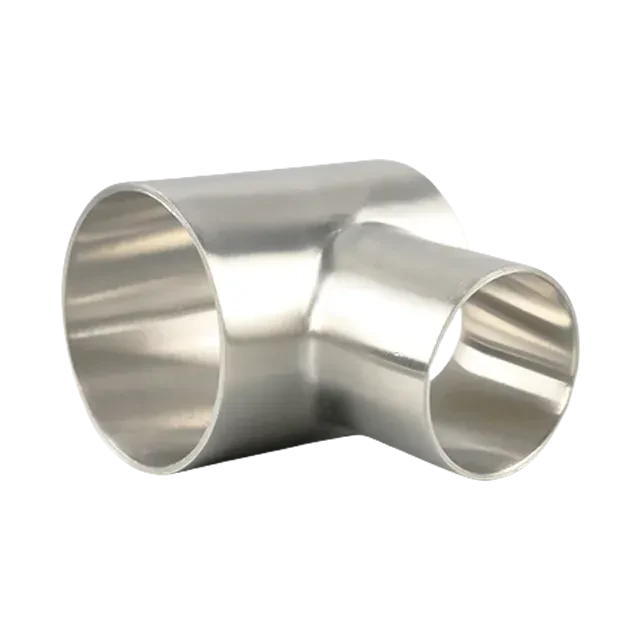

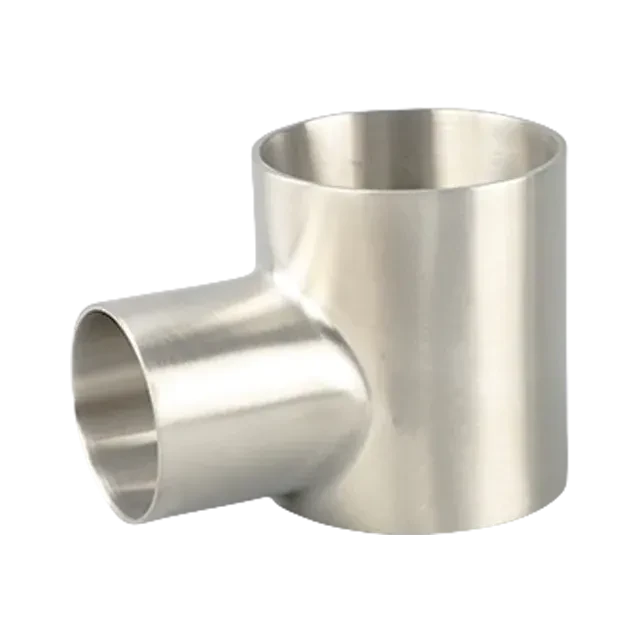

Tee

Stainless Steel Hygienic ISO L7WWW AS1528.3 Polished Three Way Tube Tee JN-FT-23 8007

Marca: JONENG
Modelo: JN-FT-23 8007
Referencia: LD-776278788

Stainless steel tee is a kind of pipe fittings, connecting with three pipes, changing the direction of the flowing direction. The most popular type is a straight pipe tee. Tees have two outlets from the main flow direction and there is also a third outlet in a 90degree direction way side. The reducing tee is also very common so we can connection the pipeline with different sizes of pipes.

Stainless Steel Hygienic ISO L7WWW Polished Three Way Tube Tee JN-FT-23 8007

Stainless steel elbow is a kind of pipe fittings, connecting with two pipes, changing the direction of the flowing direction. Normally there are 3 common angles, 45degree, 90degree, 180degree, but there are aslo some elbows are which can be 60degree, 70degree as per the requirement from the pipeline.

Material	SS304, SS316L
Size	1/4''-12''
Raw material standard	ASTM A-269, A-270
Connection	Welded end, Triclover end, Male, Female, Flange
Surface	Satin finish, Mirror polish, Vibrating surface, Pickled,EP, Sand Blasting
Standard	3A/SMS/DIN/ISO2037/ISO1127/AS1528/BS/BPE/IDF
Certificate	ISO, PED,FDA
Products Range	Elbow	90degree elbow, 45degree elbow, 180degree elbow
	Tee	equal tee, reducing tee

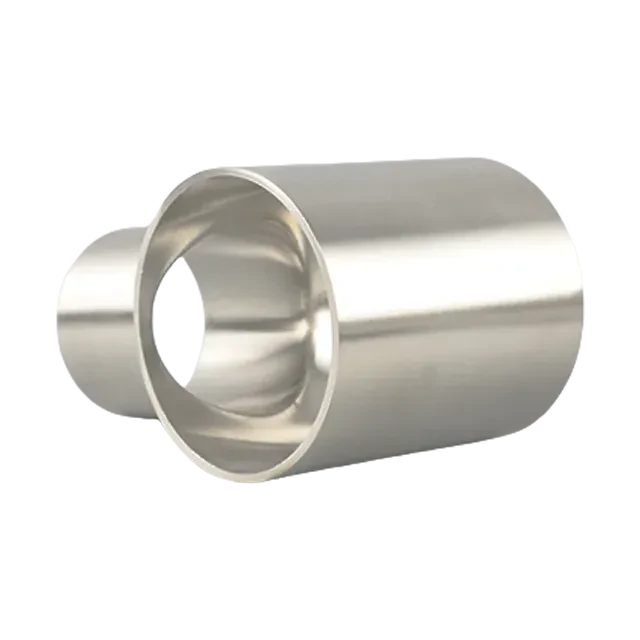

	Reducer	concentric reducer, eccentric reducer
Application	Food, Beverage,Phamacy, Dairy
