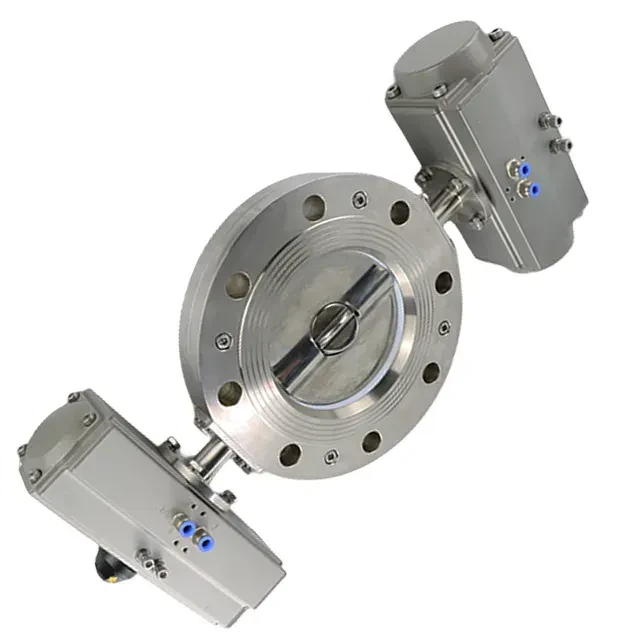

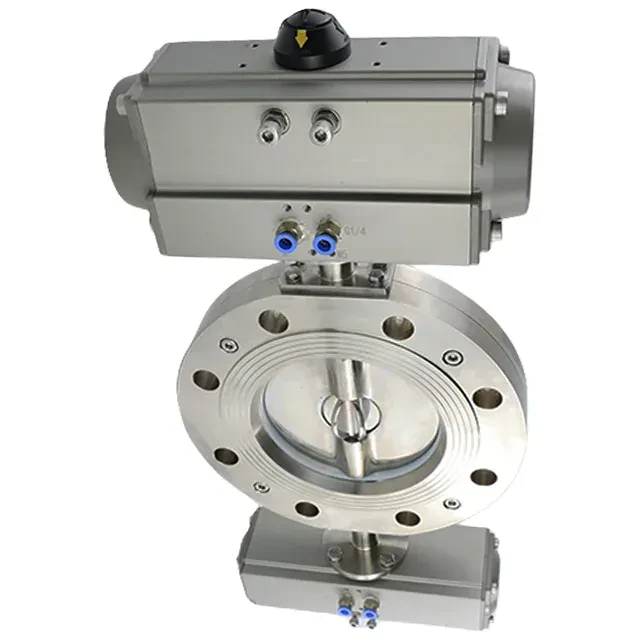

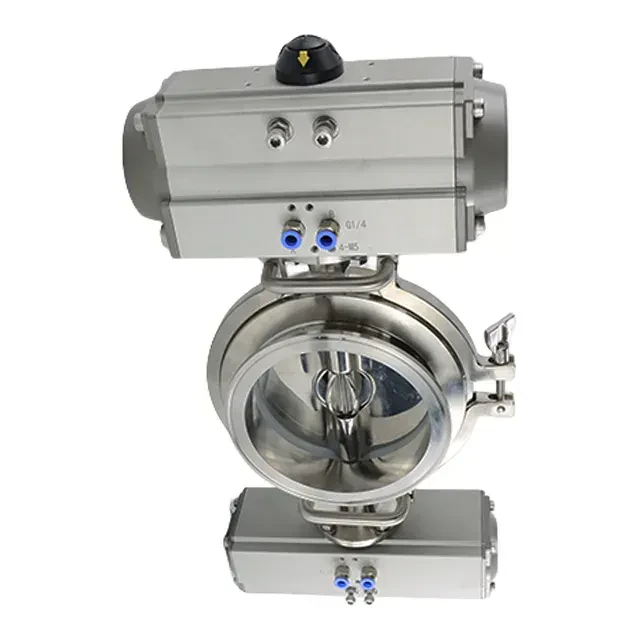

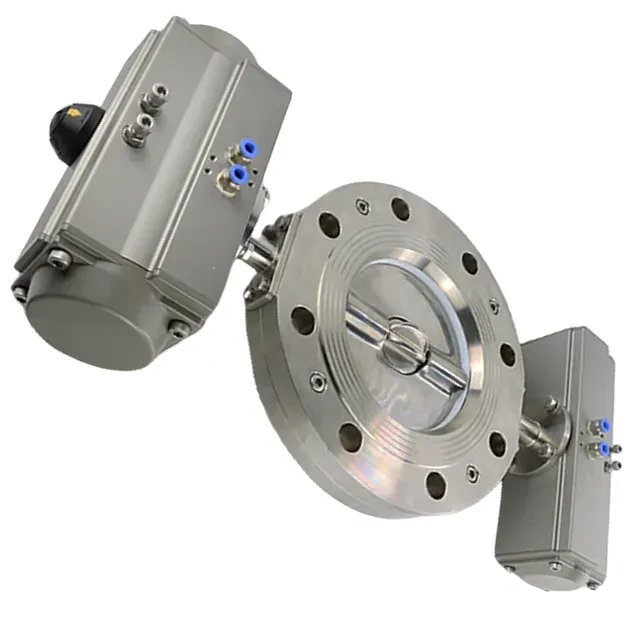

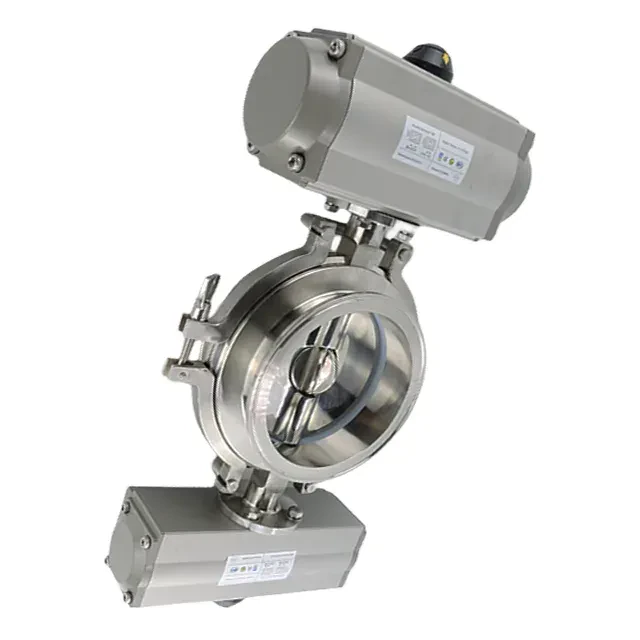

Stainless Steel Sanitary Double Dosing Vibrating Tri-Clamp Buttefly Valve

A sanitary stainless steel butterfly valve operates by positioning a disc in the middle of a pipeline to regulate fluid flow. The disc, mounted on a rotating shaft, blocks the passageway when the valve is closed. When open, the disc rotates a quarter turn, allowing fluid to pass. The valve’s operation is controlled by a handle or actuator, which can be manually or automatically adjusted. The flow of fluid can be modified by changing the disc’s angle. When the disc is parallel to the fluid flow, the valve is fully open, allowing maximum flow. Conversely, when the disc is perpendicular to the flow, the valve is closed, preventing flow.

Valve parts

• Seats and seals comply with FDA approved
• Special gasket design, fluid free of residue
• Better acid proof, alkali proof
• Small torque, light weight,simple structure
• 360 degree installation
• 100% tested and inspected
• Cost-efficient leakage protection
• More than thirty thousand safety test
• Low pressure losses
• Thorough cleaning,Hygienic exterior design
• Minimize turbulence and maximize fluid flow trough

Sanitary Butterfly valve widely use in low and medium viscosity liquid for food and beverage, beer, dairy, pharmaceutical etc with high precision and purity requirements industries.
