JN-BV 1009
JONENG
8481804090

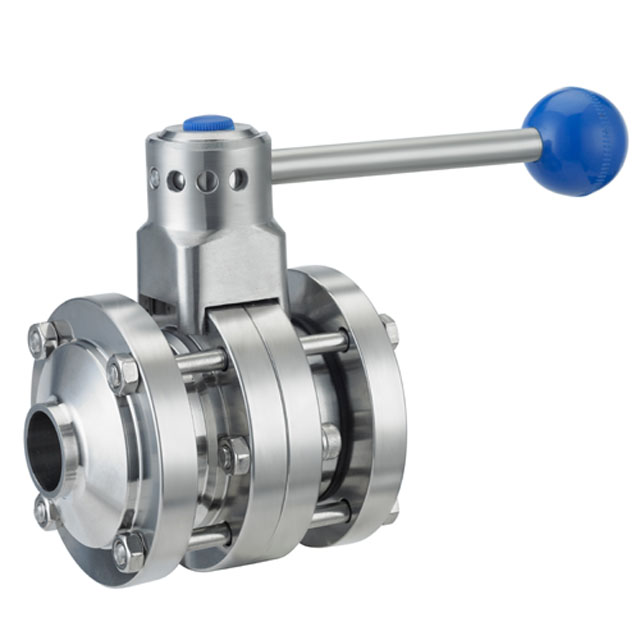

Stainless Steel Sanitary Three-piece Manual Butterfly Valve With Lever Handle
The design goal of the stainless steel sanitary three-piece manual butterfly valve with a lever handle is to meet the precise requirements for fluid control while ensuring strict standards for sanitation levels. Through the three-piece structure, it provides the advantages of easy disassembly, cleaning and maintenance, avoiding dead corners in traditional valve designs and reducing pollution accumulation. The design of the lever handle makes the operation simple and intuitive. It is not only suitable for occasions that require frequent switching operations, but also maintains stability in extreme working environments. The valve's sealing and corrosion resistance enable it to cope with the high hygiene requirements of the food, beverage and pharmaceutical industries, ensuring that the fluid flows without contamination and meets industry standards.
Working Principles
The working principle of the stainless steel sanitary three-piece manual butterfly valve with lever handle is based on the rotation of the butterfly plate to control the flow of fluid. During operation, the lever handle is connected to the valve stem to drive the valve stem to rotate, causing the valve plate to rotate accordingly. When the valve is open, the butterfly plate is parallel to the pipeline axis and the fluid can pass freely; when closed, the butterfly plate rotates to be perpendicular to the flow direction, completely blocking the fluid channel.
The options for the stainless steel sanitary three-piece manual butterfly valve with lever handle include:
Sealing material: EPDM, PTFE, FPM, etc.
Connection method: welding, threaded, flange connection.
Valve body material: 304 stainless steel, 316L stainless steel.
Operation method: manual lever, handle locking function.
Valve plate shape: round, butterfly, etc.
Pressure level: Designed to suit different pressure ranges.
Specification Chart
Working Pressure | 10 Bar (Max. Pressure is 16bar for but welded connection in small sizes |
Working temperature | -10ºC TO + 120ºC |
Size | 1/2”-12”, DN15-DN300 |
Grade | AISI304 and AISI316L |
FDA approved gaskets in silicone, EPDM, viton, PTFE | |
Connection | Clamp, Weld, Thread,male threaded; female threaded; flange end;union connection |
Surface | Sanitary inside polish (Ra ≤ 0.8 μm) |
Sanitary outside polish (Ra ≤1.6 μm) | |
Standard | ISO, 3A, SMS, RJT, DIN and so on |
Butterfly valve disc and body is made from forging | |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. |
Valve parts
Body | Stainless steel AISI316L or AISI 304 (1.4301/1.4404) |
Disc | AISI304 or AISI316L |
Pull-position handle | Stainless Steel Material, Round type or square type |
Multi-position Gripper Handle | ABS gripper handle, SS gripper handle, 2/3/4/12 positions to adjustment, Universal type |
Gasket | EPDM, VITON(FPM), Silicone, different color is available |
Bushing | EPDM or PTFE, other material request |
Nut | Stainless Steel 304 or 316 Material or other request |
Bolt | Stainless Steel 304 or 316 Material or other request |
Features
● The stainless steel sanitary three-piece manual butterfly valve with a lever handle adopts a unique three-piece structure design, which divides the valve body into three detachable parts: the flanges at both ends and the middle valve body part.
● The stainless steel sanitary three-piece manual butterfly valve with a lever handle adopts a dead zone-free fluid channel design in the valve body to ensure that there are no dead corners or stagnant areas where liquid accumulates when flowing in the valve.
● The stainless steel sanitary three-piece manual butterfly valve with a lever handle adopts an optimized valve plate and flow channel design to ensure the smoothness of the fluid channel, reduce fluid resistance, and improve flow control accuracy.
● The stainless steel sanitary three-piece manual butterfly valve with a lever handle is equipped with a special high-temperature resistant seal that can maintain long-term stable sealing performance in a high temperature environment.
● The inner and outer surfaces of the stainless steel sanitary three-piece manual butterfly valve with a lever handle are mirror-polished to reduce the surface roughness of dirt and bacteria adhesion and maintain the high cleanliness of the pipeline system.
● The stainless steel hygienic three-piece manual butterfly valve with a pull rod handle adopts a double sealing system, which effectively prevents liquid leakage from the valve stem through the double protection of the inner and outer sealing rings and the valve stem.
Application
The stainless steel sanitary three-piece manual butterfly valve with lever handle is mainly used in industries with high requirements for hygiene standards. The following are several typical industries. Food processing: control fluid flow to ensure that the production environment meets hygiene standards. Beverage production: regulate beverage flow to prevent contamination and ensure cleanliness and hygiene. Dairy products: control emulsion flow to ensure that pipes and valves are clean and free of residue. Pharmaceutical industry: regulate liquid delivery to meet strict hygiene requirements. Biopharmaceuticals: control the flow of raw materials to ensure no pollution and ensure stable production. Chemical industry: used for fluid control to ensure high standards of cleanliness and safety requirements.
