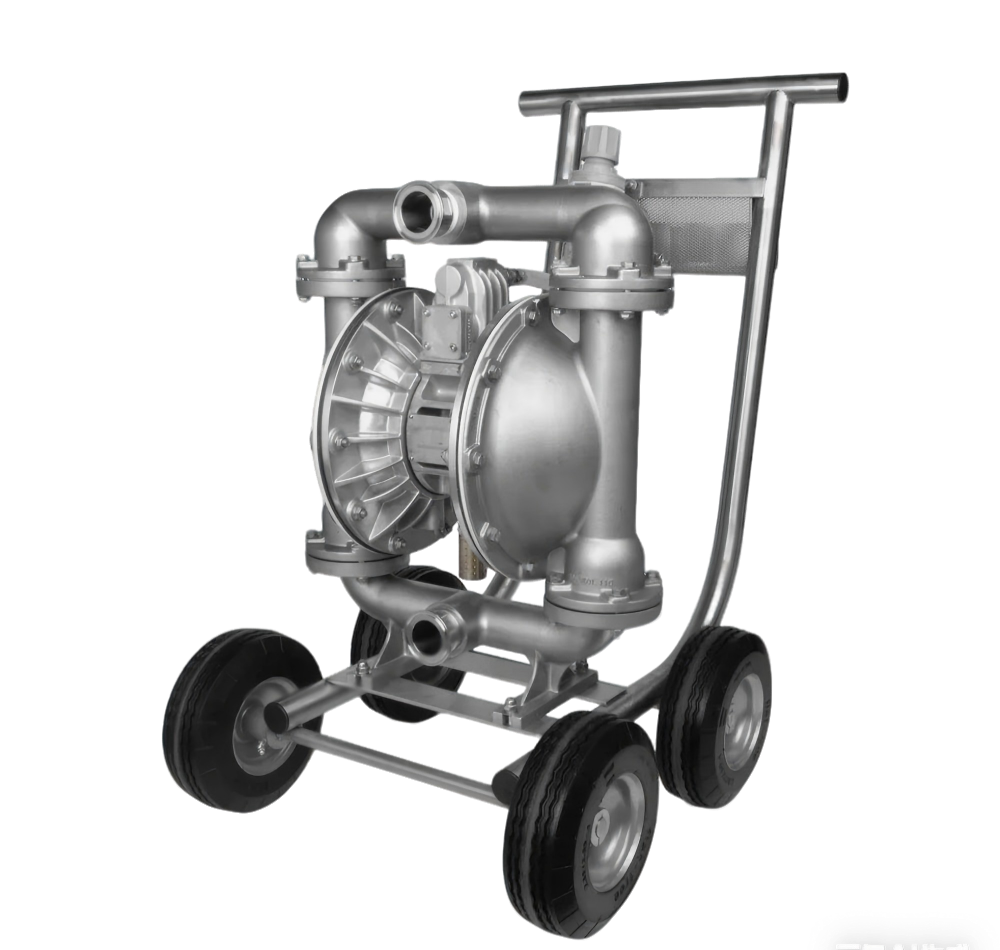

The SS316L stainless steel high-suction slurry electric/battery-powered Aro diaphragm pump is available in pneumatic and electric versions, with various flow rates and heads. Made of 316L corrosion-resistant stainless steel, it features high suction head, corrosion resistance, stable delivery, and easy maintenance.
The SS316L stainless steel Aro diaphragm pump for high-suction chemical slurries is an electric/battery-powered pump that uses an electric or battery-powered drive mechanism to reciprocate the diaphragm for liquid transfer. When the diaphragm moves outward, the pump chamber volume increases, allowing liquid to enter the pump body from the suction inlet; when the diaphragm moves inward, the liquid is forced out of the pump outlet. A check valve inside the pump body controls the flow direction, ensuring the medium flows in the specified direction and preventing backflow. The high suction head design maintains a stable flow rate even at low liquid levels or long transport distances. The diaphragm isolates the medium from the drive components, preventing leakage and contamination. It is suitable for transferring corrosive, high-viscosity, or solid particle-containing slurries in chemical and industrial liquid transfer applications.
Max. flow rate | 50m3/h |
Frequency | 50HZ/60HZ |
Max. pressure | 8 bar |
Max. temperature | 110°C |
Material | SS304/SS316L |
| Inlet/outlet connection | Clamp, Weld, Flange |
| Inlet/outlet size | 1”-3” |
| Diaphragm | PTFE, PTFE with white back, EPDM, white EPDM, white NBR |
| Driving way | Air or Motor |
Constructed from SS316L stainless steel, providing excellent corrosion resistance and durability for handling aggressive chemical slurries and liquids.
High suction head design enables efficient liquid transfer from low-level tanks or long suction distances without cavitation issues.
Electric or battery-powered operation allows flexible deployment in areas without compressed air, supporting mobile or remote applications.
Diaphragm-driven mechanism isolates fluid from moving parts, preventing contamination and ensuring safe, leak-free operation.
Easy maintenance and robust construction ensure long service life, reliable performance, and minimal downtime in demanding industrial environments.
The SS316L stainless steel Aro diaphragm pump, a high-suction slurry pump for chemical applications, is widely used in the chemical industry for conveying acid and alkali solutions, corrosive slurries, and solvents; in the mining and slurry treatment industry for handling high-viscosity slurries; and in the environmental protection and water treatment fields for conveying sewage or liquids containing solid particles, ensuring safe and stable transport.
Working Principles
The SS316L stainless steel Aro diaphragm pump for high-suction chemical slurries is an electric/battery-powered pump that uses an electric or battery-powered drive mechanism to reciprocate the diaphragm for liquid transfer. When the diaphragm moves outward, the pump chamber volume increases, allowing liquid to enter the pump body from the suction inlet; when the diaphragm moves inward, the liquid is forced out of the pump outlet. A check valve inside the pump body controls the flow direction, ensuring the medium flows in the specified direction and preventing backflow. The high suction head design maintains a stable flow rate even at low liquid levels or long transport distances. The diaphragm isolates the medium from the drive components, preventing leakage and contamination. It is suitable for transferring corrosive, high-viscosity, or solid particle-containing slurries in chemical and industrial liquid transfer applications.
Specification Chart
Max. flow rate | 50m3/h |
Frequency | 50HZ/60HZ |
Max. pressure | 8 bar |
Max. temperature | 110°C |
Material | SS304/SS316L |
| Inlet/outlet connection | Clamp, Weld, Flange |
| Inlet/outlet size | 1”-3” |
| Diaphragm | PTFE, PTFE with white back, EPDM, white EPDM, white NBR |
| Driving way | Air or Motor |
Features
Constructed from SS316L stainless steel, providing excellent corrosion resistance and durability for handling aggressive chemical slurries and liquids.
High suction head design enables efficient liquid transfer from low-level tanks or long suction distances without cavitation issues.
Electric or battery-powered operation allows flexible deployment in areas without compressed air, supporting mobile or remote applications.
Diaphragm-driven mechanism isolates fluid from moving parts, preventing contamination and ensuring safe, leak-free operation.
Easy maintenance and robust construction ensure long service life, reliable performance, and minimal downtime in demanding industrial environments.
Application
The SS316L stainless steel Aro diaphragm pump, a high-suction slurry pump for chemical applications, is widely used in the chemical industry for conveying acid and alkali solutions, corrosive slurries, and solvents; in the mining and slurry treatment industry for handling high-viscosity slurries; and in the environmental protection and water treatment fields for conveying sewage or liquids containing solid particles, ensuring safe and stable transport.
