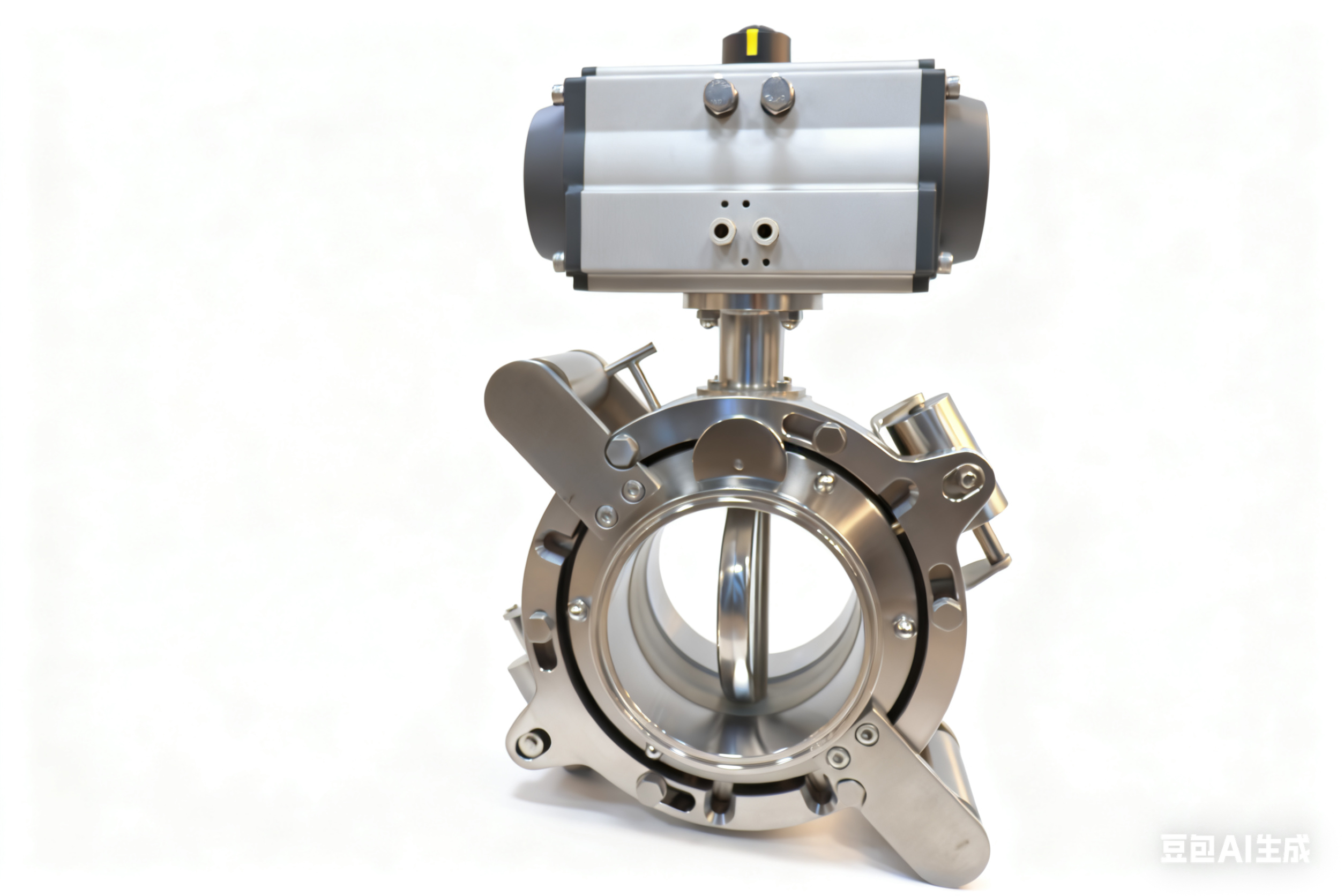

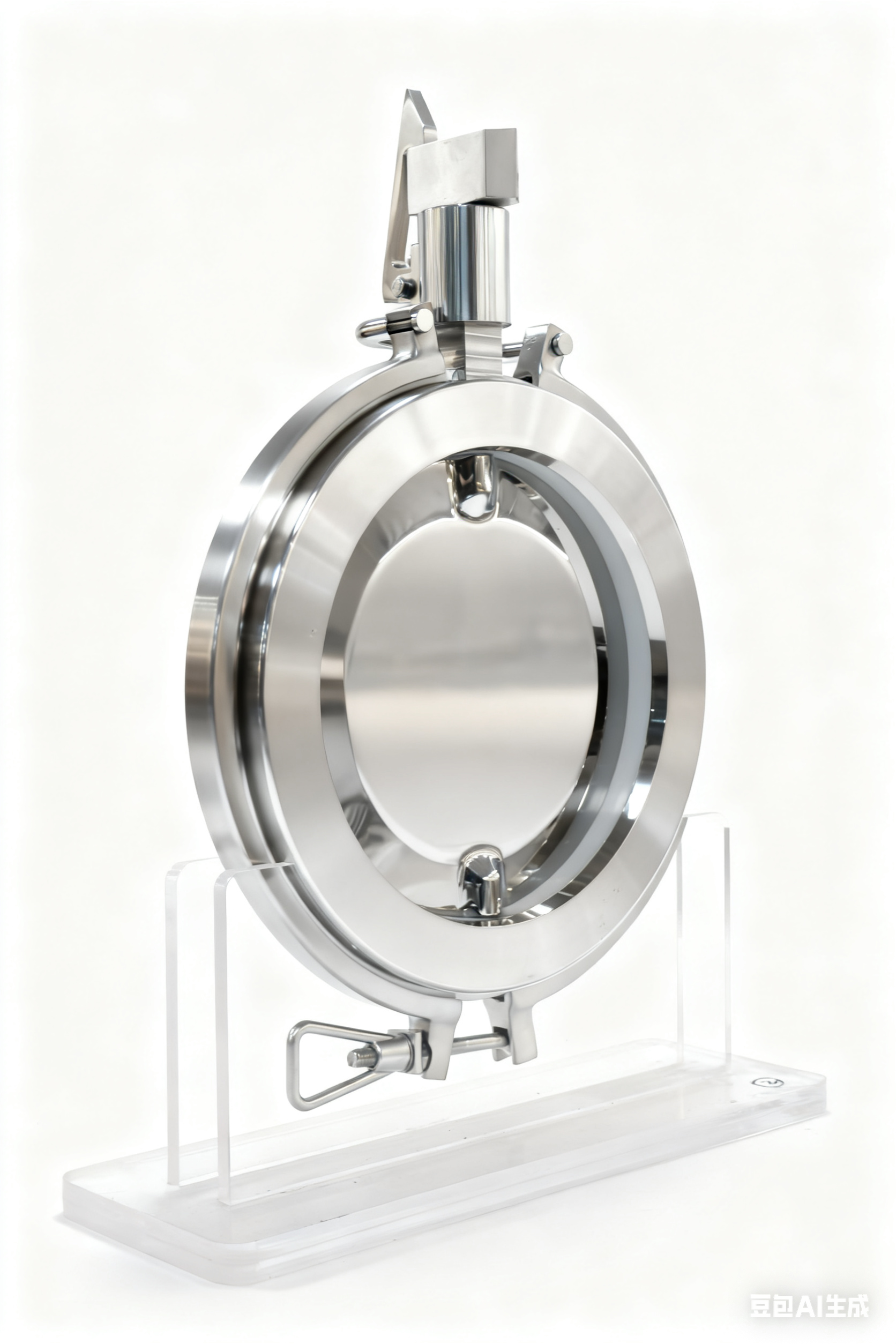

Stainless Steel Clamped Hastelloy Pneumatic wafer Butterfly Valve
A Stainless Steel Clamped Hastelloy Pneumatic Wafer Butterfly Valve is a corrosion-resistant hygienic flow-control device designed for tight spaces and demanding media. It uses a pneumatic actuator to rotate a disc within a wafer-style body, providing rapid, reliable shutoff and smooth regulation in sanitary or chemically aggressive environments.
Working Principles
This 6-inch stainless steel PVC clamp-type solenoid butterfly valve uses a solenoid coil to control the rotation of the valve plate, thus opening and closing the pipeline medium. When the solenoid coil is energized, the magnetic force pushes the valve stem to rotate the butterfly plate, opening the valve and allowing the medium to flow smoothly. When the power is off, a spring or reset mechanism drives the butterfly plate to close, pressing the butterfly plate against the valve seat to form a seal and prevent medium leakage. The valve body is made of a combination of PVC and stainless steel, and the clamp connection allows for quick and easy installation and disassembly. It is suitable for automated control and remote operating systems of water treatment, beverage, food, and chemical liquid pipelines, and features a compact structure and corrosion resistance.
Stainless Steel Butterfly Valve Specification Chart
Working Pressure | 10 Bar (Max. Pressure is 16bar for but welded connection in small sizes |
Working temperature | -10ºC TO + 120ºC |
Size | 1/2”-12”, DN15-DN300 |
Grade | AISI304 and AISI316L |
FDA approved gaskets in silicone, EPDM, viton, PTFE | |
Connection | Clamp, Weld, Thread,male threaded; female threaded; flange end;union connection |
Surface | Sanitary inside polish (Ra ≤ 0.8 μm) |
Sanitary outside polish (Ra ≤1.6 μm) | |
Standard | ISO, 3A, SMS, RJT, DIN and so on |
Butterfly valve disc and body is made from forging | |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. | |
Required compressed air | 4-8Bar |
Connection of compressed air | G 1/8’’ |
Limit switch | 6-36V, DC 2nos of NPN or PNP( to be chose |
Features
Corrosion-Resistant Hastelloy Body – Provides exceptional durability and chemical resistance, ideal for aggressive or high-purity media.
Pneumatic Actuator – Enables fast, automated opening and closing, reducing manual intervention and improving process efficiency.
Wafer-Style Compact Design – Lightweight and space-saving, allowing easy installation between standard pipeline flanges without full disassembly.
Leak-Proof Sealing – Precision-engineered seats and disc ensure reliable shutoff and maintain sanitary integrity in hygienic systems.
Sanitary Surface Finish – Smooth, crevice-free internal surfaces minimize contamination risk and support cleaning-in-place (CIP) procedures.
Versatile Industry Use – Suitable for chemical, pharmaceutical, food, and biotech applications requiring high-performance, corrosion-resistant flow control
Application
Stainless steel 6-inch PVC clamp-type solenoid butterfly valves are widely used in water treatment, food processing, beverage bottling, and chemical pipeline systems. For example, in drinking water pipelines, they are used for automatic flow control; in food processing plants, they enable remote switching and precise flow control when transporting liquid raw materials, while ensuring system hygiene and corrosion resistance.
Working Principles
This 6-inch stainless steel PVC clamp-type solenoid butterfly valve uses a solenoid coil to control the rotation of the valve plate, thus opening and closing the pipeline medium. When the solenoid coil is energized, the magnetic force pushes the valve stem to rotate the butterfly plate, opening the valve and allowing the medium to flow smoothly. When the power is off, a spring or reset mechanism drives the butterfly plate to close, pressing the butterfly plate against the valve seat to form a seal and prevent medium leakage. The valve body is made of a combination of PVC and stainless steel, and the clamp connection allows for quick and easy installation and disassembly. It is suitable for automated control and remote operating systems of water treatment, beverage, food, and chemical liquid pipelines, and features a compact structure and corrosion resistance.
Feature and Specification
Stainless Steel Butterfly Valve Specification Chart
Working Pressure | 10 Bar (Max. Pressure is 16bar for but welded connection in small sizes |
Working temperature | -10ºC TO + 120ºC |
Size | 1/2”-12”, DN15-DN300 |
Grade | AISI304 and AISI316L |
FDA approved gaskets in silicone, EPDM, viton, PTFE | |
Connection | Clamp, Weld, Thread,male threaded; female threaded; flange end;union connection |
Surface | Sanitary inside polish (Ra ≤ 0.8 μm) |
Sanitary outside polish (Ra ≤1.6 μm) | |
Standard | ISO, 3A, SMS, RJT, DIN and so on |
Butterfly valve disc and body is made from forging | |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. | |
Required compressed air | 4-8Bar |
Connection of compressed air | G 1/8’’ |
Limit switch | 6-36V, DC 2nos of NPN or PNP( to be chose |
Features
Corrosion-Resistant Hastelloy Body – Provides exceptional durability and chemical resistance, ideal for aggressive or high-purity media.
Pneumatic Actuator – Enables fast, automated opening and closing, reducing manual intervention and improving process efficiency.
Wafer-Style Compact Design – Lightweight and space-saving, allowing easy installation between standard pipeline flanges without full disassembly.
Leak-Proof Sealing – Precision-engineered seats and disc ensure reliable shutoff and maintain sanitary integrity in hygienic systems.
Sanitary Surface Finish – Smooth, crevice-free internal surfaces minimize contamination risk and support cleaning-in-place (CIP) procedures.
Versatile Industry Use – Suitable for chemical, pharmaceutical, food, and biotech applications requiring high-performance, corrosion-resistant flow control
Application
The Stainless Steel Clamped Hastelloy Pneumatic Wafer Butterfly Valve is commonly used in industries requiring corrosion-resistant, automated flow control. Typical applications include chemical processing for acids and solvents, pharmaceutical and biotech production for sterile fluids, and food or beverage processing where compact, hygienic, and reliable valves are essential.
