JONENG
Stainless steel butterfly valves are available in manual, gear-operated, or electric types, materials 304/316L, wafer or lug style, featuring anti-mixing design, visual position indicator, corrosion resistance, tight sealing, and durable construction.

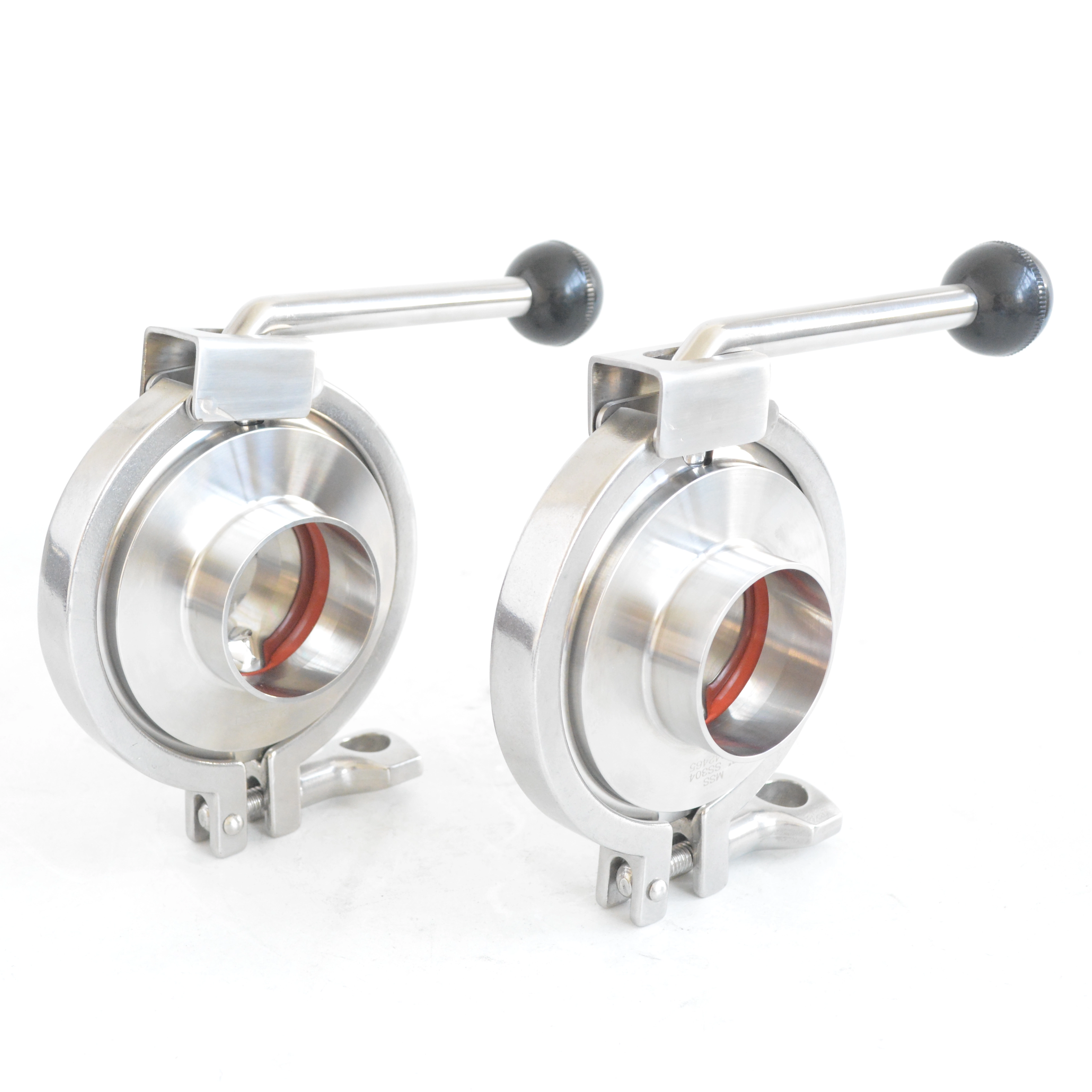

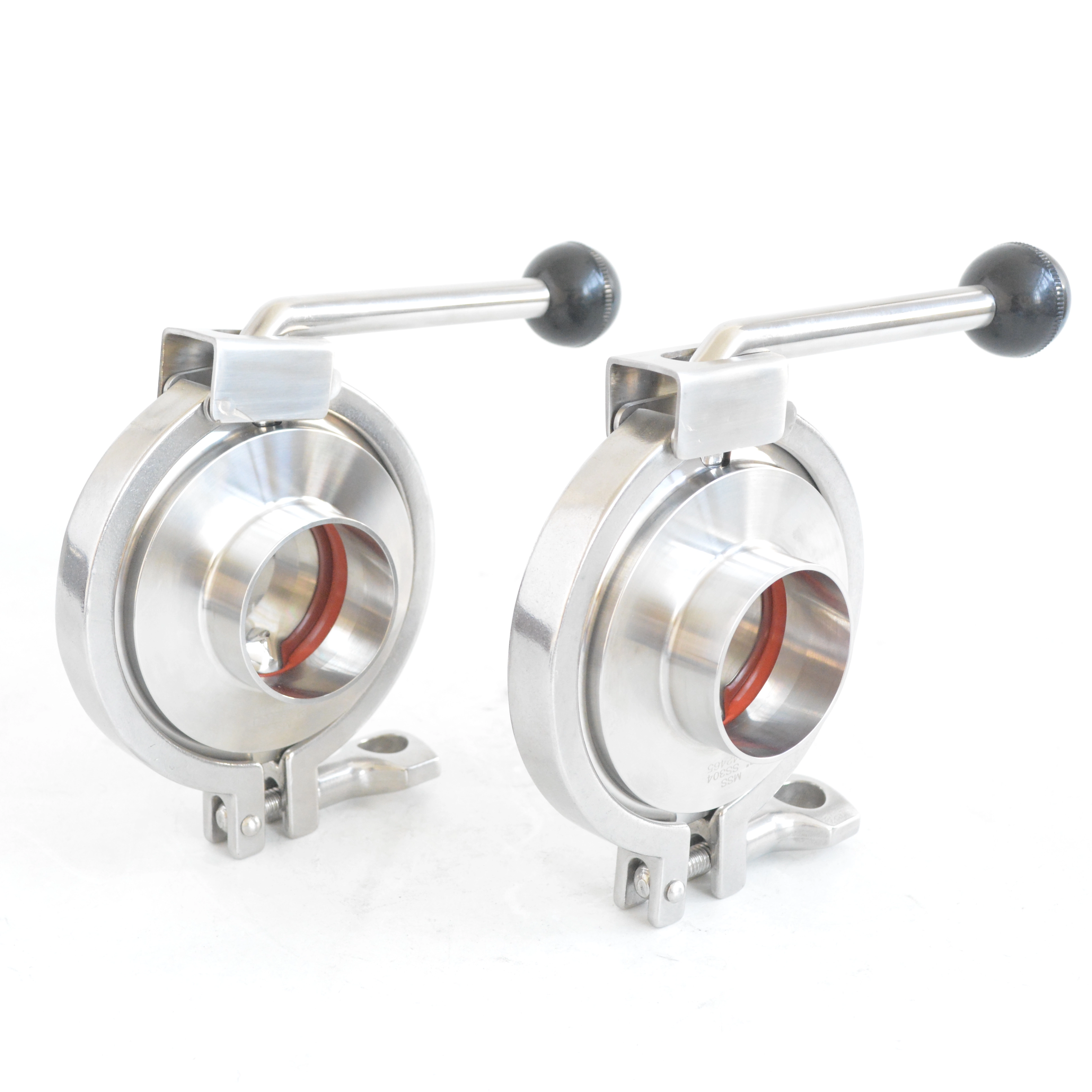

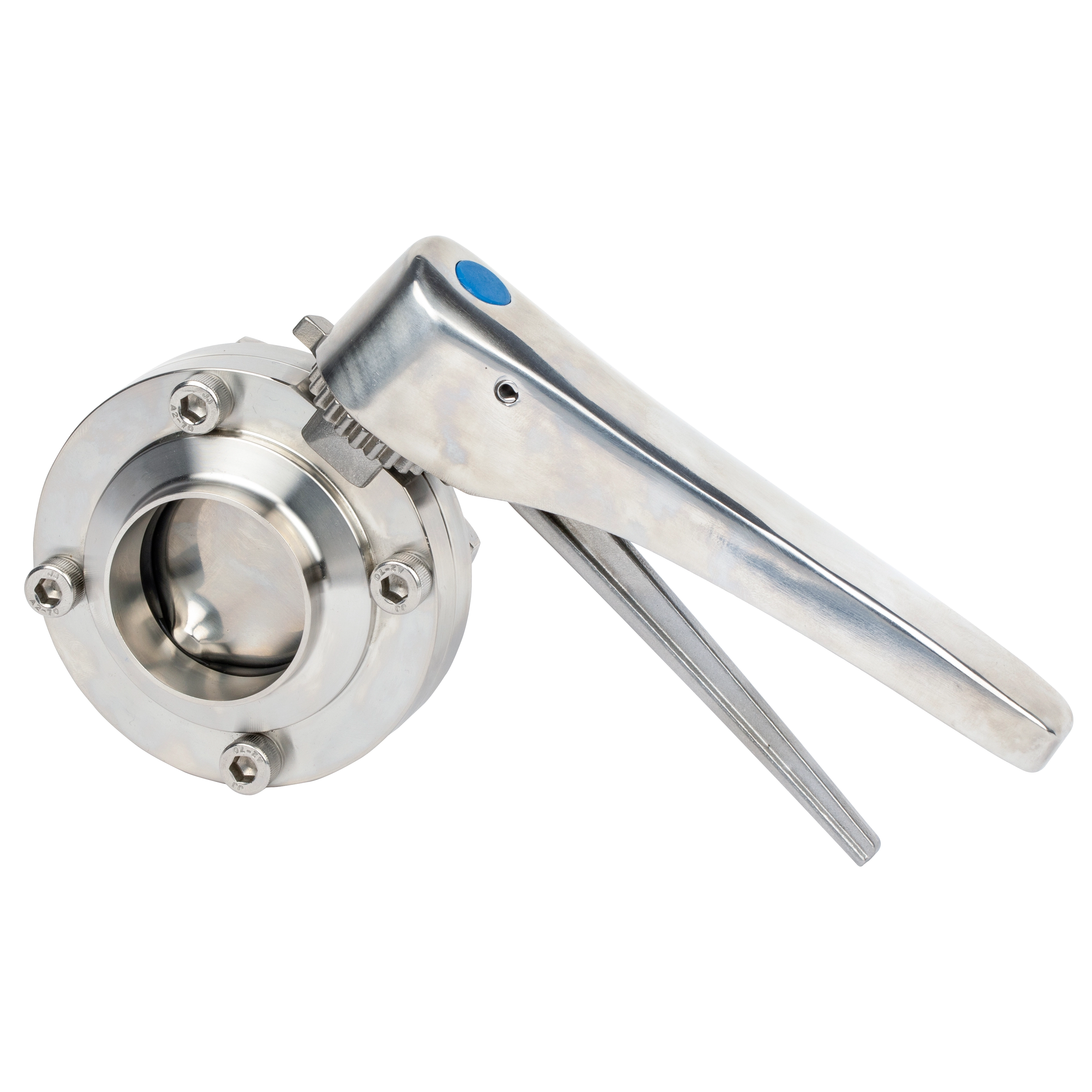

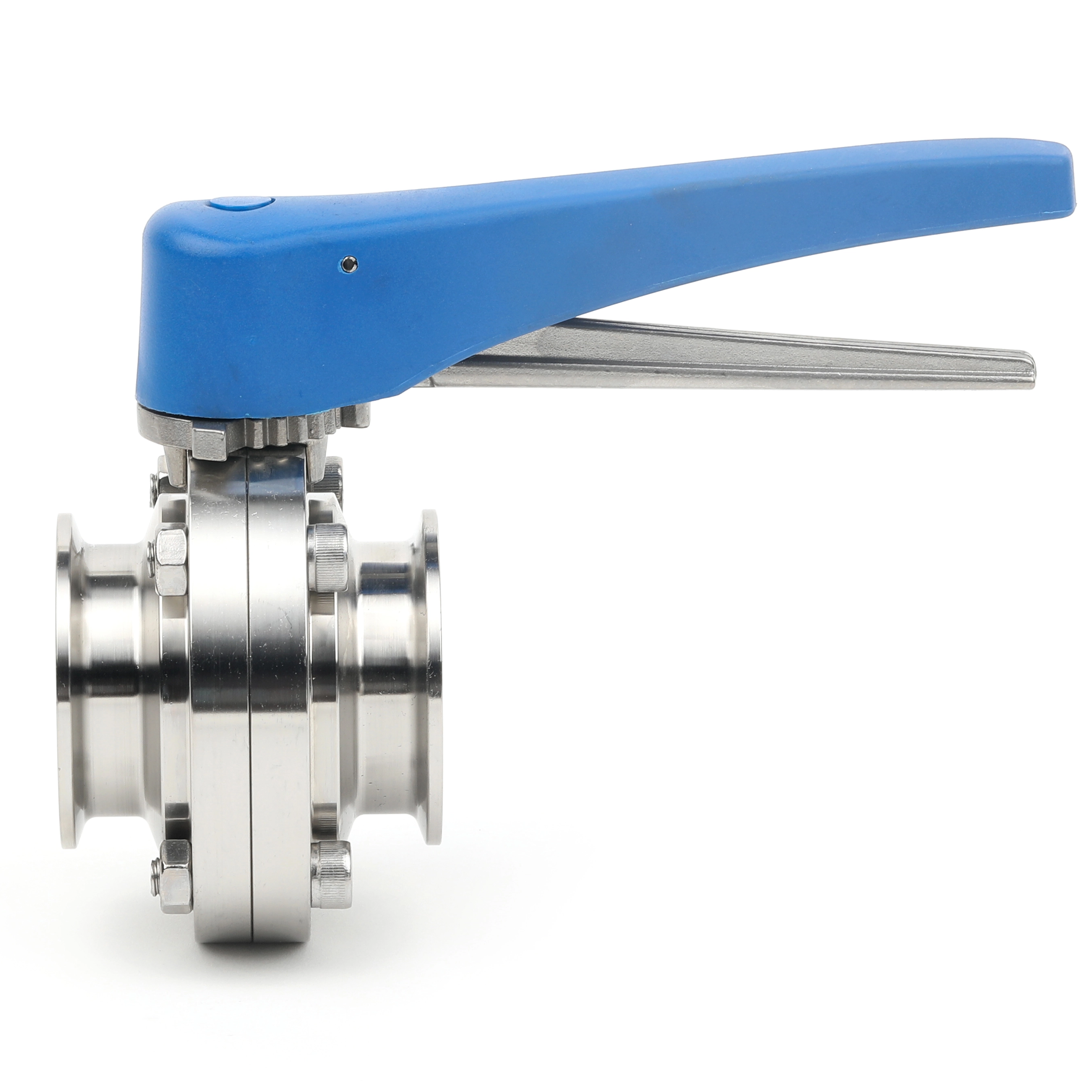

The stainless steel DN300 manual indicator anti-mixing butterfly valve operates by rotating a central disc within the valve body using a manual handwheel or lever. When the disc turns parallel to the flow, the valve opens, allowing fluid to pass with minimal resistance. In the closed position, the disc presses tightly against the valve seat, creating a reliable seal to prevent leakage or backflow. The anti-mixing design ensures unidirectional flow and prevents cross-contamination between different media. A manual indicator shows the valve’s open or closed position for easy visual monitoring. The stainless steel construction provides corrosion resistance and durability for industrial and sanitary pipeline applications
Size | 1”-4”, DN25-DN100 |
Working temperature | -10℃ to +120℃（EPDM） |
Max. pressure | 10bar（DN-25/100） |
Min. pressure | 0.2bar p.abs |
Connection method | threaded |
Body material | 304stainless steel or 316 stainless steel |
Seal material | EPDM,Silicone , Fluorine rubber |
● Simple structure and easy to operate
● Small size and low weight
● Handle can bear larger torque, not easy to break
● All materials can be traced, and the test reports can be provided.
● Seal ring has good sealing, strong acid and alkali resistance and high temperature tolerance.
Sanitary threading butterfly valves are widely used in the pharmaceutical and food industries.
Working Principles
The stainless steel DN300 manual indicator anti-mixing butterfly valve operates by rotating a central disc within the valve body using a manual handwheel or lever. When the disc turns parallel to the flow, the valve opens, allowing fluid to pass with minimal resistance. In the closed position, the disc presses tightly against the valve seat, creating a reliable seal to prevent leakage or backflow. The anti-mixing design ensures unidirectional flow and prevents cross-contamination between different media. A manual indicator shows the valve’s open or closed position for easy visual monitoring. The stainless steel construction provides corrosion resistance and durability for industrial and sanitary pipeline applications
Feature and Specification
Stainless Steel Constant Pressure Valve Specification Chart
Size | 1”-4”, DN25-DN100 |
Working temperature | -10℃ to +120℃（EPDM） |
Max. pressure | 10bar（DN-25/100） |
Min. pressure | 0.2bar p.abs |
Connection method | threaded |
Body material | 304stainless steel or 316 stainless steel |
Seal material | EPDM,Silicone , Fluorine rubber |
Features
● Simple structure and easy to operate
● Small size and low weight
● Handle can bear larger torque, not easy to break
● All materials can be traced, and the test reports can be provided.
● Seal ring has good sealing, strong acid and alkali resistance and high temperature tolerance.
Application
Sanitary threading butterfly valves are widely used in the pharmaceutical and food industries.
