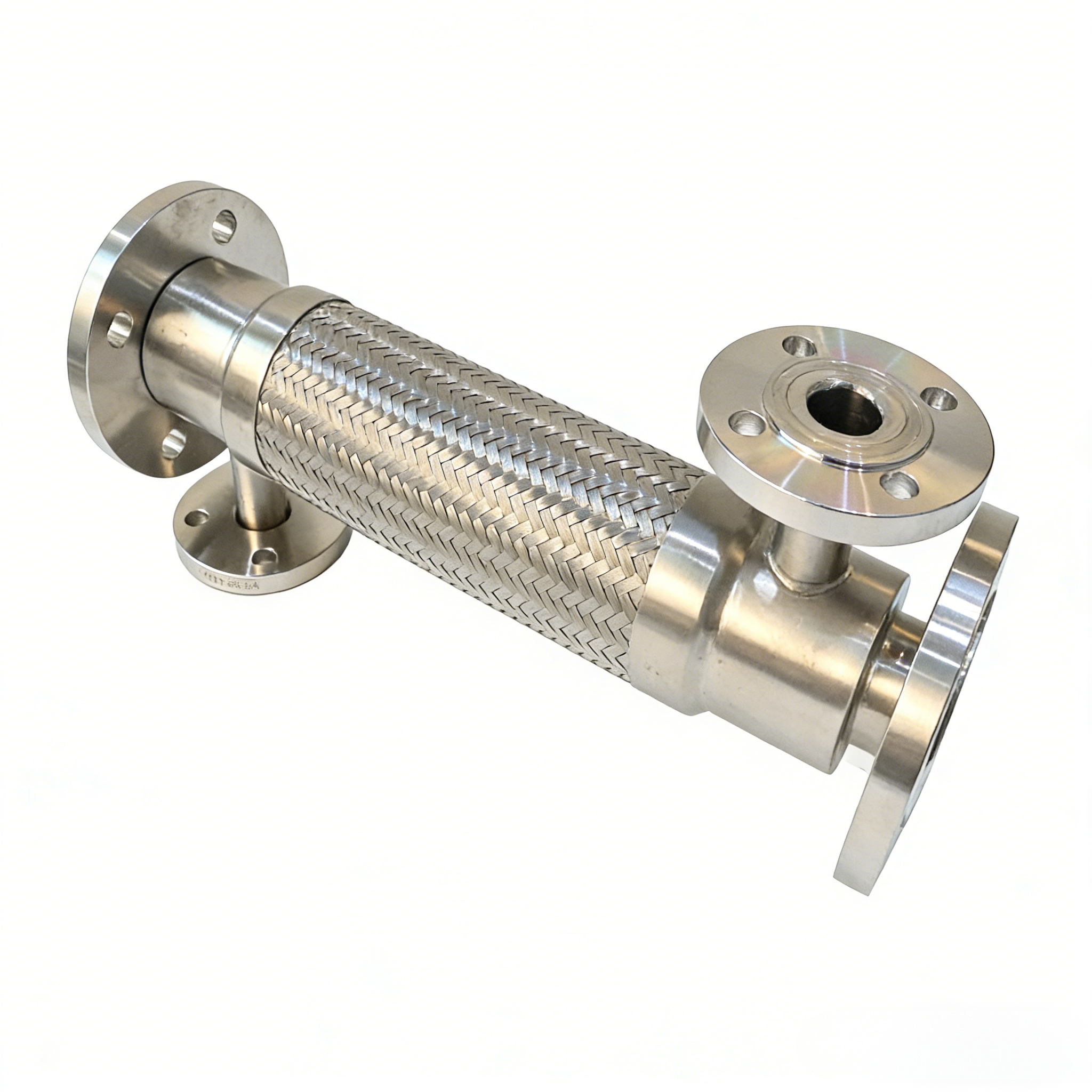

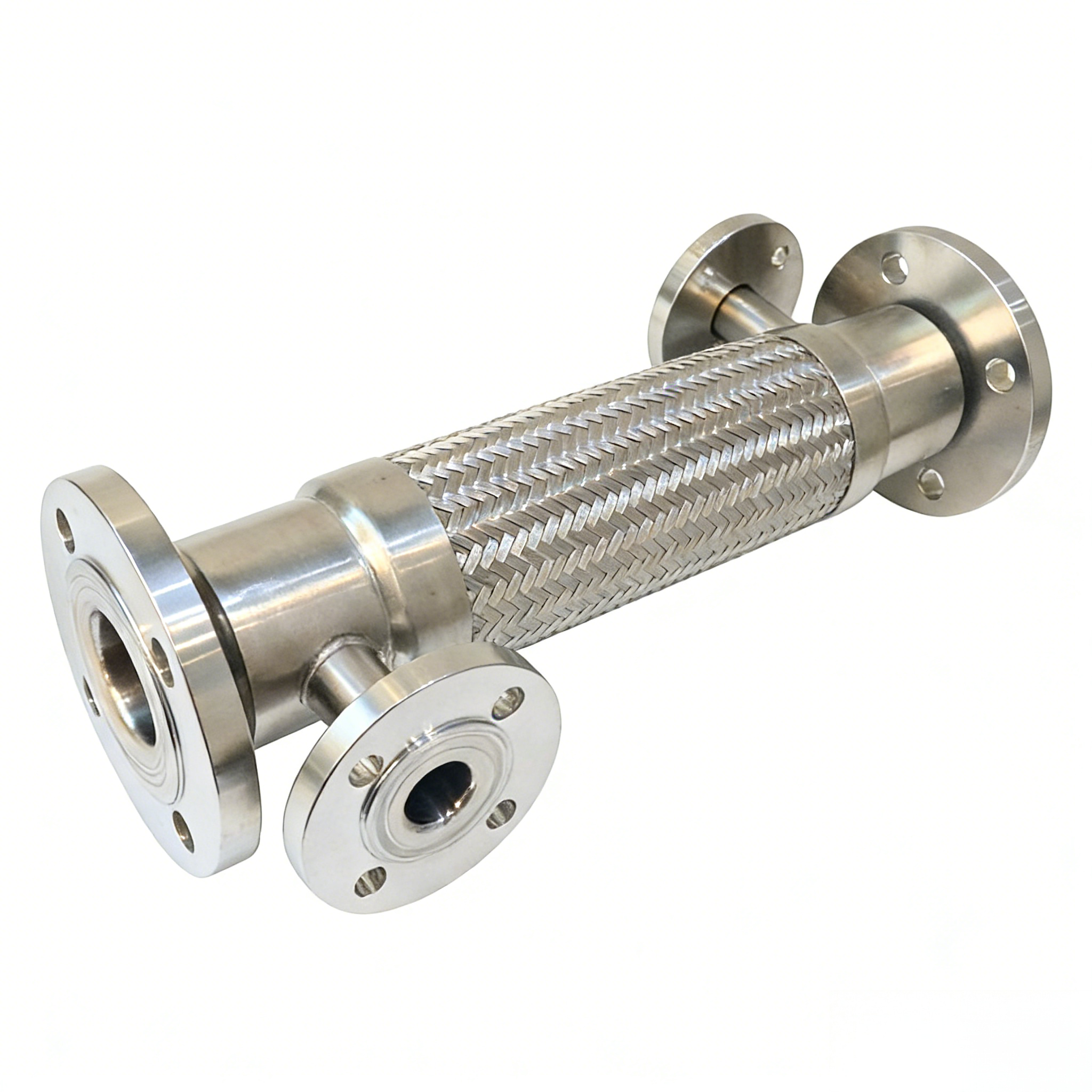

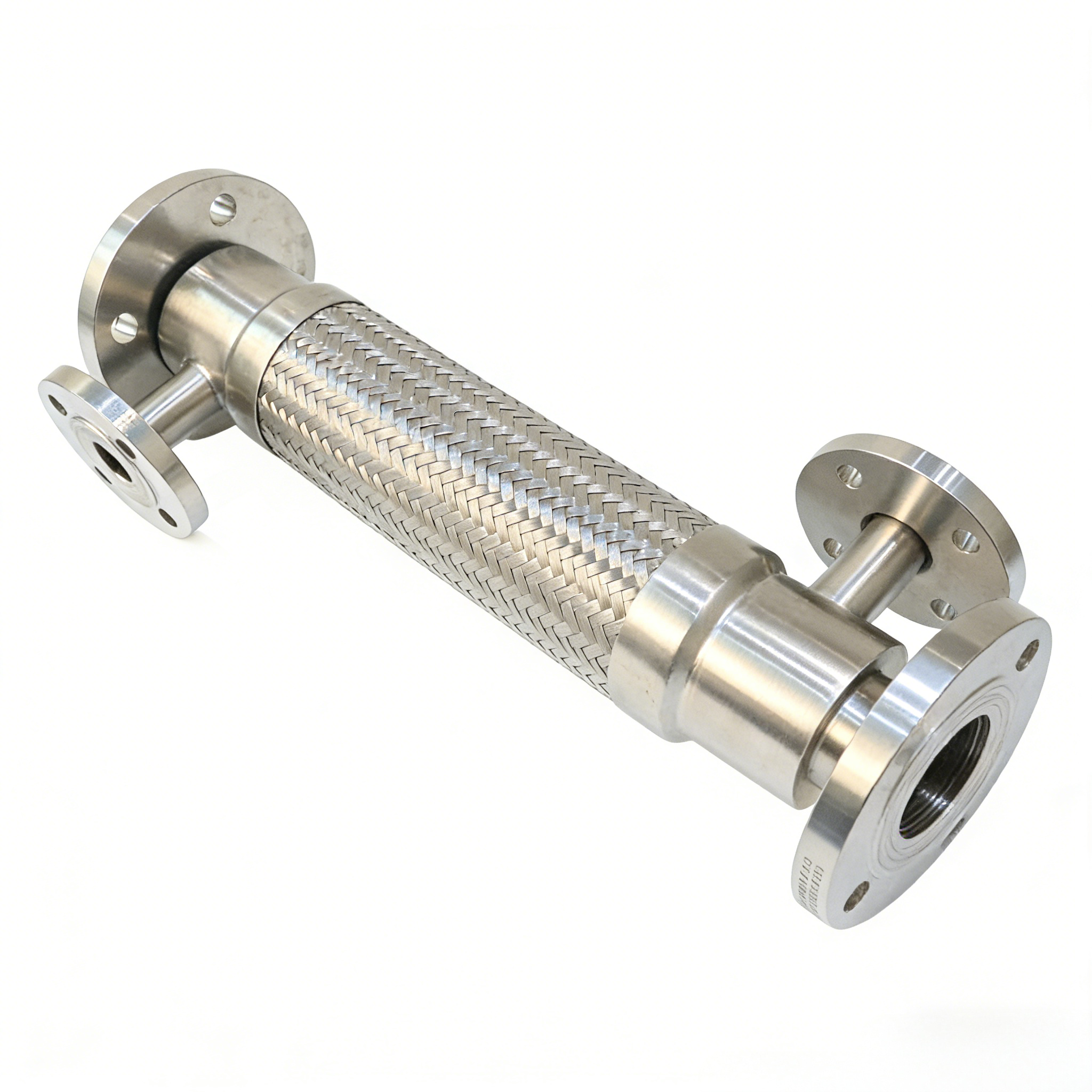

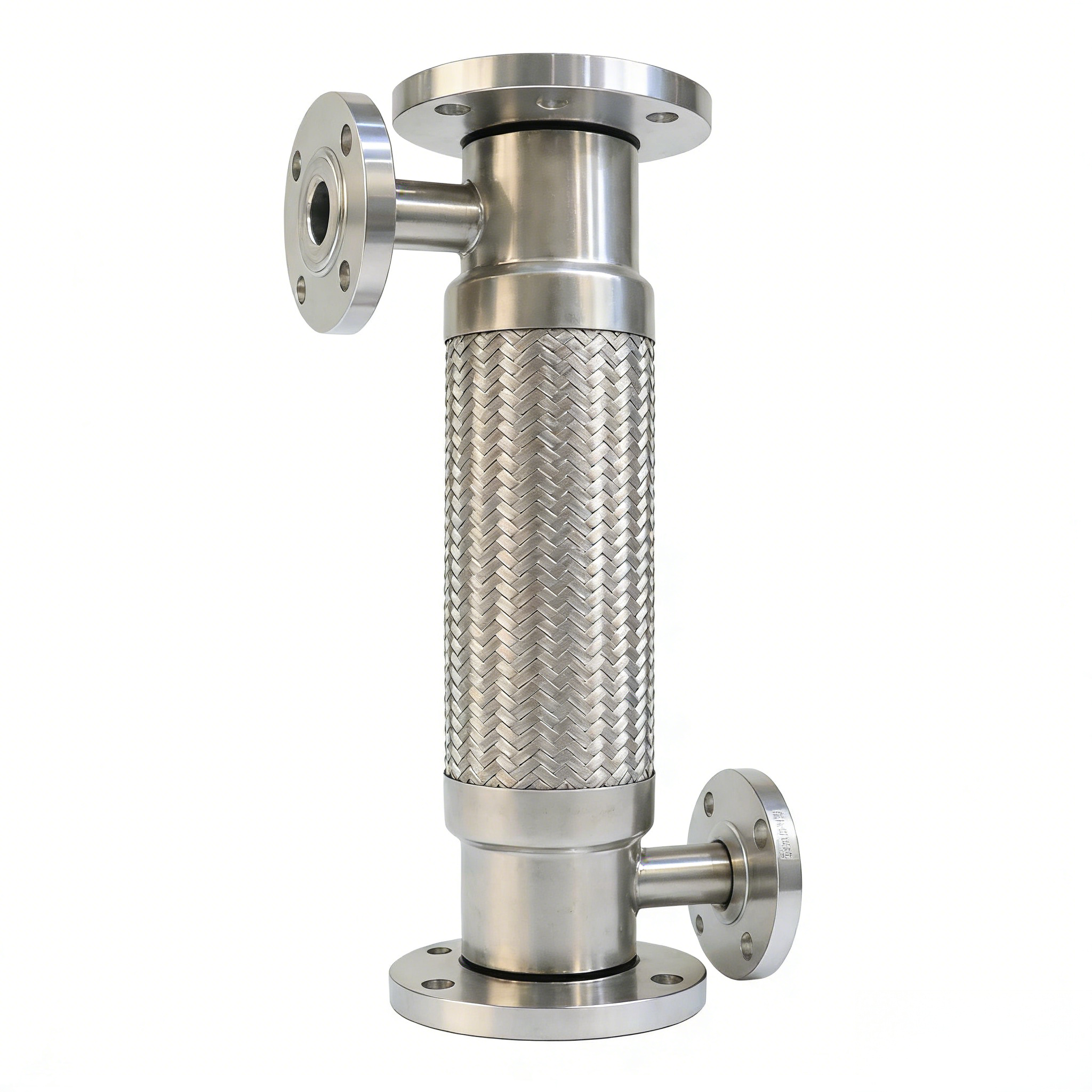

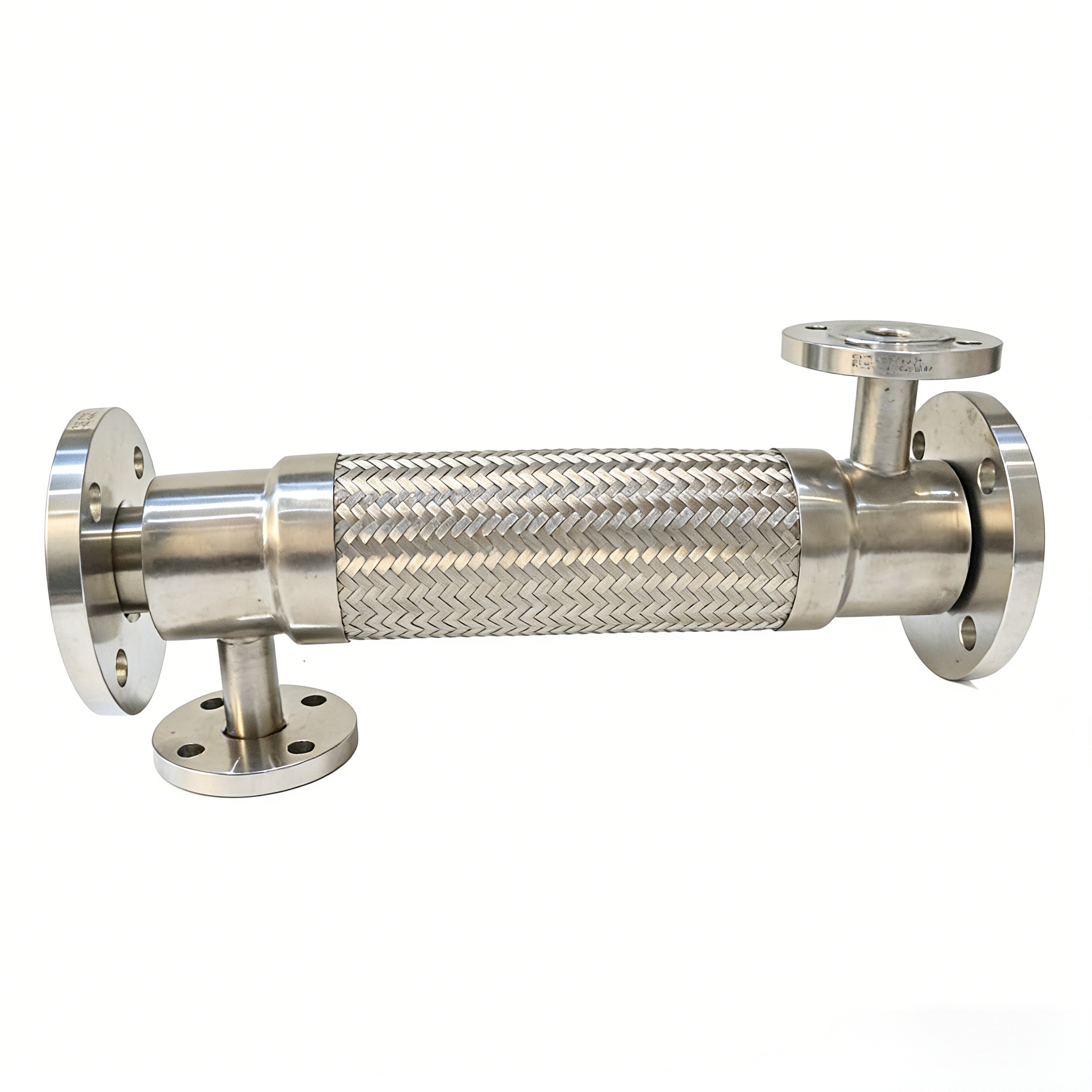

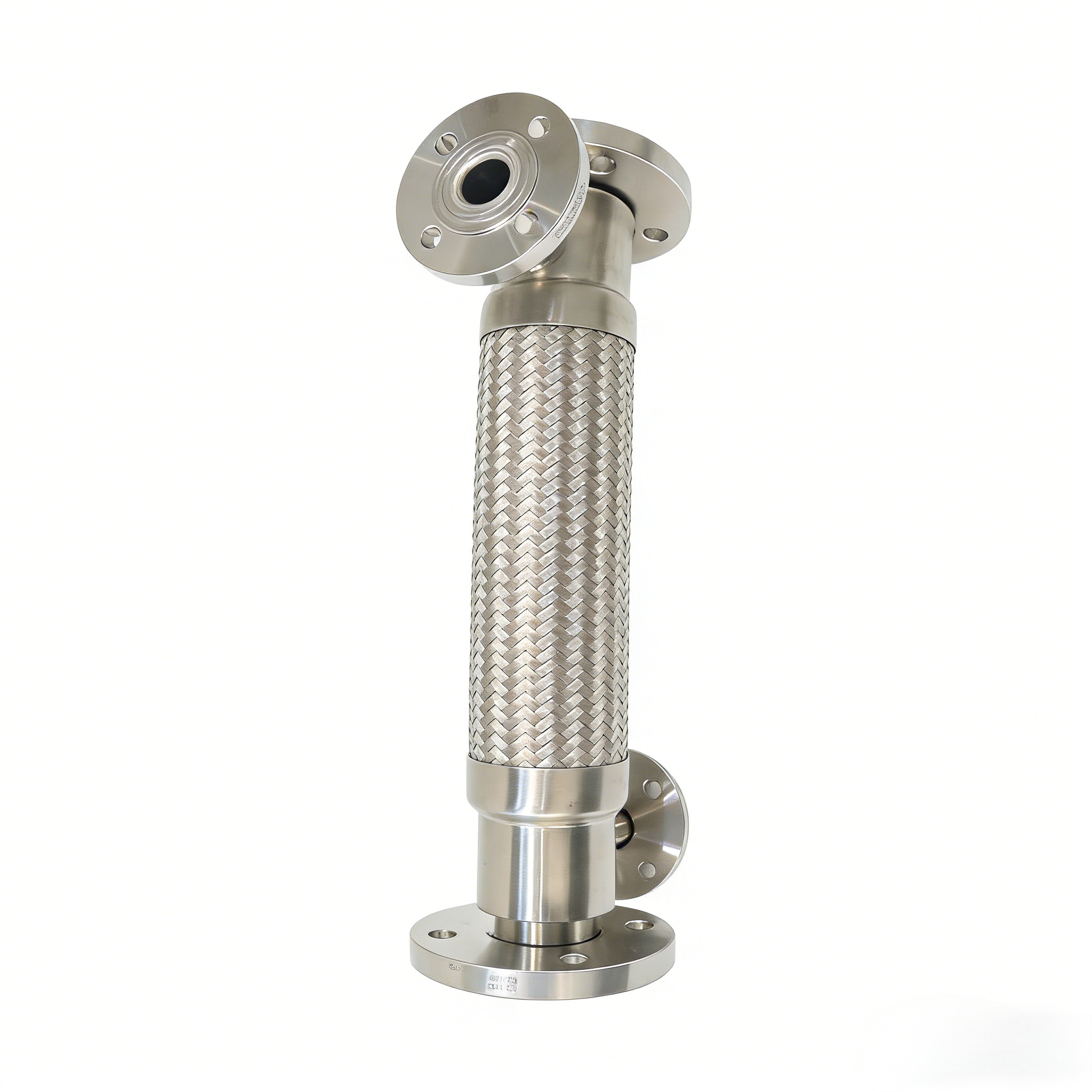

The STAINLESS STEEL High Pressure Hydraulic Thread Connector Metallic Flange Flexible Hose is a durable, high-pressure hose assembly. It meets SS304/SS316 grade standards, ANSI/ISO flange dimensions, operates at pressure up to 350 bar, and handles temperatures from –40 °C to 400 °C.
JONENG
8481804090
The stainless steel high-pressure hydraulic thread connector metallic flange flexible hose operates by providing a flexible connection between rigid pipelines or hydraulic equipment. Fluid flows through the inner hose, while the braided or corrugated stainless steel exterior withstands high pressures and mechanical stress. The flexible design absorbs vibration, accommodates misalignment, and compensates for thermal expansion or movement in the system, preventing damage to rigid pipes or joints. Threaded or flanged end connections securely attach the hose to equipment or pipelines, ensuring leak-free operation. This allows the hose to maintain reliable hydraulic or fluid transfer under high-pressure, high-temperature, and dynamic operating conditions.
Material | SS304 / SS316 Stainless Steel (braided or corrugated) |
End Connections | Threaded / Flanged / Quick Connect |
Nominal Size Range | DN6 – DN100 (1/4” – 4”) |
Pressure Range | Up to 350 bar (depending on hose type) |
Temperature Range | –40 °C to 400 °C |
Hose Types | Braided stainless steel, corrugated, PTFE-lined, reinforced rubber |
High-pressure resistance allows reliable operation in hydraulic and industrial systems under extreme pressure conditions.
Stainless steel construction provides excellent corrosion resistance, durability, and long service life in harsh environments.
Flexible design absorbs vibration, accommodates misalignment, and compensates for thermal expansion or movement.
Threaded or flanged ends ensure secure, leak-free connections to pipelines, pumps, and hydraulic equipment.
Versatile hose types such as braided, corrugated, or PTFE-lined suit various fluids, temperatures, and chemical compatibilities.
The stainless steel high-pressure hydraulic thread connector metallic flange flexible hose is widely used in industries requiring reliable fluid transfer under high pressure. It is commonly applied in hydraulic machinery, oil and gas pipelines, chemical processing, and power plants. It is also used in shipbuilding, aerospace, and automotive systems where vibration, thermal expansion, or misalignment occurs. The flexible hose ensures leak-free connections, absorbs movement, and protects rigid pipelines and equipment, making it ideal for demanding applications involving hydraulic oil, water, steam, or corrosive fluids, while maintaining safety and system efficiency.
Working Principles
The stainless steel high-pressure hydraulic thread connector metallic flange flexible hose operates by providing a flexible connection between rigid pipelines or hydraulic equipment. Fluid flows through the inner hose, while the braided or corrugated stainless steel exterior withstands high pressures and mechanical stress. The flexible design absorbs vibration, accommodates misalignment, and compensates for thermal expansion or movement in the system, preventing damage to rigid pipes or joints. Threaded or flanged end connections securely attach the hose to equipment or pipelines, ensuring leak-free operation. This allows the hose to maintain reliable hydraulic or fluid transfer under high-pressure, high-temperature, and dynamic operating conditions.
Feature and Specification
Stainless Steel Level Gauge Specification Chart
Material | SS304 / SS316 Stainless Steel (braided or corrugated) |
End Connections | Threaded / Flanged / Quick Connect |
Nominal Size Range | DN6 – DN100 (1/4” – 4”) |
Pressure Range | Up to 350 bar (depending on hose type) |
Temperature Range | –40 °C to 400 °C |
Hose Types | Braided stainless steel, corrugated, PTFE-lined, reinforced rubber |
Features
High-pressure resistance allows reliable operation in hydraulic and industrial systems under extreme pressure conditions.
Stainless steel construction provides excellent corrosion resistance, durability, and long service life in harsh environments.
Flexible design absorbs vibration, accommodates misalignment, and compensates for thermal expansion or movement.
Threaded or flanged ends ensure secure, leak-free connections to pipelines, pumps, and hydraulic equipment.
Versatile hose types such as braided, corrugated, or PTFE-lined suit various fluids, temperatures, and chemical compatibilities.
Application
The stainless steel high-pressure hydraulic thread connector metallic flange flexible hose is widely used in industries requiring reliable fluid transfer under high pressure. It is commonly applied in hydraulic machinery, oil and gas pipelines, chemical processing, and power plants. It is also used in shipbuilding, aerospace, and automotive systems where vibration, thermal expansion, or misalignment occurs. The flexible hose ensures leak-free connections, absorbs movement, and protects rigid pipelines and equipment, making it ideal for demanding applications involving hydraulic oil, water, steam, or corrosive fluids, while maintaining safety and system efficiency.
