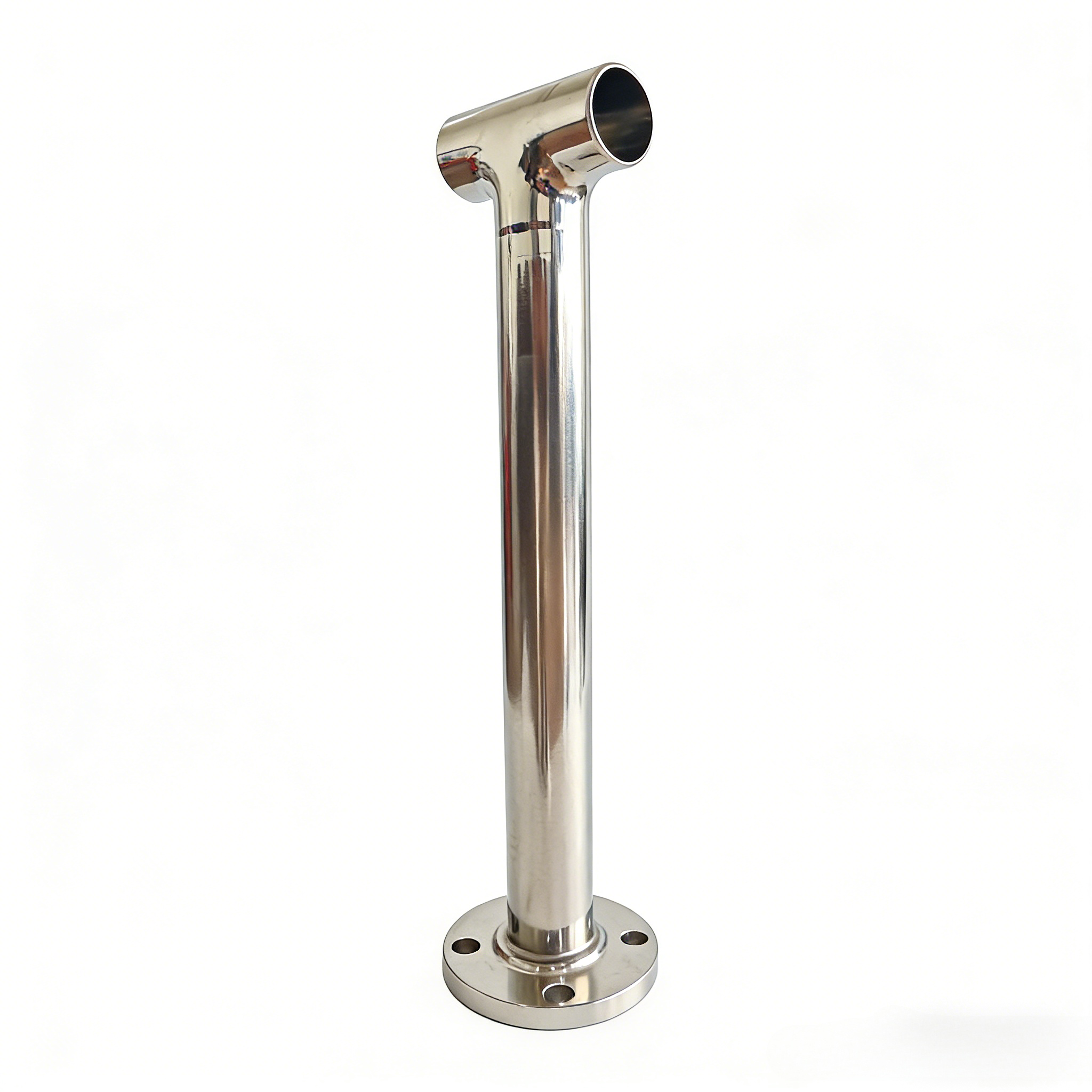

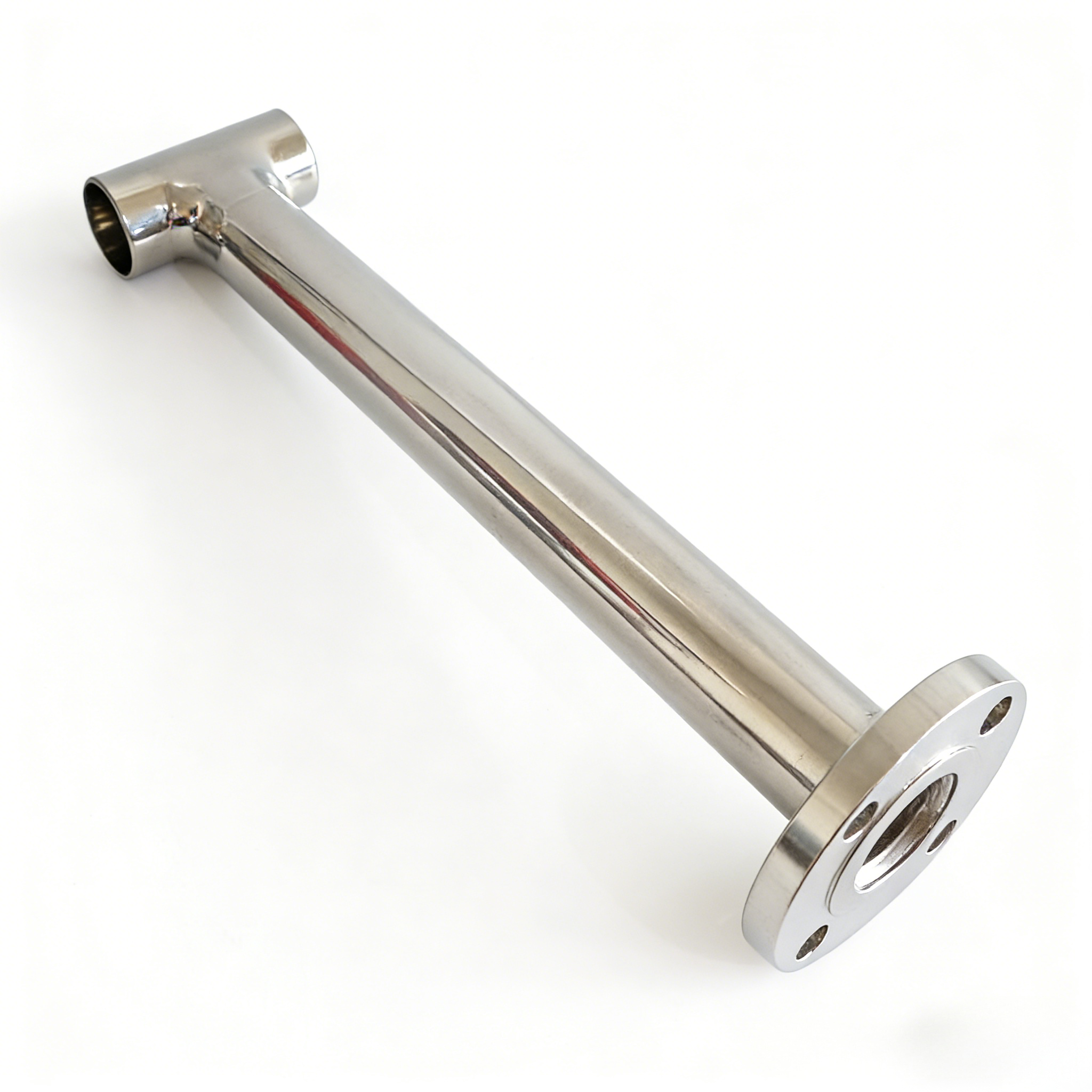

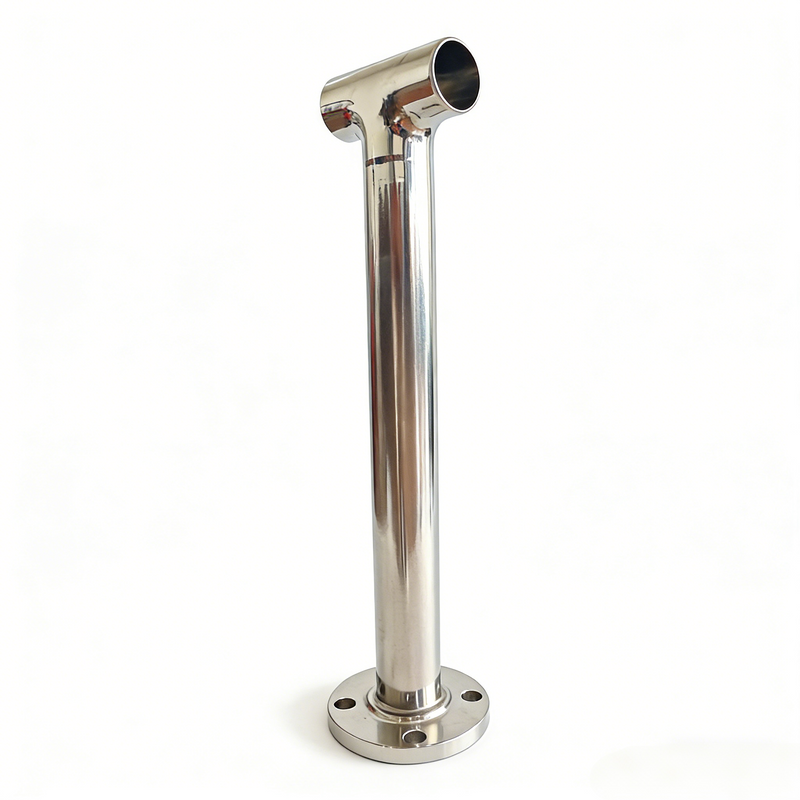

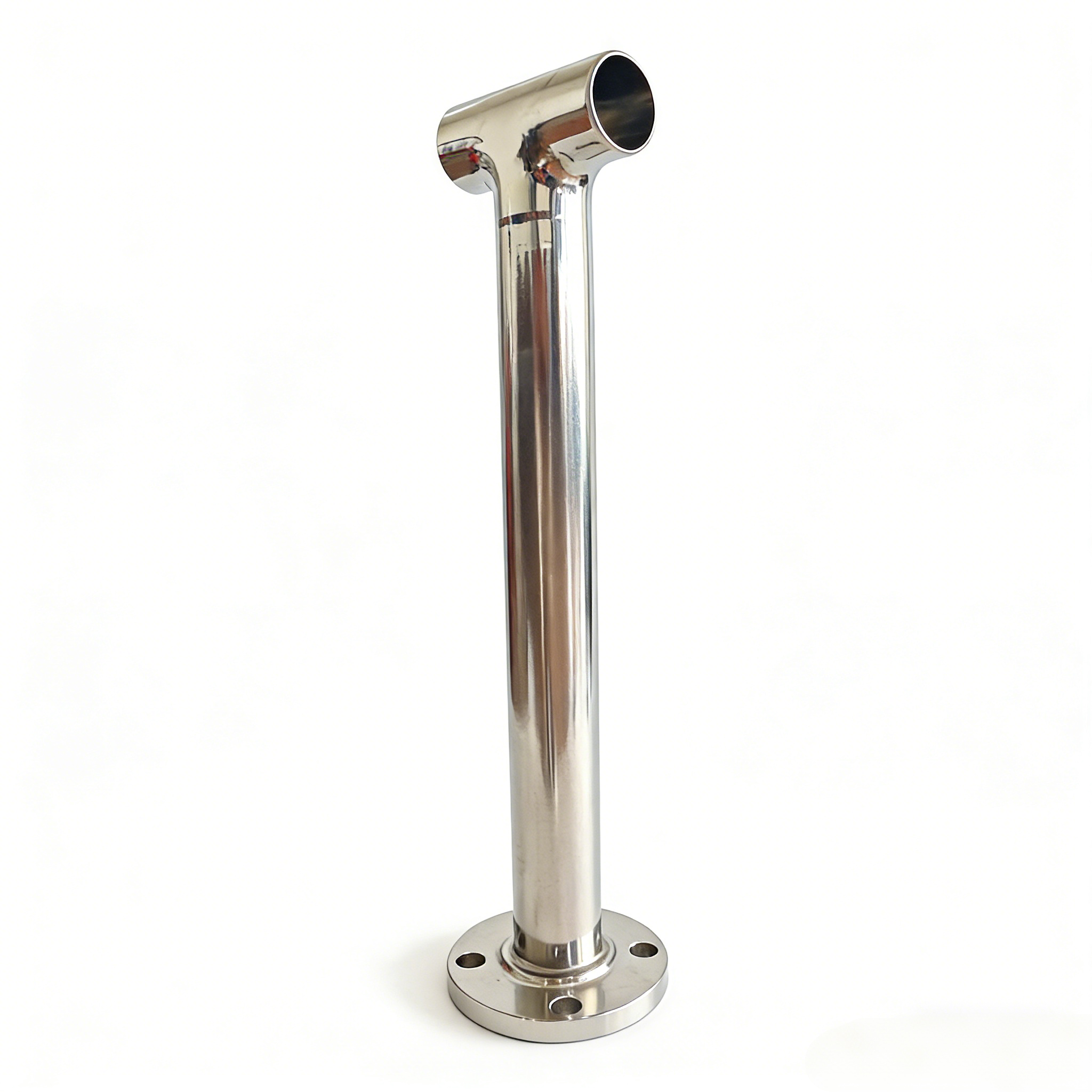

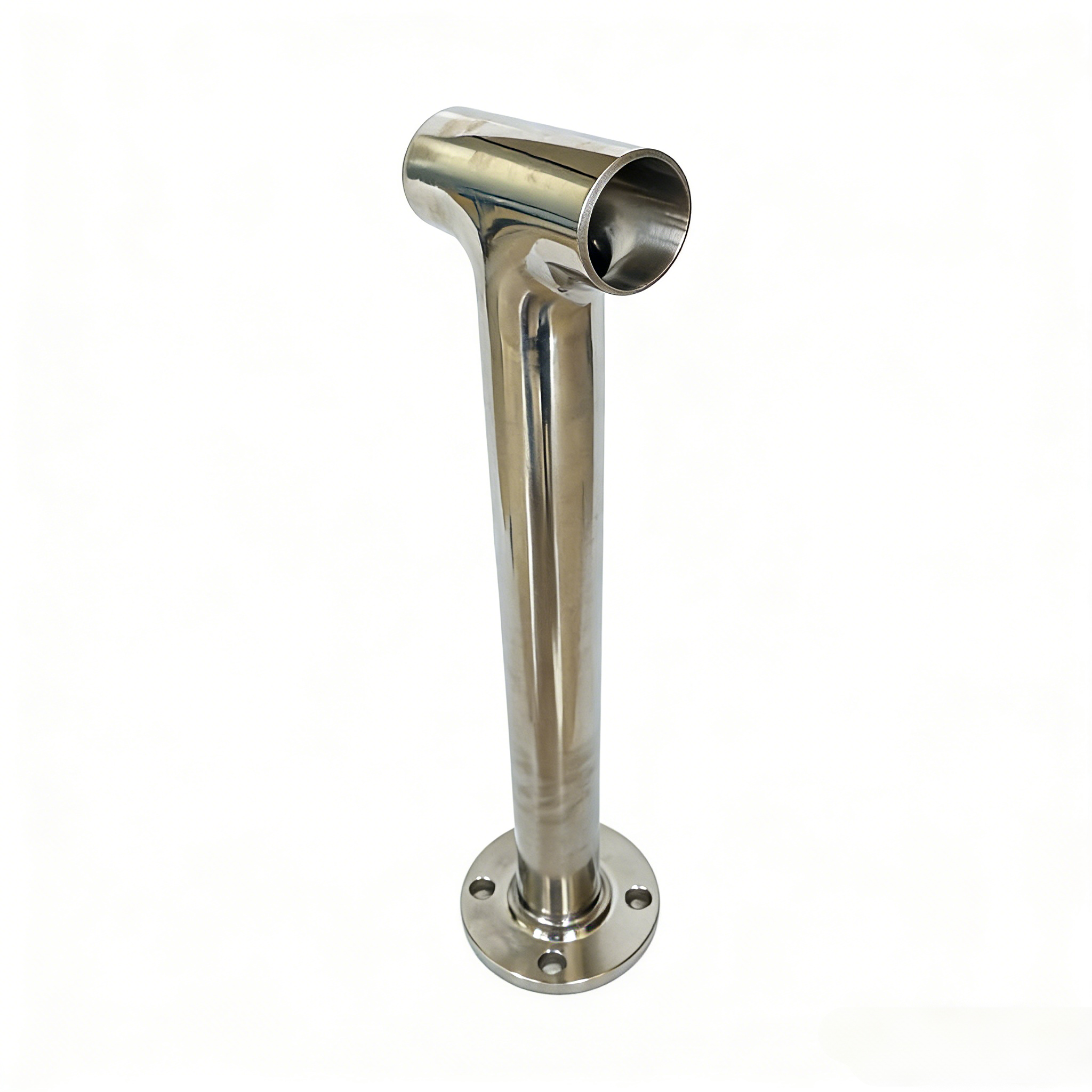

STAINLESS STEEL Hydraulic Manifold Reduced Ferrule Pipe Sanitary Spool
This stainless steel Hydraulic Manifold Reduced Ferrule Pipe Sanitary Spool is a high-precision hygienic piping connector for hydraulic integrated systems, designed for seamless reduced-diameter ferrule connection of clean fluid pipelines. It features non-dead-corner polished inner wall, meets food and pharmaceutical hygiene standards, with reliable high-pressure sealing performance, widely applied in food, pharmaceutical, beverage and bioengineering industries for hygienic hydraulic fluid transfer.
Working Principles
This sanitary spool connects to hydraulic manifold and pipelines via ferrule fittings. When tightened, the ferrules deform to grip the spool’s outer wall and the fitting body, creating a metal-to-metal seal. Its reduced-diameter structure enables smooth fluid transition between different pipe sizes, while the hygienic polished inner wall ensures unobstructed, contamination-free fluid flow in hydraulic systems under pressure.
Stainless Steel Plug Valve Specification Chart
Product Type
|
Hydraulic Manifold Reduced Ferrule Sanitary Spool
|
Material Grade
|
SS304 / SS304L / SS316 / SS316L
|
Surface Finish
|
Internal Ra ≤ 0.6–0.8 μm
|
Nominal Size
|
DN10 – DN150 (1/2” – 6”)
|
Connection Type |
Ferrule Clamp / Tri-Clamp / Weld End
|
Reducer Type
|
Concentric / Eccentric Reduced Spool
|
Dimension Standard
|
ISO / DIN 11850 / SMS / 3A
|
Pressure Rating |
0 – 16 bar (sanitary) / higher on request |
Temperature Range |
–20 °C to 150 °C |
Features
Made of high-quality stainless steel (304/316L/316Ti/2205), complying with ASTM A270 and 3A standards, featuring excellent corrosion resistance and durability.
Adopts reduced-diameter ferrule connection design, matching DIN 2353/ISO 8434 standards, enabling quick assembly, disassembly and reliable high-pressure sealing.
Sanitary polished inner and outer walls (Ra≤0.8μm for inner), with no dead corners, easy to clean and suitable for food, pharmaceutical and other clean fluid systems.
Designed for hydraulic manifold systems, realizing smooth fluid transition between different pipe sizes, ensuring stable fluid flow without blockage under working pressure.
Wide operating pressure and temperature ranges, adaptable to various harsh working environments, with strong compatibility and practicality.
Application
It’s widely applied in food, pharmaceutical, beverage and bioengineering industries, as well as hygienic hydraulic manifold systems for clean fluid transfer and high-pressure seamless pipeline connection in industrial hydraulic equipment.
