The stainless steel manual lever lug style eccentric butterfly valve is a durable flow control valve with a quarter-turn lever, eccentric disc design, and lug-type body, providing tight sealing, corrosion resistance, and easy installation for industrial and water pipeline applications.
JONENG
STAINLESS STEEL Manual Lever Lug Style Eccentric Butterfly Valve
The stainless steel butterfly valve is a durable flow control valve with a quarter-turn lever, eccentric disc design, and lug-type body, providing tight sealing, corrosion resistance, and easy installation for industrial and water pipeline applications.
Working Principles
The stainless steel manual lever lug style eccentric butterfly valve operates by rotating an eccentrically mounted disc around a shaft using a manual lever. The eccentric design offsets the disc from the shaft and seat, reducing friction during operation. When the lever is turned, the disc rotates a quarter turn to open, aligning parallel with the flow and allowing fluid to pass with minimal resistance. Closing the lever rotates the disc perpendicular to the flow, pressing it firmly against the valve seat to form a tight, leak-proof seal. The lug-style body allows secure installation between flanges and supports end-of-line service without removing the opposite flange, making it suitable for water, chemical, and industrial pipeline systems.

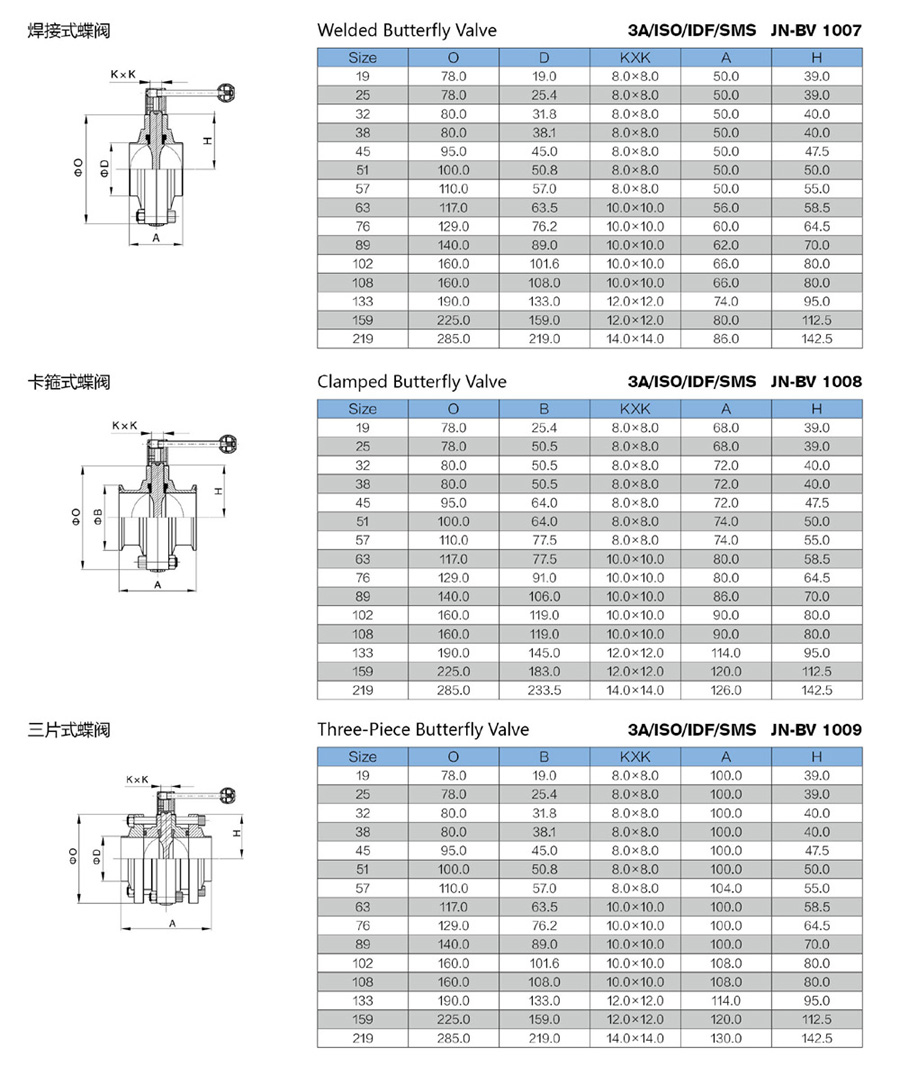

Stainless Steel Butterfly Valve Specification Chart
Working Pressure | 10 Bar (Max. Pressure is 16bar for but welded connection in small sizes |
Working temperature | -10ºC TO + 120ºC |
Size | 1/2”-12”, DN15-DN300 |
Grade | AISI304 and AISI316L |
FDA approved gaskets in silicone, EPDM, viton, PTFE | |
Connection | Clamp, Weld, Thread,male threaded; female threaded; flange end;union connection |
Surface | Sanitary inside polish (Ra ≤ 0.8 μm) |
Sanitary outside polish (Ra ≤1.6 μm) | |
Standard | ISO, 3A, SMS, RJT, DIN and so on |
Butterfly valve disc and body is made from forging | |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. | |
Required compressed air | 4-8Bar |
Connection of compressed air | G 1/8’’ |
Limit switch | 6-36V, DC 2nos of NPN or PNP( to be chose |
Valve parts
Body | Stainless steel AISI316L or AISI 304 (1.4301/1.4404) |
Disc | AISI304 or AISI316L |
Pull-position handle | Stainless Steel Material, Round type or square type |
Multi-position Gripper Handle | ABS gripper handle, SS gripper handle, 2/3/4/12 positions to adjustment, Universal type |
Gasket | EPDM, VITON(FPM), Silicone, different color is available |
Bushing | EPDM or PTFE, other material request |
Nut | Stainless Steel 304 or 316 Material or other request |
Bolt | Stainless Steel 304 or 316 Material or other request |
Features
● Seats and seals comply with FDA approved
● Special gasket design, fluid free of residue
● Better acid proof, alkali proof
● Small torque, light weight,simple structure
● 360 degree installation
● 100% tested and inspected
● Cost-efficient leakage protection
● More than thirty thousand safety test
● Low pressure losses
● Thorough cleaning,Hygienic exterior design
● Minimize turbulence and maximize fluid flow trough
Application
Sanitary Butterfly valve widely use in low and medium viscosity liquid for food and beverage, beer, dairy, pharmaceutical etc with high precision and purity requirements industries.
Working Principles
The stainless steel manual lever lug style eccentric butterfly valve operates by rotating an eccentrically mounted disc around a shaft using a manual lever. The eccentric design offsets the disc from the shaft and seat, reducing friction during operation. When the lever is turned, the disc rotates a quarter turn to open, aligning parallel with the flow and allowing fluid to pass with minimal resistance. Closing the lever rotates the disc perpendicular to the flow, pressing it firmly against the valve seat to form a tight, leak-proof seal. The lug-style body allows secure installation between flanges and supports end-of-line service without removing the opposite flange, making it suitable for water, chemical, and industrial pipeline systems.
Feature and Specification
Stainless Steel Butterfly Valve Specification Chart
Working Pressure | 10 Bar (Max. Pressure is 16bar for but welded connection in small sizes |
Working temperature | -10ºC TO + 120ºC |
Size | 1/2”-12”, DN15-DN300 |
Grade | AISI304 and AISI316L |
FDA approved gaskets in silicone, EPDM, viton, PTFE | |
Connection | Clamp, Weld, Thread,male threaded; female threaded; flange end;union connection |
Surface | Sanitary inside polish (Ra ≤ 0.8 μm) |
Sanitary outside polish (Ra ≤1.6 μm) | |
Standard | ISO, 3A, SMS, RJT, DIN and so on |
Butterfly valve disc and body is made from forging | |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. | |
Required compressed air | 4-8Bar |
Connection of compressed air | G 1/8’’ |
Limit switch | 6-36V, DC 2nos of NPN or PNP( to be chose |
Valve parts
Body | Stainless steel AISI316L or AISI 304 (1.4301/1.4404) |
Disc | AISI304 or AISI316L |
Pull-position handle | Stainless Steel Material, Round type or square type |
Multi-position Gripper Handle | ABS gripper handle, SS gripper handle, 2/3/4/12 positions to adjustment, Universal type |
Gasket | EPDM, VITON(FPM), Silicone, different color is available |
Bushing | EPDM or PTFE, other material request |
Nut | Stainless Steel 304 or 316 Material or other request |
Bolt | Stainless Steel 304 or 316 Material or other request |
Features
● Seats and seals comply with FDA approved
● Special gasket design, fluid free of residue
● Better acid proof, alkali proof
● Small torque, light weight,simple structure
● 360 degree installation
● 100% tested and inspected
● Cost-efficient leakage protection
● More than thirty thousand safety test
● Low pressure losses
● Thorough cleaning,Hygienic exterior design
● Minimize turbulence and maximize fluid flow trough
Application
Sanitary Butterfly valve widely use in low and medium viscosity liquid for food and beverage, beer, dairy, pharmaceutical etc with high precision and purity requirements industries.
