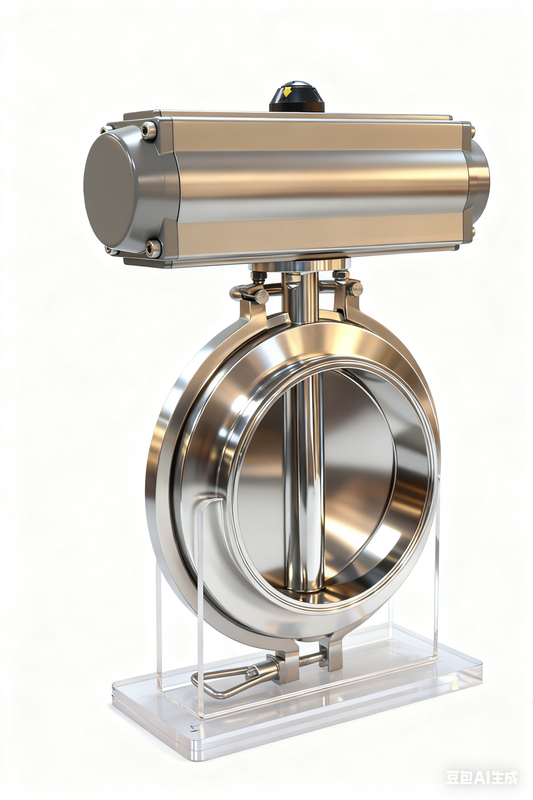

STAINLESS STEEL Sanitary Solenoid Diaphragm Actuated Butterfly Valve
The Hastelloy Sanitary Light Rotary Powder DIN Butterfly Valve is a corrosion-resistant, lightweight valve designed for precise control of powders and fluids in hygienic piping systems, ensuring reliable operation in demanding sanitary applications
Working Principles
The Hastelloy Sanitary Light Rotary Powder DIN Butterfly Valve operates using a rotating disc mounted on a central shaft to control flow. When the handle or actuator turns the disc, it either aligns with the pipeline to allow flow or rotates perpendicular to block it. The disc rotates within a precision-machined valve body, with a sealing mechanism—often a resilient seat or liner—ensuring leak-free operation. Its light, sanitary design minimizes contamination and allows smooth handling of powders or particulate media. The valve provides rapid on/off control, precise modulation, and easy cleaning, making it suitable for chemical, pharmaceutical, and high-purity powder handling applications
Stainless Steel Butterfly Valve Specification Chart
Working Pressure | 10 Bar (Max. Pressure is 16bar for but welded connection in small sizes |
Working temperature | -10ºC TO + 120ºC |
Size | 1/2”-12”, DN15-DN300 |
Grade | AISI304 and AISI316L |
FDA approved gaskets in silicone, EPDM, viton, PTFE | |
Connection | Clamp, Weld, Thread,male threaded; female threaded; flange end;union connection |
Surface | Sanitary inside polish (Ra ≤ 0.8 μm) |
Sanitary outside polish (Ra ≤1.6 μm) | |
Standard | ISO, 3A, SMS, RJT, DIN and so on |
Butterfly valve disc and body is made from forging | |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. | |
Required compressed air | 4-8Bar |
Connection of compressed air | G 1/8’’ |
Limit switch | 6-36V, DC 2nos of NPN or PNP( to be chose |
Valve parts
Body | Stainless steel AISI316L or AISI 304 (1.4301/1.4404) |
Disc | AISI304 or AISI316L |
Pull-position handle | Stainless Steel Material, Round type or square type |
Multi-position Gripper Handle | ABS gripper handle, SS gripper handle, 2/3/4/12 positions to adjustment, Universal type |
Gasket | EPDM, VITON(FPM), Silicone, different color is available |
Bushing | EPDM or PTFE, other material request |
Nut | Stainless Steel 304 or 316 Material or other request |
Bolt | Stainless Steel 304 or 316 Material or other request |
Features
Constructed from high-grade stainless steel, providing excellent corrosion resistance, hygiene compliance, and durability for food, beverage, and pharmaceutical applications.
Diaphragm-actuated design ensures precise valve control with minimal leakage, enabling smooth and reliable opening and closing.
Solenoid operation allows fast response and integration with automated systems for remote or timed control.
Sanitary design with smooth internal surfaces prevents contamination and ensures easy cleaning and maintenance.
Compact and lightweight structure simplifies installation in pipelines with limited space while maintaining stable and efficient operation
Application
The Hastelloy Sanitary Light Rotary Powder DIN Butterfly Valve is commonly used in industries handling corrosive or high-purity powders. Typical applications include pharmaceutical manufacturing for powder dosing, chemical processing for corrosive materials, and food or nutritional supplement production where sanitary, precise, and contamination-free powder flow control is essential.
Working Principles
The Hastelloy Sanitary Light Rotary Powder DIN Butterfly Valve operates using a rotating disc mounted on a central shaft to control flow. When the handle or actuator turns the disc, it either aligns with the pipeline to allow flow or rotates perpendicular to block it. The disc rotates within a precision-machined valve body, with a sealing mechanism—often a resilient seat or liner—ensuring leak-free operation. Its light, sanitary design minimizes contamination and allows smooth handling of powders or particulate media. The valve provides rapid on/off control, precise modulation, and easy cleaning, making it suitable for chemical, pharmaceutical, and high-purity powder handling applications
Feature and Specification
Stainless Steel Butterfly Valve Specification Chart
Working Pressure | 10 Bar (Max. Pressure is 16bar for but welded connection in small sizes |
Working temperature | -10ºC TO + 120ºC |
Size | 1/2”-12”, DN15-DN300 |
Grade | AISI304 and AISI316L |
FDA approved gaskets in silicone, EPDM, viton, PTFE | |
Connection | Clamp, Weld, Thread,male threaded; female threaded; flange end;union connection |
Surface | Sanitary inside polish (Ra ≤ 0.8 μm) |
Sanitary outside polish (Ra ≤1.6 μm) | |
Standard | ISO, 3A, SMS, RJT, DIN and so on |
Butterfly valve disc and body is made from forging | |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. | |
Required compressed air | 4-8Bar |
Connection of compressed air | G 1/8’’ |
Limit switch | 6-36V, DC 2nos of NPN or PNP( to be chose |
Valve parts
Body | Stainless steel AISI316L or AISI 304 (1.4301/1.4404) |
Disc | AISI304 or AISI316L |
Pull-position handle | Stainless Steel Material, Round type or square type |
Multi-position Gripper Handle | ABS gripper handle, SS gripper handle, 2/3/4/12 positions to adjustment, Universal type |
Gasket | EPDM, VITON(FPM), Silicone, different color is available |
Bushing | EPDM or PTFE, other material request |
Nut | Stainless Steel 304 or 316 Material or other request |
Bolt | Stainless Steel 304 or 316 Material or other request |
Features
Constructed from high-grade stainless steel, providing excellent corrosion resistance, hygiene compliance, and durability for food, beverage, and pharmaceutical applications.
Diaphragm-actuated design ensures precise valve control with minimal leakage, enabling smooth and reliable opening and closing.
Solenoid operation allows fast response and integration with automated systems for remote or timed control.
Sanitary design with smooth internal surfaces prevents contamination and ensures easy cleaning and maintenance.
Compact and lightweight structure simplifies installation in pipelines with limited space while maintaining stable and efficient operation
Application
The Hastelloy Sanitary Light Rotary Powder DIN Butterfly Valve is commonly used in industries handling corrosive or high-purity powders. Typical applications include pharmaceutical manufacturing for powder dosing, chemical processing for corrosive materials, and food or nutritional supplement production where sanitary, precise, and contamination-free powder flow control is essential.
