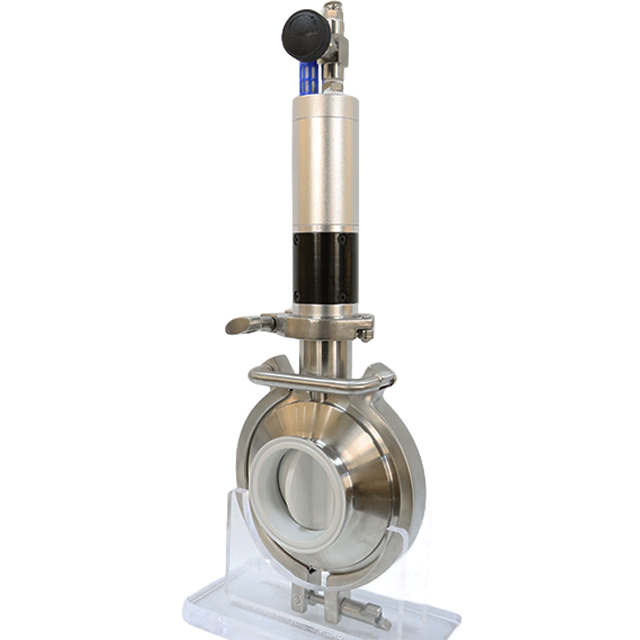

Stainless steel vacuum sanitary PTFE SS316L butterfly valves are available in manual, pneumatic, or electric types, sizes DN25–DN300, wafer or clamp style, with 316L stainless steel body, PTFE seat, corrosion-resistant, hygienic, leak-proof, and easy to clean.
JONENG
Stainless steel vacuum sanitary PTFE SS316L butterfly valves are available in manual, pneumatic, or electric types, sizes DN25–DN300, wafer or clamp style, with 316L stainless steel body, PTFE seat, corrosion-resistant, hygienic, leak-proof, and easy to clean.
The stainless steel vacuum sanitary PTFE SS316L butterfly valve operates by rotating a disc mounted on a central shaft inside the valve body. When the disc is turned parallel to the flow, the valve opens, allowing fluid or gas to pass with minimal resistance. When rotated perpendicular to the flow, the disc presses tightly against the PTFE seat, creating a secure, leak-proof seal suitable for vacuum conditions. Manual, pneumatic, or electric actuators can control the rotation, enabling precise flow regulation or on/off operation. The 316L stainless steel body ensures corrosion resistance and durability, while the PTFE seat provides chemical resistance and hygienic performance, making it ideal for food, pharmaceutical, and clean process pipelines.
Working Pressure | 10 Bar (Max. Pressure is 16bar for but welded connection in small sizes |
Working temperature | -10ºC TO + 120ºC |
Size | 1/2”-12”, DN15-DN300 |
Grade | AISI304 and AISI316L |
FDA approved gaskets in silicone, EPDM, viton, PTFE | |
Connection | Clamp, Weld, Thread,male threaded; female threaded; flange end;union connection |
Surface | Sanitary inside polish (Ra ≤ 0.8 μm) |
Sanitary outside polish (Ra ≤1.6 μm) | |
Standard | ISO, 3A, SMS, RJT, DIN and so on |
Butterfly valve disc and body is made from forging | |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. | |
Required compressed air | 4-8Bar |
Connection of compressed air | G 1/8’’ |
Limit switch | 6-36V, DC 2nos of NPN or PNP( to be chose |
Body | Stainless steel AISI316L or AISI 304 (1.4301/1.4404) |
Disc | AISI304 or AISI316L |
Pull-position handle | Stainless Steel Material, Round type or square type |
Multi-position Gripper Handle | ABS gripper handle, SS gripper handle, 2/3/4/12 positions to adjustment, Universal type |
Gasket | EPDM, VITON(FPM), Silicone, different color is available |
Bushing | EPDM or PTFE, other material request |
Nut | Stainless Steel 304 or 316 Material or other request |
Bolt | Stainless Steel 304 or 316 Material or other request |
● Seats and seals comply with FDA approved
● Special gasket design, fluid free of residue
● Better acid proof, alkali proof
● Small torque, light weight,simple structure
● 360 degree installation
● 100% tested and inspected
● Cost-efficient leakage protection
● More than thirty thousand safety test
● Low pressure losses
● Thorough cleaning,Hygienic exterior design
● Minimize turbulence and maximize fluid flow trough
Sanitary Butterfly valve widely use in low and medium viscosity liquid for food and beverage, beer, dairy, pharmaceutical etc with high precision and purity requirements industries.
Working Principles
The stainless steel vacuum sanitary PTFE SS316L butterfly valve operates by rotating a disc mounted on a central shaft inside the valve body. When the disc is turned parallel to the flow, the valve opens, allowing fluid or gas to pass with minimal resistance. When rotated perpendicular to the flow, the disc presses tightly against the PTFE seat, creating a secure, leak-proof seal suitable for vacuum conditions. Manual, pneumatic, or electric actuators can control the rotation, enabling precise flow regulation or on/off operation. The 316L stainless steel body ensures corrosion resistance and durability, while the PTFE seat provides chemical resistance and hygienic performance, making it ideal for food, pharmaceutical, and clean process pipelines.
Feature and Specification
Stainless Steel Butterfly Valve Specification Chart
Working Pressure | 10 Bar (Max. Pressure is 16bar for but welded connection in small sizes |
Working temperature | -10ºC TO + 120ºC |
Size | 1/2”-12”, DN15-DN300 |
Grade | AISI304 and AISI316L |
FDA approved gaskets in silicone, EPDM, viton, PTFE | |
Connection | Clamp, Weld, Thread,male threaded; female threaded; flange end;union connection |
Surface | Sanitary inside polish (Ra ≤ 0.8 μm) |
Sanitary outside polish (Ra ≤1.6 μm) | |
Standard | ISO, 3A, SMS, RJT, DIN and so on |
Butterfly valve disc and body is made from forging | |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. | |
Required compressed air | 4-8Bar |
Connection of compressed air | G 1/8’’ |
Limit switch | 6-36V, DC 2nos of NPN or PNP( to be chose |
Valve parts
Body | Stainless steel AISI316L or AISI 304 (1.4301/1.4404) |
Disc | AISI304 or AISI316L |
Pull-position handle | Stainless Steel Material, Round type or square type |
Multi-position Gripper Handle | ABS gripper handle, SS gripper handle, 2/3/4/12 positions to adjustment, Universal type |
Gasket | EPDM, VITON(FPM), Silicone, different color is available |
Bushing | EPDM or PTFE, other material request |
Nut | Stainless Steel 304 or 316 Material or other request |
Bolt | Stainless Steel 304 or 316 Material or other request |
Features
● Seats and seals comply with FDA approved
● Special gasket design, fluid free of residue
● Better acid proof, alkali proof
● Small torque, light weight,simple structure
● 360 degree installation
● 100% tested and inspected
● Cost-efficient leakage protection
● More than thirty thousand safety test
● Low pressure losses
● Thorough cleaning,Hygienic exterior design
● Minimize turbulence and maximize fluid flow trough
Application
Sanitary Butterfly valve widely use in low and medium viscosity liquid for food and beverage, beer, dairy, pharmaceutical etc with high precision and purity requirements industries.
