Sanitary clamped two way ball valve

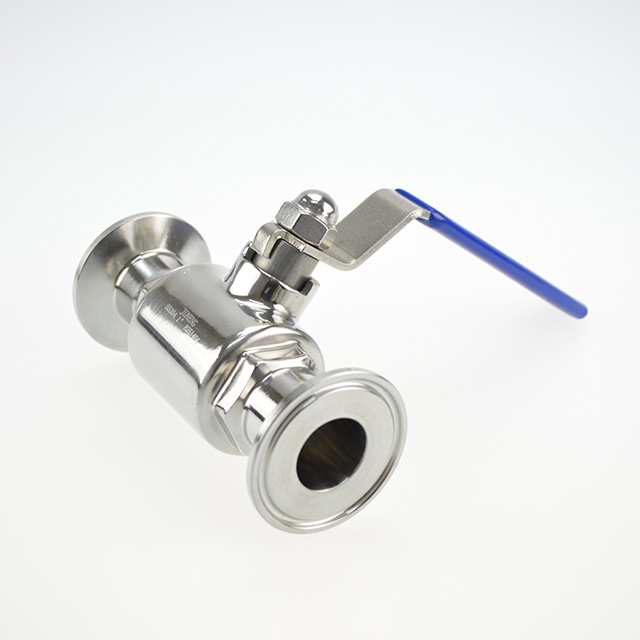

Sanitary Clamped two way ball valve

Sanitary threaded 3 way ball valve, sanitary ball valve, hygienic ball valve, sanitary non-retention ball valve, hygienic ball valve, hygienic butterfly type ball valve

Sanitary Clamped two way ball valve

Hygienic ball valve
Stainless steel hygienic ball valve

The completelyfull-through design for valve chamber can not bring any liquid resistance,
so it is the best choice for dealing with sticky or grain liquid.


Features:

Free maintenance
Small operating torque
Smaller and lighter than the others
High precise casting body
Pressure: 10bar
Temperature: -60~ 180 degree
Body type: Two way, Three way type( L type and T type)
Working mode: Manual type, electrical type, pneumatic type
Gaskets: PTFE  EPDM
Easy cleaning, easy maintenance, light weight,

Connection end: Weld, tri-clamped, union, flange,male threading, female threading
Standard: DIN, SMS, ISO, 3A, IDF
Material: SS304, SS316L
Inside surface finish: Ra0.4

Outside surface finish: Ra 0.6
Size: DN15-DN100 , 1/2”-4”
Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries
