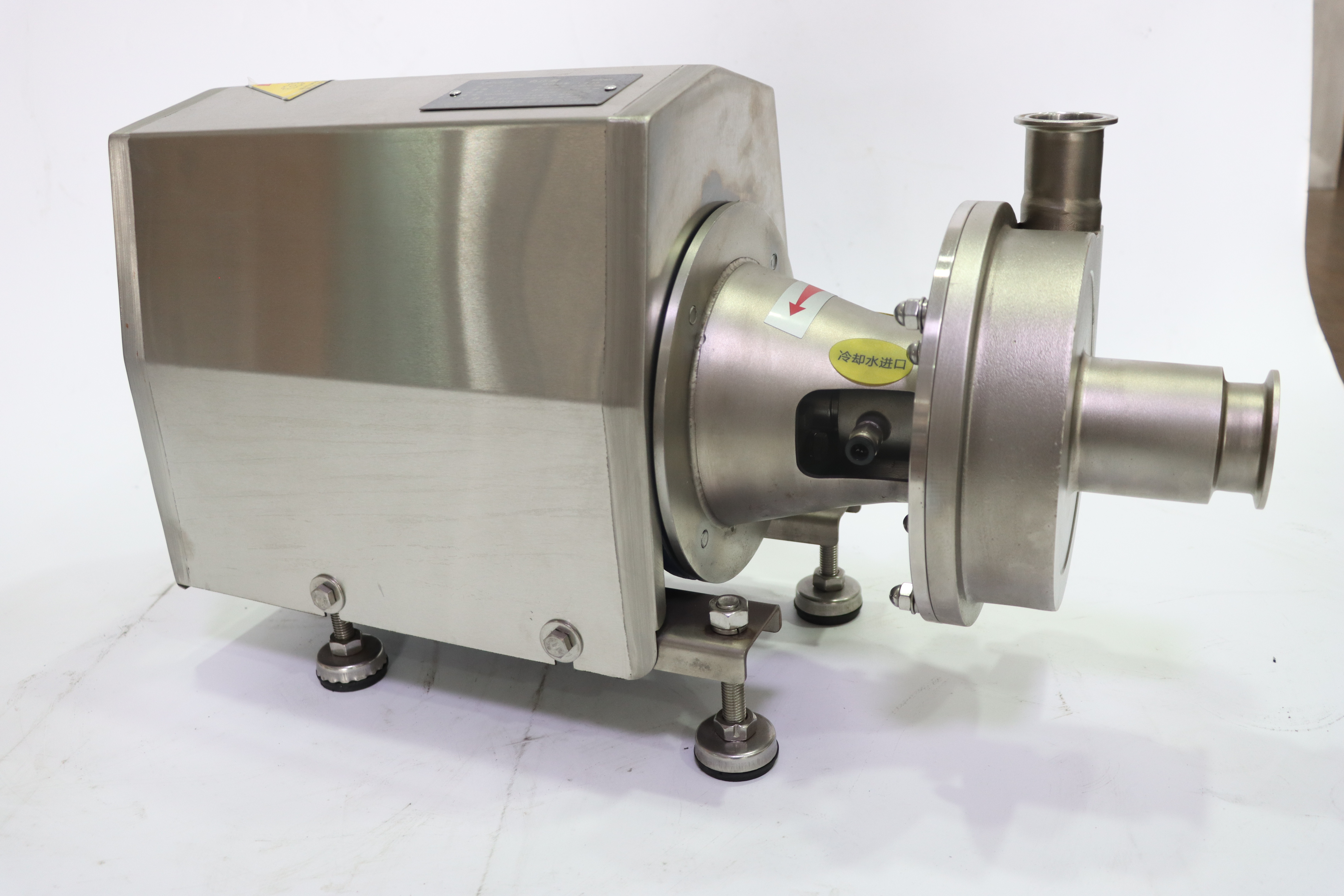

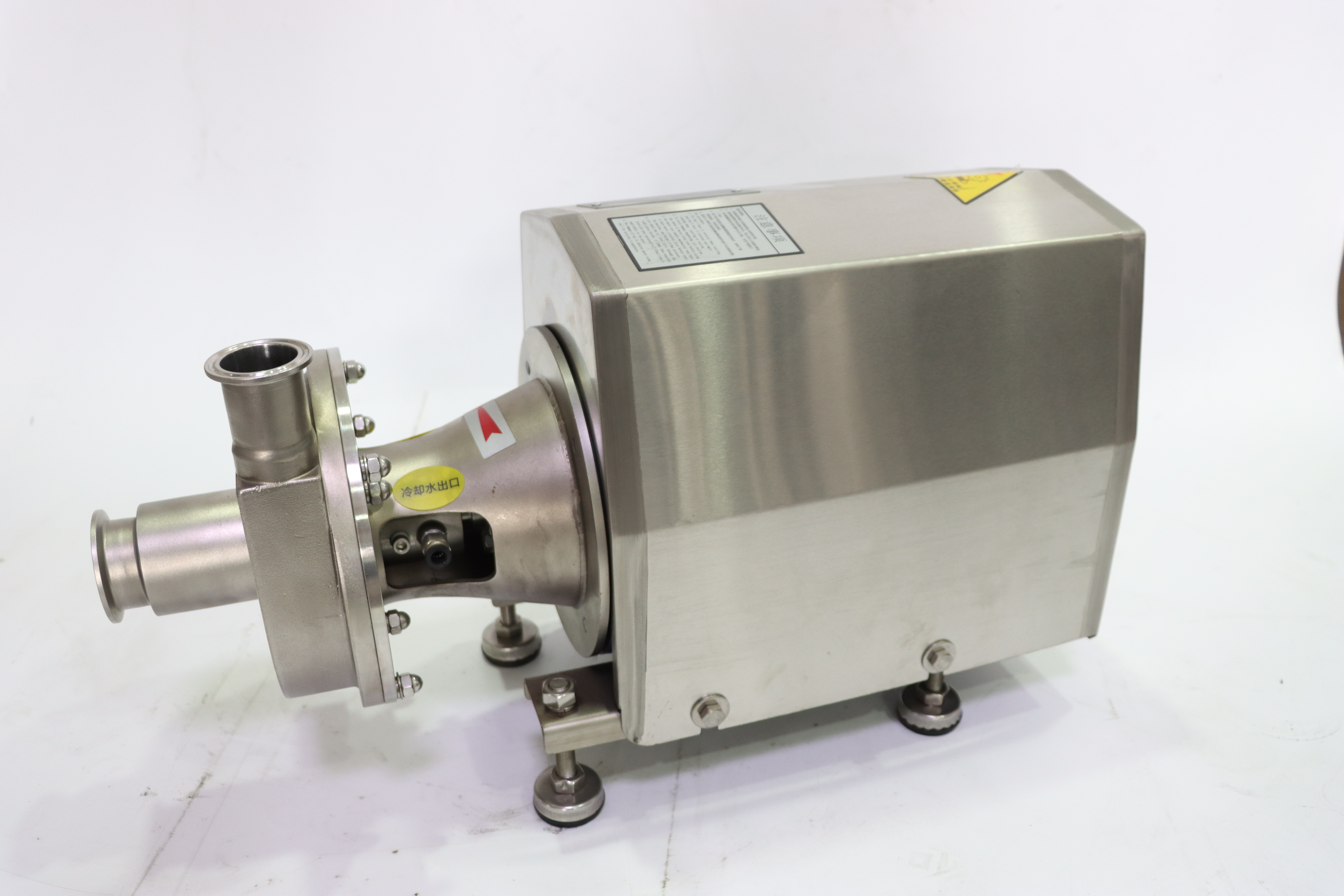

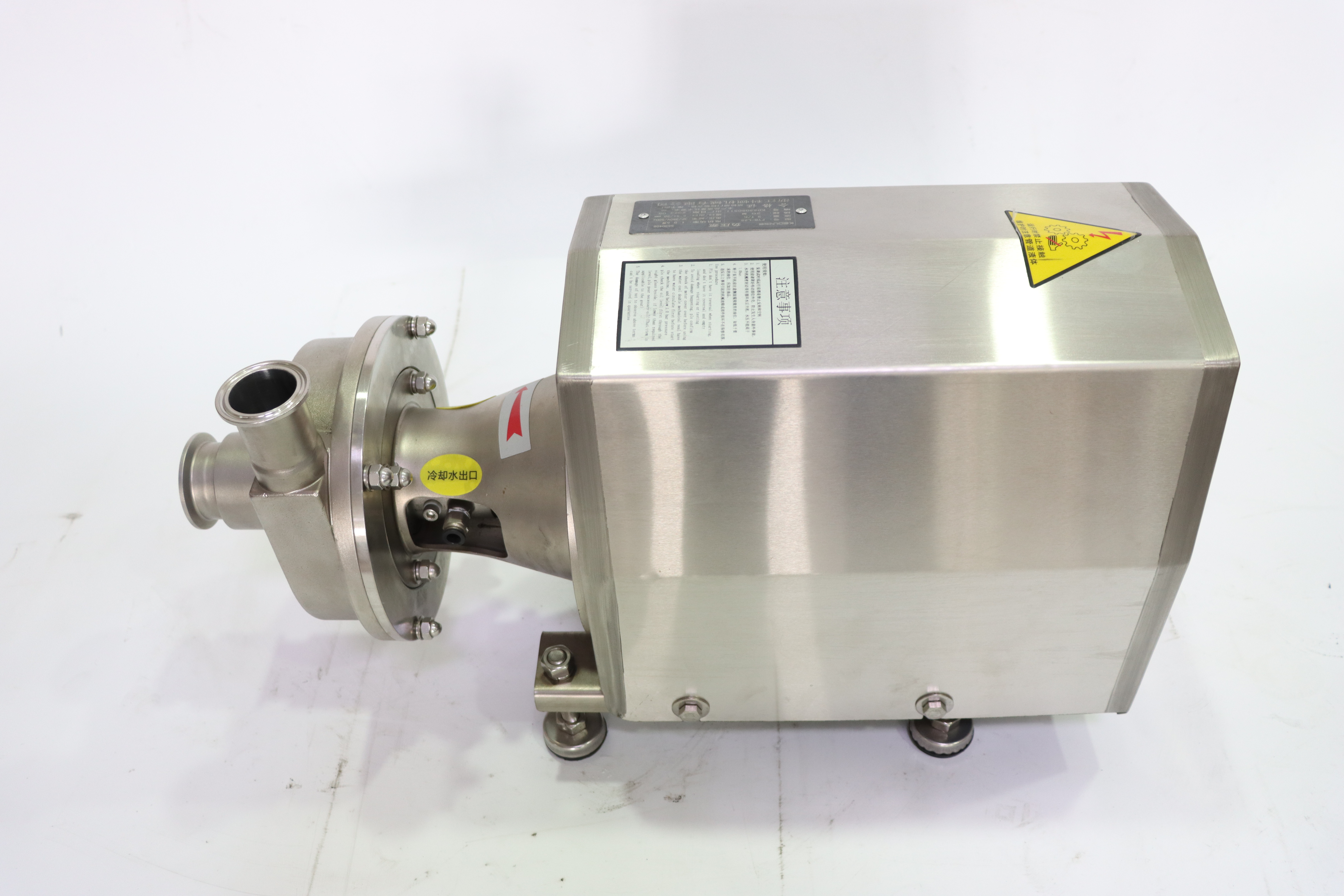

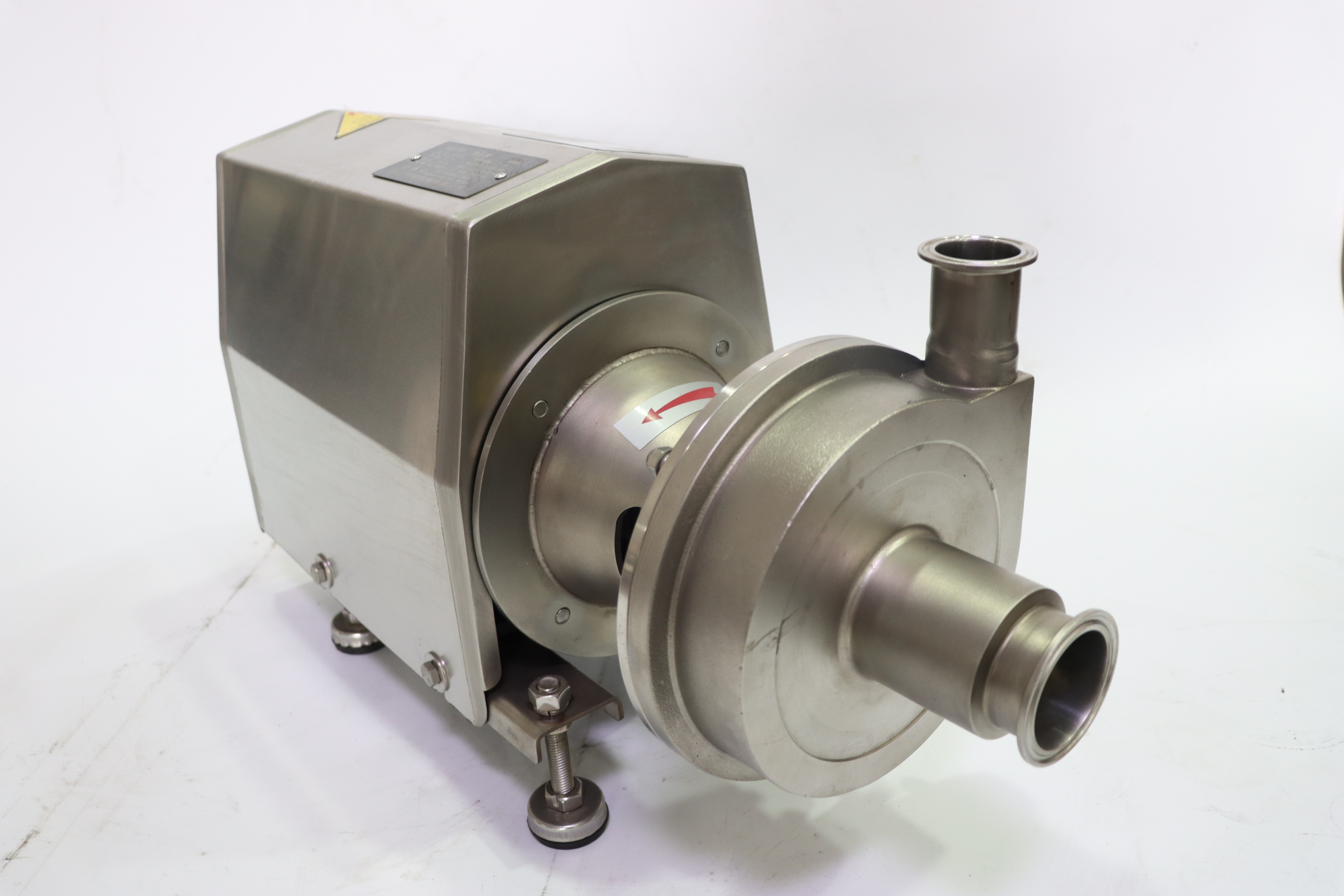

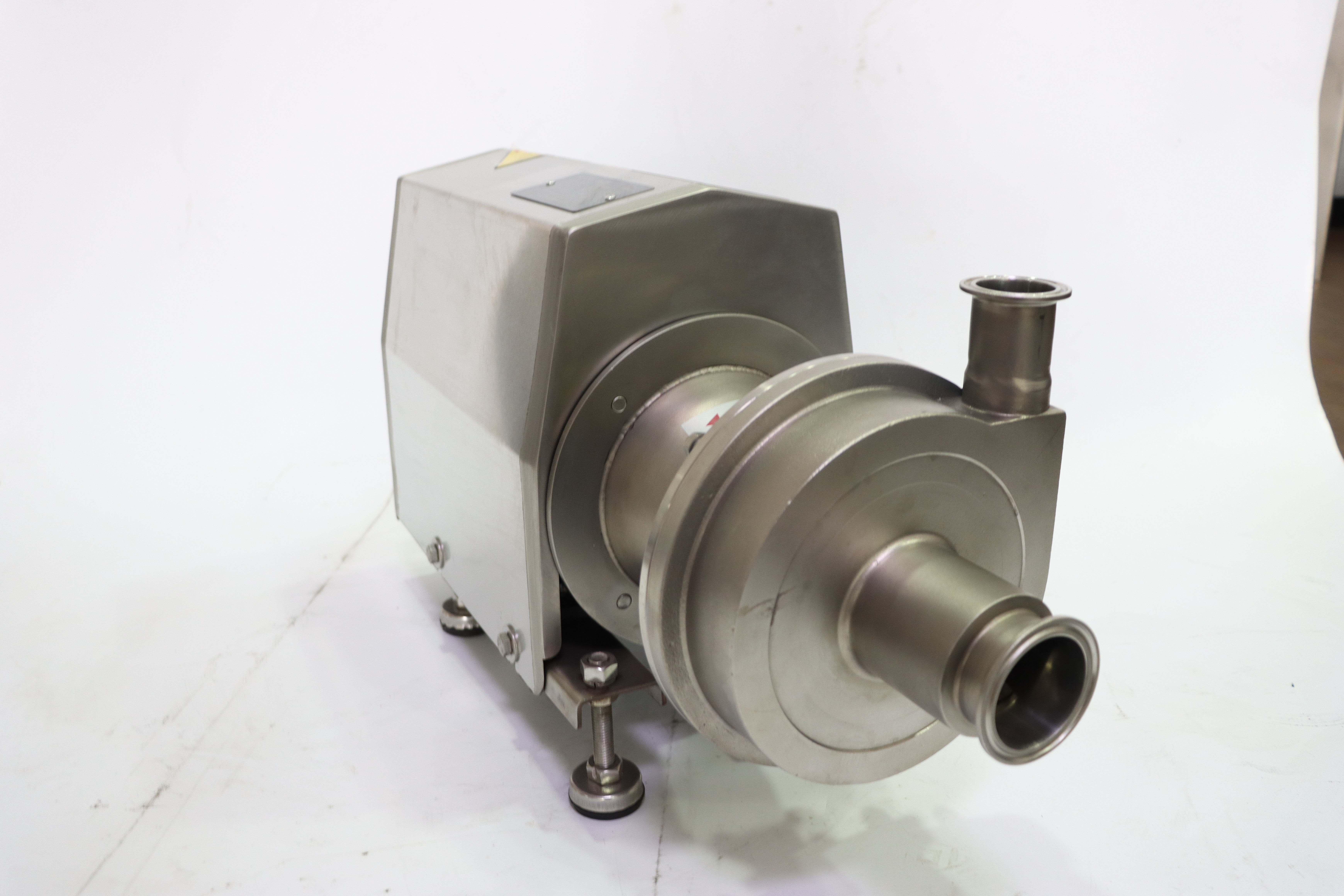

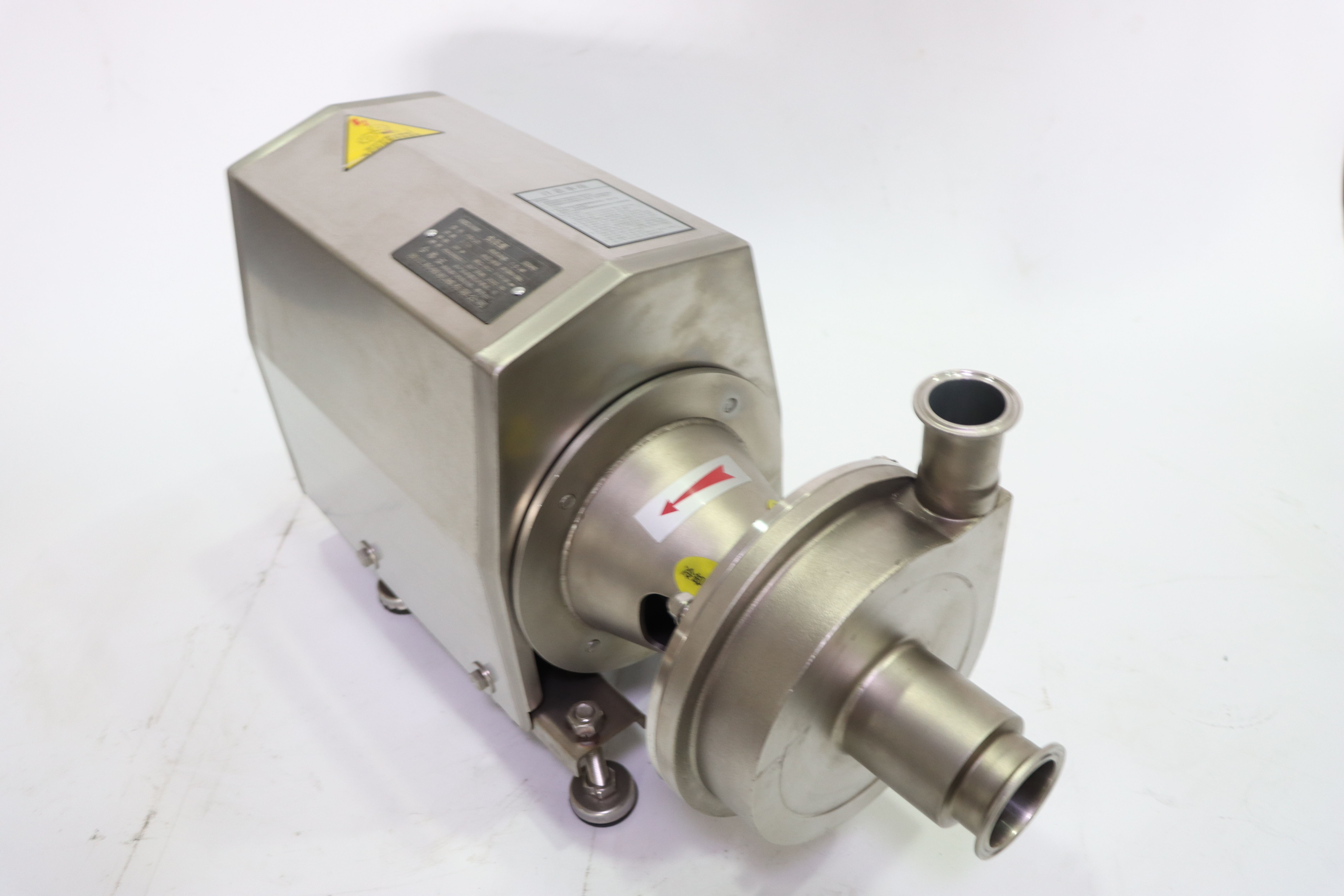

The Stainless Steel CIP Liquid Ring Self Priming Vertical 1.5 kW Centrifugal Pump is a sanitary pump designed for cleaning-in-place systems. It combines liquid ring self-priming technology with a vertical centrifugal structure, delivering reliable circulation, strong suction, and hygienic performance in industrial cleaning applications.
JONENG
8481804090
The Stainless Steel CIP Liquid Ring Self Priming Vertical 1.5 kW Centrifugal Pump is a sanitary pump designed for cleaning-in-place systems. It combines liquid ring self-priming technology with a vertical centrifugal structure, delivering reliable circulation, strong suction, and hygienic performance in industrial cleaning applications.
Working Principles
The Stainless Steel CIP Liquid Ring Self Priming Vertical 1.5 kW Centrifugal Pump operates by combining centrifugal pumping with a liquid ring self-priming mechanism. When the motor starts, the impeller rotates and forms a liquid ring inside the pump chamber, which expels air from the suction line and enables automatic priming. Once primed, cleaning or process liquid is continuously drawn into the pump and accelerated outward by centrifugal force. The liquid then flows through the casing where velocity energy is converted into pressure, providing stable circulation. The vertical design saves space and supports smooth drainage, while stainless steel construction ensures durability, corrosion resistance, and hygienic performance during CIP operations
Stainless Steel Lobe Pump Specification Chart
Max. flow rate | 130m3/h |
Max viscosity | 100000Cps |
Max pressur | 7bar |
Power supply | 0.75kw to 30kw |
Max. temperature | 120 °C |
Material | SS304/SS316L |
| Mechanical seal | single mechanical seal/double mechanical seal |
| Inlet/outlet connection | Thread, Clamp, Flange,Weld,Union |
| Internal Surface treatment | ≤ Ra0.8μm as default |
| Motor brand | ABB or local motor |
Frequency | 50HZ/60HZ |
Features
The stainless steel sanitary construction offers excellent corrosion resistance and smooth internal surfaces, ensuring reliable performance and easy cleaning in demanding CIP cleaning and hygienic processing applications.
The liquid ring self-priming design effectively removes air from the suction line, enabling fast startup and stable operation without manual priming, even under fluctuating inlet conditions.
The vertical pump configuration reduces installation footprint, supports efficient drainage, and improves operational stability during continuous cleaning-in-place circulation processes.
The 1.5 kW motor delivers consistent power output with low noise and vibration, providing energy-efficient operation and dependable flow control for CIP system requirements
Application
The Stainless Steel CIP Liquid Ring Self Priming Vertical 1.5 kW Centrifugal Pump is widely used in food and beverage processing for cleaning-in-place systems, circulating cleaning solutions in dairy, brewery, and juice production lines. It is also applied in pharmaceutical and biotechnology industries to maintain hygienic standards during CIP operations, ensuring thorough cleaning of tanks, pipelines, and equipment without disassembly, while providing corrosion-resistant and contamination-free performance
Working Principles
The Stainless Steel CIP Liquid Ring Self Priming Vertical 1.5 kW Centrifugal Pump operates by combining centrifugal pumping with a liquid ring self-priming mechanism. When the motor starts, the impeller rotates and forms a liquid ring inside the pump chamber, which expels air from the suction line and enables automatic priming. Once primed, cleaning or process liquid is continuously drawn into the pump and accelerated outward by centrifugal force. The liquid then flows through the casing where velocity energy is converted into pressure, providing stable circulation. The vertical design saves space and supports smooth drainage, while stainless steel construction ensures durability, corrosion resistance, and hygienic performance during CIP operations
Feature and Specification
Stainless Steel Centrifugal Pump Specification Chart
Max. flow rate | 130m3/h |
Max viscosity | 100000Cps |
Power supply | 0.75kw to 30kw |
Max. temperature | 120 °C |
Material | SS304/SS316L |
| Mechanical seal | single mechanical seal/double mechanical seal |
| Inlet/outlet connection | Thread, Clamp, Flange,Weld,Union |
| Internal Surface treatment | ≤ Ra0.8μm as default |
| Motor brand | ABB or local motor |
| Motor type | variable frequency motor, fixed speed motor |
Frequency | 50HZ/60HZ |
Max. pressure | 7 bar |
Max. temperature | 120°C |
Material | SS304/SS316L |
| Inlet/outlet connection | Clamp, Weld, Flange |
| Inlet/outlet size | 1”-3” |
| Diaphragm | PTFE, PTFE with white back, EPDM, white EPDM, white NBR |
| Driving way | Air or Motor |
Features
The stainless steel sanitary construction offers excellent corrosion resistance and smooth internal surfaces, ensuring reliable performance and easy cleaning in demanding CIP cleaning and hygienic processing applications.
The liquid ring self-priming design effectively removes air from the suction line, enabling fast startup and stable operation without manual priming, even under fluctuating inlet conditions.
The vertical pump configuration reduces installation footprint, supports efficient drainage, and improves operational stability during continuous cleaning-in-place circulation processes.
The 1.5 kW motor delivers consistent power output with low noise and vibration, providing energy-efficient operation and dependable flow control for CIP system requirements
Application
The Stainless Steel CIP Liquid Ring Self Priming Vertical 1.5 kW Centrifugal Pump is widely used in food and beverage processing for cleaning-in-place systems, circulating cleaning solutions in dairy, brewery, and juice production lines. It is also applied in pharmaceutical and biotechnology industries to maintain hygienic standards during CIP operations, ensuring thorough cleaning of tanks, pipelines, and equipment without disassembly, while providing corrosion-resistant and contamination-free performance
