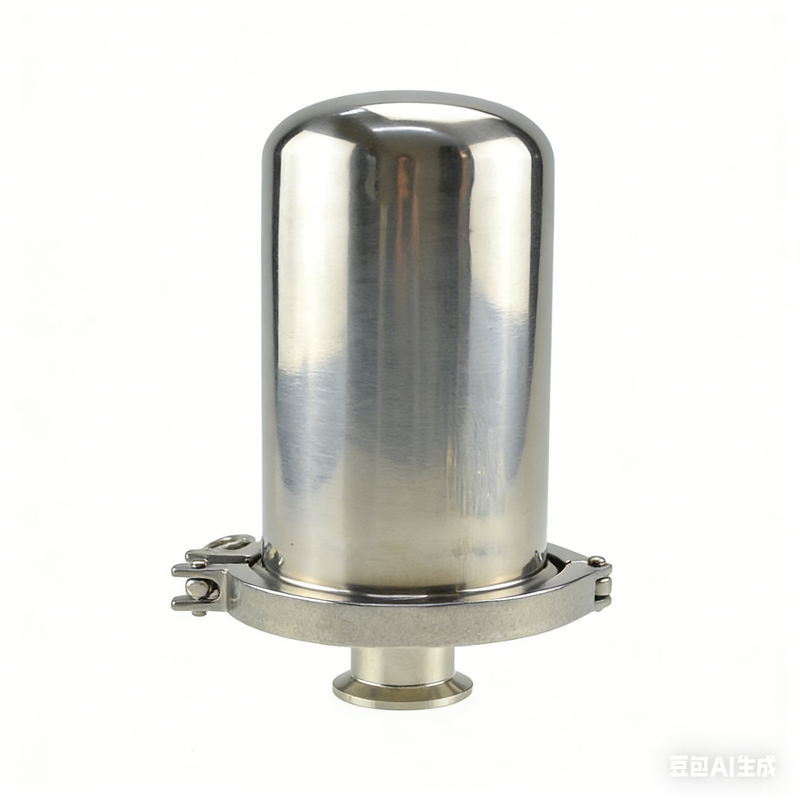

This precision-engineered inline filter/vent filter is constructed from high-quality 304 or 316L stainless steel, designed for use in hygienic and industrial process systems. It features a quick-release clamp design for easy access to the internal filter element, enabling fast maintenance and replacement. The smooth, polished surface finish ensures compliance with strict sanitary standards, making it ideal for applications in food & beverage, pharmaceutical, and cosmetic industries. Equipped with a tri-clamp connection for secure, leak-free installation, this filter provides reliable protection against contaminants while maintaining optimal flow rates. Its robust construction and corrosion-resistant properties ensure long-term performance in demanding environments.
JN-SP1004
JONENG
8421219990
This precision-engineered inline filter/vent filter is constructed from high-quality 304 or 316L stainless steel, designed for use in hygienic and industrial process systems. It features a quick-release clamp design for easy access to the internal filter element, enabling fast maintenance and replacement. The smooth, polished surface finish ensures compliance with strict sanitary standards, making it ideal for applications in food & beverage, pharmaceutical, and cosmetic industries. Equipped with a tri-clamp connection for secure, leak-free installation, this filter provides reliable protection against contaminants while maintaining optimal flow rates. Its robust construction and corrosion-resistant properties ensure long-term performance in demanding environments.
Size | 3”- 4” |
Material | SS304, SS316L |
Seals | EPDM, PTFE |
Mx. Pressure | 0 – 10 bar |
Max. temperature | - 20°C ~ 130°C |
End connections | tri clamp, welding |
Pressure Equalization: Enables air exchange to balance system pressure, preventing vacuum or overpressure.
Contaminant Filtration: Removes particulates and microorganisms from incoming air to maintain sterility.
Sterility Maintenance: Prevents the escape of process contaminants during venting, protecting both product and environment.
Hygienic Design: Smooth stainless steel construction supports thorough CIP/SIP for compliance with sanitary standards.
Easy Maintenance: Quick-release clamp allows fast filter inspection, replacement, and cleaning to minimize downtime.
Secure Sealing: Tri-clamp connections ensure a leak-free seal, preserving the controlled process environment.
Working Principles
Feature and Specification
Stainless Steel Rebreather Valve Specification Chart
Size | 3”- 4” |
Material | SS304, SS316L |
Seals | EPDM, PTFE |
Mx. Pressure | 0 – 10 bar |
Max. temperature | - 20°C ~ 130°C |
End connections | tri clamp, welding |
Features
Pressure Equalization: Enables air exchange to balance system pressure, preventing vacuum or overpressure.
Contaminant Filtration: Removes particulates and microorganisms from incoming air to maintain sterility.
Sterility Maintenance: Prevents the escape of process contaminants during venting, protecting both product and environment.
Hygienic Design: Smooth stainless steel construction supports thorough CIP/SIP for compliance with sanitary standards.
Easy Maintenance: Quick-release clamp allows fast filter inspection, replacement, and cleaning to minimize downtime.
Secure Sealing: Tri-clamp connections ensure a leak-free seal, preserving the controlled process environment.
Application
