Stainless Steel Corrosion-Resistant Steam Valve Plastic Head Manual Quick-Release Angle Seat is a manually operated valve designed for high-temperature steam control. Its corrosion-resistant stainless steel body, angle seat, and quick-release plastic head enable smooth flow and easy maintenance in industrial applications.
JONENG

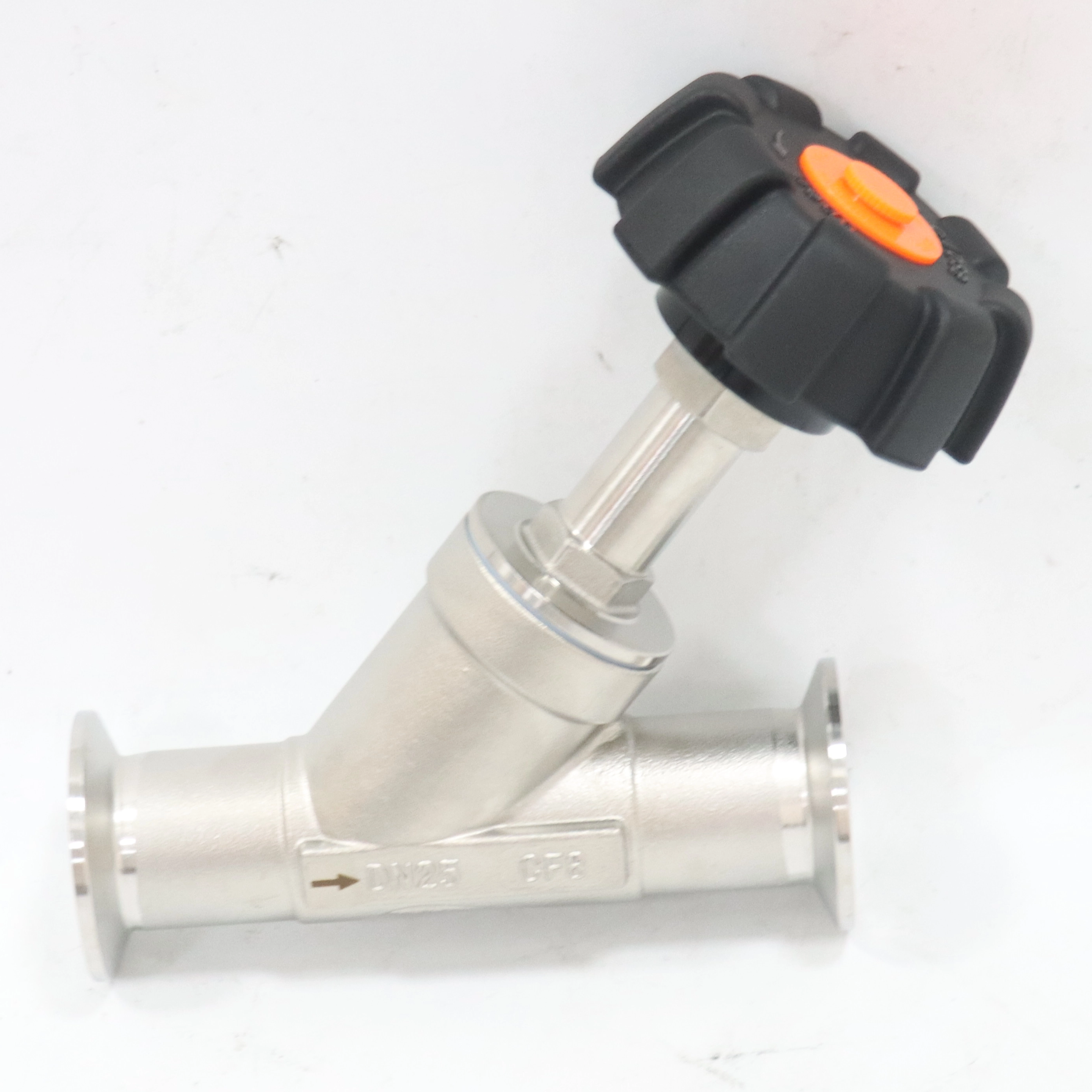

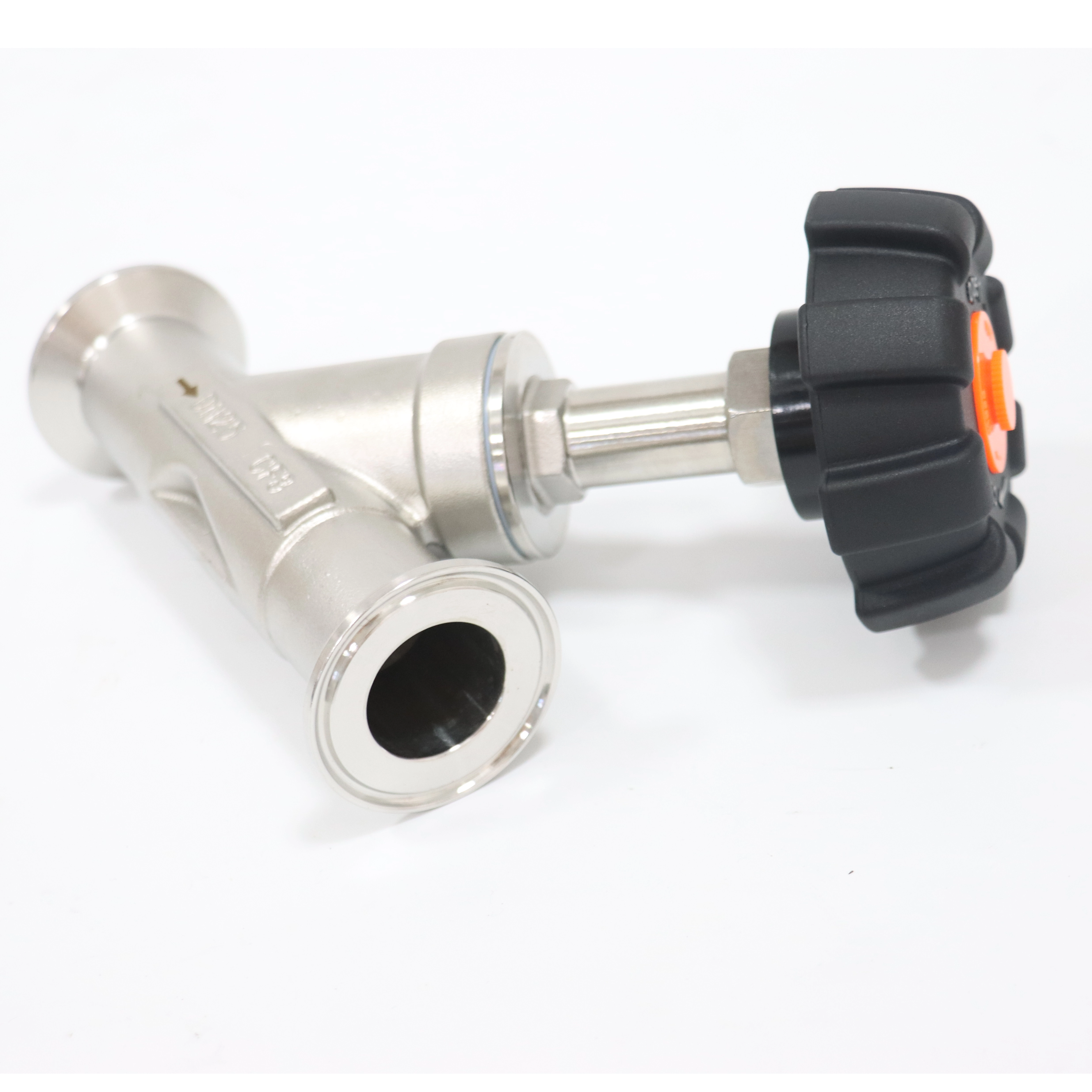

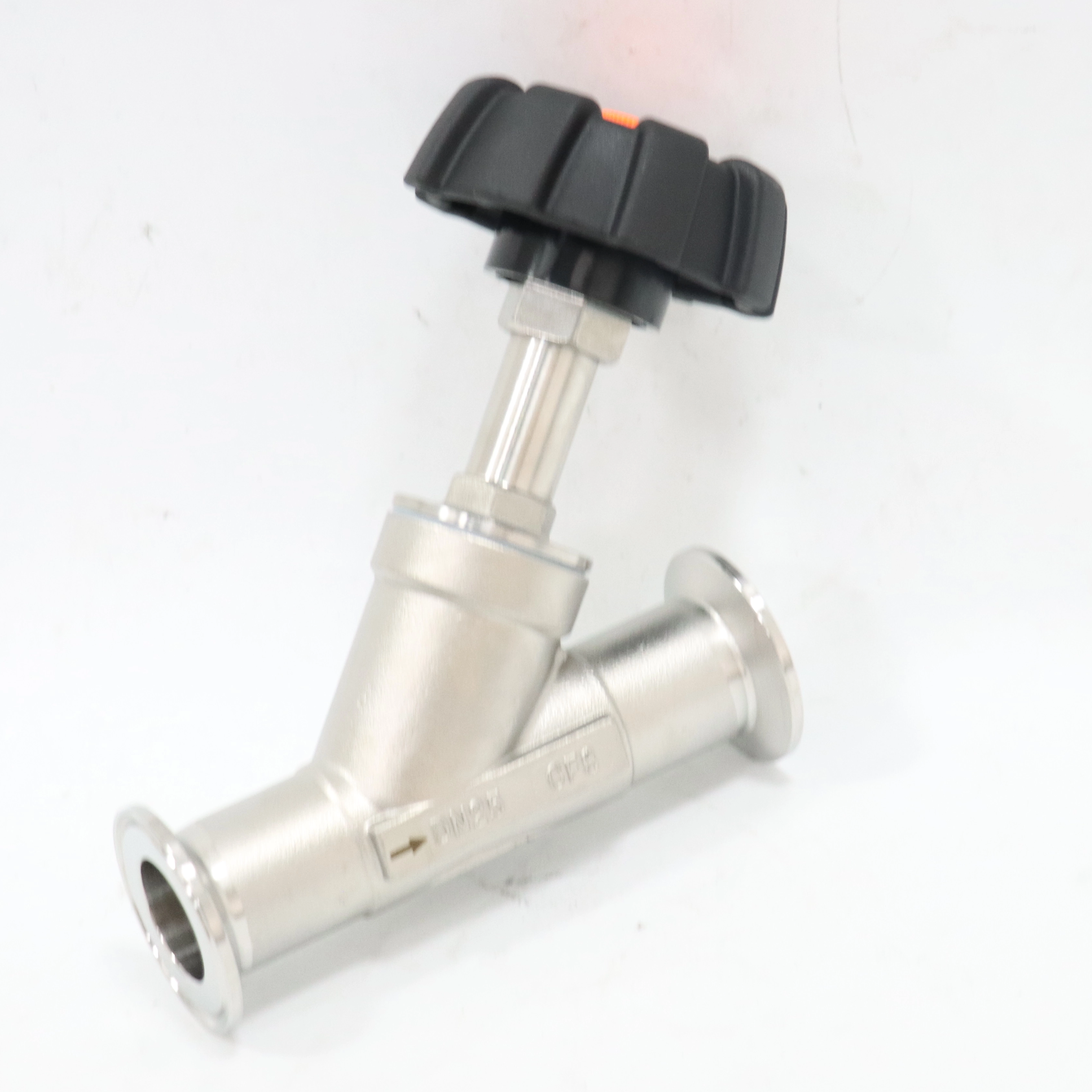

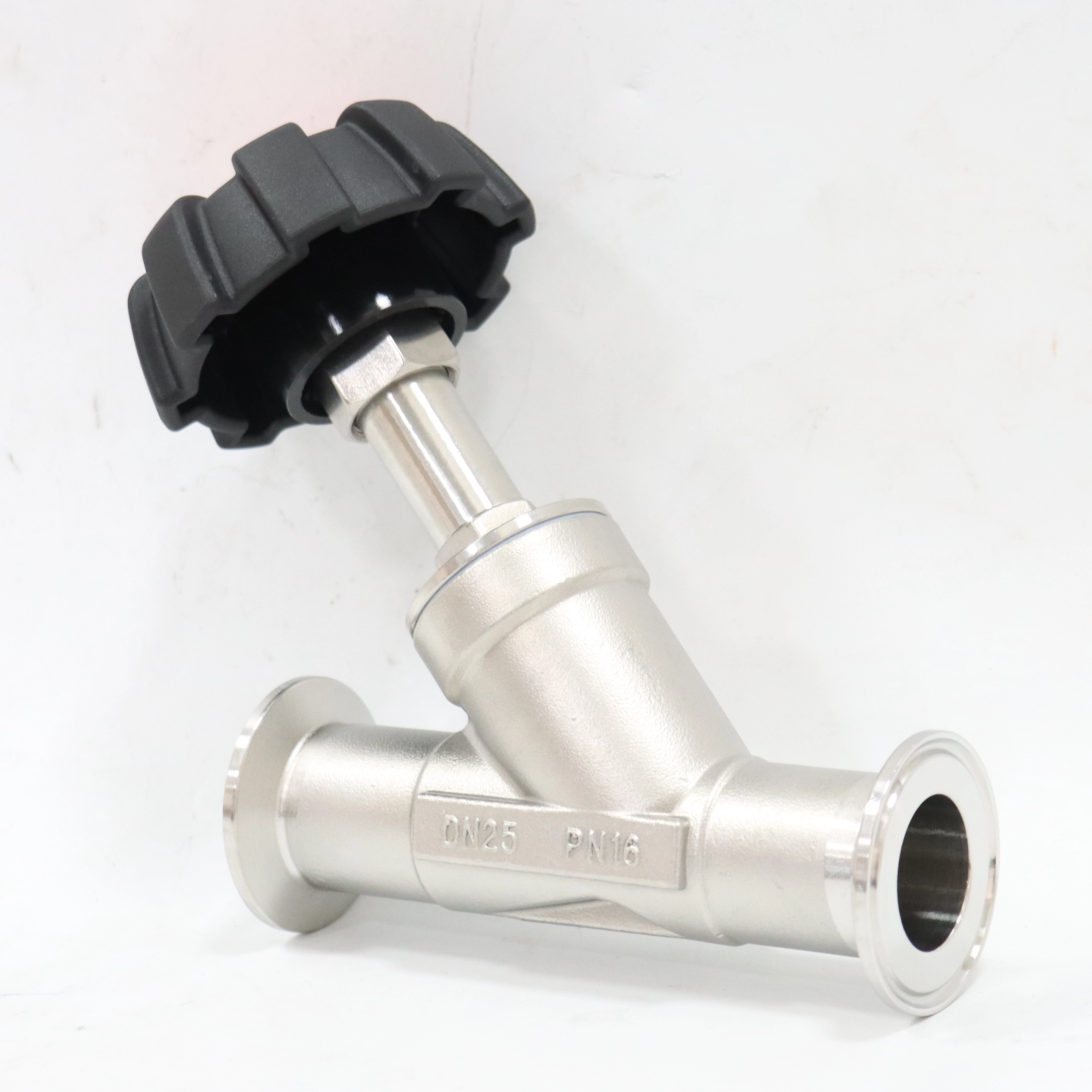

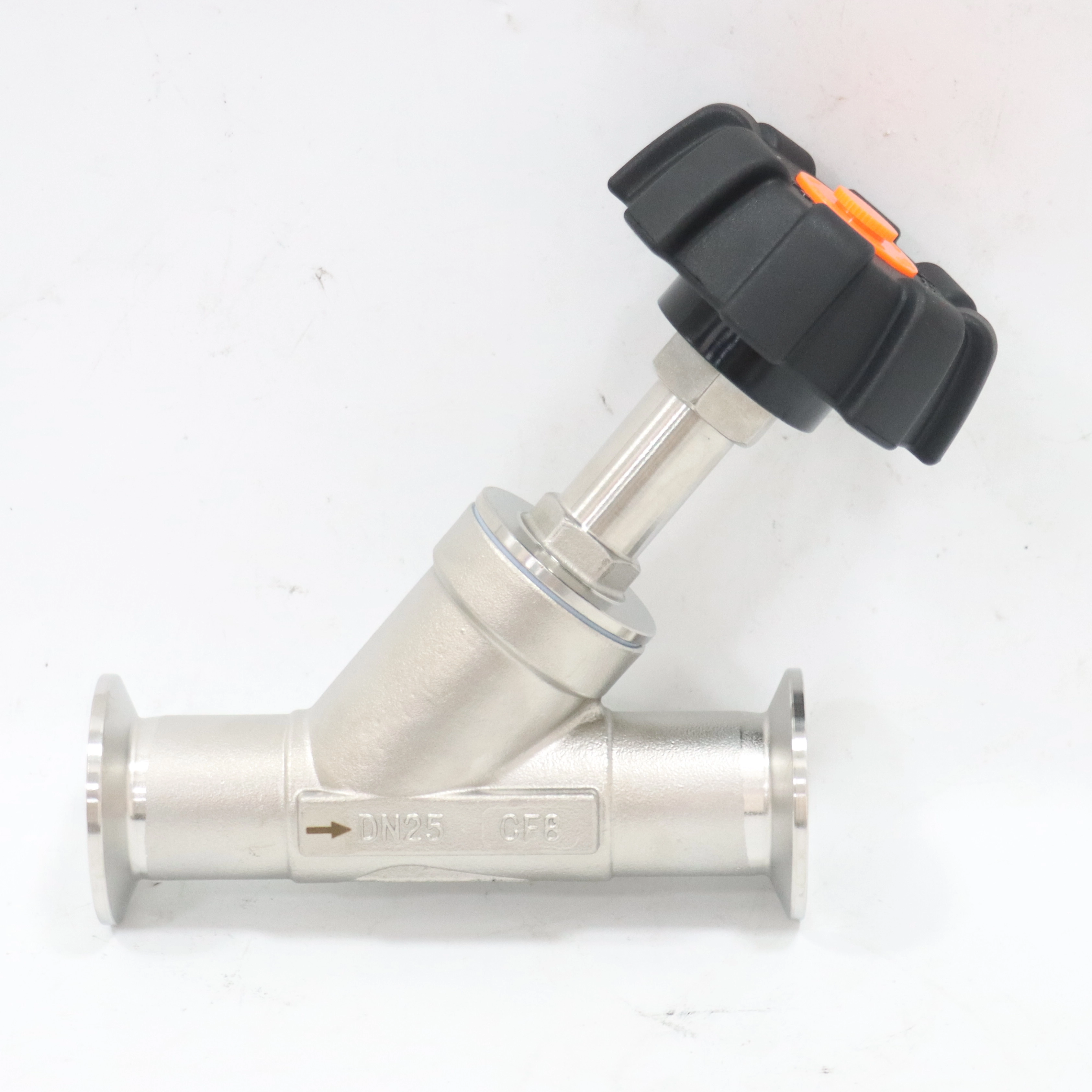

Stainless Steel Corrosion-resistant Steam Valve Plastic Head Manual Quick-release Angle Seat
Stainless Steel Corrosion-Resistant Steam Valve Plastic Head Manual Quick-Release Angle Seat is a manually operated valve designed for high-temperature steam control. Its corrosion-resistant stainless steel body, angle seat, and quick-release plastic head enable smooth flow and easy maintenance in industrial applications.
Working Principles
Stainless Steel Angle Seat Valve Specification Chart
Medium Temperature | -10℃~+180℃ |
Ambient Temperature | -10℃~+55℃ |
Body Materials | CF8M(SS316),CF8(SS304) |
Sealing Material | PTFE |
Operation | Normally Closed, Normally Open, Double-acting or Manually |
Connection End | Female, Weld,Clamp, Flange or on request |
Size Range | DN10-DN100 |
Surface treatment | Ra 16 ~ 32µin (0.4 ~ 0.8µm) |
Standards | DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE. |
Control type | Single acting, double acting |
Features
Constructed from corrosion-resistant stainless steel, providing long-lasting durability and reliable performance in high-temperature steam environments.
Plastic handwheel allows lightweight, ergonomic manual operation with precise control over steam flow.
Angle seat design ensures smooth flow, reduces pressure loss, and minimizes turbulence during operation.
Quick-release mechanism enables easy disassembly for cleaning, inspection, or maintenance, improving operational efficiency.
Tight sealing design prevents leaks and ensures safe, dependable performance in demanding industrial steam systems.
Application
Stainless Steel Corrosion-Resistant Steam Valve Plastic Head Manual Quick-Release Angle Seat Valves are commonly used in food processing and beverage industries for controlling steam in cooking, pasteurization, or sterilization systems. They are also applied in pharmaceutical and chemical production for safe, manual regulation of high-temperature steam. The corrosion-resistant construction, angle seat design, and quick-release feature make them ideal for industries requiring reliable manual control, easy maintenance, and safe operation under demanding steam and hygiene conditions
Working Principles
The working principle of a Stainless Steel Corrosion-Resistant Steam Valve Plastic Head Manual Quick-Release Angle Seat involves manual regulation of steam flow through an angled seat. Turning the plastic handwheel moves the valve stem, lifting the plug from the seat to open the flow path and allow steam to pass smoothly. The angled seat minimizes flow resistance and ensures efficient discharge. To stop the flow, the handwheel is rotated in the opposite direction, pressing the plug firmly against the seat to achieve a tight seal. The quick-release design allows easy removal of the bonnet or internal components for inspection, cleaning, or maintenance, ensuring safe and efficient operation in high-temperature and corrosive environments
Feature and Specification
Stainless Steel Angle Seat Valve Specification Chart
Max Working Pressure | 1.6MPa |
Medium Temperature | -10℃~+180℃ |
Ambient Temperature | -10℃~+55℃ |
Body Materials | CF8M(SS316),CF8(SS304) |
Sealing Material | PTFE |
Operation | Normally Closed, Normally Open, Double-acting or Manually |
Connection End | Female, Weld,Clamp, Flange or on request |
Size Range | DN10-DN100 |
Surface treatment | Ra 16 ~ 32µin (0.4 ~ 0.8µm) |
Standards | DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE. |
Control type | Single acting, double acting |
Features
Constructed from corrosion-resistant stainless steel, providing long-lasting durability and reliable performance in high-temperature steam environments.
Plastic handwheel allows lightweight, ergonomic manual operation with precise control over steam flow.
Angle seat design ensures smooth flow, reduces pressure loss, and minimizes turbulence during operation.
Quick-release mechanism enables easy disassembly for cleaning, inspection, or maintenance, improving operational efficiency.
Tight sealing design prevents leaks and ensures safe, dependable performance in demanding industrial steam systems.
Application
Stainless Steel Corrosion-Resistant Steam Valve Plastic Head Manual Quick-Release Angle Seat Valves are commonly used in food processing and beverage industries for controlling steam in cooking, pasteurization, or sterilization systems. They are also applied in pharmaceutical and chemical production for safe, manual regulation of high-temperature steam. The corrosion-resistant construction, angle seat design, and quick-release feature make them ideal for industries requiring reliable manual control, easy maintenance, and safe operation under demanding steam and hygiene conditions
