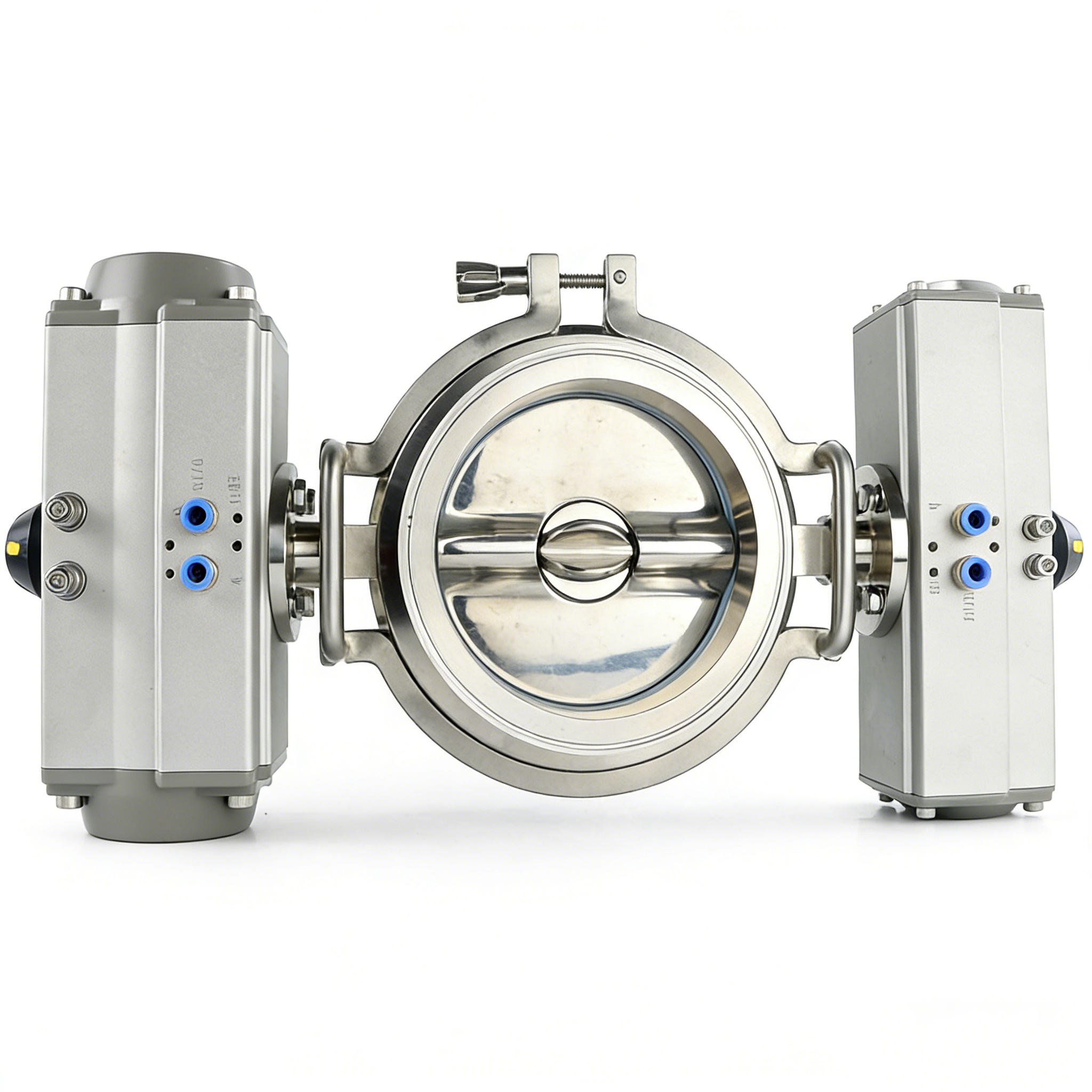

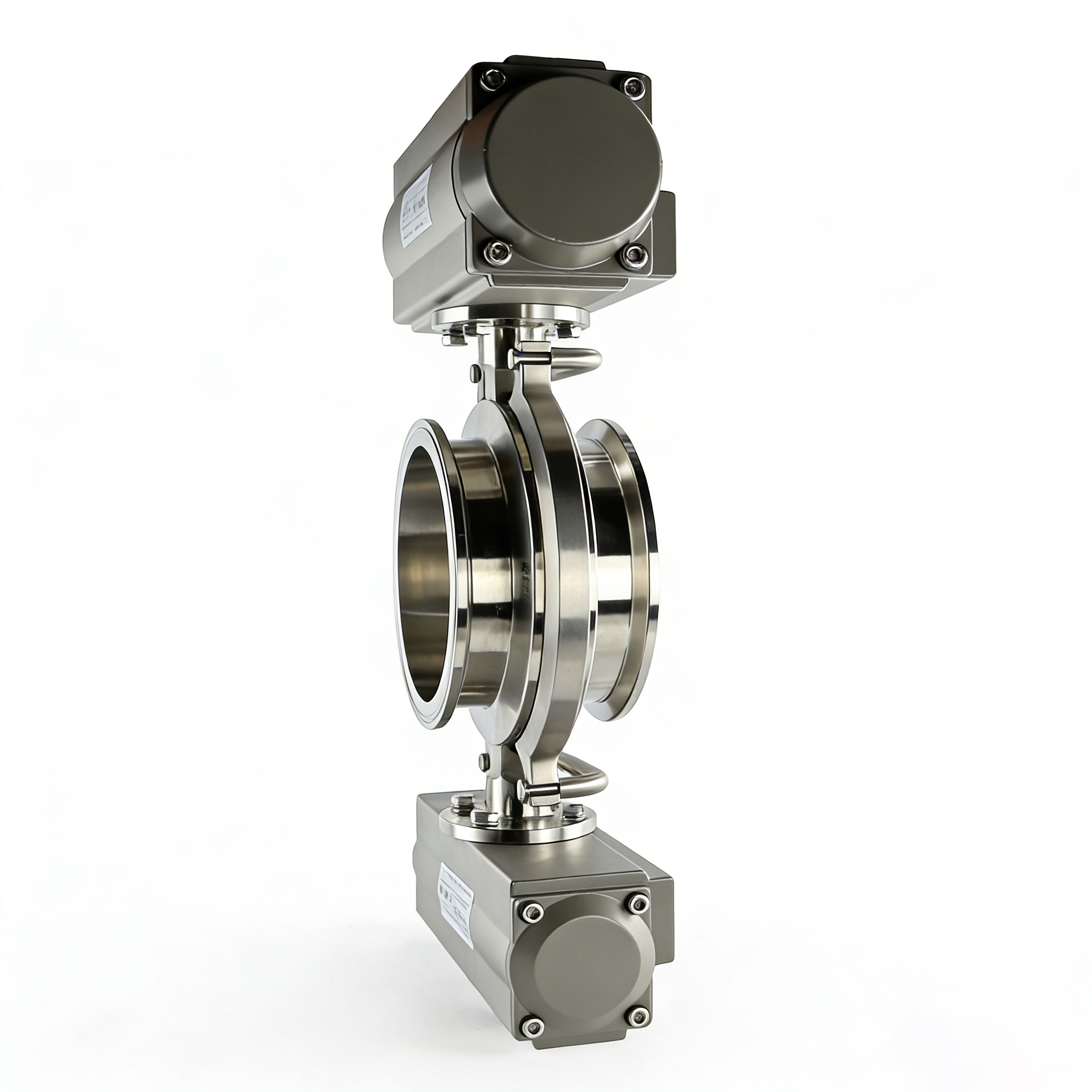

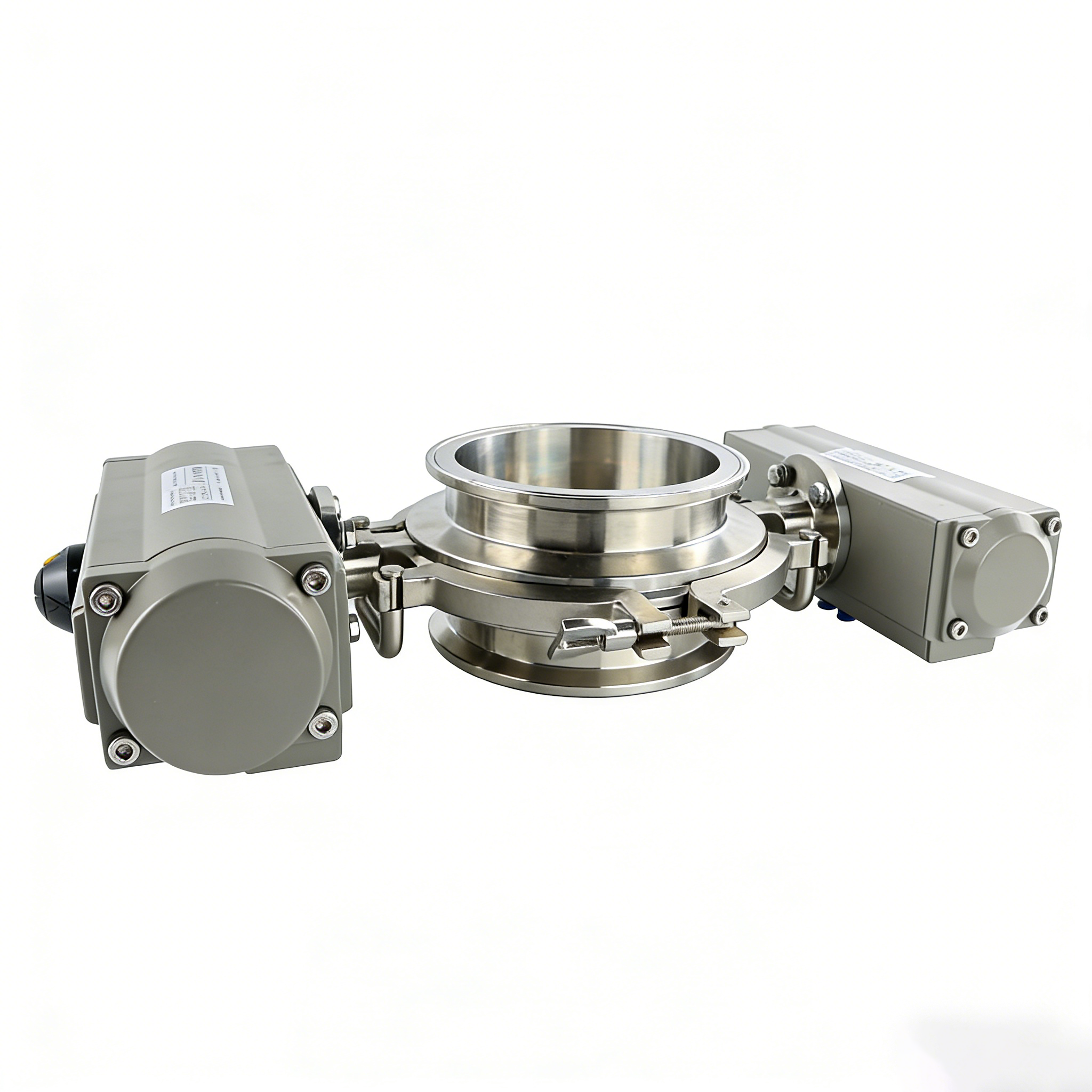

This dual pneumatic hygienic butterfly valve combines stable performance, precise control and easy maintenance, making it an ideal solution for powder and granule handling in pharmaceutical, food and fine chemical industries.
JN-XW 23 1001
JONENG
8421219990

This dual pneumatic actuator hygienic butterfly valve operates by using compressed air to drive its two actuators, which rotate the central disc via a through-shaft. Adjusting the disc’s angle between 0° and 90° enables precise control of material flow and dosing. It opens fully for unobstructed material passage and closes tightly to achieve leak-proof shut-off, ensuring stable and reliable performance in hygienic production scenarios.

Sizes available | 3 "-16" |
Max pressure | up to 10 bar |
End connection | Flanged, threaded, clamped |
Material | AISI316L OR AISI304L |
Seals | Silicone, Viton, PTFE, EPDM |
Standard | Manual or Pneumatic |
Temperature range | 3A, SMS, ISO |

Stable and reliable operation driven by dual pneumatic actuators
Precise flow control and accurate dosing for powders and granules
Hygienic polished stainless steel, easy to clean and sterilize
Excellent sealing performance with no material leakage
Compact structure, easy installation and low maintenance
Widely used in pharmaceutical, food and fine chemical industries

This valve is widely used in pharmaceutical, food, fine chemical and other hygiene‑sensitive industries. It is mainly used for flow control, dosing and conveying of powder, granule and bulk materials, ensuring stable operation, high cleanliness and safe production.

Working Principles

Feature and Specification

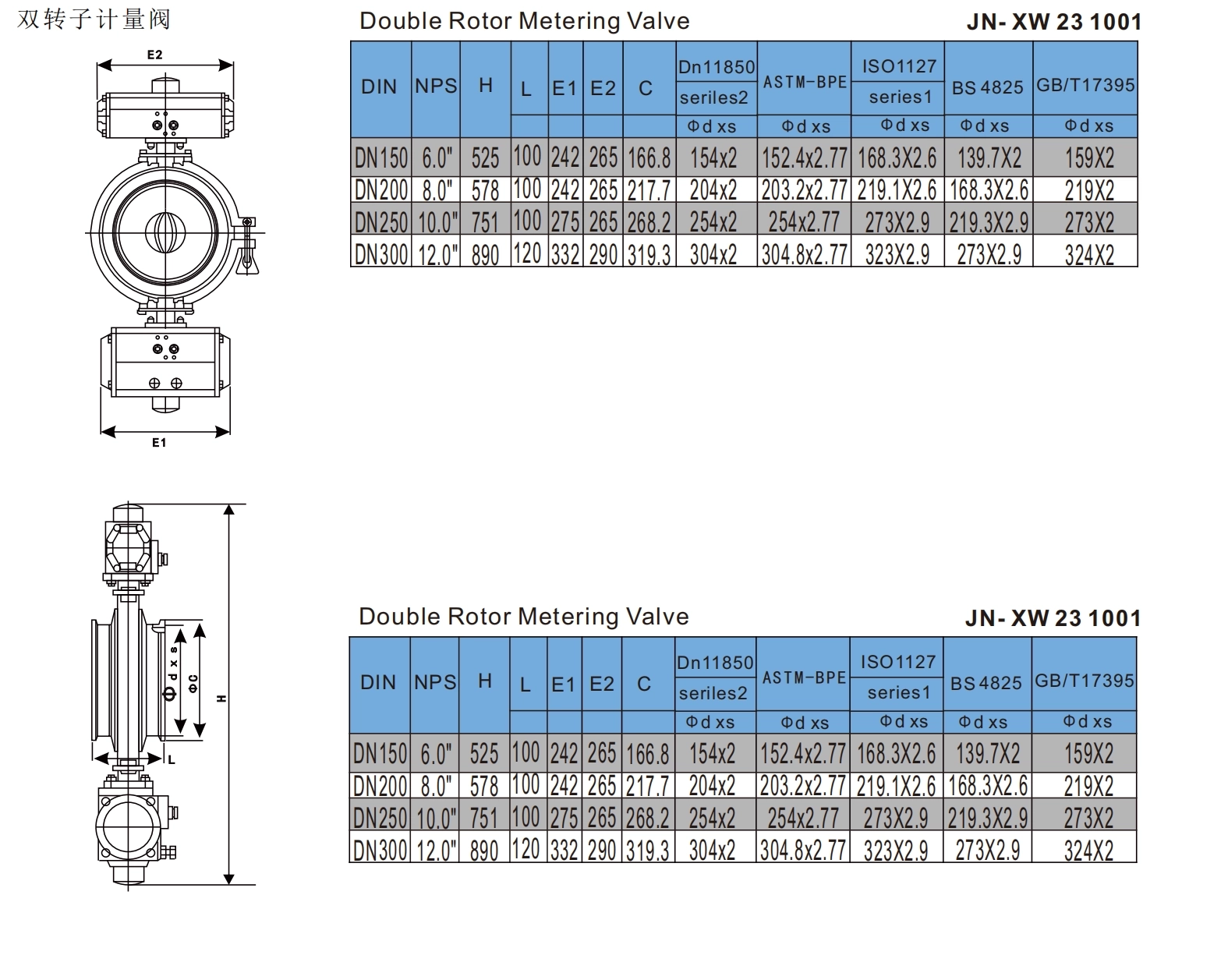

Stainless Steel Metering Valve Specification Chart

Sizes available | 3 "-16" |
Max pressure | up to 10 bar |
End connection | Flanged, threaded, clamped |
Material | AISI316L OR AISI304L |
Seals | Silicone, Viton, PTFE, EPDM |
Standard | Manual or Pneumatic |
Temperature range | 3A, SMS, ISO |
Feature

Stable and reliable operation driven by dual pneumatic actuators
Precise flow control and accurate dosing for powders and granules
Hygienic polished stainless steel, easy to clean and sterilize
Excellent sealing performance with no material leakage
Compact structure, easy installation and low maintenance
Widely used in pharmaceutical, food and fine chemical industries
Application
