JONENG

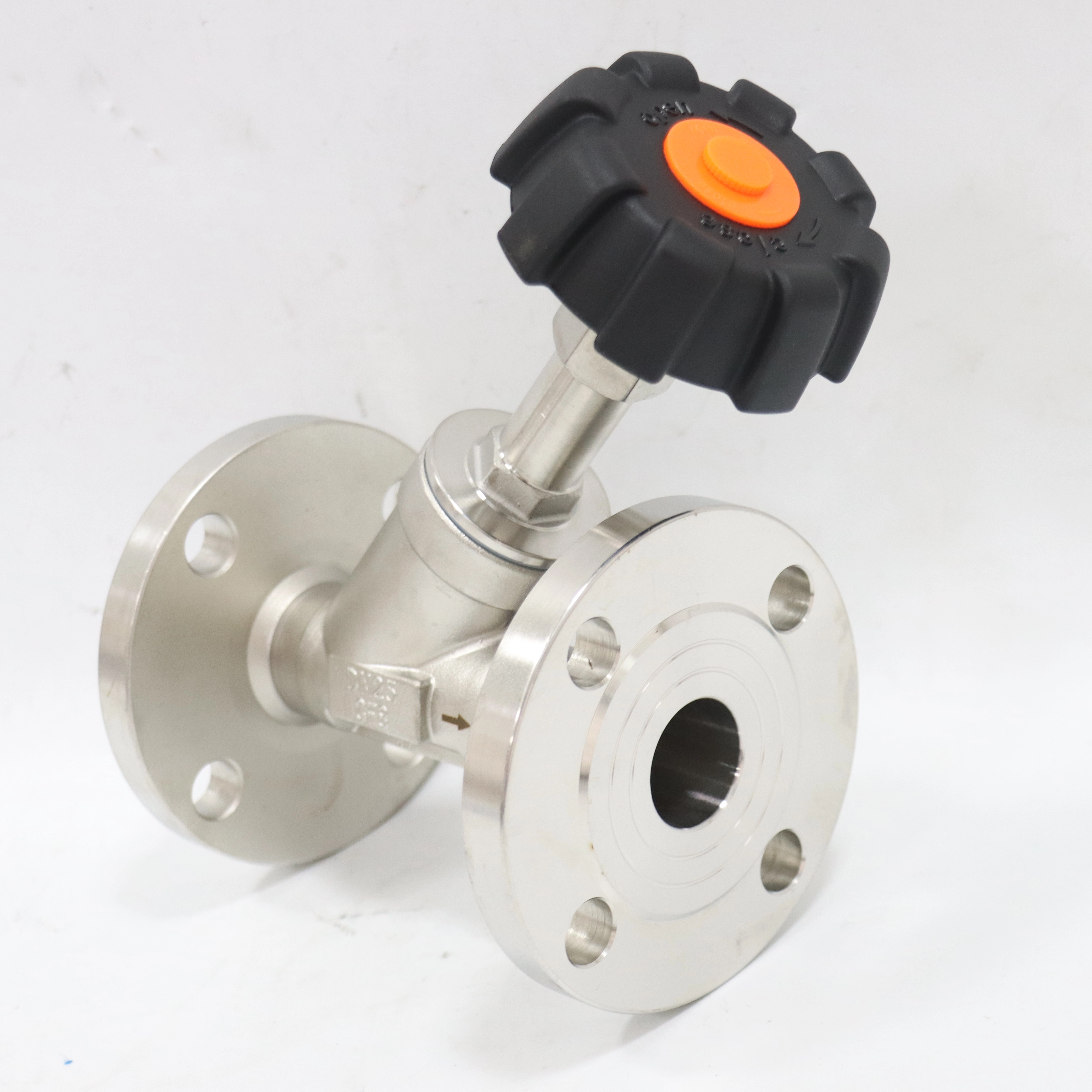

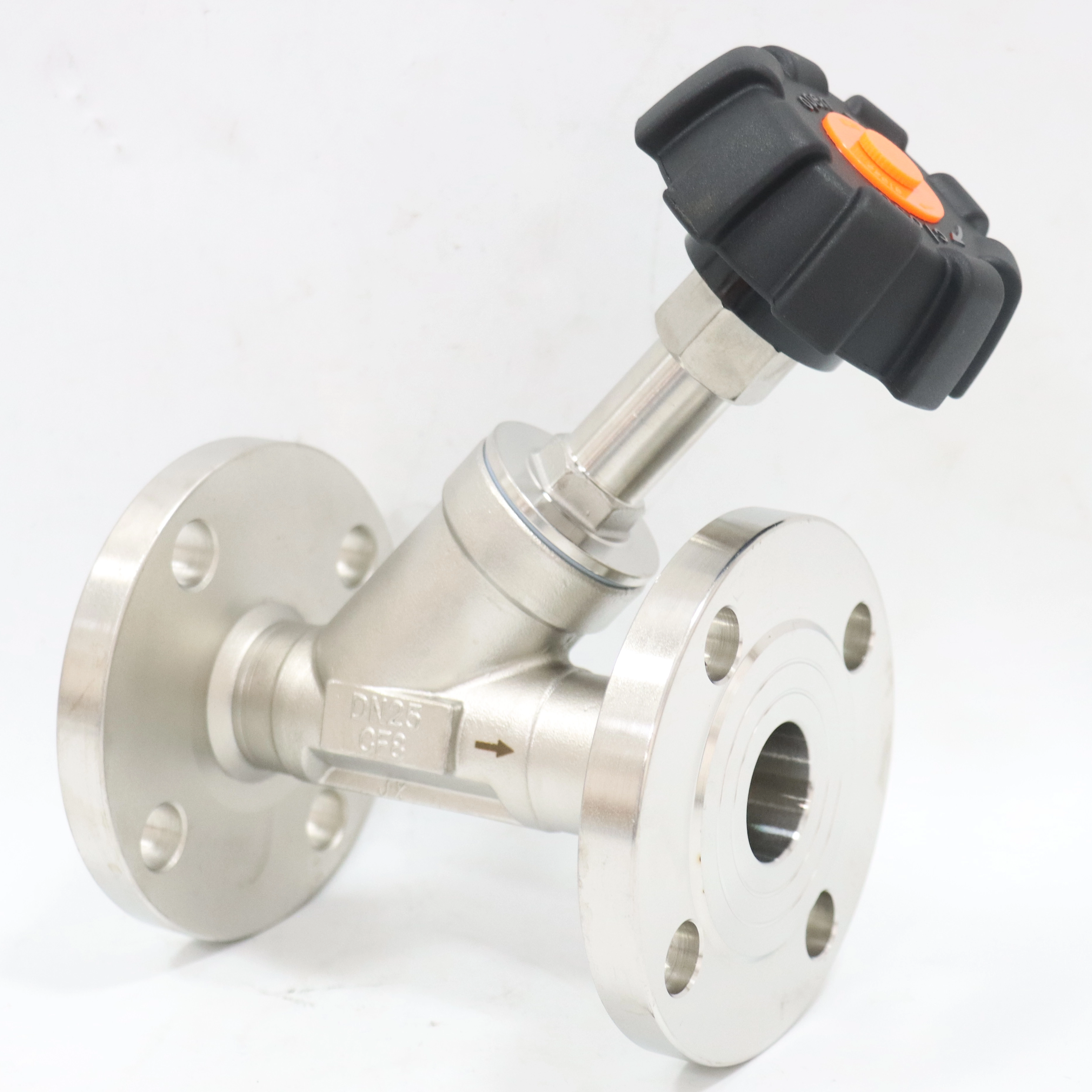

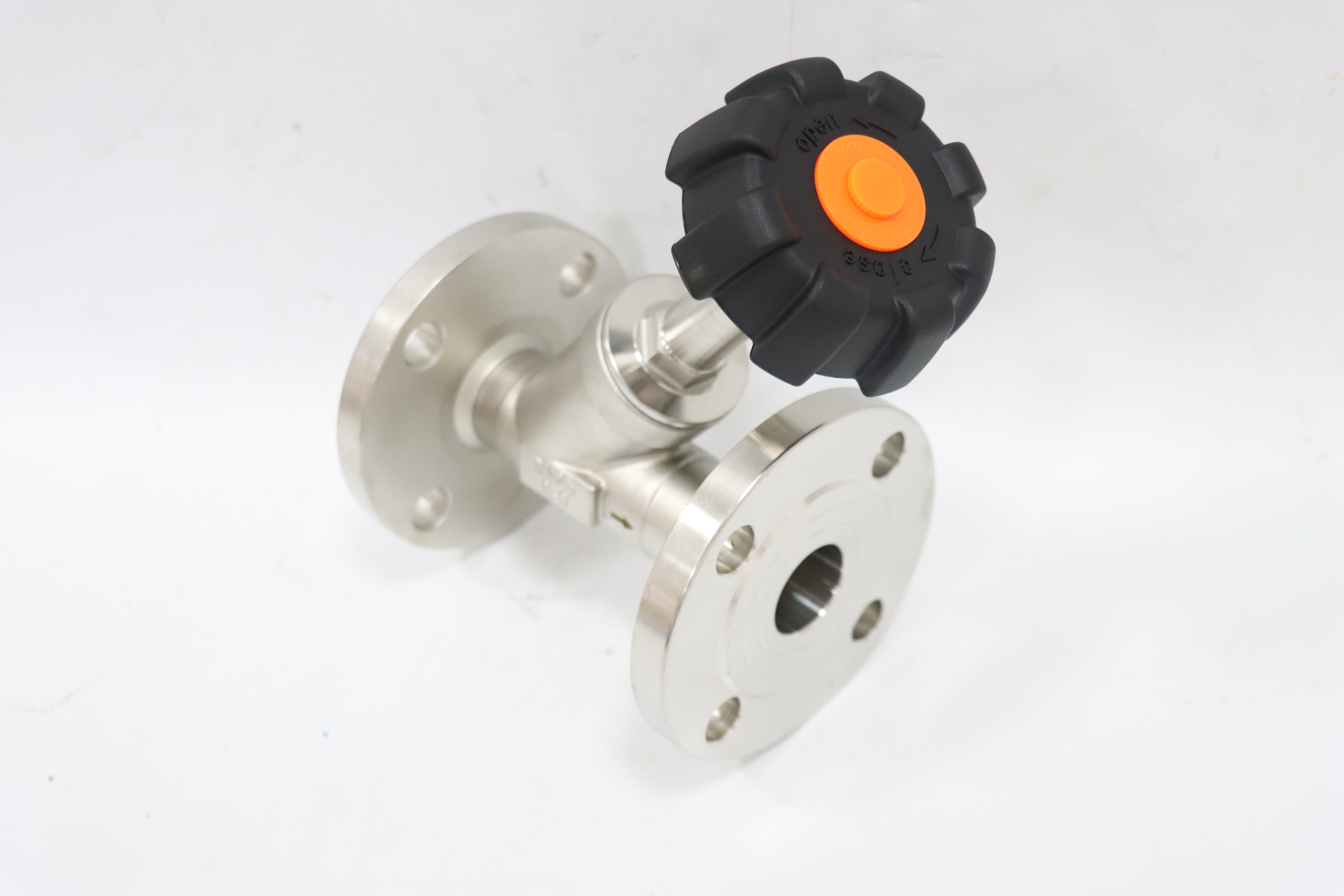

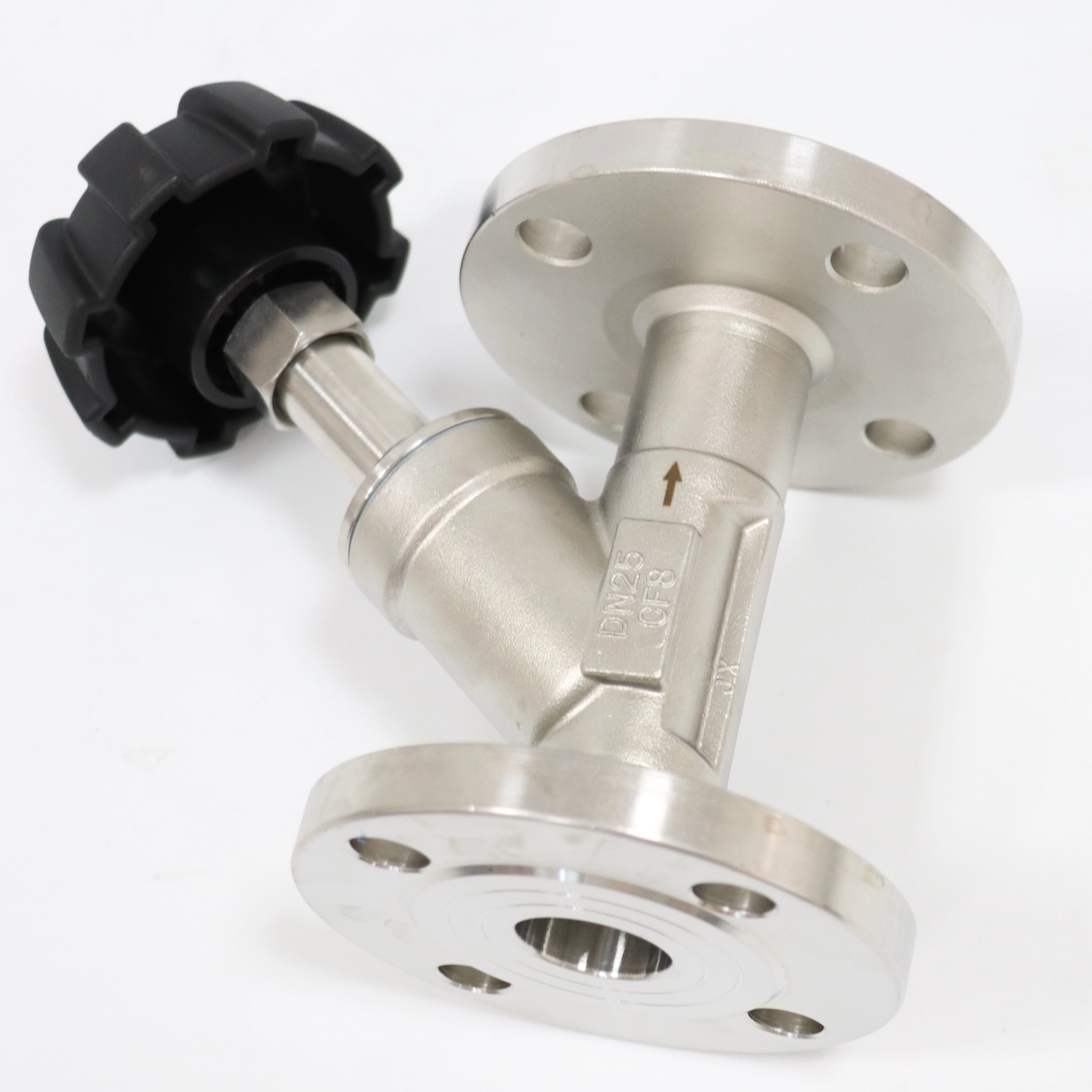

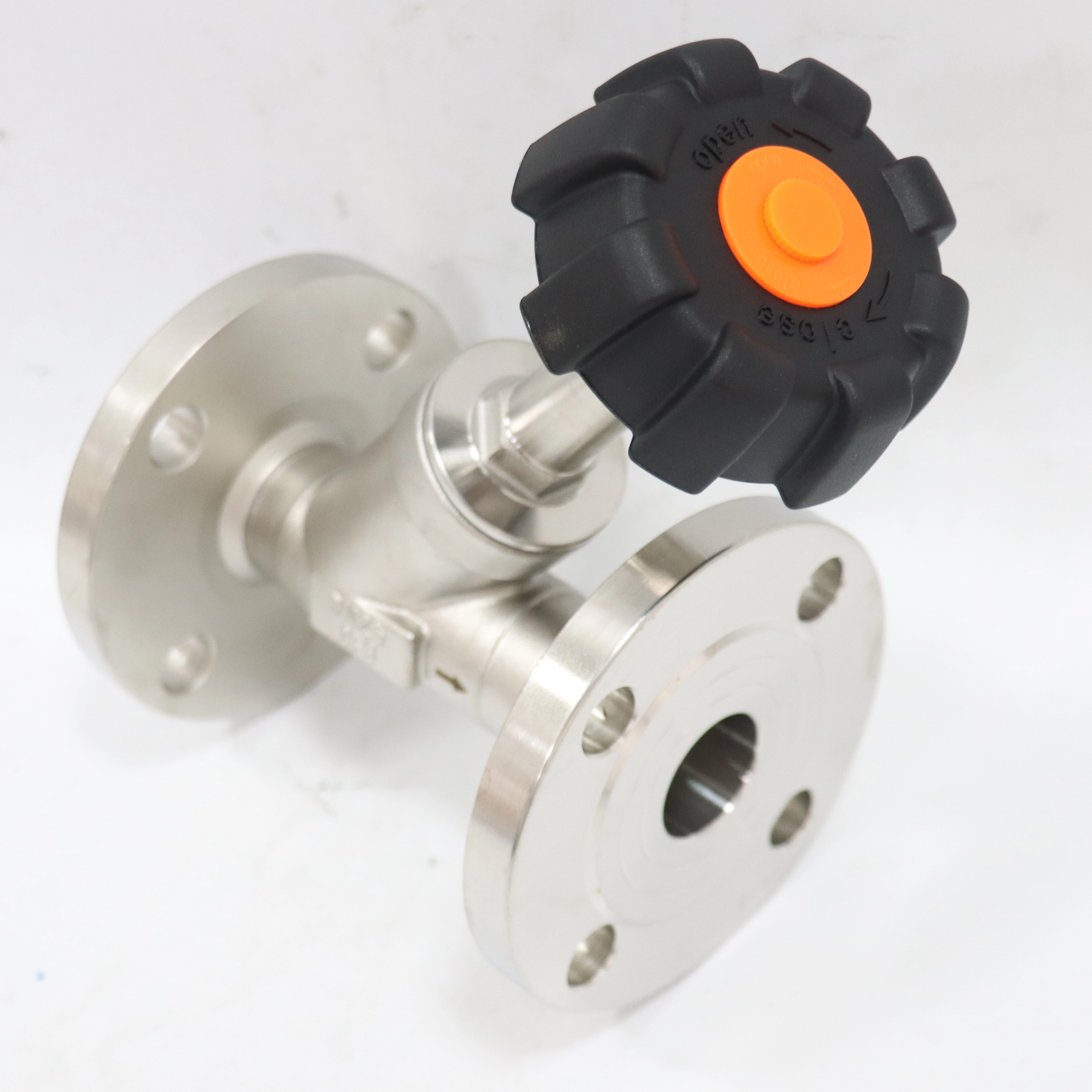

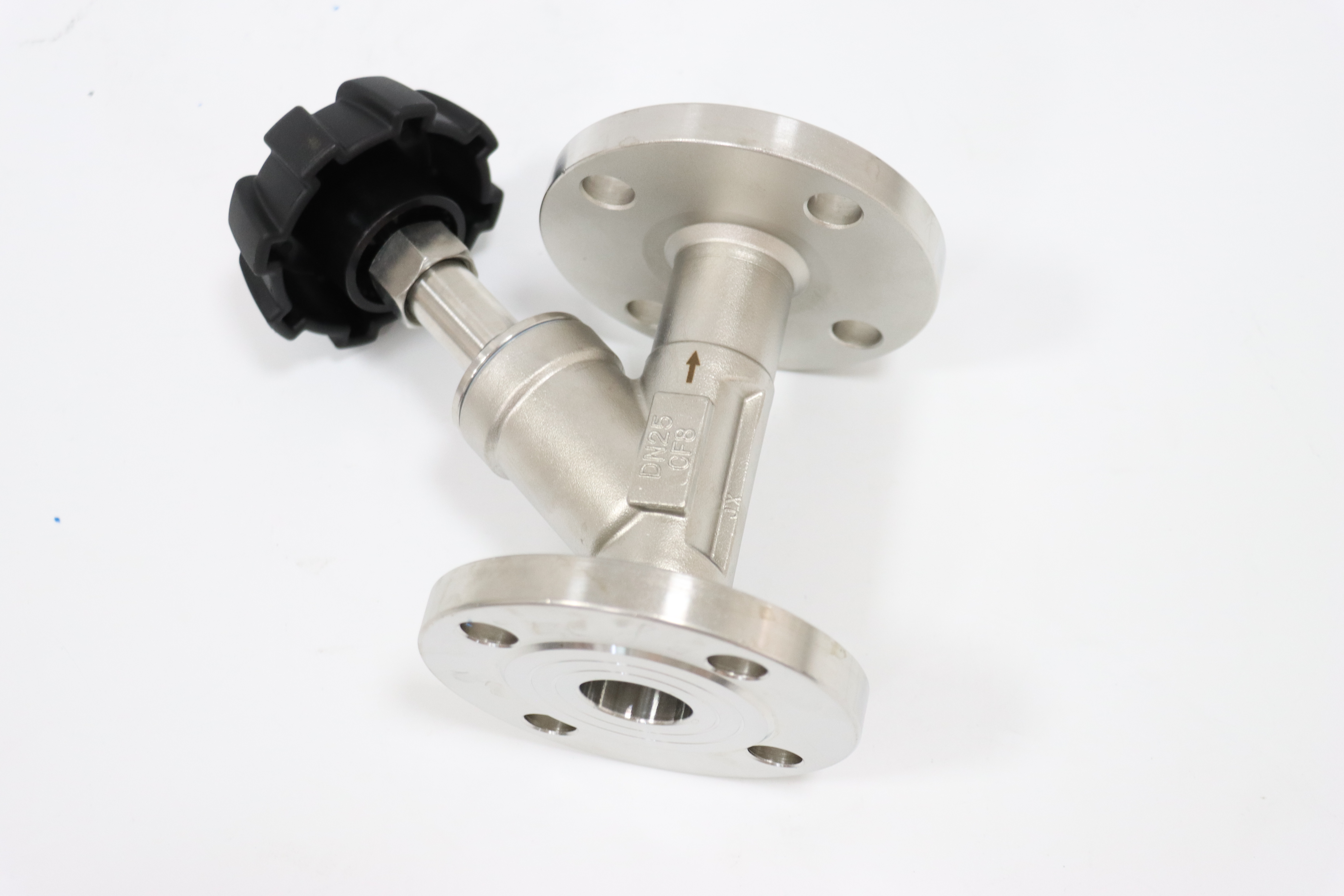

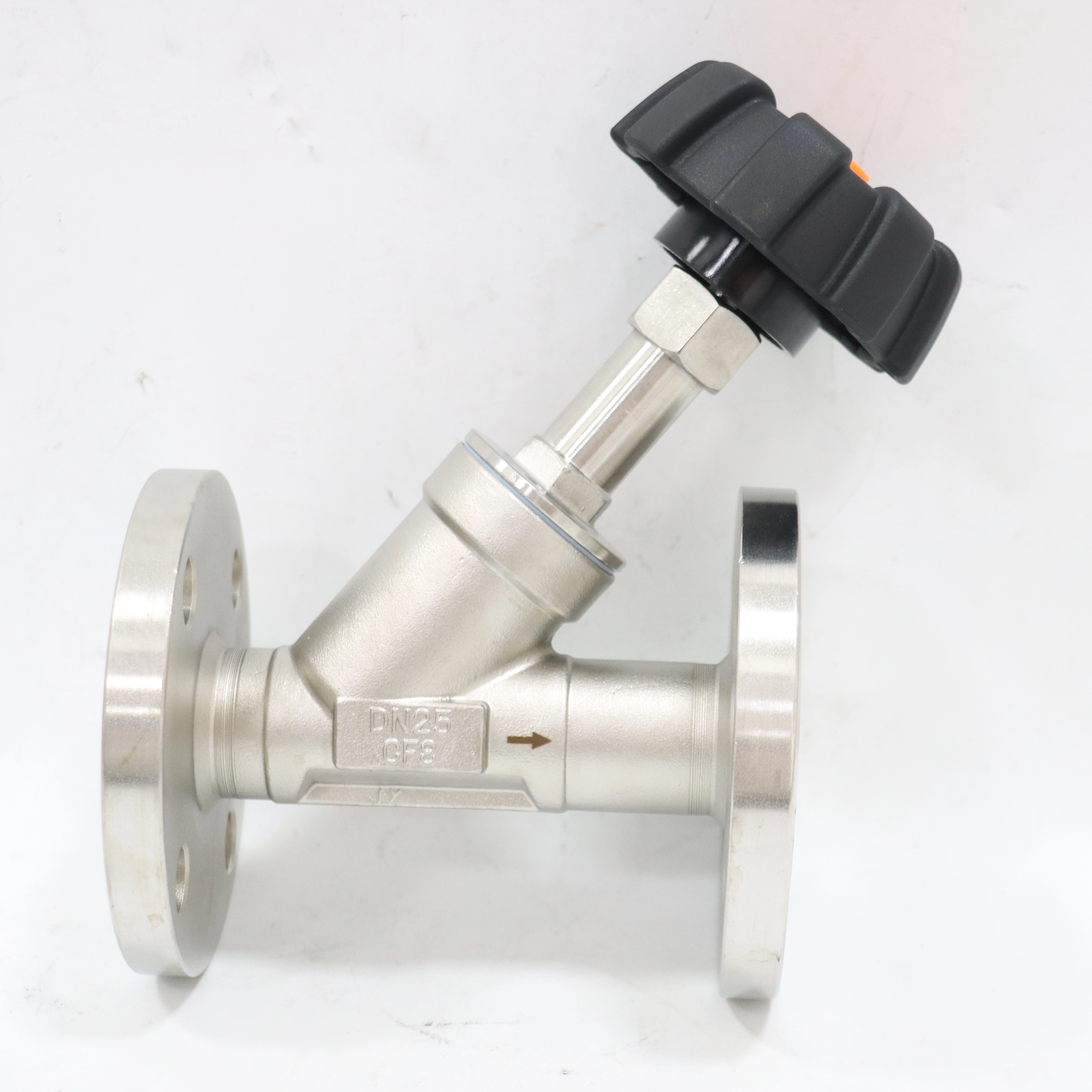

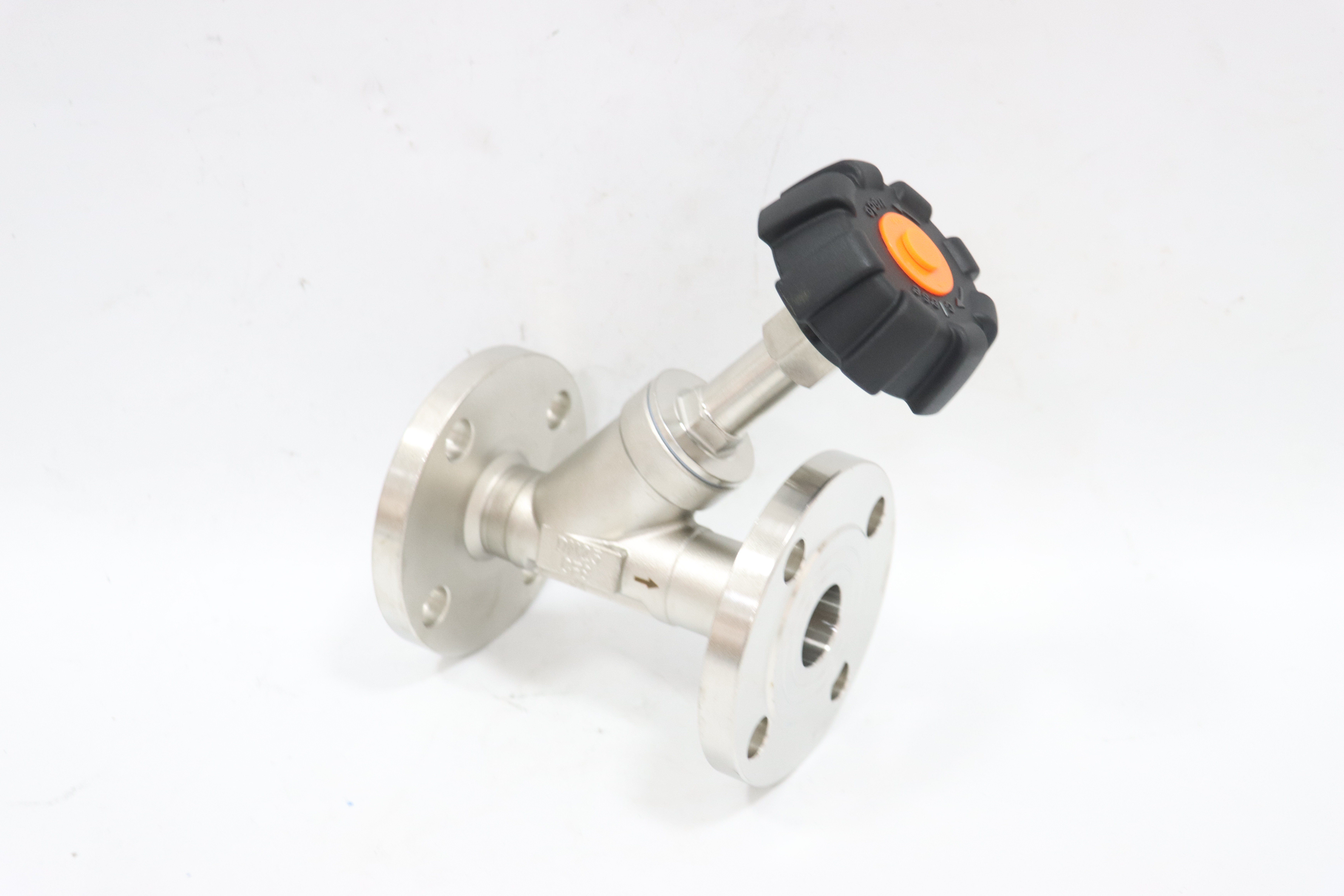

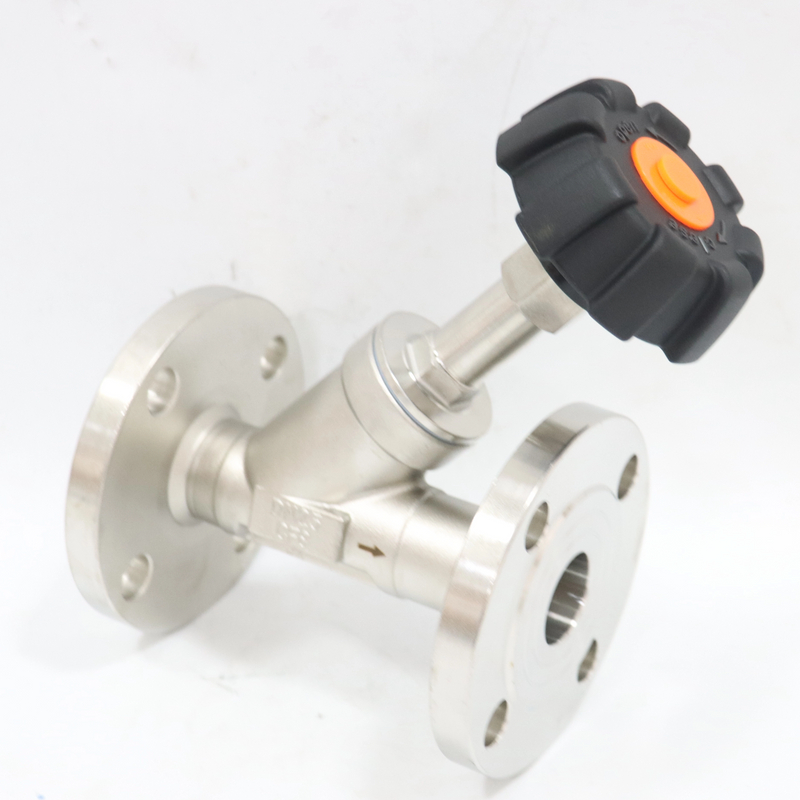

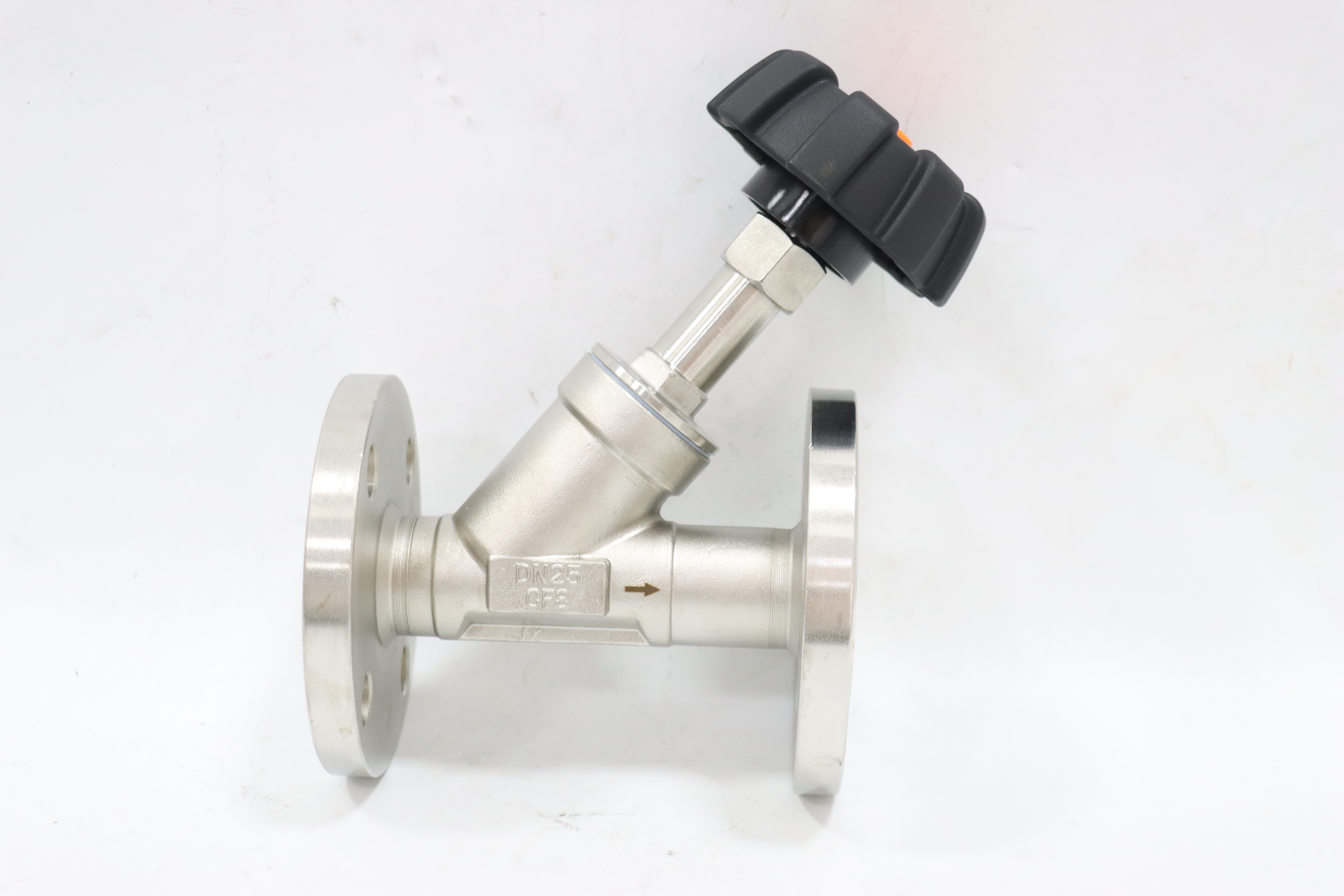

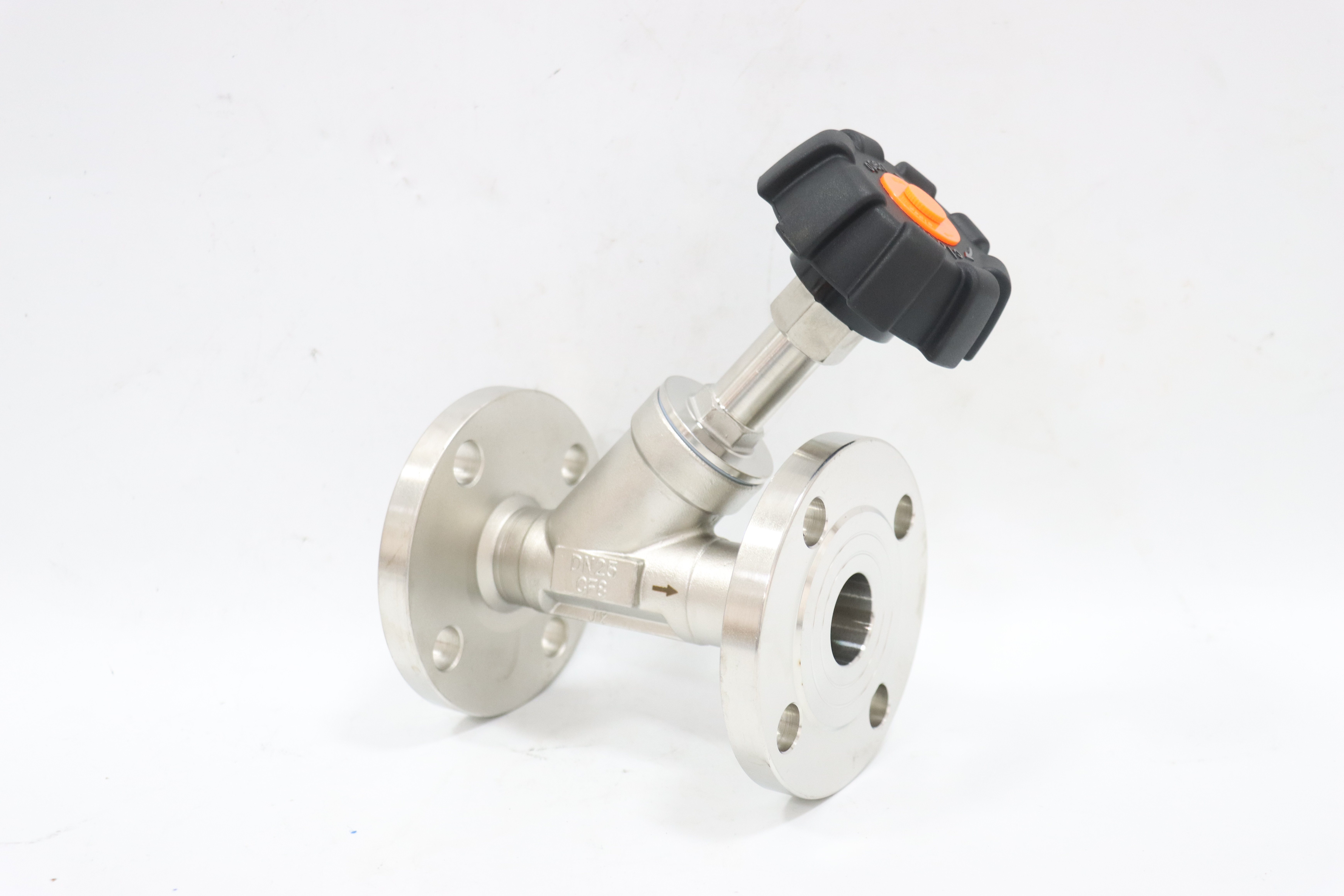

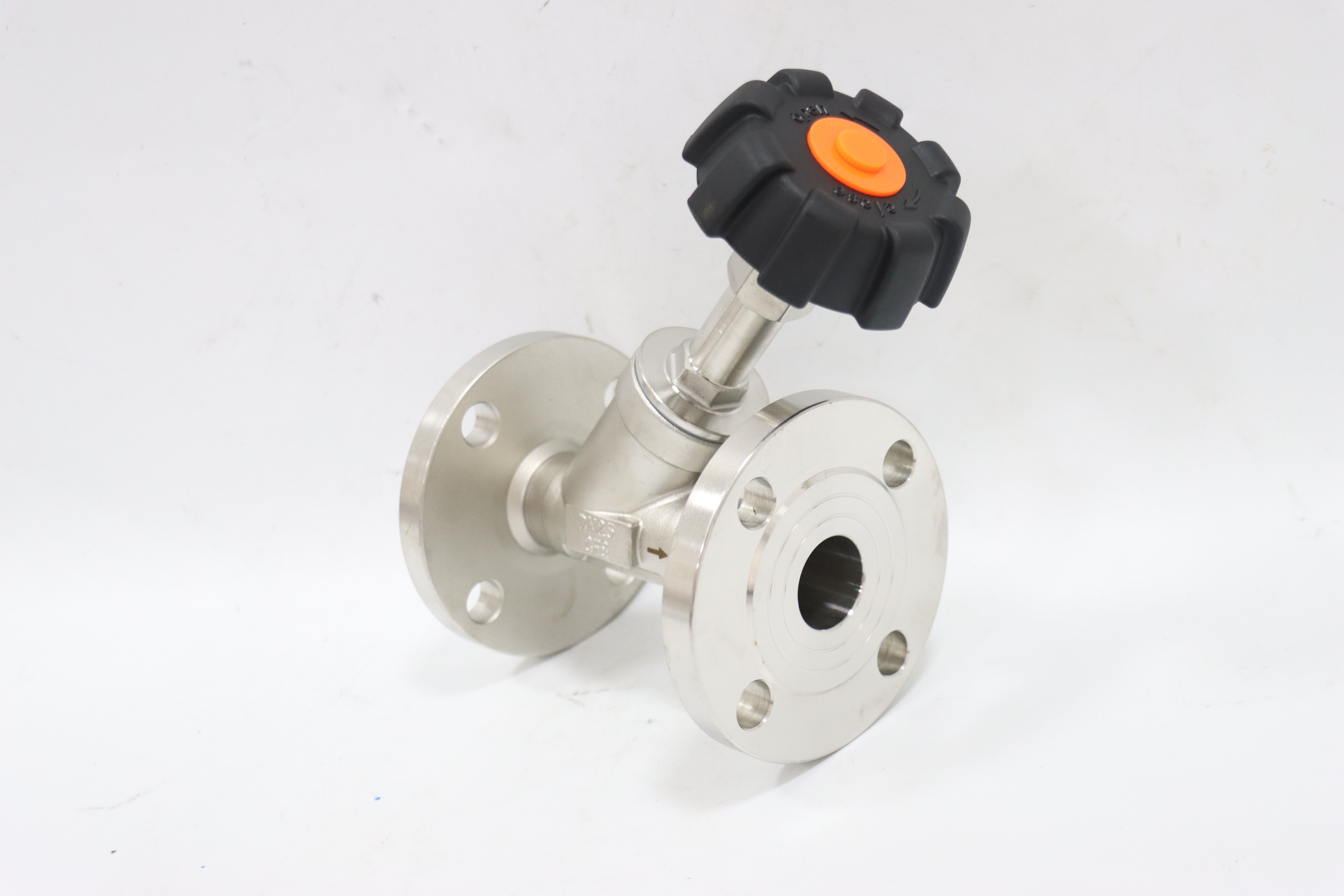

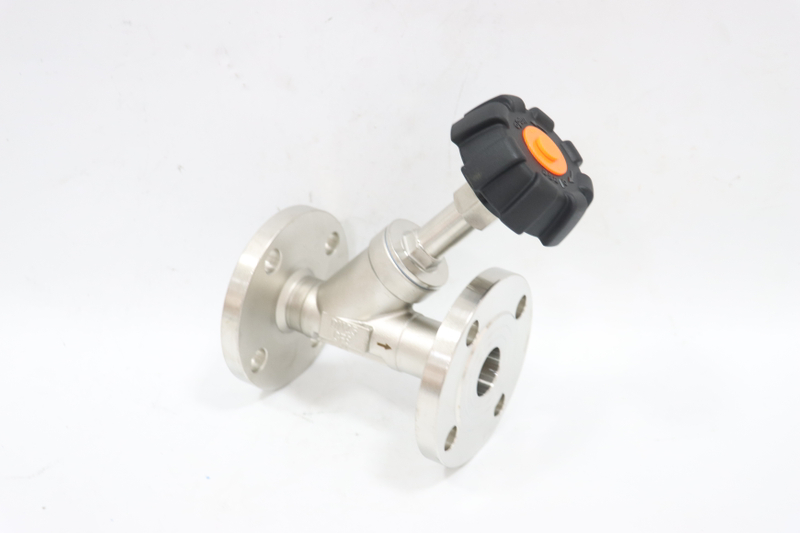

Stainless Steel Flange Steam Valve Plastic Head Manual Angle Seat Valve
Stainless Steel Flange Steam Valve Plastic Head Manual Angle Seat Valve is a manually operated valve designed for controlling steam flow. Its angled seat ensures smooth discharge, while the plastic handwheel offers lightweight, ergonomic operation and the flange connection provides secure installation in industrial systems.
Working Principles
The working principle of a Stainless Steel Flange Steam Valve Plastic Head Manual Angle Seat Valve involves manually controlling steam flow through an angled seat using a hand-operated plastic head. Turning the handwheel rotates or lifts the valve stem, moving the plug away from the seat to allow steam to pass through the valve. The angled seat minimizes flow resistance and ensures smooth, efficient discharge. Closing the valve presses the plug firmly against the seat, forming a tight seal to prevent leakage. This manual operation provides precise control of steam flow, safe handling in high-temperature environments, and reliable performance without the need for external power or pneumatic systems.
Stainless Steel Angle Seat Valve Specification Chart
Connection Type | Flange |
Medium Temperature | -10℃~+180℃ |
Ambient Temperature | -10℃~+55℃ |
Body Materials | CF8M(SS316),CF8(SS304) |
Sealing Material | PTFE |
Operation | Normally Closed, Normally Open, Double-acting or Manually |
Connection End | Female, Weld,Clamp, Flange or on request |
Size Range | DN10-DN100 |
Surface treatment | Ra 16 ~ 32µin (0.4 ~ 0.8µm) |
Standards | DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE. |
Control type | Single acting, double acting |
Features
Made from high-quality stainless steel, providing excellent corrosion resistance and durability for high-temperature steam applications.
Manual plastic handwheel allows lightweight, ergonomic operation and precise control of steam flow.
Angled seat design ensures smooth flow, minimizes pressure loss, and promotes efficient steam discharge.
Flange connection provides secure installation and easy integration into industrial piping systems.
Hygienic polished surfaces and tight sealing prevent leakage and support reliable, safe operation in sanitary or industrial environments
Application
Stainless Steel Flange Steam Valve Plastic Head Manual Angle Seat Valves are commonly used in food and beverage industries for manual control of steam in pasteurization or cooking processes. They are also applied in chemical and pharmaceutical production for regulating steam in heating or sterilization systems. Their durable stainless steel construction, ergonomic plastic handwheel, and flange connection make them suitable for environments requiring reliable, safe, and precise manual operation under high-temperature conditions
Working Principles
The working principle of a Stainless Steel Flange Steam Valve Plastic Head Manual Angle Seat Valve involves manually controlling steam flow through an angled seat using a hand-operated plastic head. Turning the handwheel rotates or lifts the valve stem, moving the plug away from the seat to allow steam to pass through the valve. The angled seat minimizes flow resistance and ensures smooth, efficient discharge. Closing the valve presses the plug firmly against the seat, forming a tight seal to prevent leakage. This manual operation provides precise control of steam flow, safe handling in high-temperature environments, and reliable performance without the need for external power or pneumatic systems.
Feature and Specification
Stainless Steel Angle Seat Valve Specification Chart
Max Working Pressure | 1.6MPa |
Medium Temperature | -10℃~+180℃ |
Ambient Temperature | -10℃~+55℃ |
Body Materials | CF8M(SS316),CF8(SS304) |
Sealing Material | PTFE |
Operation | Normally Closed, Normally Open, Double-acting or Manually |
Connection End | Female, Weld,Clamp, Flange or on request |
Size Range | DN10-DN100 |
Surface treatment | Ra 16 ~ 32µin (0.4 ~ 0.8µm) |
Standards | DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE. |
Control type | Single acting, double acting |
Features
Made from high-quality stainless steel, providing excellent corrosion resistance and durability for high-temperature steam applications.
Manual plastic handwheel allows lightweight, ergonomic operation and precise control of steam flow.
Angled seat design ensures smooth flow, minimizes pressure loss, and promotes efficient steam discharge.
Flange connection provides secure installation and easy integration into industrial piping systems.
Hygienic polished surfaces and tight sealing prevent leakage and support reliable, safe operation in sanitary or industrial environments
Application
Stainless Steel Flange Steam Valve Plastic Head Manual Angle Seat Valves are commonly used in food and beverage industries for manual control of steam in pasteurization or cooking processes. They are also applied in chemical and pharmaceutical production for regulating steam in heating or sterilization systems. Their durable stainless steel construction, ergonomic plastic handwheel, and flange connection make them suitable for environments requiring reliable, safe, and precise manual operation under high-temperature conditions
