INOX 316L Food Grade Flange Body JN-XW 23 1001 360 Degree Double Rotor Metering Valve

Stainless Steel Gf Chemical Water Soft Wash Metering Valve


Availability:

Quantity:



Inquire Add to Basket

This high-performance valve is engineered for precise flow control in hygienic processing industries. Constructed from polished 316L stainless steel, it features dual pneumatic actuators for independent or synchronized operation, ensuring accurate dosing and reliable shut-off for powders, granules, and other hygienic materials. Its robust, sanitary design meets the strictest standards for pharmaceutical, food, and fine chemical applications.

Model:
JN-XW 23 1001
Brand:
JONENG
Code:
8421219990

Stainless steel valve Metering valve gf valve chemical valve water valve soft wash valve

Product Description

Working Principles

Feature and Specification

Feature

Application

Stainless Steel Gf Chemical Water Soft Wash Metering Valve

This high-performance valve is engineered for precise flow control in hygienic processing industries. Constructed from polished 316L stainless steel, it features dual pneumatic actuators for independent or synchronized operation, ensuring accurate dosing and reliable shut-off for powders, granules, and other hygienic materials. Its robust, sanitary design meets the strictest standards for pharmaceutical, food, and fine chemical applications.

Working Principles

未标题-1

This dual pneumatic actuator hygienic butterfly valve operates by using compressed air to drive its two side-mounted actuators, which in turn rotate the central disc via a through-shaft. When the disc is parallel to the flow direction, the valve opens fully to allow maximum material passage; when perpendicular, it closes tightly to form a secure seal. The dual actuators enable independent or synchronized control, allowing the disc to be positioned at any angle between 0° and 90° for precise flow metering and dosing, while the polished stainless steel construction ensures reliable sealing and compliance with strict hygiene standards in pharmaceutical, food, and fine chemical processing.

Stainless Steel Metering Valve Specification Chart

未标题-1

Sizes available	3 "-16"
Max pressure	up to 10 bar
End connection	Flanged, threaded, clamped
Material	AISI316L OR AISI304L
Seals	Silicone, Viton, PTFE, EPDM
Standard	Manual or Pneumatic
Temperature range	3A, SMS, ISO

Feature

Equipped with dual pneumatic actuators, enabling stable, synchronous or independent drive to ensure smooth operation.

Supports stepless angle adjustment (0°-90°) for precise flow control and accurate dosing of materials.

Adopts polished 304/316L stainless steel structure, meeting strict hygienic standards and easy to clean.

Features reliable sealing performance, effectively preventing material leakage and ensuring tight shut-off.

Compact and robust design, suitable for long-term continuous operation in harsh industrial environments.

Flange connection design, facilitating quick installation, disassembly and daily maintenance.

Application

This dual pneumatic actuator hygienic butterfly valve is ideal for precise flow control and dosing of powders, granules, and other bulk materials in pharmaceutical, food processing, and fine chemical industries, where strict hygiene standards and reliable operation are critical.

3ec741ac-4cd7-4927-bf32-92f3bba24065

Working Principles

未标题-1

This dual pneumatic actuator hygienic butterfly valve operates by using compressed air to drive its two side-mounted actuators, which in turn rotate the central disc via a through-shaft. When the disc is parallel to the flow direction, the valve opens fully to allow maximum material passage; when perpendicular, it closes tightly to form a secure seal. The dual actuators enable independent or synchronized control, allowing the disc to be positioned at any angle between 0° and 90° for precise flow metering and dosing, while the polished stainless steel construction ensures reliable sealing and compliance with strict hygiene standards in pharmaceutical, food, and fine chemical processing.

Feature and Specification

未标题-1

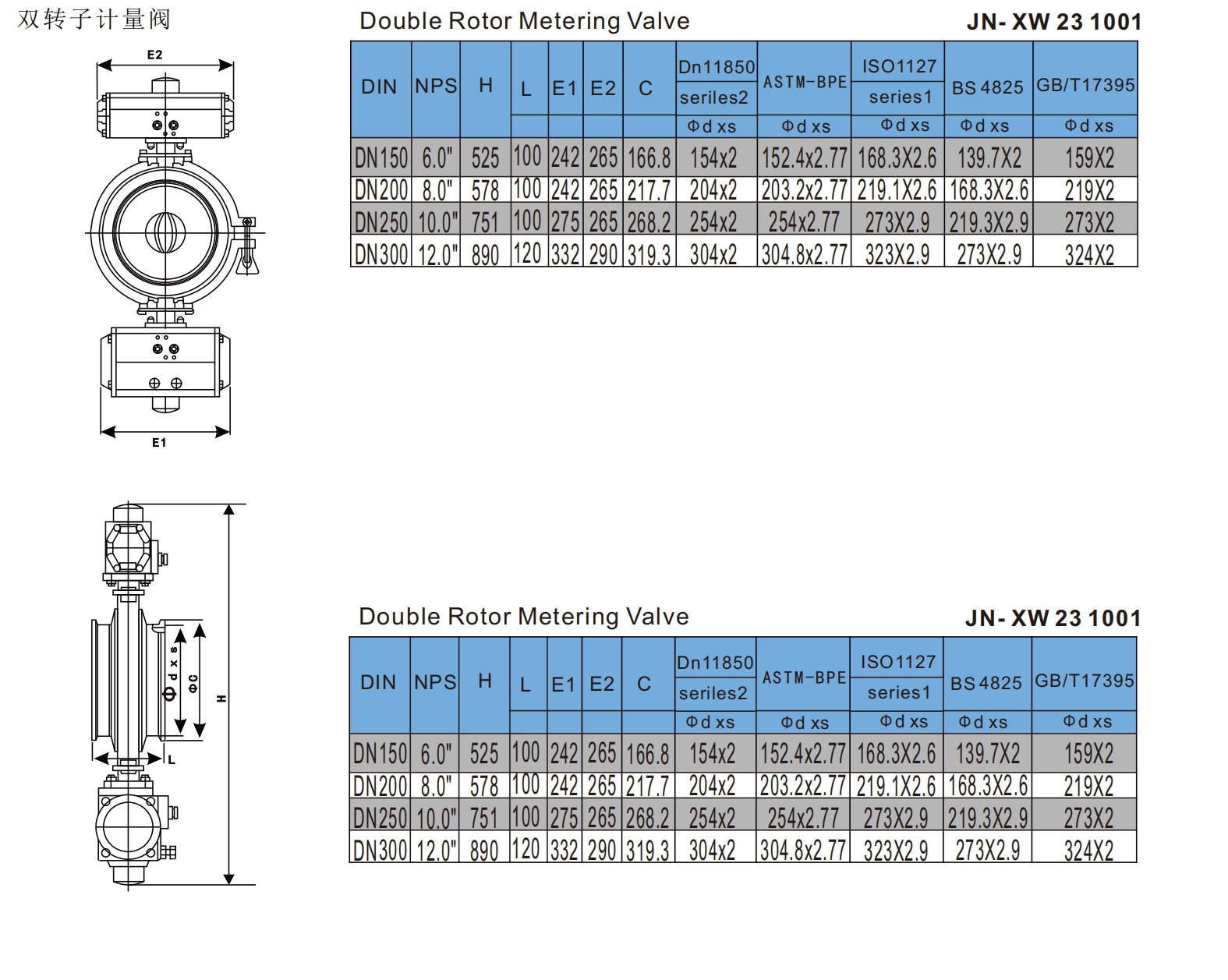

双转子计量阀数据新增_01

Stainless Steel Metering Valve Specification Chart

未标题-1

Sizes available	3 "-16"
Max pressure	up to 10 bar
End connection	Flanged, threaded, clamped
Material	AISI316L OR AISI304L
Seals	Silicone, Viton, PTFE, EPDM
Standard	Manual or Pneumatic
Temperature range	3A, SMS, ISO

Feature

Equipped with dual pneumatic actuators, enabling stable, synchronous or independent drive to ensure smooth operation.

Supports stepless angle adjustment (0°-90°) for precise flow control and accurate dosing of materials.

Adopts polished 304/316L stainless steel structure, meeting strict hygienic standards and easy to clean.

Features reliable sealing performance, effectively preventing material leakage and ensuring tight shut-off.

Compact and robust design, suitable for long-term continuous operation in harsh industrial environments.

Flange connection design, facilitating quick installation, disassembly and daily maintenance.

Application

This dual pneumatic actuator hygienic butterfly valve is ideal for precise flow control and dosing of powders, granules, and other bulk materials in pharmaceutical, food processing, and fine chemical industries, where strict hygiene standards and reliable operation are critical.
