JN-ML-23 1015
JONENG
8421219990

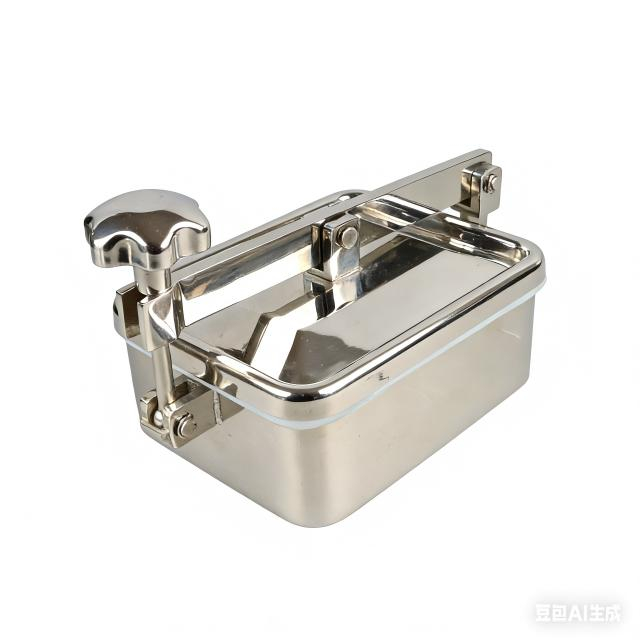

Stainless Steel Hygienic Pressure Inspection Square Manhole
Square Manhole is made of 304 or 316 material, the sealing material is silicone, EPDM, Nitrile, Viton, and the handle can be made of plastic or stainless steel according to the need. The outer surface is mirror polished or matte polished.
Working Principles
The stainless steel square manhole provides a sealed access point for tanks and pressure vessels. It uses a gasket to form a tight, hygienic seal between the cover and the frame. When closed and locked, it maintains pressure, prevents leakage, and keeps contaminants out. Operators can quickly open the cover for inspection, cleaning, or maintenance, then re-seal and lock it to restore safe operating conditions.
Stainless Steel Manhole Specification Chart
Radius | 200mm-1000mm |
Pressure | 0-5bar |
Material | 304/316L |
Seal Material | Silicone, EPDM, Nitrile, Fluorine rubber |
Outer surface treatment | Mirror polishing, matte |
Inner surface treatment | 0.8μm-0.4μm |
Features
● Excellent corrosion resistance with stainless steel construction.
● Reliable sealing performance to prevent leakage and contamination.
● High strength and stability for pressure and hygienic applications.
● Easy operation, maintenance and long service life.
Application
Stainless steel square manholes are widely used in food and beverage, dairy, pharmaceutical, and cosmetic industries. They are installed on tanks, vessels, and pipelines for safe access, inspection, cleaning, and maintenance. With hygienic and corrosion-resistant design, they meet strict sanitary standards and work reliably in pressure and non-pressure working conditions.
Working Principles
The stainless steel square manhole provides a sealed access point for tanks and pressure vessels. It uses a gasket to form a tight, hygienic seal between the cover and the frame. When closed and locked, it maintains pressure, prevents leakage, and keeps contaminants out. Operators can quickly open the cover for inspection, cleaning, or maintenance, then re-seal and lock it to restore safe operating conditions.
Feature and Specification
Stainless Steel Manhole Specification Chart
Radius | 200mm-1000mm |
Pressure | 0-5bar |
Material | 304/316L |
Seal Material | Silicone, EPDM, Nitrile, Fluorine rubber |
Outer surface treatment | Mirror polishing, matte |
Inner surface treatment | 0.8μm-0.4μm |
Features
● Excellent corrosion resistance with stainless steel construction.
● Reliable sealing performance to prevent leakage and contamination.
● High strength and stability for pressure and hygienic applications.
● Easy operation, maintenance and long service life.
Application
Stainless steel square manholes are widely used in food and beverage, dairy, pharmaceutical, and cosmetic industries. They are installed on tanks, vessels, and pipelines for safe access, inspection, cleaning, and maintenance. With hygienic and corrosion-resistant design, they meet strict sanitary standards and work reliably in pressure and non-pressure working conditions.
