Designed for critical material handling, this valve delivers exceptional control and reliability. Its dual pneumatic actuators enable precise flow regulation, while the all-stainless steel construction ensures compliance with strict hygiene standards. Ideal for use in pharmaceutical, food processing, and chemical industries, it provides a durable, efficient solution for dosing and isolating bulk materials.

Model:
JN-XW 23 1001
Brand:
JONENG
Code:
8421219990

Stainless steel valve Metering valve Rotary valve pneumatic valve Dosing valve liquid valve

Product Description

Working Principles

Feature and Specification

Feature

Application

Stainless Steel Pneumatic Dosing Liquid Rotary Metering Valve

Designed for critical material handling, this valve delivers exceptional control and reliability. Its dual pneumatic actuators enable precise flow regulation, while the all-stainless steel construction ensures compliance with strict hygiene standards. Ideal for use in pharmaceutical, food processing, and chemical industries, it provides a durable, efficient solution for dosing and isolating bulk materials.

Working Principles

未标题-1

Compressed air is supplied to the dual pneumatic actuators, which drive the rotation of the central valve disc through a shared shaft. By adjusting the air pressure to each actuator, the disc can be positioned at any angle between 0° and 90°, enabling precise flow regulation. When the disc aligns parallel to the pipeline, the valve opens fully for maximum material flow; when perpendicular, it creates a tight seal against the valve seat for reliable shut-off. The dual actuator design allows for synchronized or independent control, ensuring accurate dosing and consistent performance in hygienic processing environments.

Stainless Steel Metering Valve Specification Chart

未标题-1

Sizes available	3 "-16"
Max pressure	up to 10 bar
End connection	Flanged, threaded, clamped
Material	AISI316L OR AISI304L
Seals	Silicone, Viton, PTFE, EPDM
Standard	Manual or Pneumatic
Temperature range	3A, SMS, ISO

Feature

Dual pneumatic actuators for stable and synchronous drive operation.
Precise flow adjustment and accurate dosing for powder and granular materials.
Hygienic polished stainless steel structure, easy to clean and maintain.
Reliable sealing performance, effectively preventing material leakage.
Compact and robust design, suitable for long-term continuous operation.
Wide application in pharmaceutical, food and fine chemical industries.

Application

This dual pneumatic actuator hygienic butterfly valve is widely applied in pharmaceutical, food processing, and fine chemical industries, specifically for the precise control, dosing and conveying of powder, granule, and other bulk materials that require strict hygiene standards.

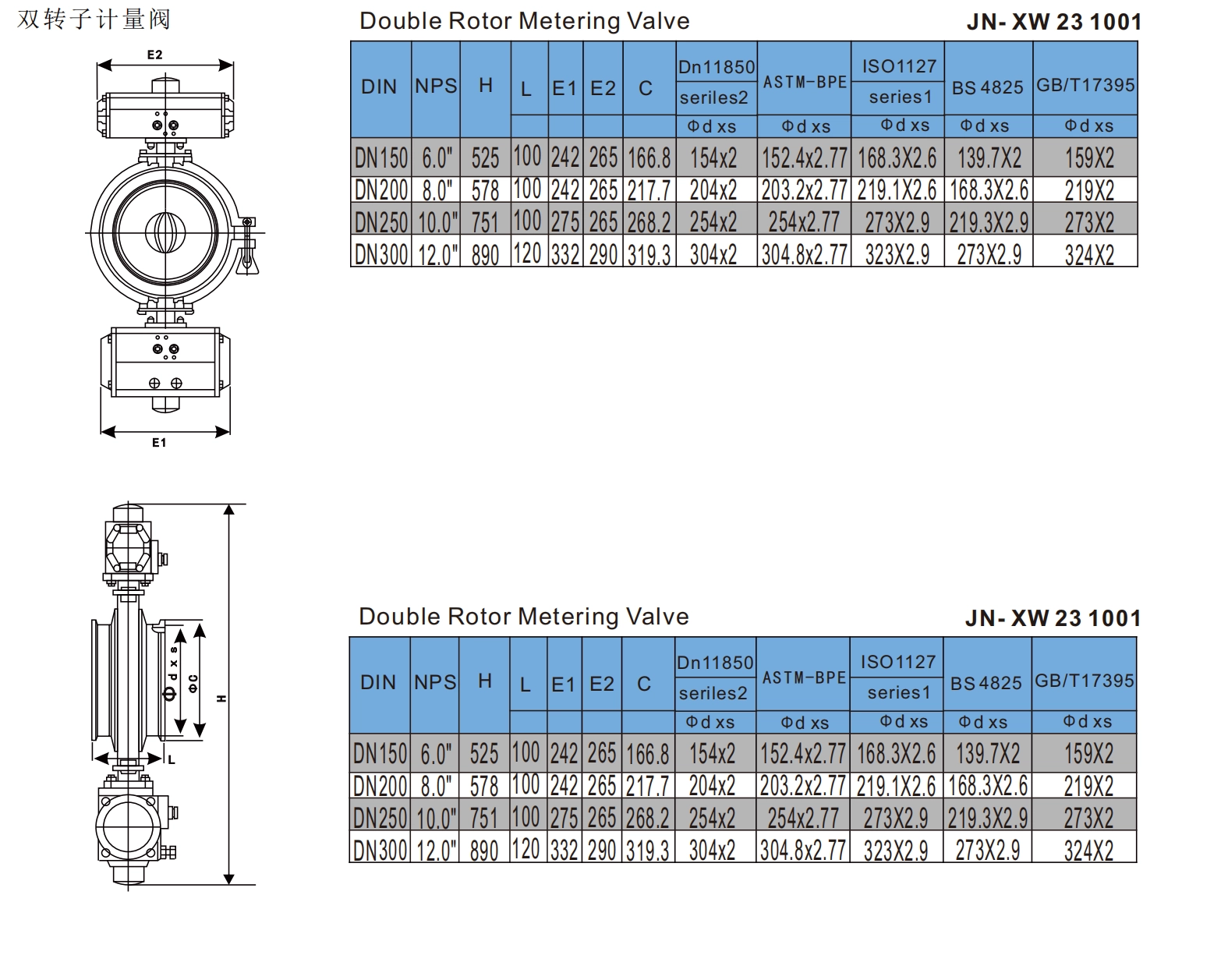

3ec741ac-4cd7-4927-bf32-92f3bba24065

Working Principles

未标题-1

Compressed air is supplied to the dual pneumatic actuators, which drive the rotation of the central valve disc through a shared shaft. By adjusting the air pressure to each actuator, the disc can be positioned at any angle between 0° and 90°, enabling precise flow regulation. When the disc aligns parallel to the pipeline, the valve opens fully for maximum material flow; when perpendicular, it creates a tight seal against the valve seat for reliable shut-off. The dual actuator design allows for synchronized or independent control, ensuring accurate dosing and consistent performance in hygienic processing environments.

Feature and Specification

未标题-1

双转子计量阀数据新增_01

Stainless Steel Metering Valve Specification Chart

未标题-1

Sizes available	3 "-16"
Max pressure	up to 10 bar
End connection	Flanged, threaded, clamped
Material	AISI316L OR AISI304L
Seals	Silicone, Viton, PTFE, EPDM
Standard	Manual or Pneumatic
Temperature range	3A, SMS, ISO

Feature

未标题-1

Dual pneumatic actuators for stable and synchronous drive operation.
Precise flow adjustment and accurate dosing for powder and granular materials.
Hygienic polished stainless steel structure, easy to clean and maintain.
Reliable sealing performance, effectively preventing material leakage.
Compact and robust design, suitable for long-term continuous operation.
Wide application in pharmaceutical, food and fine chemical industries.

Application

This dual pneumatic actuator hygienic butterfly valve is widely applied in pharmaceutical, food processing, and fine chemical industries, specifically for the precise control, dosing and conveying of powder, granule, and other bulk materials that require strict hygiene standards.
