INOX 316L Food Grade Flange Body JN-XW 23 1001 360 Degree Double Rotor Metering Valve

Stainless Steel Motorized Heavy Duty Star Dischagre Metering Valve

Stainless Steel Powder Doser Blast Cabinet Metering Valve


Availability:

Quantity:



Inquire Add to Basket

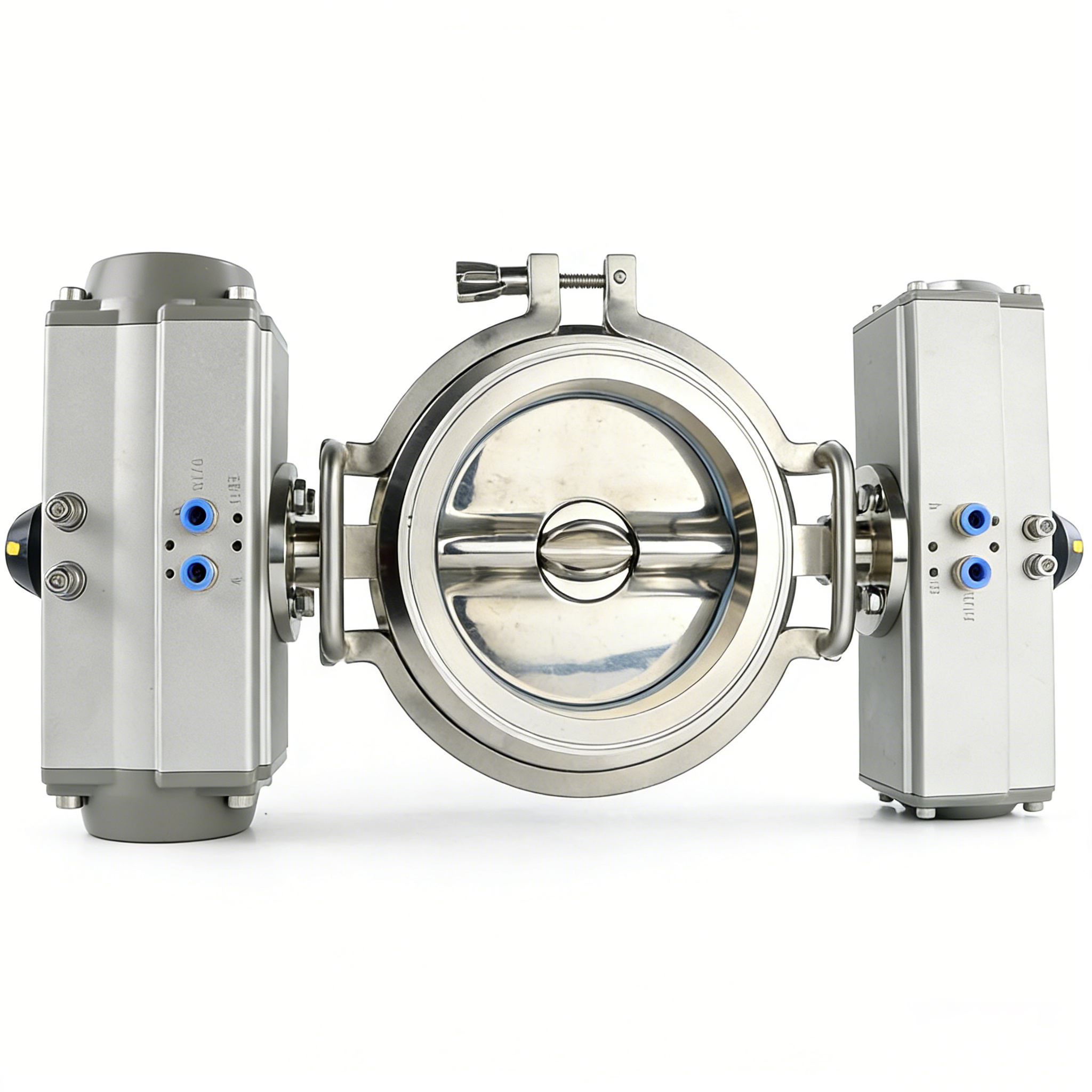

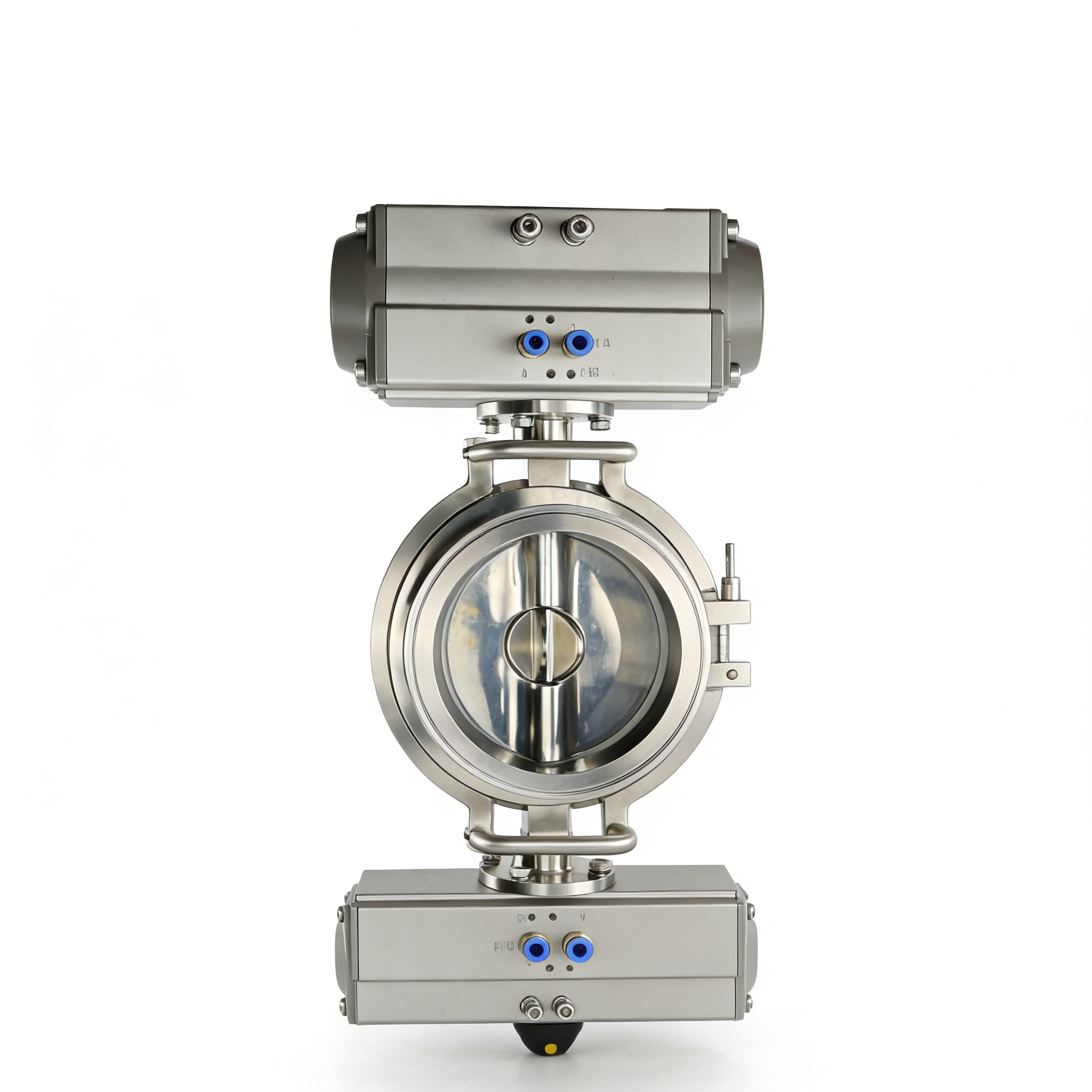

This hygienic butterfly valve with dual pneumatic actuators is made of polished stainless steel, dedicated to precise flow control and dosing of powders and granules for hygienic-critical industries.

Model:
JN-XW 23 1001
Brand:
JONENG
Code:
8421219990

Stainless steel valve Metering valve Powder valve doser valve blast cabinet valve

Product Description

Working Principles

Feature and Specification

Feature

Application

Stainless Steel Powder Doser Blast Cabinet Metering Valve

This hygienic butterfly valve with dual pneumatic actuators is made of polished stainless steel, dedicated to precise flow control and dosing of powders and granules for hygienic-critical industries.

Working Principles

未标题-1

Compressed air acts on the dual pneumatic actuators to drive the central valve disc’s rotation via a through-shaft. Adjusting the air pressure controls the disc’s angle (0°-90°), achieving precise flow regulation and dosing. The valve opens fully when the disc is parallel to the pipeline and shuts tightly when perpendicular, ensuring no leakage and stable operation in hygienic industrial environments.

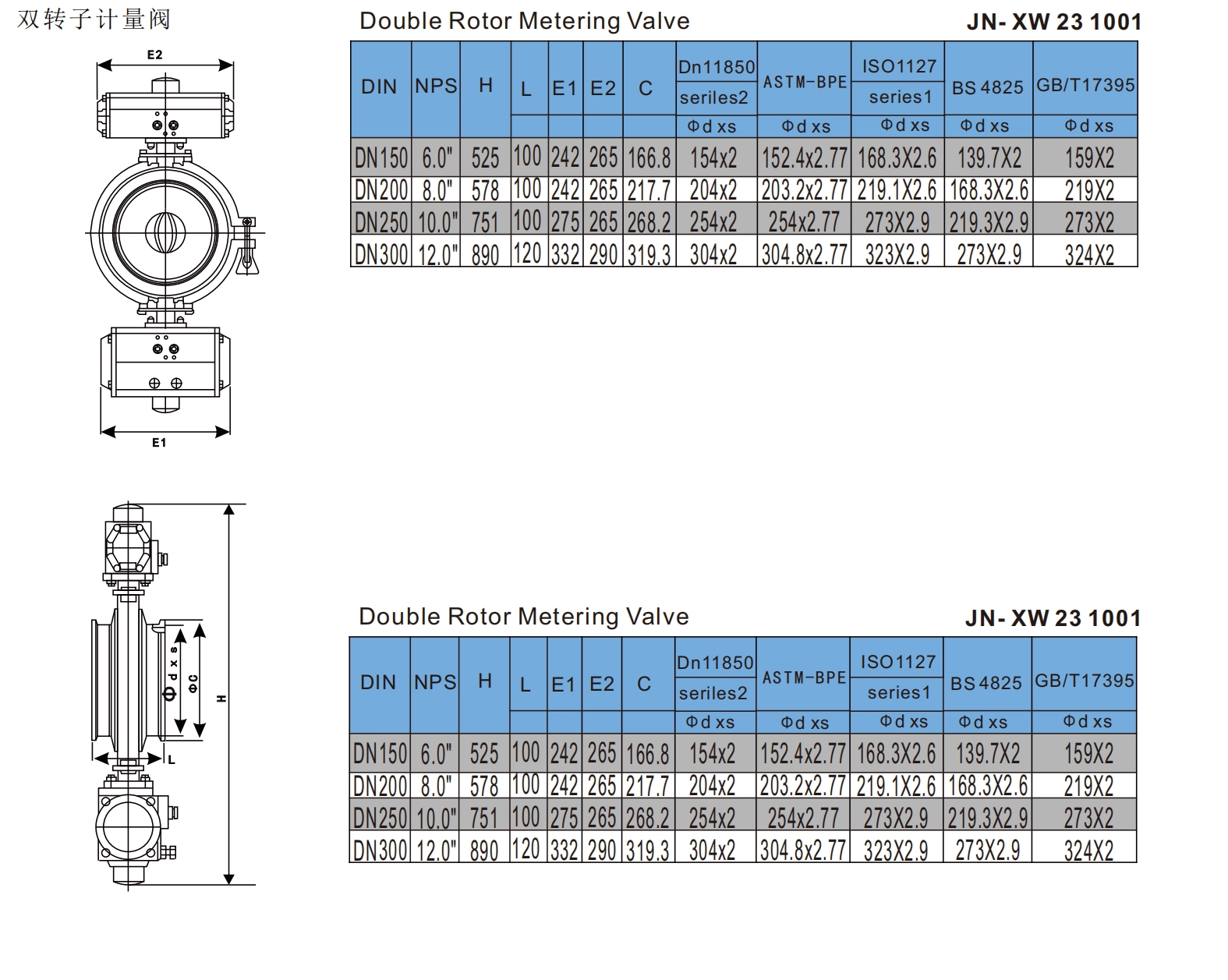

Stainless Steel Metering Valve Specification Chart

未标题-1

Sizes available	3 "-16"
Max pressure	up to 10 bar
End connection	Flanged, threaded, clamped
Material	AISI316L OR AISI304L
Seals	Silicone, Viton, PTFE, EPDM
Standard	Manual or Pneumatic
Temperature range	3A, SMS, ISO

Feature

Dual pneumatic actuators provide stable and flexible drive, supporting both synchronous and independent operation for flexible control.

0°-90° stepless angle adjustment realizes precise flow regulation and accurate dosing of powder and granular materials.

Adopts polished stainless steel material, conforming to hygienic standards and easy to clean without material residue.

Excellent sealing performance ensures tight shut-off, effectively avoiding material leakage during operation.

Compact and durable structure, suitable for long-term continuous operation in various hygienic industrial scenarios.

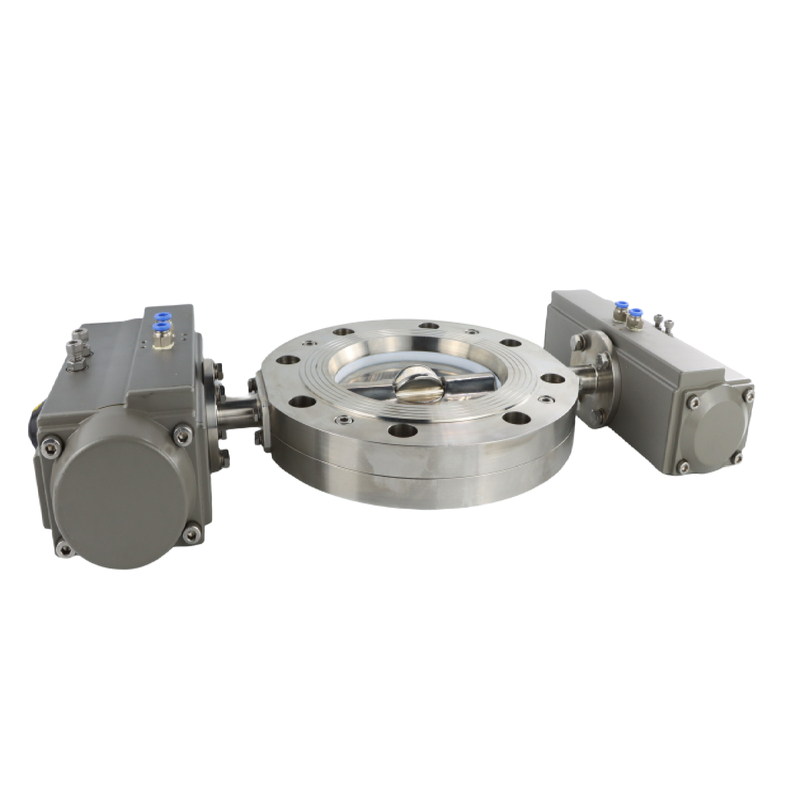

Flange connection design enables quick installation and disassembly, facilitating daily maintenance and inspection.

Application

It is widely used in pharmaceutical, food and fine chemical industries for precise control and dosing of powders, granules and other hygienic bulk materials.

3ec741ac-4cd7-4927-bf32-92f3bba24065

Working Principles

未标题-1

Compressed air acts on the dual pneumatic actuators to drive the central valve disc’s rotation via a through-shaft. Adjusting the air pressure controls the disc’s angle (0°-90°), achieving precise flow regulation and dosing. The valve opens fully when the disc is parallel to the pipeline and shuts tightly when perpendicular, ensuring no leakage and stable operation in hygienic industrial environments.

Feature and Specification

未标题-1

双转子计量阀数据新增_01

Stainless Steel Metering Valve Specification Chart

未标题-1

Sizes available	3 "-16"
Max pressure	up to 10 bar
End connection	Flanged, threaded, clamped
Material	AISI316L OR AISI304L
Seals	Silicone, Viton, PTFE, EPDM
Standard	Manual or Pneumatic
Temperature range	3A, SMS, ISO

Feature

Dual pneumatic actuators provide stable and flexible drive, supporting both synchronous and independent operation for flexible control.

0°-90° stepless angle adjustment realizes precise flow regulation and accurate dosing of powder and granular materials.

Adopts polished stainless steel material, conforming to hygienic standards and easy to clean without material residue.

Excellent sealing performance ensures tight shut-off, effectively avoiding material leakage during operation.

Compact and durable structure, suitable for long-term continuous operation in various hygienic industrial scenarios.

Flange connection design enables quick installation and disassembly, facilitating daily maintenance and inspection.

Application

It is widely used in pharmaceutical, food and fine chemical industries for precise control and dosing of powders, granules and other hygienic bulk materials.
