JONENG

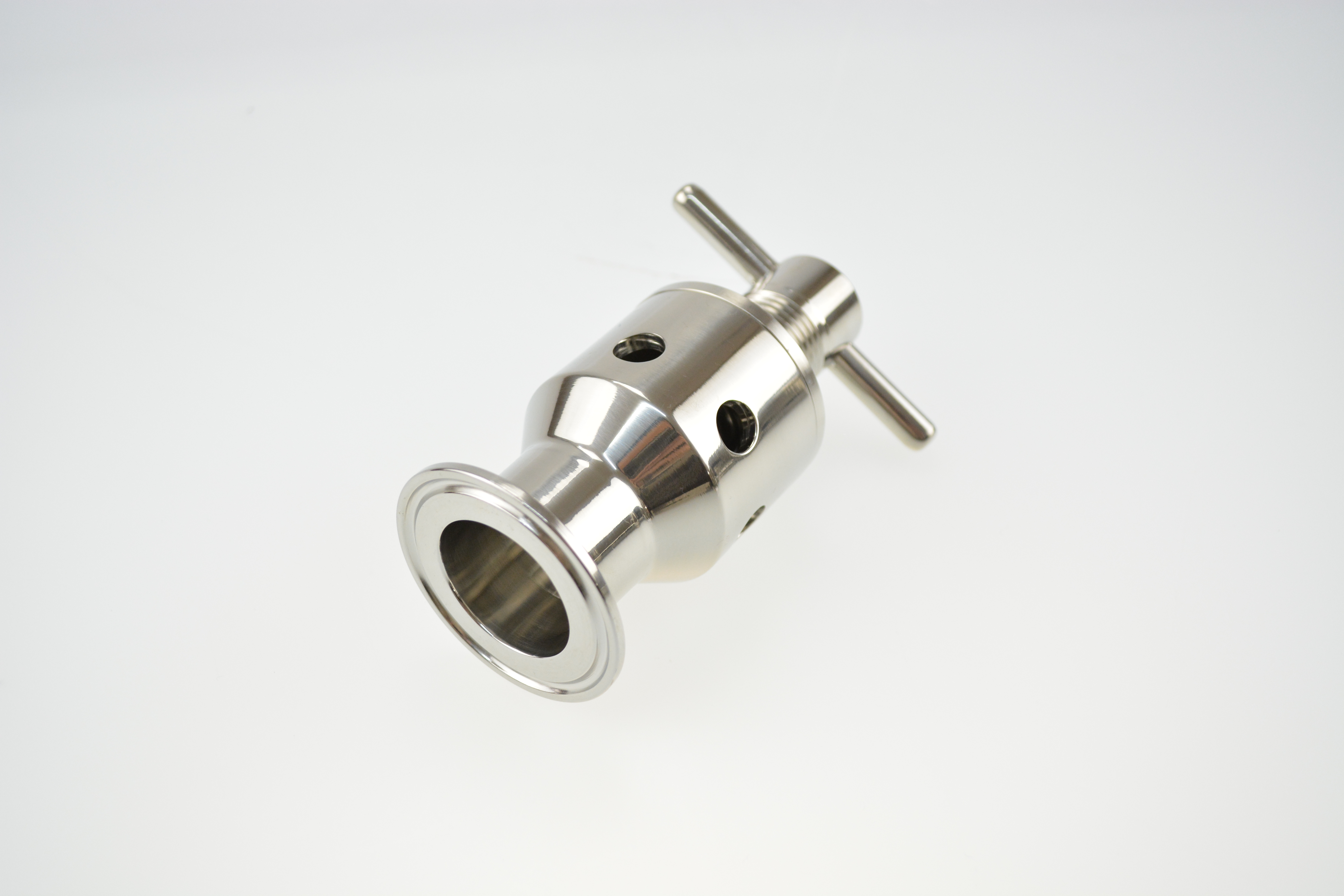

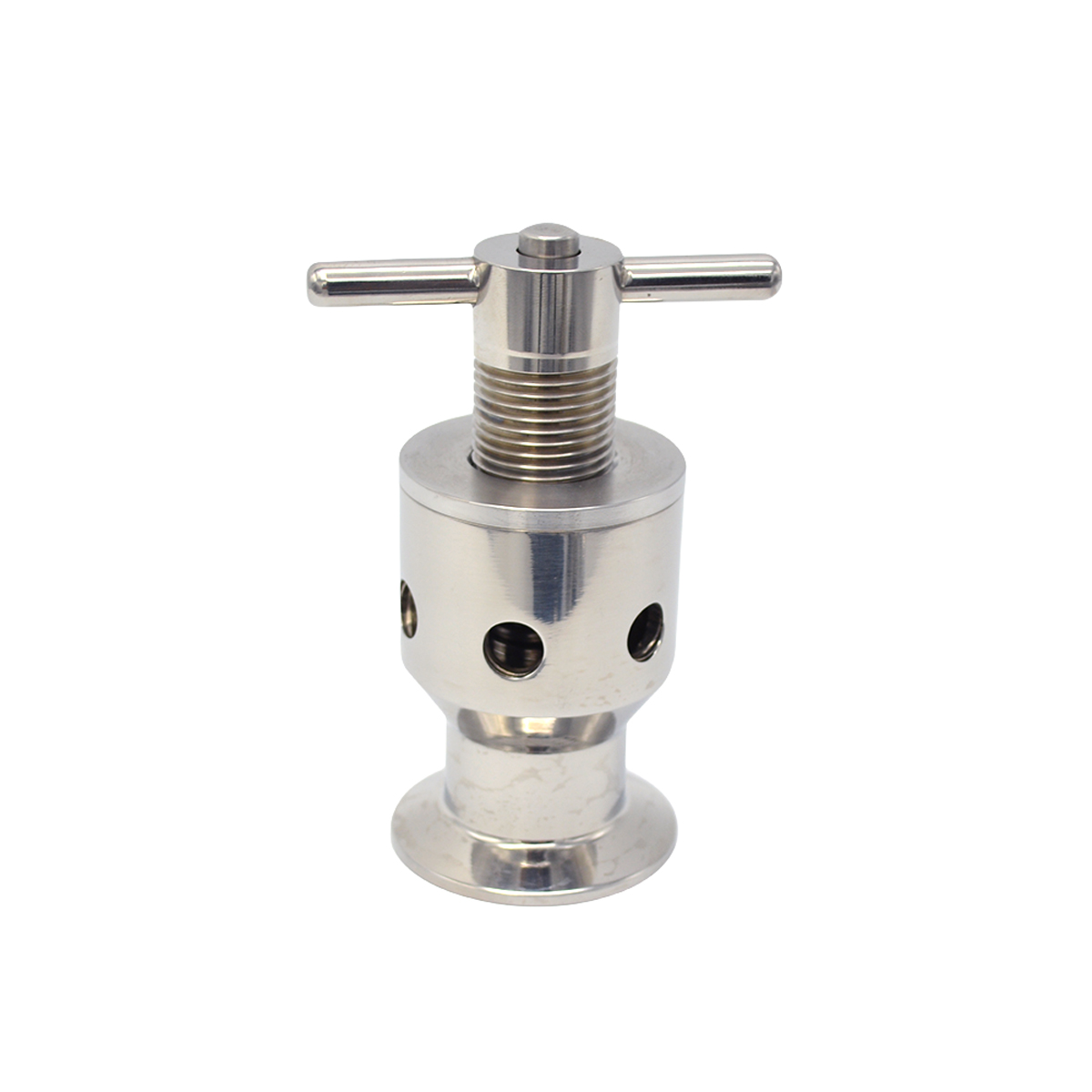

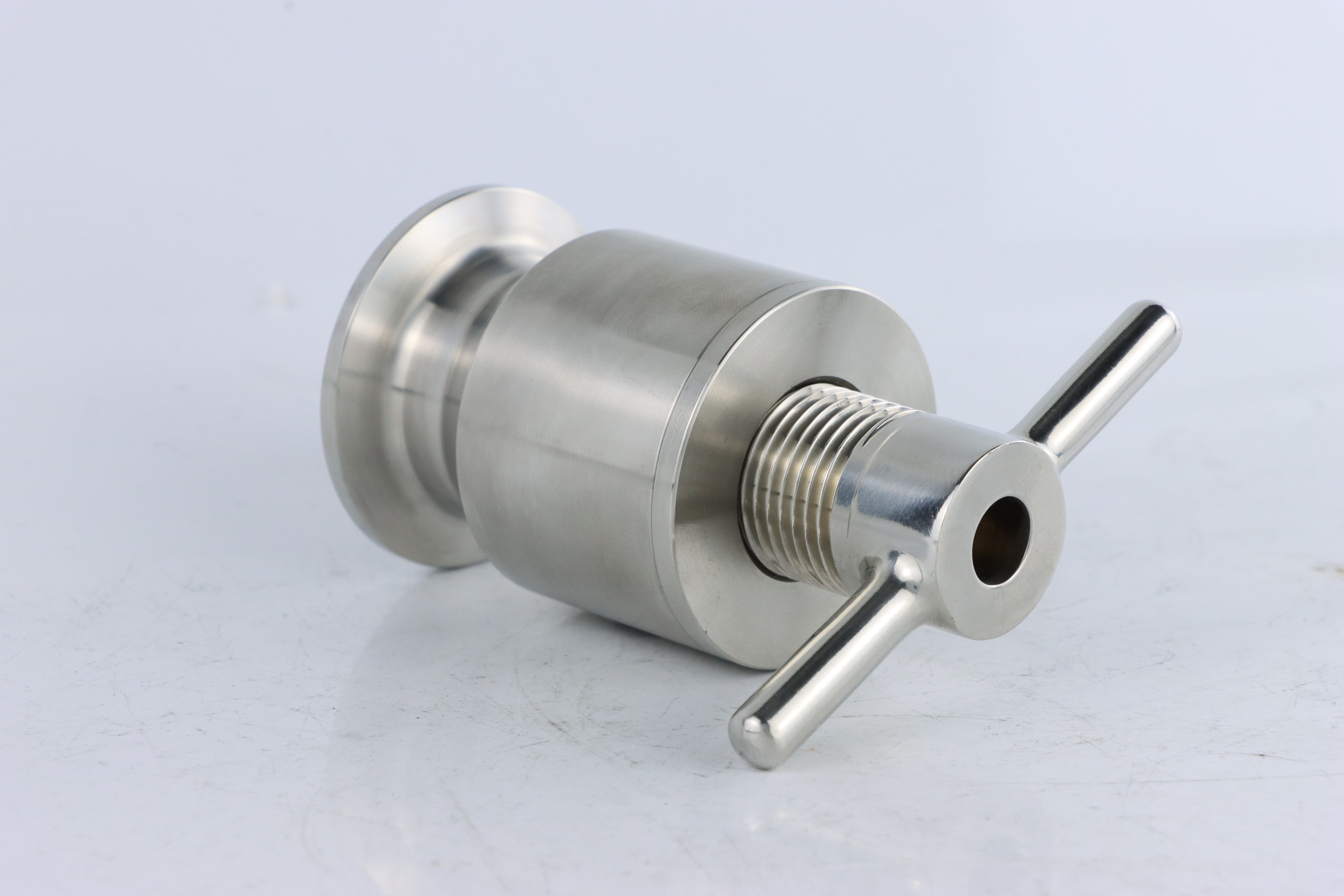

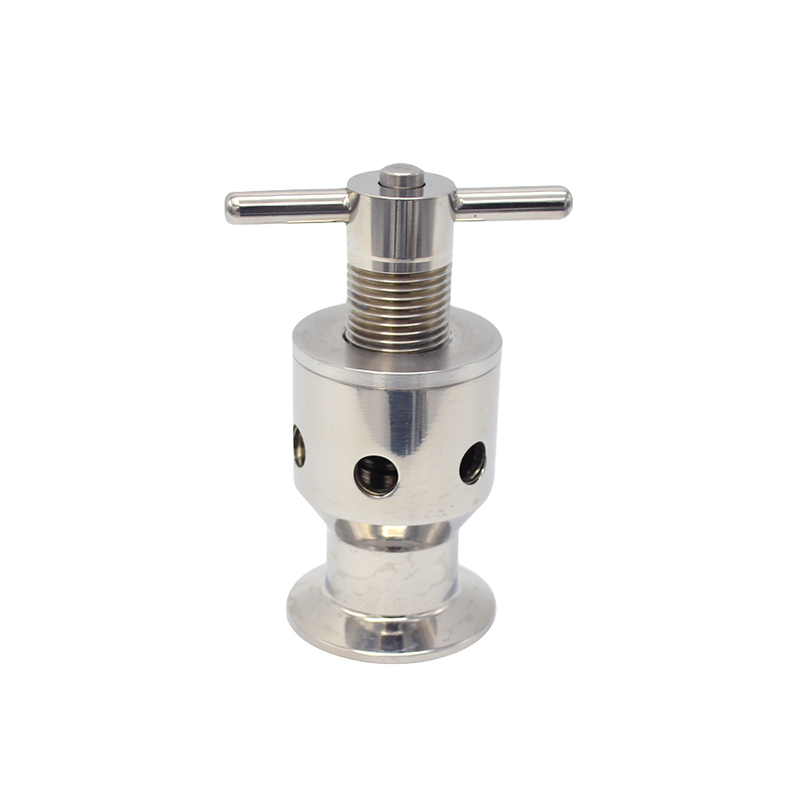

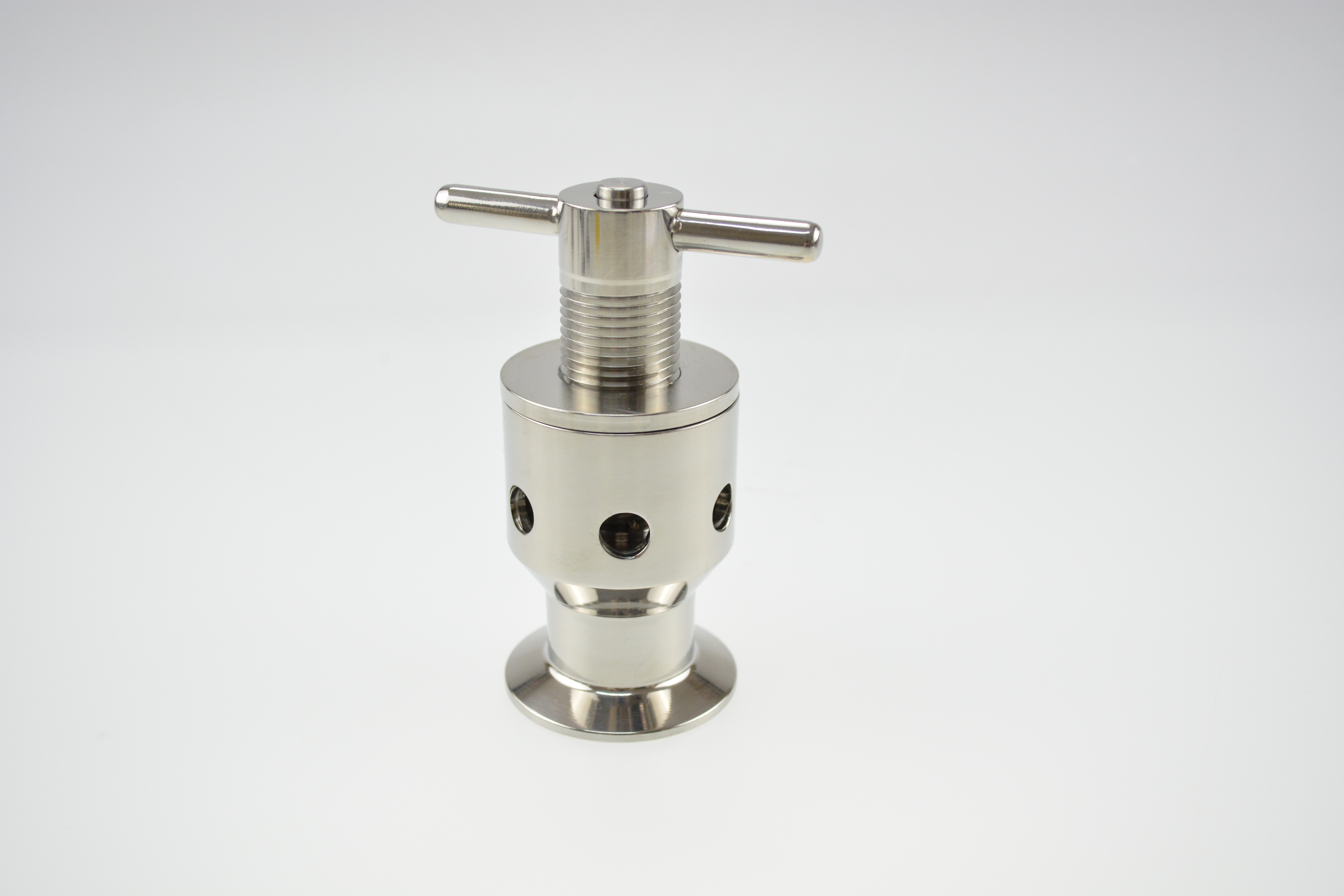

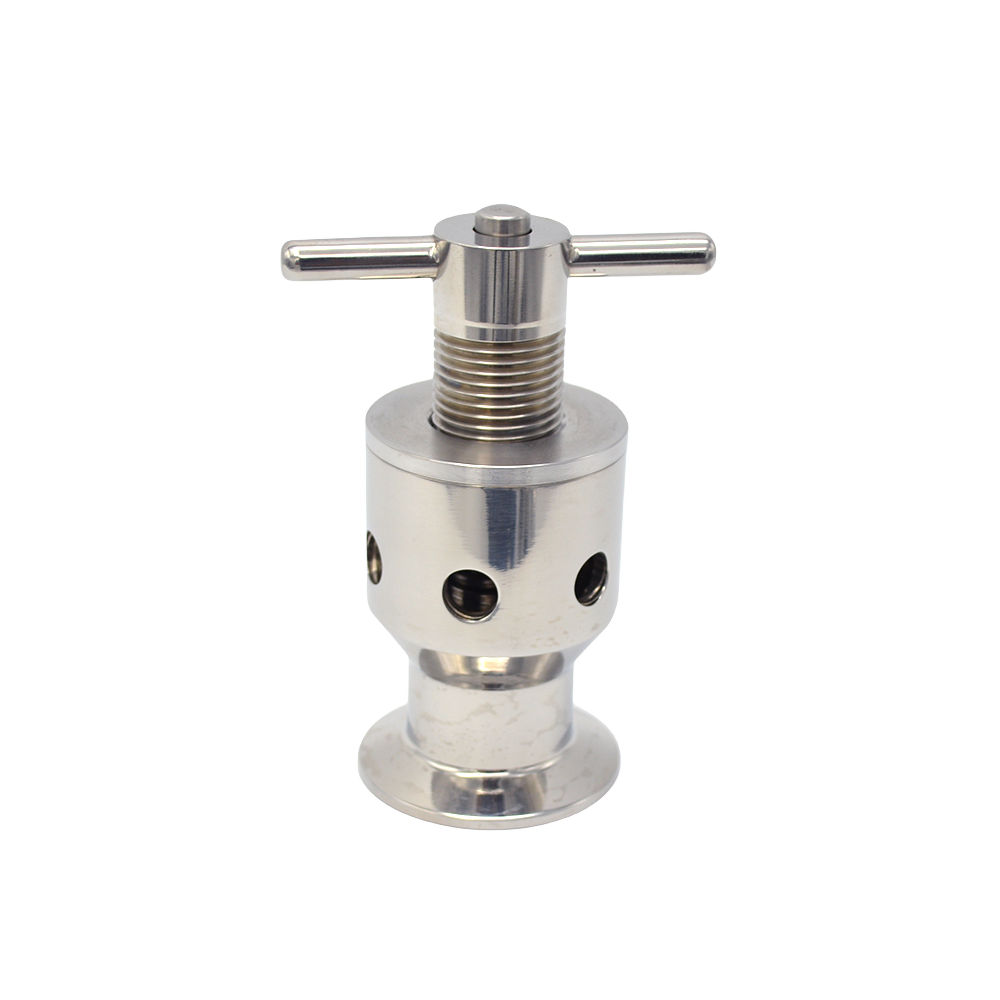

Stainless Steel Sanitary Adjustable Flow Manual Safety Exhaust Valve
Stainless Steel Sanitary Adjustable Flow Manual Safety Exhaust Valve is a manually operated valve designed to safely release excess pressure in sanitary systems. Its adjustable flow feature allows precise control, while the stainless steel construction ensures corrosion resistance and hygienic operation in various industries
Working Principles
The working principle of a Stainless Steel Sanitary Adjustable Flow Manual Safety Exhaust Valve involves manually controlling the release of excess pressure to protect sanitary systems. Turning the adjustment knob changes the compression on the internal spring, which sets the pressure at which the valve opens. When system pressure exceeds the set value, the spring allows the valve disc to lift, releasing fluid or gas through the exhaust port. Once the pressure drops below the set point, the spring pushes the disc back onto the seat, sealing the system. The stainless steel construction ensures corrosion resistance and hygienic operation, while the adjustable feature allows precise pressure management in food, beverage, or pharmaceutical applications
Stainless Steel Safety Valve Specification Chart
Type | Ball type, line type |
Working Pressure | 0bar-10bar |
Working Temperature | -10°C ~ +121°C |
Connection end | welded,clamped , threaded, union type |
Connection Standards | DIN, SMS, 3A, ISO |
Size | 1”-4”, DN25-DN100 |
Material | SS304, SS316L from solid bar raw material |
| With internal finishing Ra16<0.4micron | |
Surface finish | Sand blasting type, or mirror type |
Seal Material | FDA approved EPDM, VITION, NBR, SILICOME |
| Adjusting pressure | 0.5bar/unit |
| Manually adjustable to keep the system safety | |
Lock can be available for settling the relief pressure | |
Features
Constructed from high-quality stainless steel, providing excellent corrosion resistance and long-lasting durability in sanitary systems.
Manual operation with adjustable flow allows precise control over pressure release according to system requirements.
Safety exhaust function protects equipment and pipelines by automatically releasing excess pressure when needed.
Hygienic polished surfaces minimize contamination risks and support clean-in-place (CIP) procedures.
Robust spring and disc mechanism ensures reliable, repeatable performance with consistent sealing under varying pressure conditions
Application
The sanitary safety relief (release) valves are widely used for food, beverage, dairy, pharmacy, chemical or any food processing industries
Working Principles
The working principle of a Stainless Steel Sanitary Adjustable Flow Manual Safety Exhaust Valve involves manually controlling the release of excess pressure to protect sanitary systems. Turning the adjustment knob changes the compression on the internal spring, which sets the pressure at which the valve opens. When system pressure exceeds the set value, the spring allows the valve disc to lift, releasing fluid or gas through the exhaust port. Once the pressure drops below the set point, the spring pushes the disc back onto the seat, sealing the system. The stainless steel construction ensures corrosion resistance and hygienic operation, while the adjustable feature allows precise pressure management in food, beverage, or pharmaceutical applications
Feature and Specification
Stainless Steel Safety Valve Specification Chart
Type | Ball type, line type |
Working Pressure | 0bar-10bar |
Working Temperature | -10°C ~ +121°C |
Connection end | welded,clamped , threaded, union type |
Connection Standards | DIN, SMS, 3A, ISO |
Size | 1”-4”, DN25-DN100 |
Material | SS304, SS316L from solid bar raw material |
| With internal finishing Ra16<0.4micron | |
Surface finish | Sand blasting type, or mirror type |
Seal Material | FDA approved EPDM, VITION, NBR, SILICOME |
| Adjusting pressure | 0.5bar/unit |
| Manually adjustable to keep the system safety | |
Lock can be available for settling the relief pressure | |
Features
Constructed from high-quality stainless steel, providing excellent corrosion resistance and long-lasting durability in sanitary systems.
Manual operation with adjustable flow allows precise control over pressure release according to system requirements.
Safety exhaust function protects equipment and pipelines by automatically releasing excess pressure when needed.
Hygienic polished surfaces minimize contamination risks and support clean-in-place (CIP) procedures.
Robust spring and disc mechanism ensures reliable, repeatable performance with consistent sealing under varying pressure conditions
Application
The sanitary safety relief (release) valves are widely used for food, beverage, dairy, pharmacy, chemical or any food processing industries
