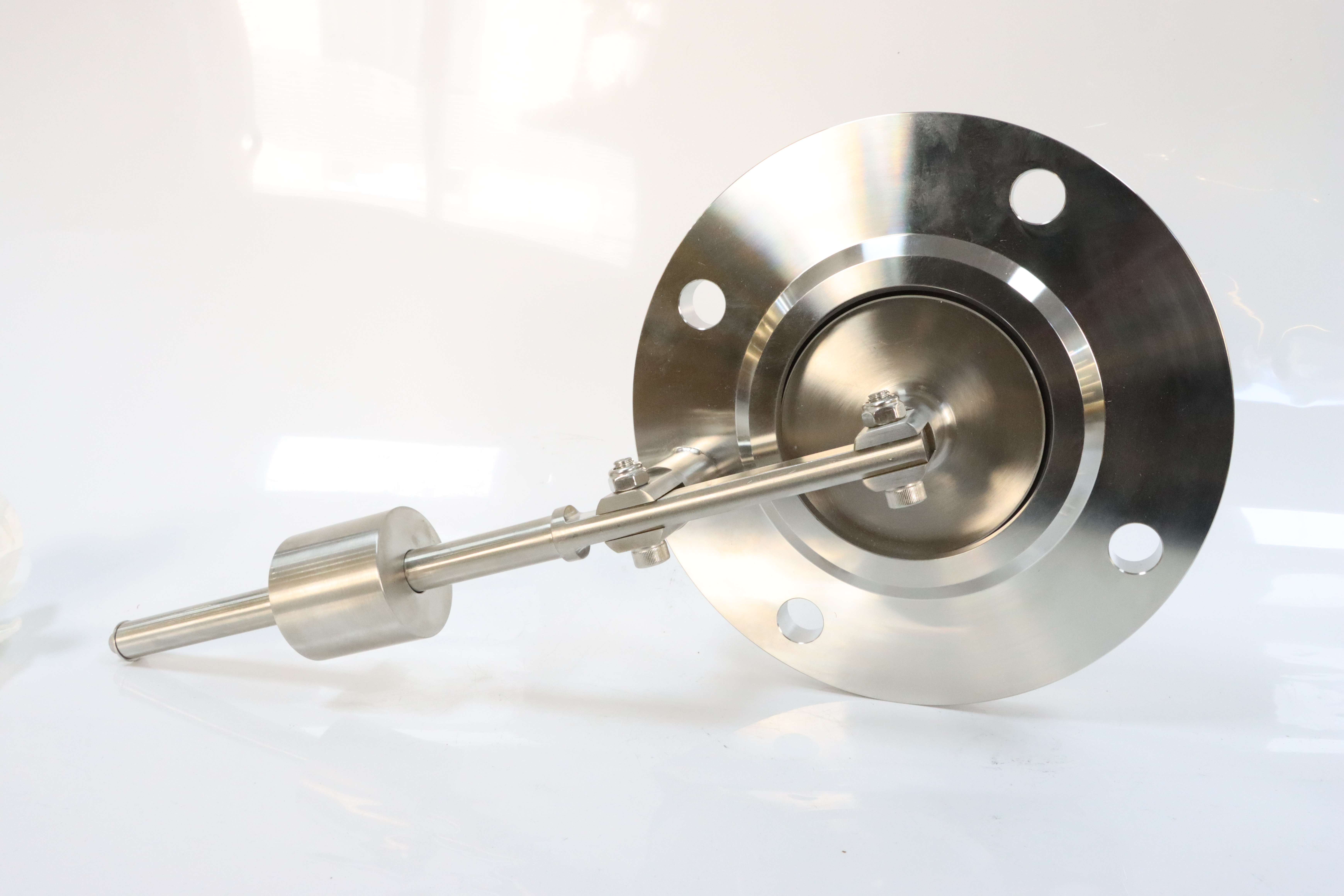

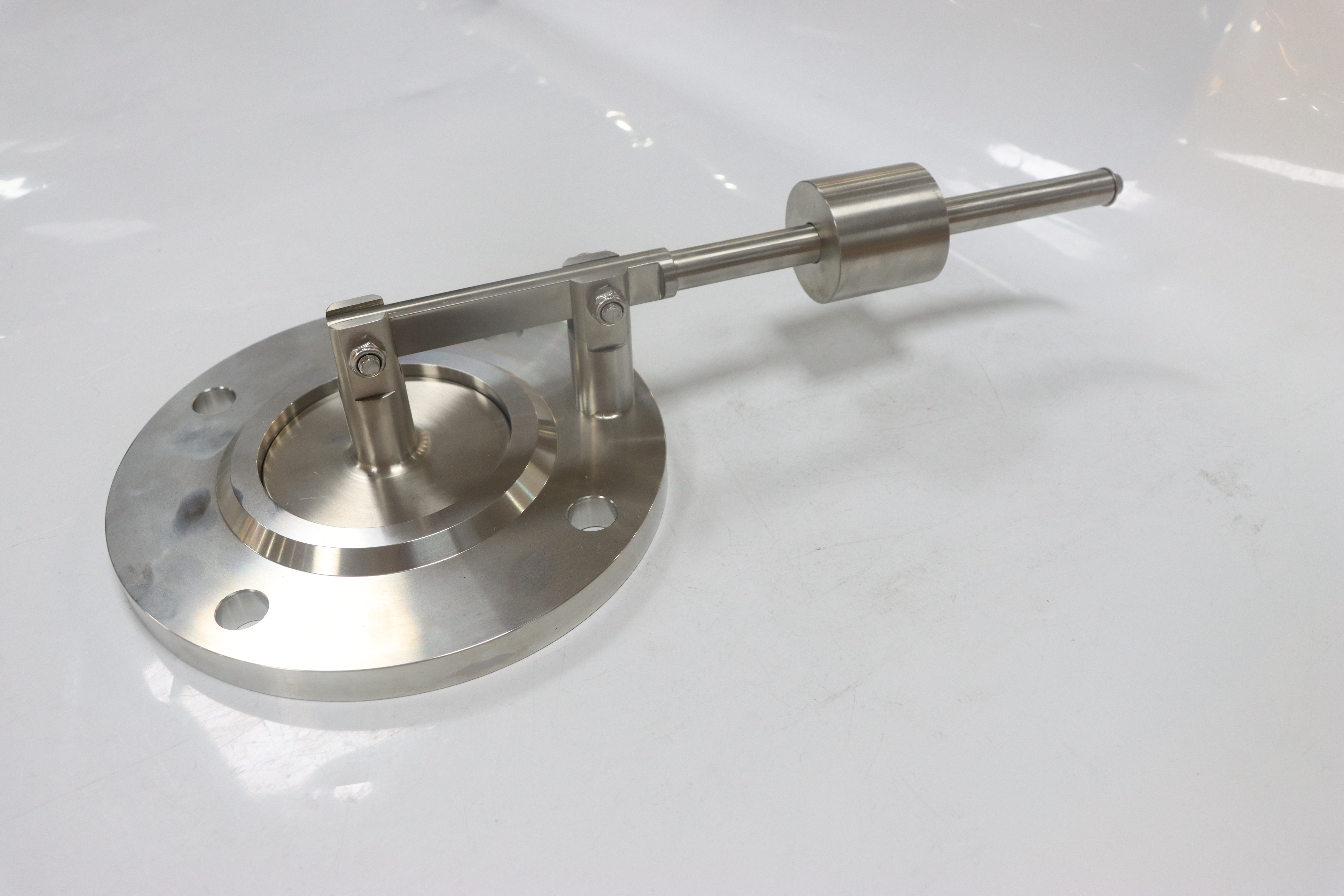

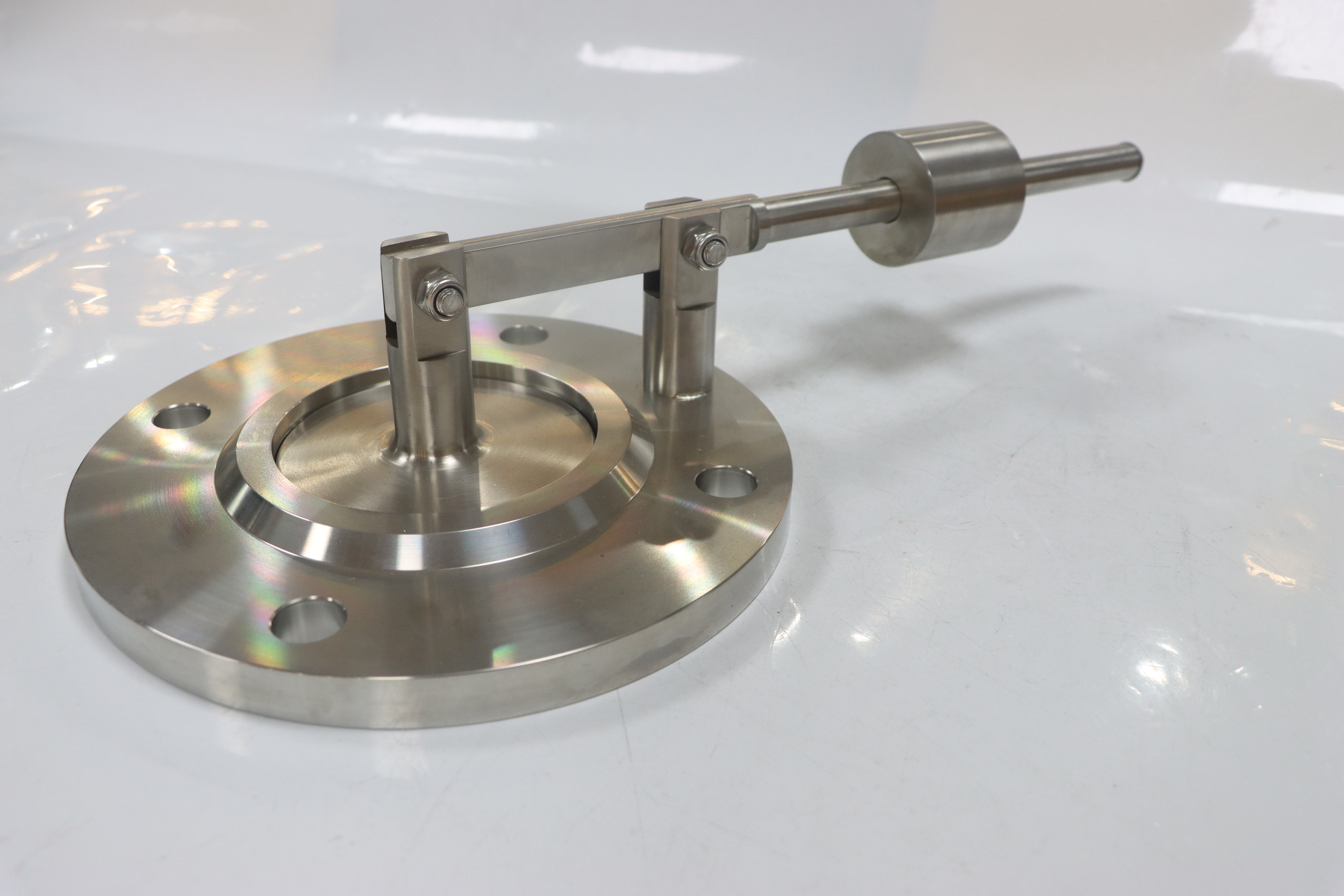

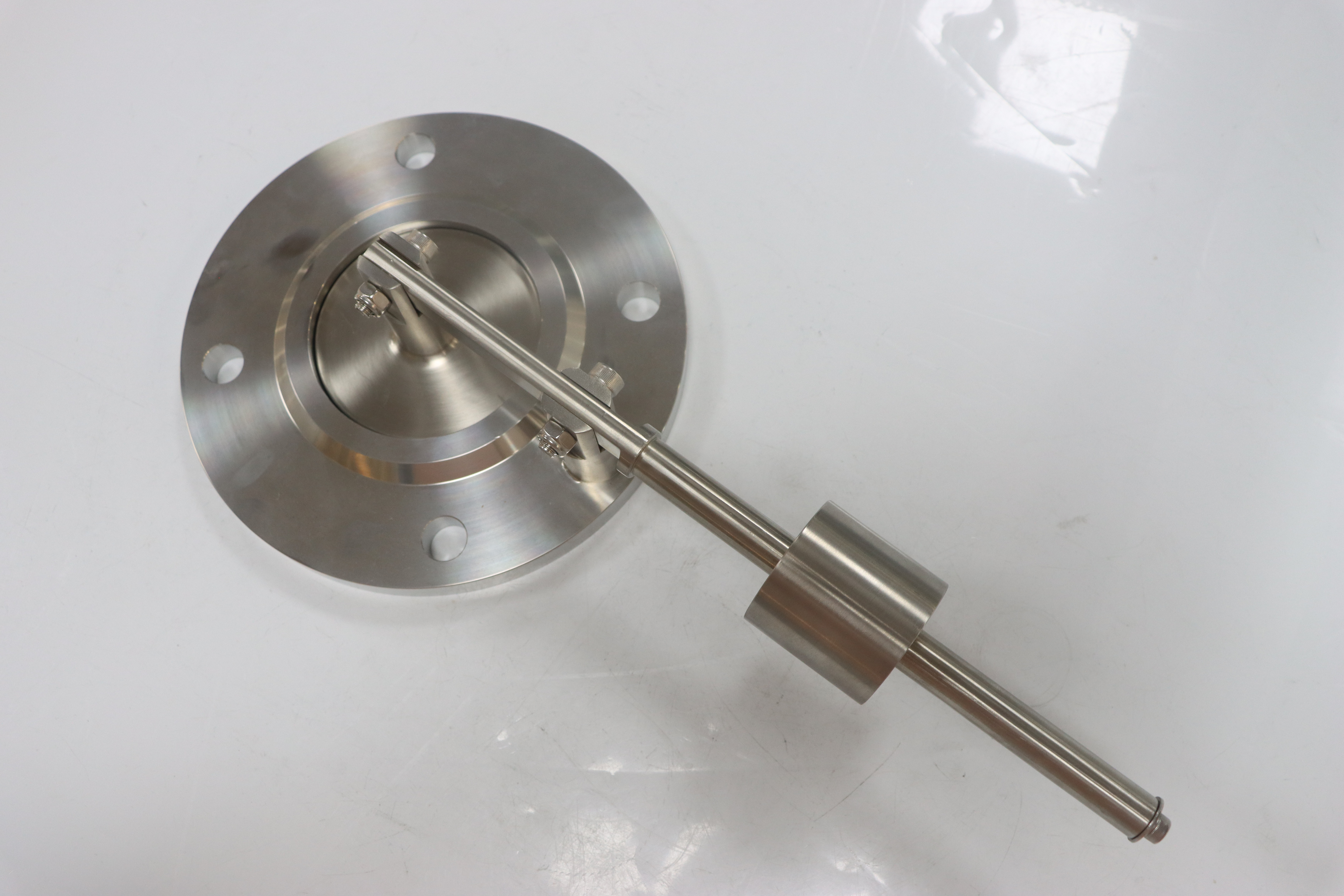

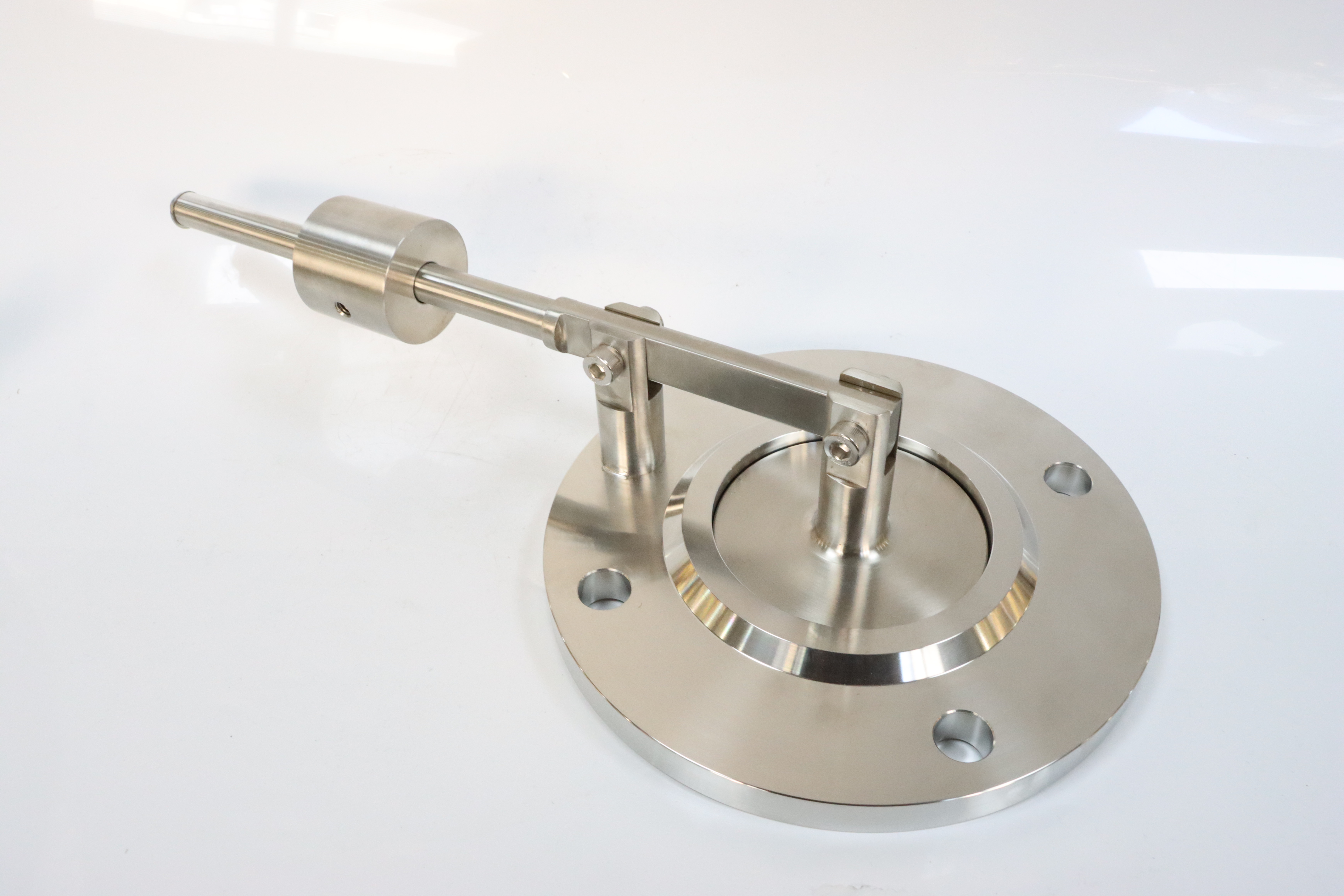

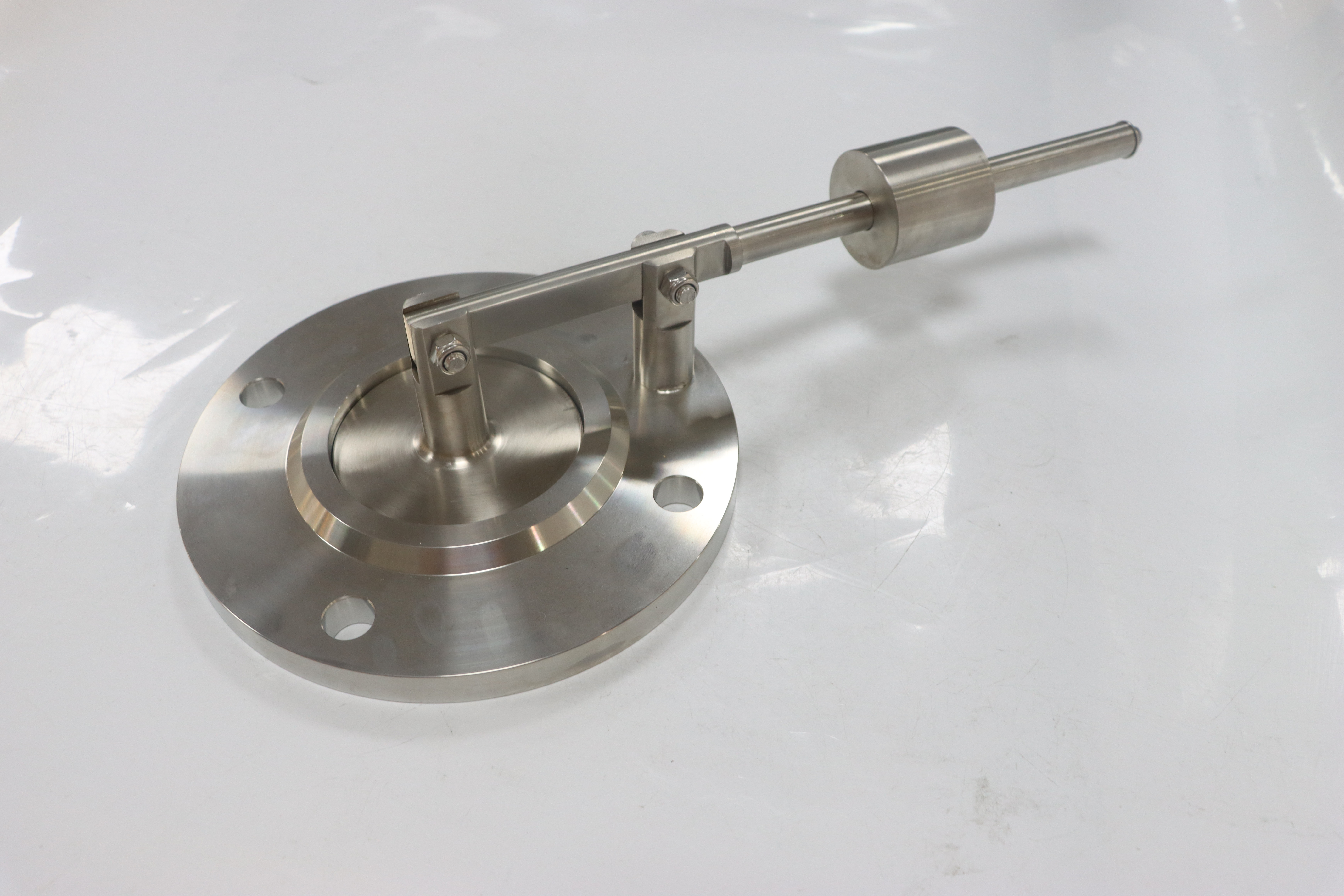

The stainless steel sanitary cryogenic safety vacuum relief valve is a precision safety valve designed for low-temperature systems. It protects vessels and pipelines from excessive vacuum by automatically admitting air or gas, while maintaining hygienic standards and reliable sealing performance under cryogenic operating conditions
JN 1080
JONENG
8481804090
Stainless Steel Sanitary Mini Threaded Safety Relief Valve
The stainless steel sanitary cryogenic safety vacuum relief valve is a precision safety valve designed for low-temperature systems. It protects vessels and pipelines from excessive vacuum by automatically admitting air or gas, while maintaining hygienic standards and reliable sealing performance under cryogenic operating conditions
Working Principles
The stainless steel sanitary cryogenic safety vacuum relief valve operates by responding automatically to negative pressure conditions within a closed system. When internal pressure drops below a preset vacuum level, the valve disc is lifted by external atmospheric pressure, allowing sterile air or inert gas to enter and equalize the pressure. As pressure returns to a safe range, the disc reseats smoothly, restoring a tight seal to prevent contamination. The valve is engineered with cryogenic-grade materials that maintain flexibility and strength at extremely low temperatures, ensuring stable performance without freezing or leakage. Its sanitary design minimizes dead zones, enabling safe operation in hygienic and low-temperature processing environments
Stainless Steel Safety Valve Specification Chart
Type | Ball type, line type |
Working Pressure | 0bar-10bar |
Working Temperature | -10°C ~ +121°C |
Connection end | welded,clamped , threaded, union type |
Connection Standards | DIN, SMS, 3A, ISO |
Size | 1”-4”, DN25-DN100 |
Material | SS304, SS316L from solid bar raw material |
| With internal finishing Ra16<0.4micron | |
Surface finish | Sand blasting type, or mirror type |
Seal Material | FDA approved EPDM, VITION, NBR, SILICOME |
| Adjusting pressure | 0.5bar/unit |
| Manually adjustable to keep the system safety | |
Lock can be available for settling the relief pressure | |
Features
Constructed from high-grade stainless steel with cryogenic-rated components, ensuring reliable mechanical strength, sealing stability, and long service life under extremely low-temperature operating conditions.
Sanitary internal structure features smooth surfaces and minimal dead zones, effectively reducing contamination risks and supporting strict hygienic requirements in food, pharmaceutical, and biotechnology systems.
Precisely calibrated vacuum response enables fast pressure equalization, protecting vessels and pipelines from deformation or collapse caused by excessive negative pressure conditions.
Compact and robust design allows easy installation and maintenance, while providing stable performance in cryogenic storage tanks, vacuum pipelines, and low-temperature process equipment
Application
Stainless steel safety valves are widely used in various industries to ensure safe and efficient operation. Oil and gas industry, chemical industry, water treatment, pharmaceutical industry and HVAC systems.
