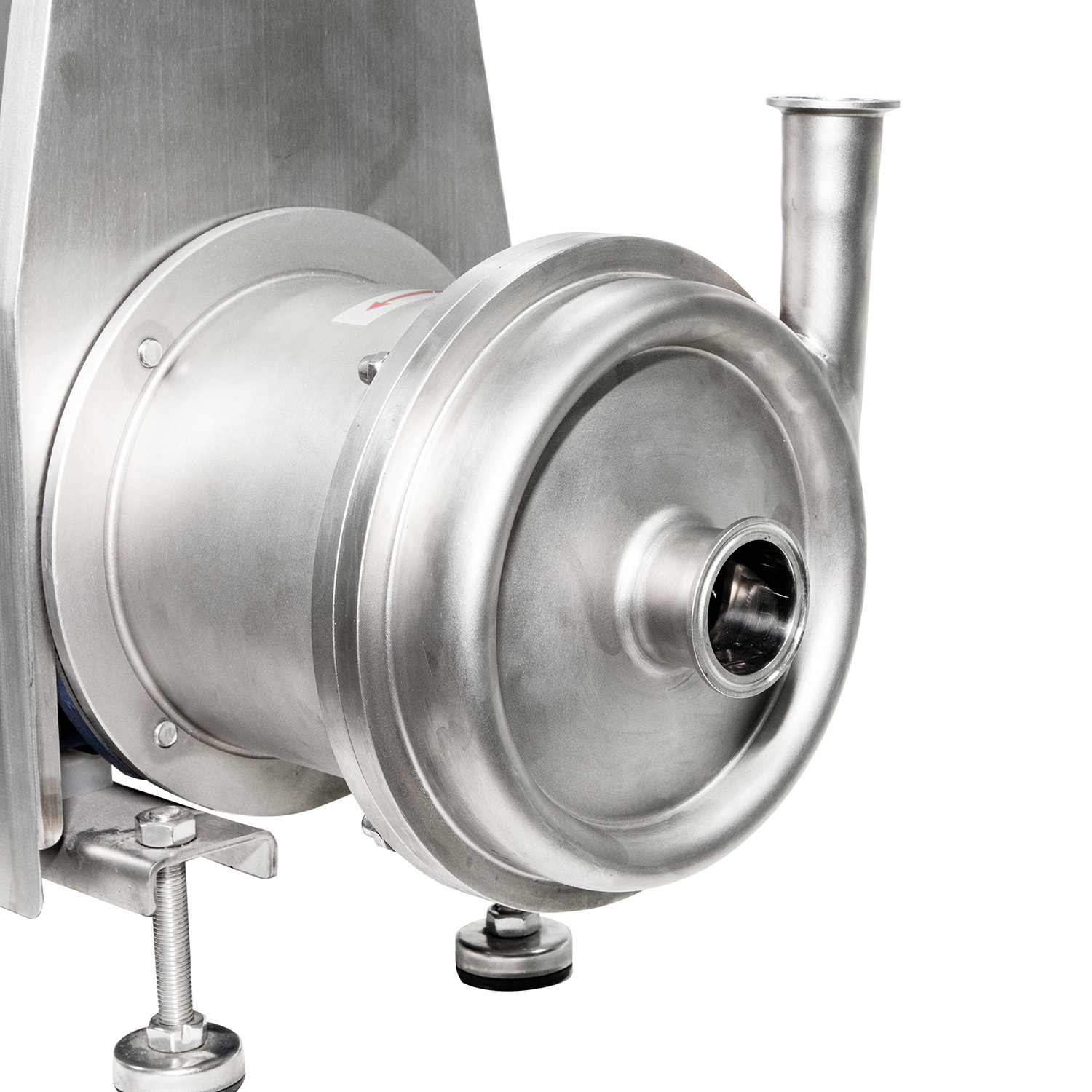

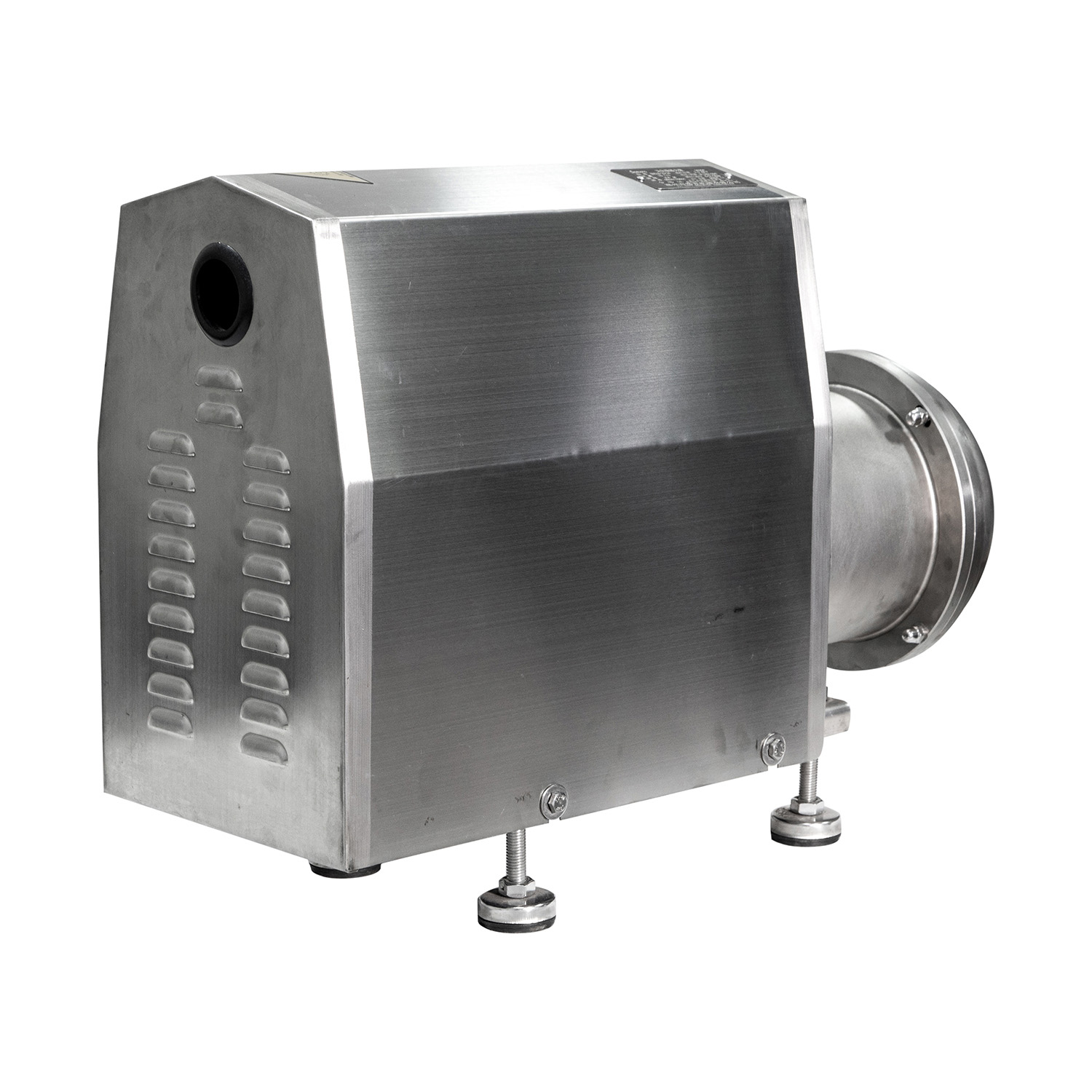

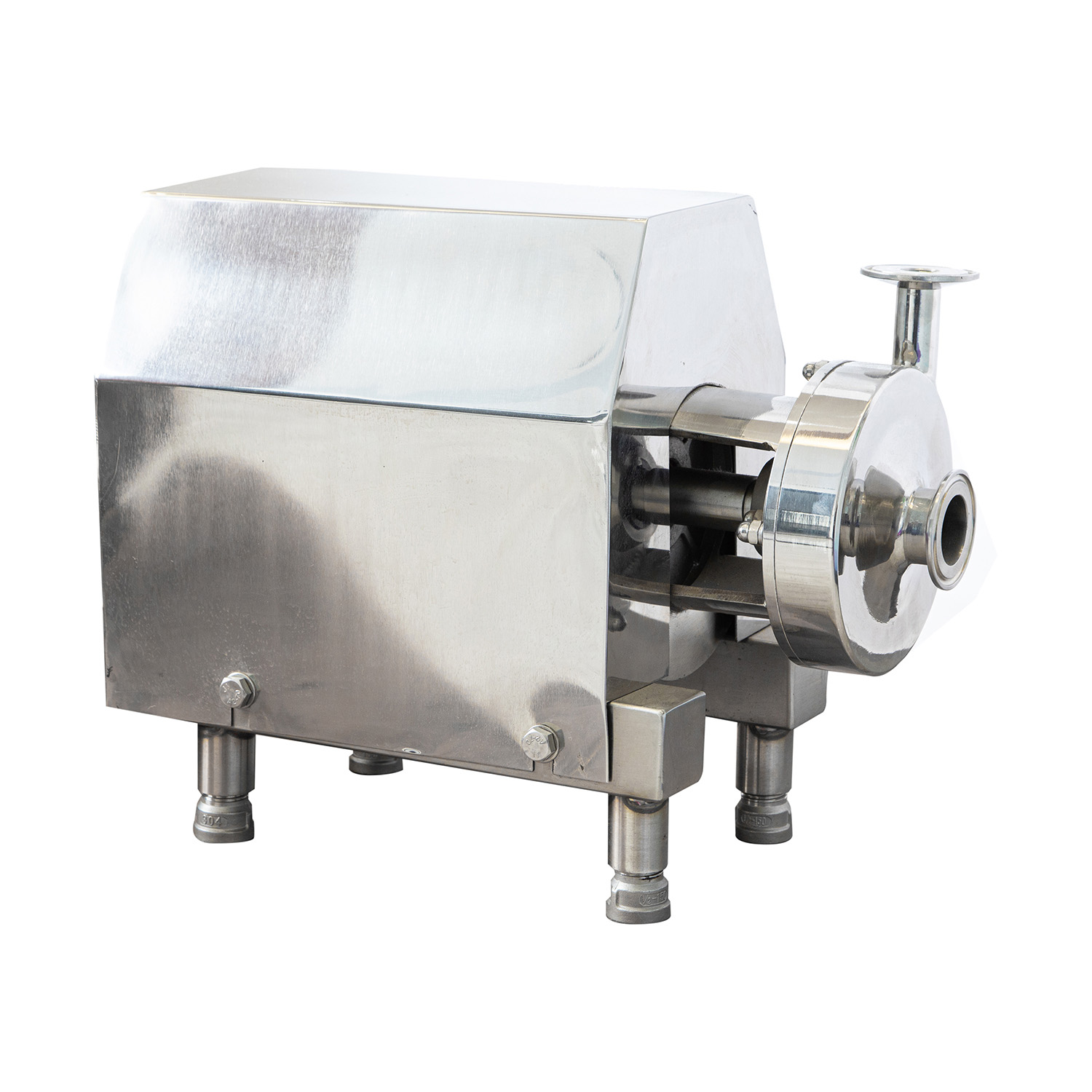

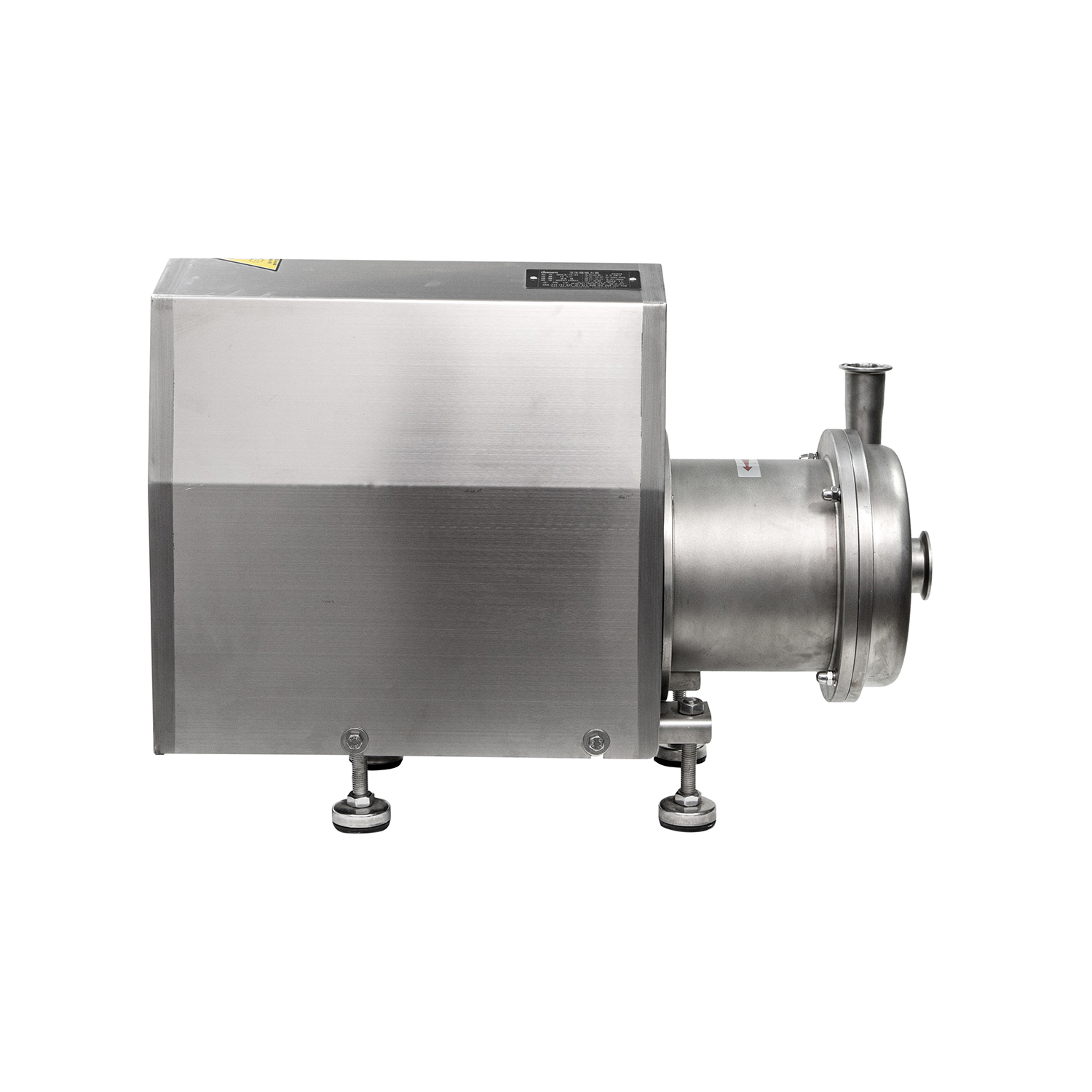

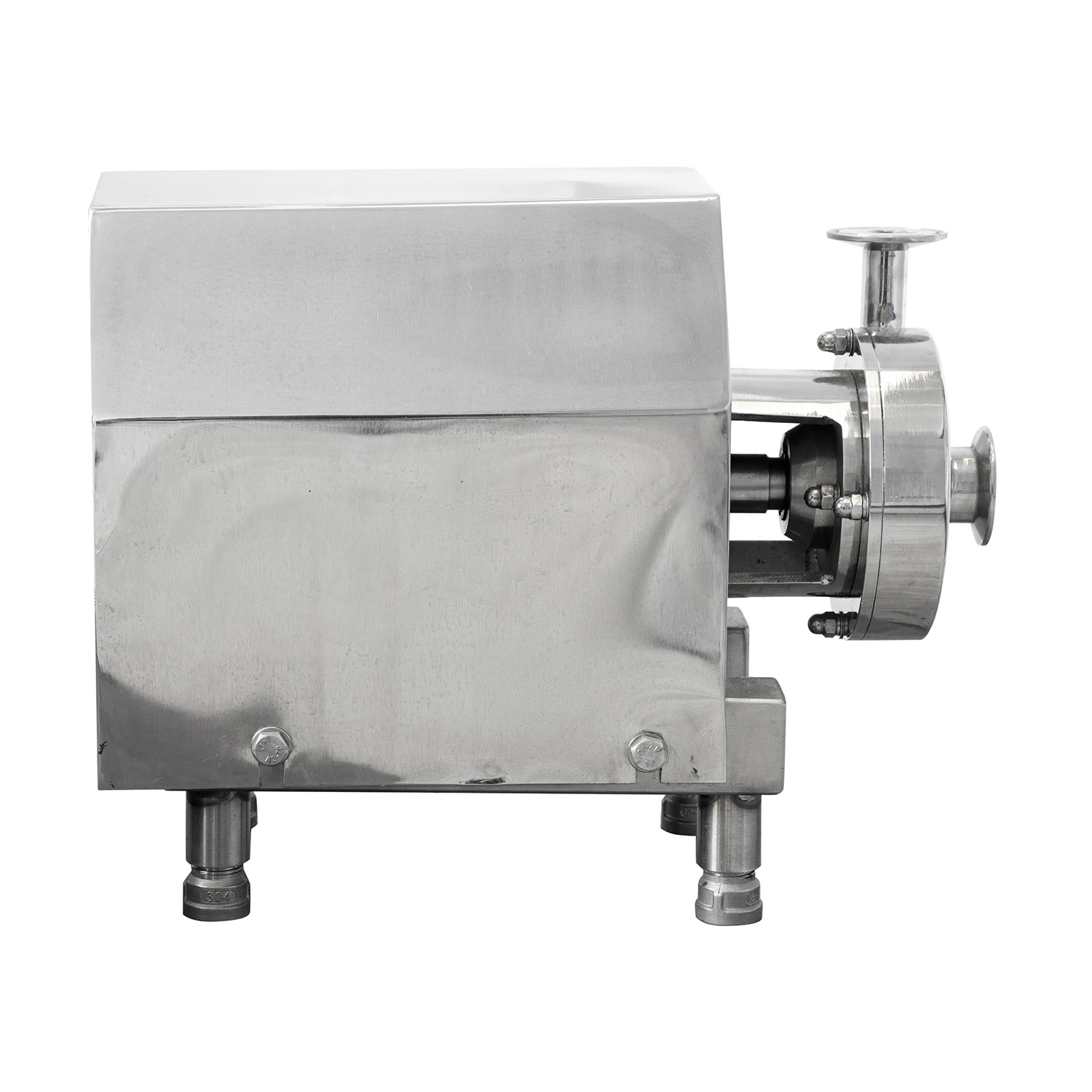

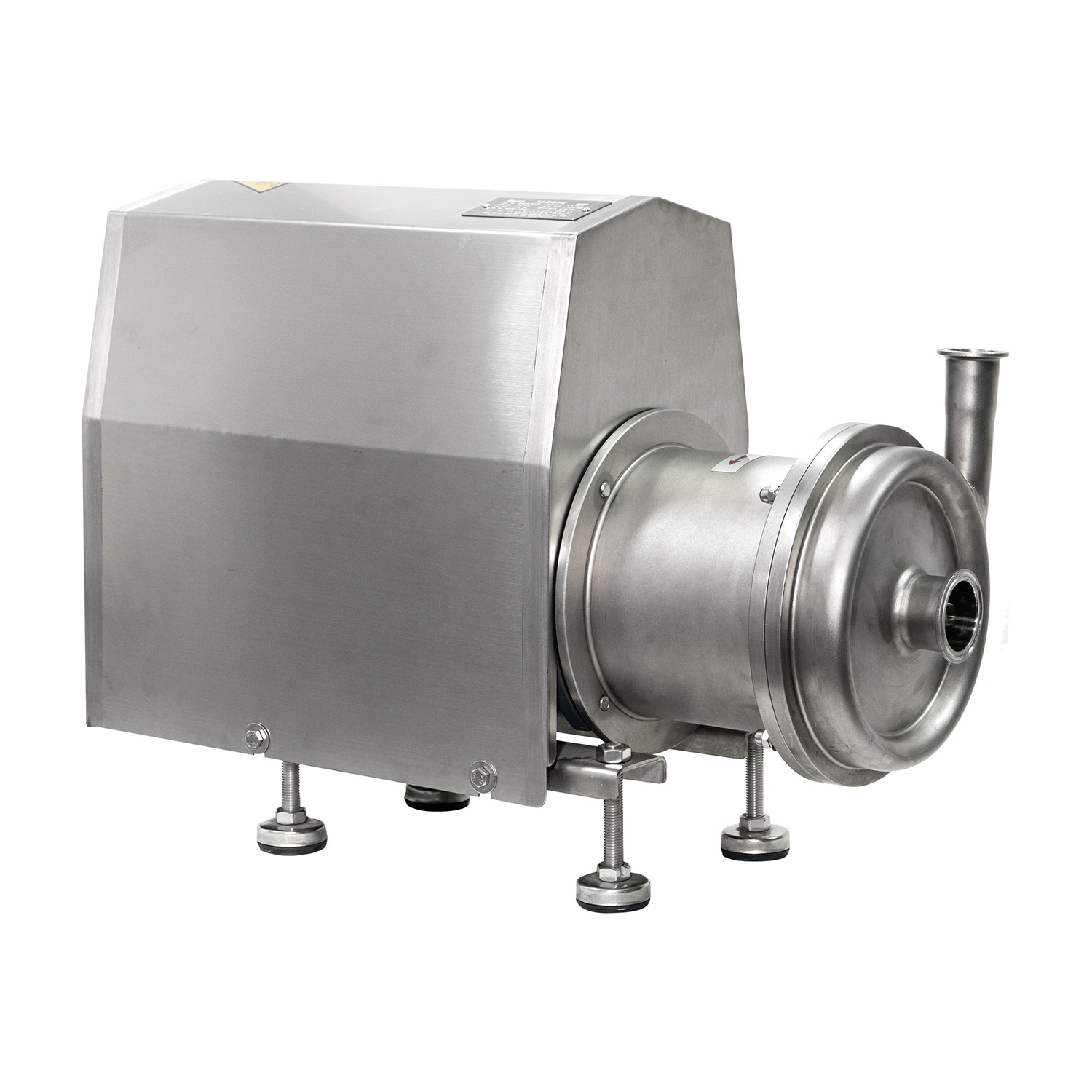

The Stainless Steel Sanitary Motor Vertical Self-Priming Centrifugal Pump is a hygienic vertical pump designed for efficient liquid transfer. It features a self-priming impeller and compact motor integration, ensuring stable suction, smooth flow, and reliable performance in sanitary processing systems
JONENG
8481804090
The Stainless Steel Sanitary Motor Vertical Self-Priming Centrifugal Pump is a hygienic vertical pump designed for efficient liquid transfer. It features a self-priming impeller and compact motor integration, ensuring stable suction, smooth flow, and reliable performance in sanitary processing systems
Working Principles
The Stainless Steel Sanitary Motor Vertical Self Impeller Priming Centrifugal Pump operates by using a rotating impeller driven by a vertically mounted motor to create centrifugal force. When the pump starts, the specially designed self-priming impeller evacuates air from the suction line, allowing liquid to be drawn into the pump chamber automatically. As the impeller rotates, liquid is accelerated outward from the center to the pump casing, converting kinetic energy into pressure for continuous flow. The vertical structure improves space efficiency and ensures stable alignment, while the sanitary stainless steel construction allows easy cleaning, corrosion resistance, and reliable operation in hygienic liquid transfer applications
Specification Chart
Max. flow rate | 130m3/h |
Max viscosity | 100000Cps |
Max pressur | 7bar |
Power supply | 0.75kw to 30kw |
Max. temperature | 120 °C |
Material | SS304/SS316L |
| Mechanical seal | single mechanical seal/double mechanical seal |
| Inlet/outlet connection | Thread, Clamp, Flange,Weld,Union |
| Internal Surface treatment | ≤ Ra0.8μm as default |
| Motor brand | ABB or local motor |
Frequency | 50HZ/60HZ |
Features
The sanitary stainless steel structure provides excellent corrosion resistance and smooth internal surfaces, ensuring hygienic operation and easy cleaning in food, beverage, and pharmaceutical processing environments.
The vertical motor design saves installation space while maintaining stable alignment, reducing vibration and ensuring consistent performance during continuous liquid transfer operations.
The self-priming impeller design effectively removes air from the suction line, enabling quick startup and reliable pumping without the need for manual priming procedures.
Precision-engineered impeller and casing deliver smooth, low-pulsation flow, minimizing shear force and protecting sensitive liquids from foaming or product degradation
Application
The Stainless Steel Sanitary Motor Vertical Self Impeller Priming Centrifugal Pump is widely used in food and beverage production for transferring milk, juice, syrups, and liquid additives under hygienic conditions. It is also applied in pharmaceutical and biotechnology industries for moving purified water, solutions, and intermediates where cleanliness and reliability are essential. Additionally, it supports cosmetic and chemical processing lines requiring corrosion resistance and stable, contamination-free liquid handling.
Working Principles
The Stainless Steel Sanitary Motor Vertical Self Impeller Priming Centrifugal Pump operates by using a rotating impeller driven by a vertically mounted motor to create centrifugal force. When the pump starts, the specially designed self-priming impeller evacuates air from the suction line, allowing liquid to be drawn into the pump chamber automatically. As the impeller rotates, liquid is accelerated outward from the center to the pump casing, converting kinetic energy into pressure for continuous flow. The vertical structure improves space efficiency and ensures stable alignment, while the sanitary stainless steel construction allows easy cleaning, corrosion resistance, and reliable operation in hygienic liquid transfer applications
Specification Chart
Max. flow rate | 130m3/h |
Max viscosity | 100000Cps |
Power supply | 0.75kw to 30kw |
Max. temperature | 120 °C |
Material | SS304/SS316L |
| Mechanical seal | single mechanical seal/double mechanical seal |
| Inlet/outlet connection | Thread, Clamp, Flange,Weld,Union |
| Internal Surface treatment | ≤ Ra0.8μm as default |
| Motor brand | ABB or local motor |
| Motor type | variable frequency motor, fixed speed motor |
Frequency | 50HZ/60HZ |
Max. pressure | 7 bar |
Max. temperature | 120°C |
Material | SS304/SS316L |
| Inlet/outlet connection | Clamp, Weld, Flange |
| Inlet/outlet size | 1”-3” |
| Diaphragm | PTFE, PTFE with white back, EPDM, white EPDM, white NBR |
| Driving way | Air or Motor |
Features
● A micro-bubble separation chamber is specially designed inside the stainless steel sanitary self-priming pump. The residual bubbles are automatically separated and discharged from the system by using the density difference between liquid and bubbles.
● The surface of the stainless steel sanitary self-priming pump is specially polished and treated with liquid film affinity, so that the residual liquid forms a uniform film in the pump chamber to keep the self-priming chamber moist.
● The impeller of the stainless steel sanitary self-priming pump adopts a multi-dimensional dynamic balance adaptive structure, which can fine-tune the operating balance point in real time according to the viscosity, density or gas-liquid ratio of the conveyed liquid, reduce operating vibration and impeller eccentric wear.
● The stainless steel sanitary self-priming pump is equipped with a negative pressure fine-tuning device, which can automatically adjust the internal negative pressure according to the length of the feed pipeline or the liquid level difference, and always maintain the optimal self-priming negative pressure range.
● The stainless steel sanitary self-priming pump is designed with a special dry area channel to guide the dead corner liquid that cannot be emptied to the easy-to-discharge area to avoid long-term residual liquid retention.
● The stainless steel sanitary self-priming pump uses a special low expansion coefficient stainless steel alloy, combined with a double-end precision positioning structure. Even during high-temperature disinfection or hot material transportation, the thermal expansion of the shaft is always controlled at the micron level to maintain axial symmetry.
Application
The Stainless Steel Sanitary Motor Vertical Self Impeller Priming Centrifugal Pump is widely used in food and beverage production for transferring milk, juice, syrups, and liquid additives under hygienic conditions. It is also applied in pharmaceutical and biotechnology industries for moving purified water, solutions, and intermediates where cleanliness and reliability are essential. Additionally, it supports cosmetic and chemical processing lines requiring corrosion resistance and stable, contamination-free liquid handling.
