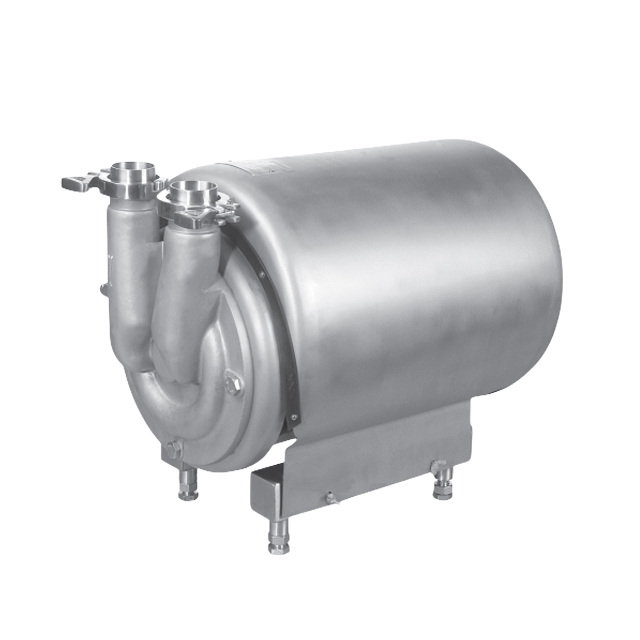

Stainless Steel Sanitary Self-Priming Pump with Open Impeller for Milk

Sanitary CIP pumps are used for sucking up materials where the liquid level is lower than the pump inlet, and transferring materials containing gases.Widely used in food and beverage, dairy, biopharmaceutical, daily chemical, chemical industry.
Availability:
Quantity:
  • JONENG

  • 8481804090

Stainless Steel Sanitary Self-Priming Pump with Open Impeller for Milk

Sanitary CIP pumps consists of pump cover, impeller, pump body, motor and so on. Pump cover, impeller, pump body and other parts in contact with materials are made of 304/316 stainless steel. The outlet and inlet are sealed by rubber, and the mechanical seal is used on the rotary shaft. At the lower end of the pump inlet, there is a liquid discharge port.


Working Principles

未标题-1

Sanitary CIP pumps,before starting, first in the pump casing filled with water, when turning, the impeller rotation direction should be the same as the marked. After a short running time, by the role of the pump itself, the water can be sucked up,then put into normal operation. When need to release the liquid inside the pump, turn on the liquid port cover, the liquid inside the pump can be released.


Stainless Steel Self-Priming Pump Specification Chart

未标题-1

Max. flow rate

30m3/h/132GPM

Max. head

40H(M)

Max. pressure

3Bar/43PSI

Max. temperature

120℃/248.F

Max. speed

1750min

Max. suction lift

8m/22ft


Features

未标题-1

 Compact structure, easy to operate

●    Smooth operation and easy maintenance

 High efficiency, long life

●    Strong self-priming ability


Application

未标题-1

Sanitary CIP pumps are mainly used in food and beverage, dairy, biopharmaceutical, daily chemical and chemical industries.





Working Principles

未标题-1

Sanitary CIP pumps,before starting, first in the pump casing filled with water, when turning, the impeller rotation direction should be the same as the marked. After a short running time, by the role of the pump itself, the water can be sucked up,then put into normal operation. When need to release the liquid inside the pump, turn on the liquid port cover, the liquid inside the pump can be released.


Feature and Specification

未标题-1


Stainless Steel Self-Priming Pump Specification Chart

未标题-1

Max. flow rate

30m3/h/132GPM

Max. head

40H(M)

Max. pressure

3Bar/43PSI

Max. temperature

120℃/248.F

Max. speed

1750min

Max. suction lift

8m/22ft




Features

未标题-1

 Compact structure, easy to operate

●    Smooth operation and easy maintenance

 High efficiency, long life

●    Strong self-priming ability


Application

未标题-1

Sanitary CIP pumps are mainly used in food and beverage, dairy, biopharmaceutical, daily chemical and chemical industries.
