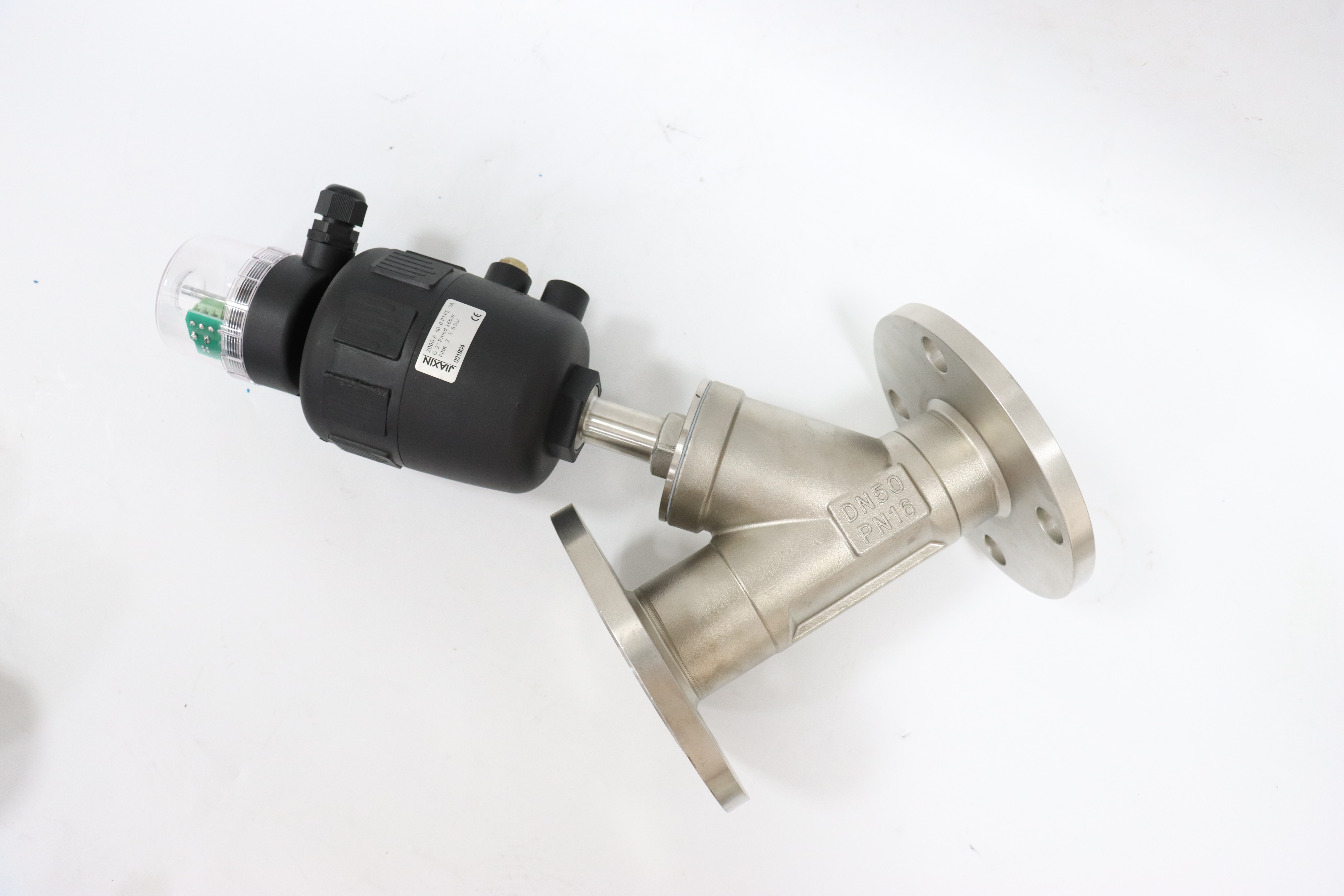

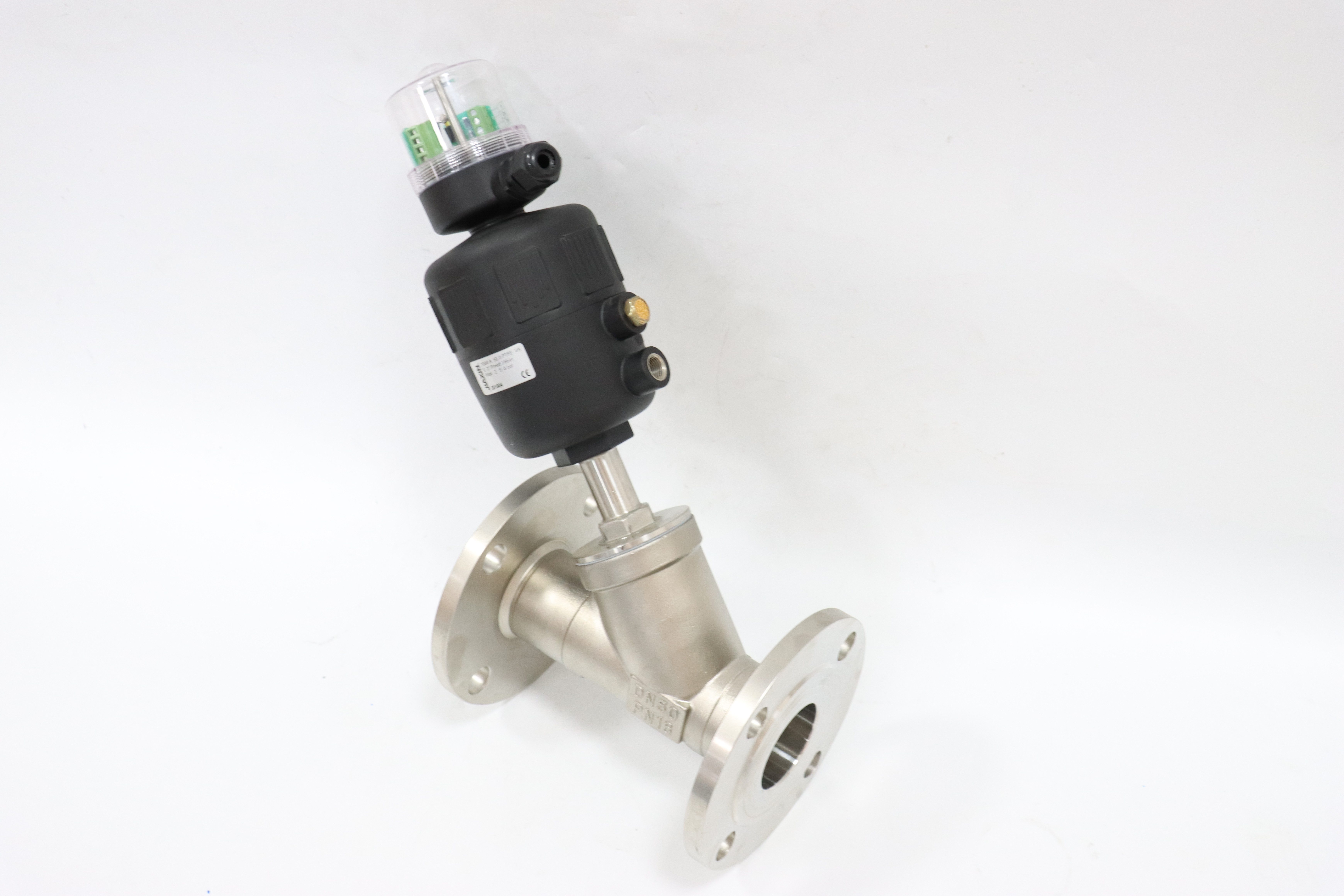

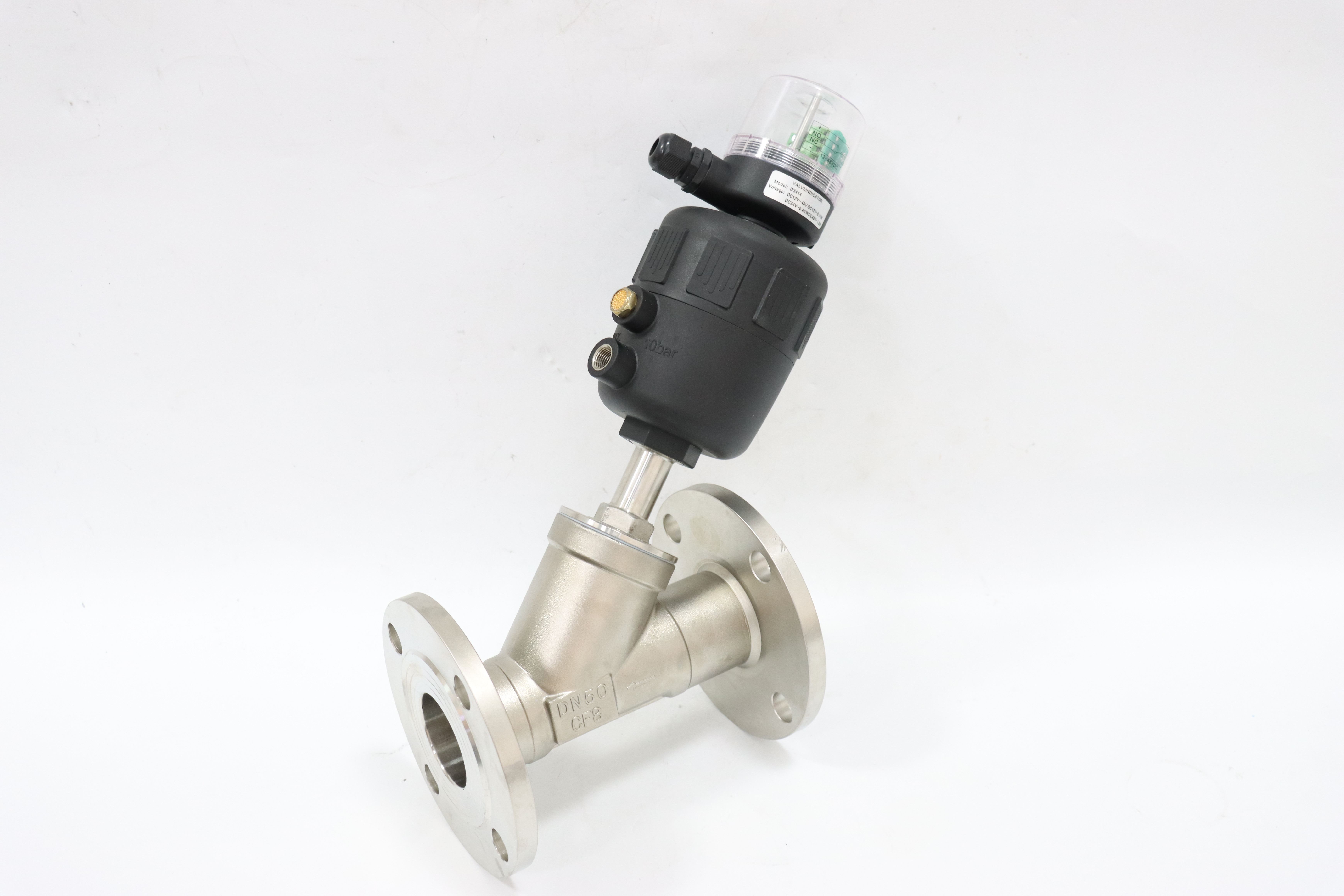

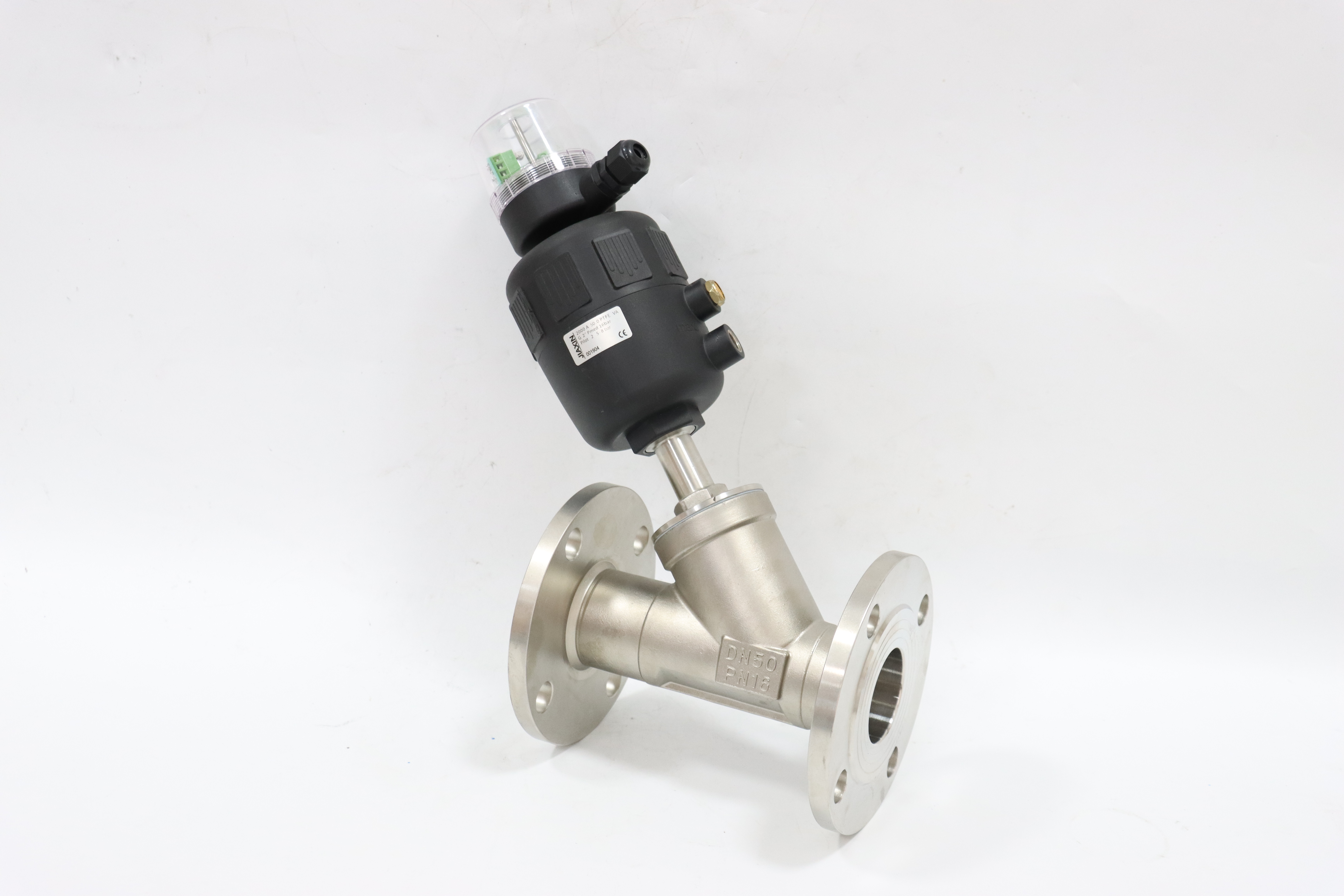

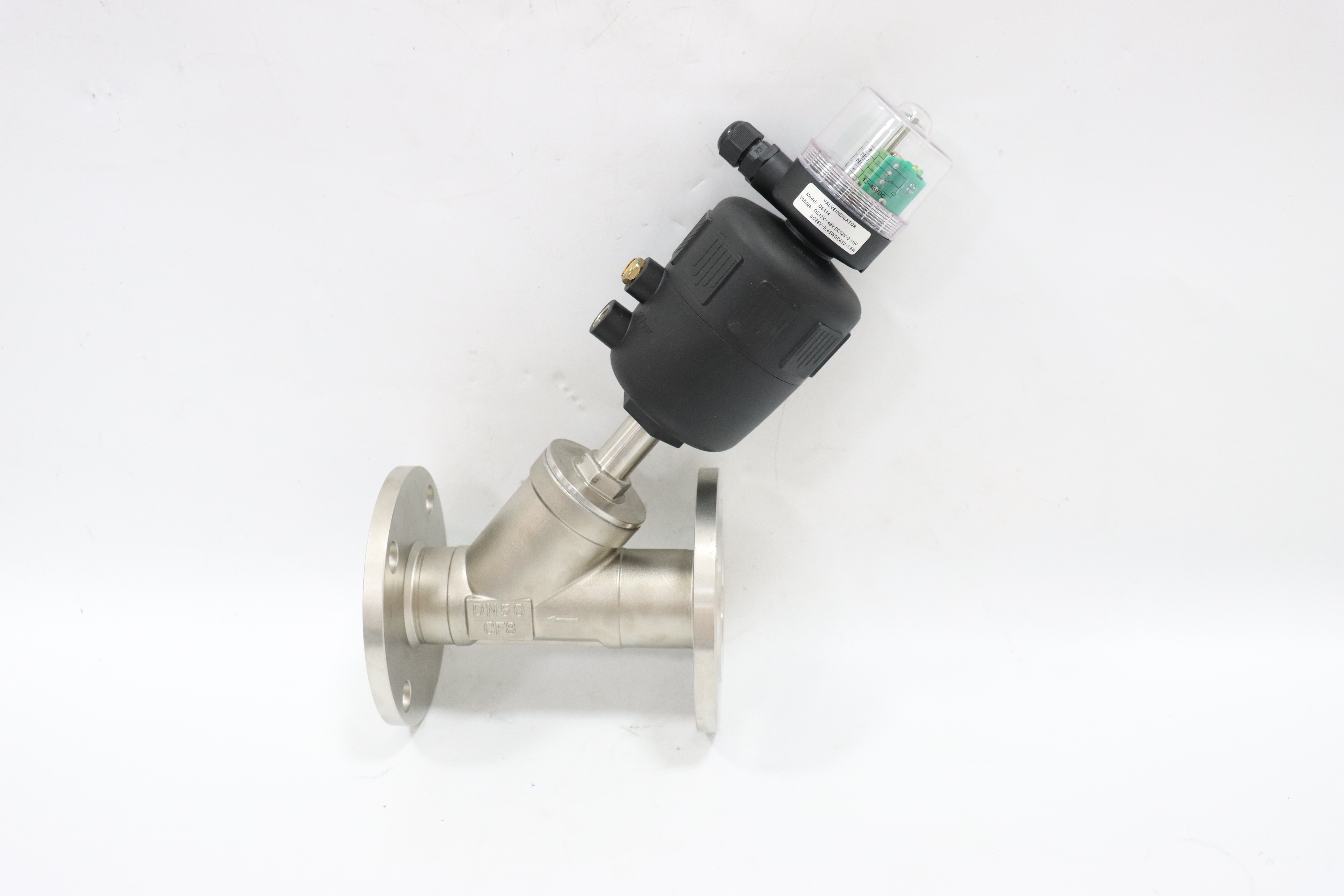

Stainless Steel Two-way Flange Pneumatic Plastic Head Angle Seat Valve
Stainless Steel Two-way Flange Pneumatic Plastic Head Angle Seat Valve is an automated valve designed for hygienic fluid control. Its flange connection ensures secure installation, while the plastic actuator head provides lightweight, corrosion-resistant operation with reliable two-way flow control
Working Principles
The working principle of a Stainless Steel Two-way Flange Pneumatic Plastic Head Angle Seat Valve involves controlling fluid flow through an angled seat using a pneumatic actuator with a plastic head. When compressed air is applied to the actuator, the internal piston moves, lifting the valve plug from the seat and allowing fluid to flow smoothly through the valve. The angled seat minimizes flow resistance and ensures efficient discharge. Releasing or reversing the air pressure returns the piston, pressing the plug tightly against the seat to create a secure seal and prevent leakage. The two-way design allows straightforward on/off control, while the flange connection provides stable installation in sanitary piping systems
Stainless Steel Angle Seat Valve Specification Chart
Max Working Pressure | 1.6MPa |
Medium Temperature | -10℃~+180℃ |
Ambient Temperature | -10℃~+55℃ |
Body Materials | CF8M(SS316),CF8(SS304) |
Sealing Material | PTFE |
Operation | Normally Closed, Normally Open, Double-acting or Manually |
Connection End | Female, Weld,Clamp, Flange or on request |
Size Range | DN10-DN100 |
Surface treatment | Ra 16 ~ 32µin (0.4 ~ 0.8µm) |
Standards | DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE. |
Control type | Single acting, double acting |
Features
Constructed from high-quality stainless steel, ensuring excellent corrosion resistance and durability for sanitary and high-purity fluid systems.
Pneumatic actuator with a plastic head provides lightweight, corrosion-resistant operation and fast, precise valve control.
Two-way configuration allows simple on/off operation, ideal for straightforward fluid control in automated systems.
Angled seat design ensures smooth flow, reduces pressure loss, and minimizes turbulence during fluid discharge.
Flange connection allows secure, stable installation and easy integration into sanitary piping systems, supporting CIP and SIP cleaning procedures
Application
Bio pharmaceutical industry, drink filling Machinery, chemical industry, beverage, dairy, gas industry and so on.
Specific usage areas include: as switches in automatic control systems, Industrial Compressors, Steam Applications, Printers & Paint Dispensers, Water Treatment Machines, bottling & Dispensing Machines, Washing & Laundry Machines and more.
Working Principles
The working principle of a Stainless Steel Two-way Flange Pneumatic Plastic Head Angle Seat Valve involves controlling fluid flow through an angled seat using a pneumatic actuator with a plastic head. When compressed air is applied to the actuator, the internal piston moves, lifting the valve plug from the seat and allowing fluid to flow smoothly through the valve. The angled seat minimizes flow resistance and ensures efficient discharge. Releasing or reversing the air pressure returns the piston, pressing the plug tightly against the seat to create a secure seal and prevent leakage. The two-way design allows straightforward on/off control, while the flange connection provides stable installation in sanitary piping system
Feature and Specification
Stainless Steel Angle Seat Valve Specification Chart
Max Working Pressure | 1.6MPa |
Medium Temperature | -10℃~+180℃ |
Ambient Temperature | -10℃~+55℃ |
Body Materials | CF8M(SS316),CF8(SS304) |
Sealing Material | PTFE |
Operation | Normally Closed, Normally Open, Double-acting or Manually |
Connection End | Female, Weld,Clamp, Flange or on request |
Size Range | DN10-DN100 |
Surface treatment | Ra 16 ~ 32µin (0.4 ~ 0.8µm) |
Standards | DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE. |
Control type | Single acting, double acting |
Features
Constructed from high-quality stainless steel, ensuring excellent corrosion resistance and durability for sanitary and high-purity fluid systems.
Pneumatic actuator with a plastic head provides lightweight, corrosion-resistant operation and fast, precise valve control.
Two-way configuration allows simple on/off operation, ideal for straightforward fluid control in automated systems.
Angled seat design ensures smooth flow, reduces pressure loss, and minimizes turbulence during fluid discharge.
Flange connection allows secure, stable installation and easy integration into sanitary piping systems, supporting CIP and SIP cleaning procedures
Application
Bio pharmaceutical industry, drink filling Machinery, chemical industry, beverage, dairy, gas industry and so on.
Specific usage areas include: as switches in automatic control systems, Industrial Compressors, Steam Applications, Printers & Paint Dispensers, Water Treatment Machines, bottling & Dispensing Machines, Washing & Laundry Machines and more.
