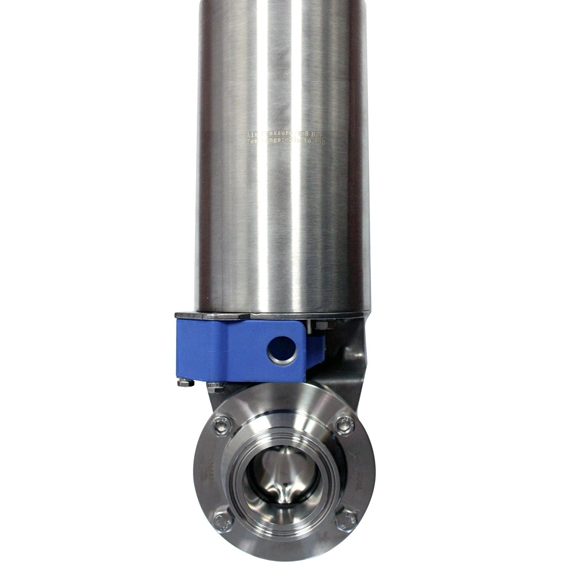

Stainless Steel Vertical Regulating Flow Pneumatic Butterfly Valve

Stainless Steel Vertical Regulating Flow Pneumatic Butterfly Valve


Availability:

Quantity:



Inquire Add to Basket

Pneumatic butterfly valve is consist of manual butterfly valve and a pneumatic actuator . The valve is consist of four parts: handle, butterfly disc, sealing ring and valve flange.
The pneumatic butterfly valves are mechanical polished as standard, with a smooth surface to ensure cleanliness and no areas to create potential contamination. Quick-operation makes the valve open and maintenance safe and easy, reducing process downtime.

Model:
DIN JN-BV 1004
Brand:
JONENG
Code:
8481804090

Adjustable buttefly valve SS Butterfly regulating valve Wafer Flow control valve Compatible BFY valve Vibrating butterfly valve SMS Butterfly flap valve

Product Description

Working Principles

Feature and Specification

Features

Application

Stainless Steel Vertical Regulating Flow Pneumatic Butterfly Valve

The pneumatic butterfly valve is controlled by compressed air through an aluminum piston or stainless steel piston . The piston controls the disc to work at 90 degree to open or close the valve. Pneumatic actuators can be disassembled and serviced. The pneumatic actuator has large torque and is easy to install and operate.

Working Principles

未标题-1

The pneumatic actuator with a single spring return design or double air acting design. The compressed air pushes the core piston in the pneumatic actuator to compress downward to drive the rotary head so that the rotary head rotate 90 degree, and the square core is connected with the pneumatic actuator and valve disc to drive the valve to be open and close. The valve is opened or closed according to the flow of the control medium in the pipeline

Stainless Steel Butterfly Valve Specification Chart

未标题-1

Working Pressure	10 Bar (Max. Pressure is 16bar for but welded connection in small sizes
Working temperature	-10ºC TO + 120ºC
Size	1/2”-12”, DN15-DN300
Grade	AISI304 and AISI316L
FDA approved gaskets in silicone, EPDM, viton, PTFE
Connection	Clamp, Weld, Thread,male threaded; female threaded; flange end;union connection
Surface	Sanitary inside polish (Ra ≤ 0.8 μm)
Surface	Sanitary outside polish (Ra ≤1.6 μm)
Standard	ISO, 3A, SMS, RJT, DIN and so on
Butterfly valve disc and body is made from forging
Manual or pneumatic actuated or electric actuated are chosen as per the different applications.
Required compressed air	4-8Bar
Connection of compressed air	G 1/8’’
Limit switch	6-36V, DC 2nos of NPN or PNP( to be chose

Valve parts

未标题-1

Body	Stainless steel AISI316L or AISI 304 (1.4301/1.4404)
Disc	AISI304 or AISI316L
Pull-position handle	Stainless Steel Material, Round type or square type
Multi-position Gripper Handle	ABS gripper handle, SS gripper handle, 2/3/4/12 positions to adjustment, Universal type
Gasket	EPDM, VITON(FPM), Silicone, different color is available
Bushing	EPDM or PTFE, other material request
Nut	Stainless Steel 304 or 316 Material or other request
Bolt	Stainless Steel 304 or 316 Material or other request

Features

未标题-1

● Seats and seals comply with FDA approved

● Special gasket design, fluid free of residue

● Better acid proof, alkali proof

● Small torque, light weight,simple structure

● 360 degree installation

● 100% tested and inspected

● Cost-efficient leakage protection

● More than thirty thousand safety test

● Low pressure losses

● Thorough cleaning,Hygienic exterior design

● Minimize turbulence and maximize fluid flow trough

Application

Sanitary Butterfly valve widely use in low and medium viscosity liquid for food and beverage, beer, dairy, pharmaceutical etc with high precision and purity requirements industries.
