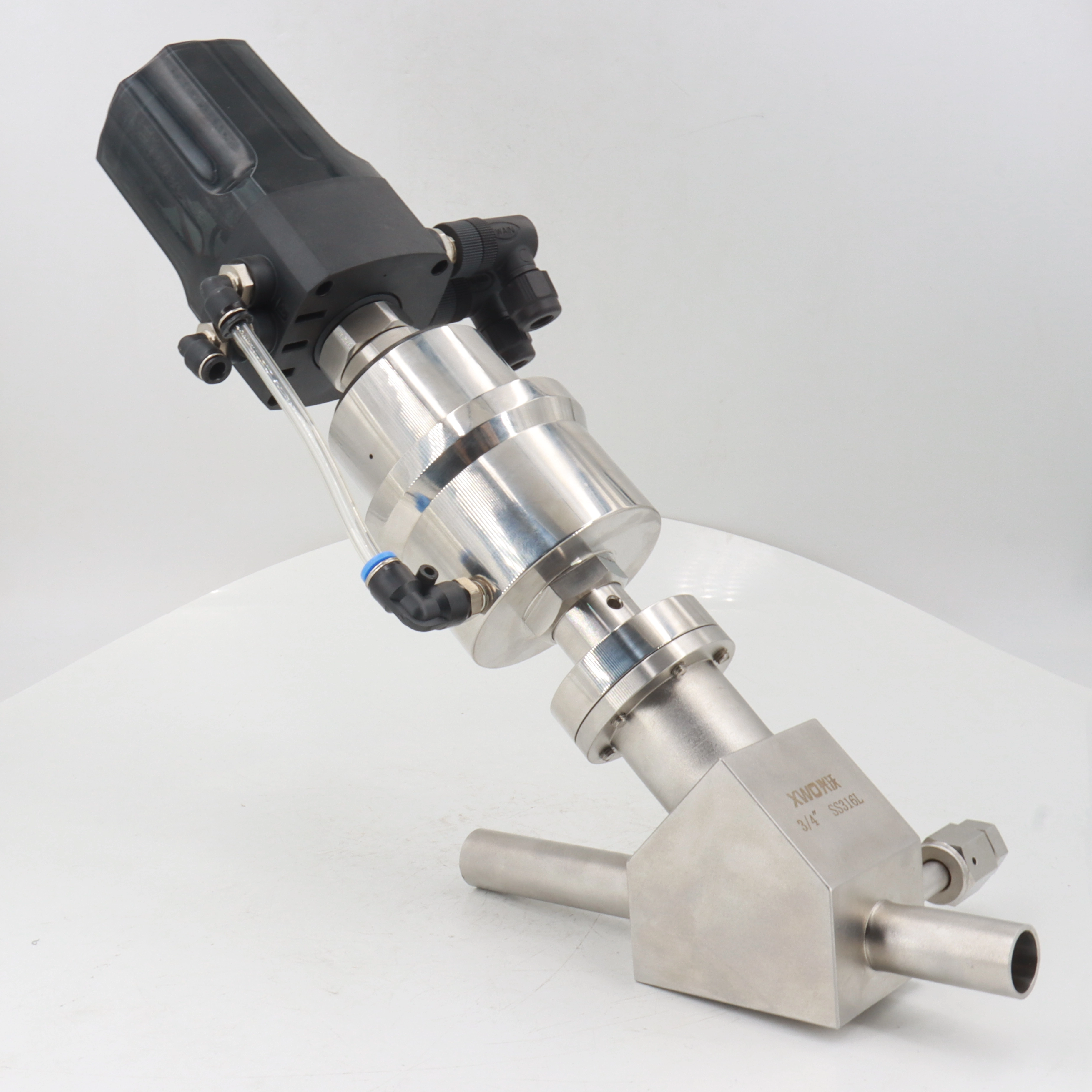

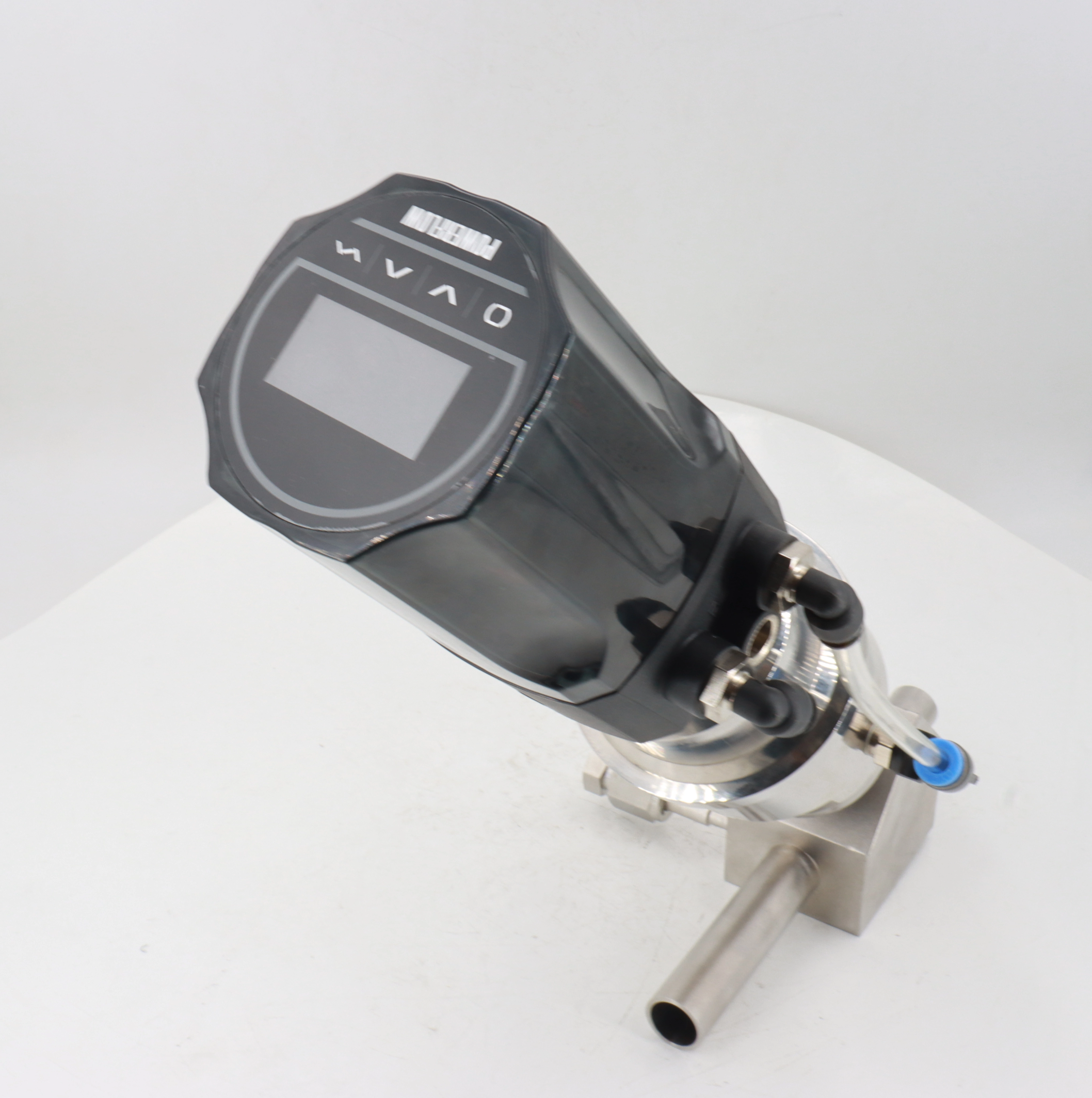

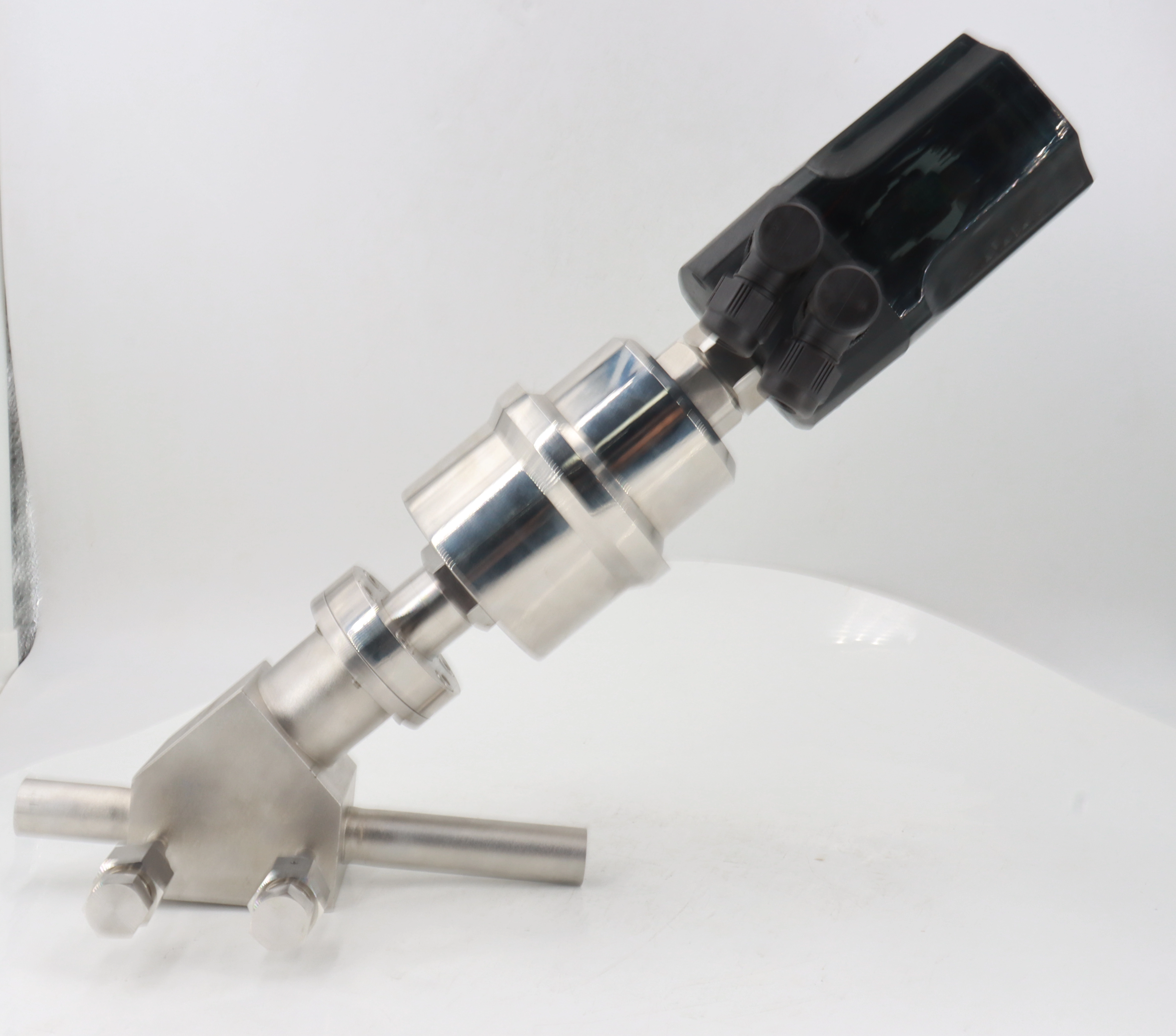

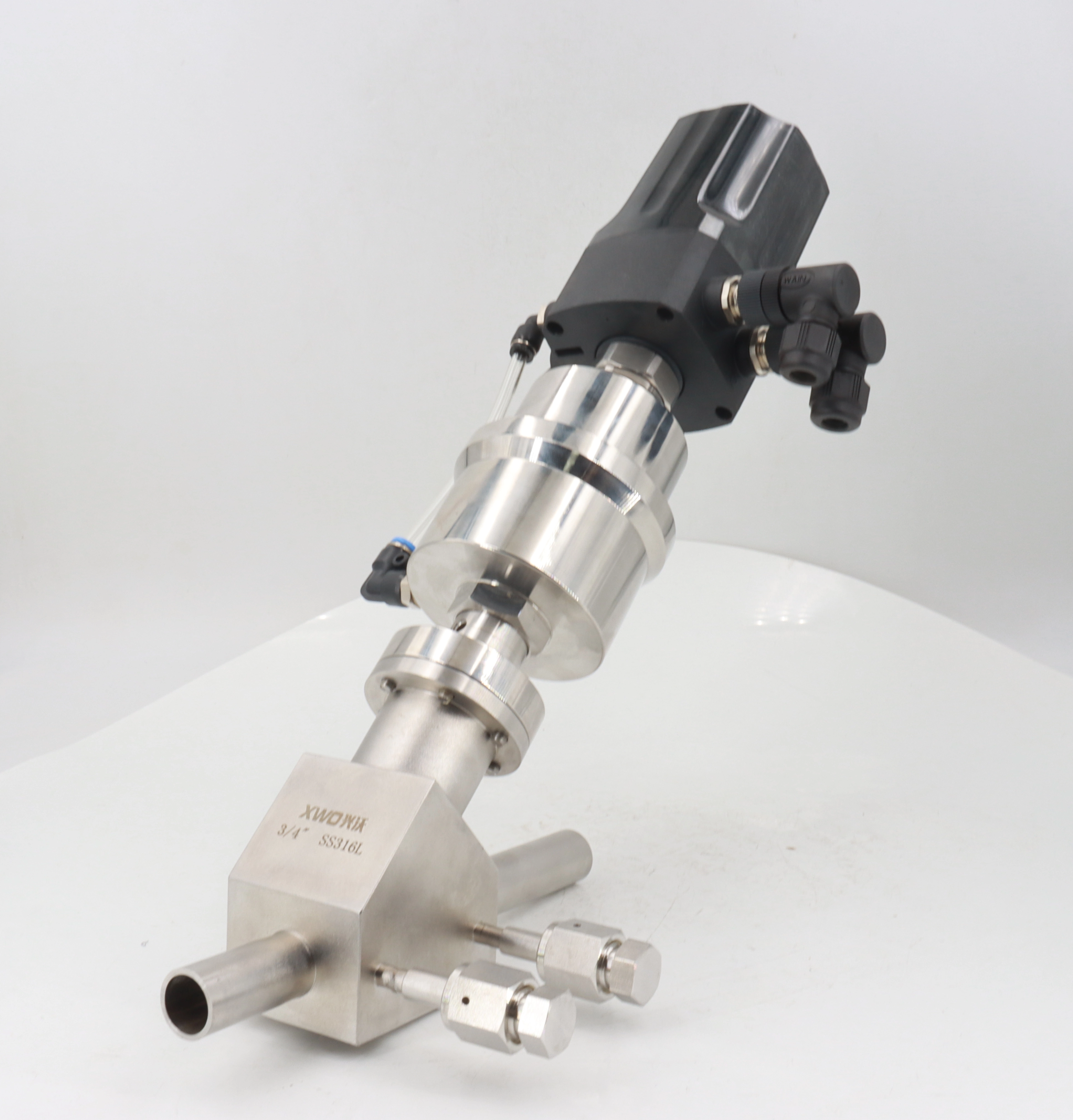

Stainless steel Y-type intelligent regulating pneumatic angle seat valve
The Stainless Steel Y-type Intelligent Regulating Pneumatic Angle Seat Valve is an automated valve designed for precise flow control. Its Y-type angle seat design ensures smooth, low-resistance flow, while the pneumatic actuator enables fast, reliable operation in sanitary and industrial fluid systems
Working Principles
The Stainless Steel Y-type Intelligent Regulating Pneumatic Angle Seat Valve operates using a pneumatic actuator to control a movable plug seated at an angled valve port. When air pressure is applied, the actuator lifts or lowers the plug, allowing precise modulation of fluid flow. The angle seat design minimizes flow resistance and ensures smooth passage, while the intelligent positioner continuously monitors the plug’s position and adjusts the actuator based on input control signals. This allows accurate, automated flow regulation, rapid response, and leak-free shutoff. Its stainless steel construction and sanitary design make it suitable for food, beverage, pharmaceutical, and high-purity industrial applications
Stainless Steel Angle Seat Valve Specification Chart
Max Working Pressure | 1.6MPa |
Medium Temperature | -10℃~+180℃ |
Ambient Temperature | -10℃~+55℃ |
Body Materials | CF8M(SS316),CF8(SS304) |
Sealing Material | PTFE |
Operation | Normally Closed, Normally Open, Double-acting or Manually |
Connection End | Female, Weld,Clamp, Flange or on request |
Size Range | DN10-DN100 |
Surface treatment | Ra 16 ~ 32µin (0.4 ~ 0.8µm) |
Standards | DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE. |
Control type | Single acting, double acting |
Features
Y-Type Angle Seat Design – Minimizes flow resistance, ensures smooth passage, and reduces wear, enhancing valve longevity and process efficiency.
Pneumatic Actuation – Enables fast, automated operation with precise control over fluid flow.
Intelligent Positioner – Continuously monitors plug position and adjusts the actuator for accurate, stable flow regulation.
Stainless Steel Construction – Corrosion-resistant, durable, and suitable for hygienic or high-purity applications.
Leak-Free Sealing – Precision-engineered plug and seat ensure reliable shutoff and maintain sanitary integrity.
Versatile Application – Ideal for food, beverage, pharmaceutical, and industrial systems requiring automated and hygienic flow control.
Application
The Stainless Steel Y-type Intelligent Regulating Pneumatic Angle Seat Valve is used in industries requiring precise and hygienic flow control. Typical applications include beverage production for syrup and water mixing, dairy processing for pasteurization lines, pharmaceutical manufacturing for sterile fluid handling, and chemical systems requiring corrosion-resistant, automated regulation.
Working Principles
The Stainless Steel Y-type Intelligent Regulating Pneumatic Angle Seat Valve operates using a pneumatic actuator to control a movable plug seated at an angled valve port. When air pressure is applied, the actuator lifts or lowers the plug, allowing precise modulation of fluid flow. The angle seat design minimizes flow resistance and ensures smooth passage, while the intelligent positioner continuously monitors the plug’s position and adjusts the actuator based on input control signals. This allows accurate, automated flow regulation, rapid response, and leak-free shutoff. Its stainless steel construction and sanitary design make it suitable for food, beverage, pharmaceutical, and high-purity industrial applications
Feature and Specification
Stainless Steel Angle Seat Valve Specification Chart
Max Working Pressure | 1.6MPa |
Medium Temperature | -10℃~+180℃ |
Ambient Temperature | -10℃~+55℃ |
Body Materials | CF8M(SS316),CF8(SS304) |
Sealing Material | PTFE |
Operation | Normally Closed, Normally Open, Double-acting or Manually |
Connection End | Female, Weld,Clamp, Flange or on request |
Size Range | DN10-DN100 |
Surface treatment | Ra 16 ~ 32µin (0.4 ~ 0.8µm) |
Standards | DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE. |
Control type | Single acting, double acting |
Features
Y-Type Angle Seat Design – Minimizes flow resistance, ensures smooth passage, and reduces wear, enhancing valve longevity and process efficiency.
Pneumatic Actuation – Enables fast, automated operation with precise control over fluid flow.
Intelligent Positioner – Continuously monitors plug position and adjusts the actuator for accurate, stable flow regulation.
Stainless Steel Construction – Corrosion-resistant, durable, and suitable for hygienic or high-purity applications.
Leak-Free Sealing – Precision-engineered plug and seat ensure reliable shutoff and maintain sanitary integrity.
Versatile Application – Ideal for food, beverage, pharmaceutical, and industrial systems requiring automated and hygienic flow control.
Application
The Stainless Steel Y-type Intelligent Regulating Pneumatic Angle Seat Valve is used in industries requiring precise and hygienic flow control. Typical applications include beverage production for syrup and water mixing, dairy processing for pasteurization lines, pharmaceutical manufacturing for sterile fluid handling, and chemical systems requiring corrosion-resistant, automated regulation.
