JONENG

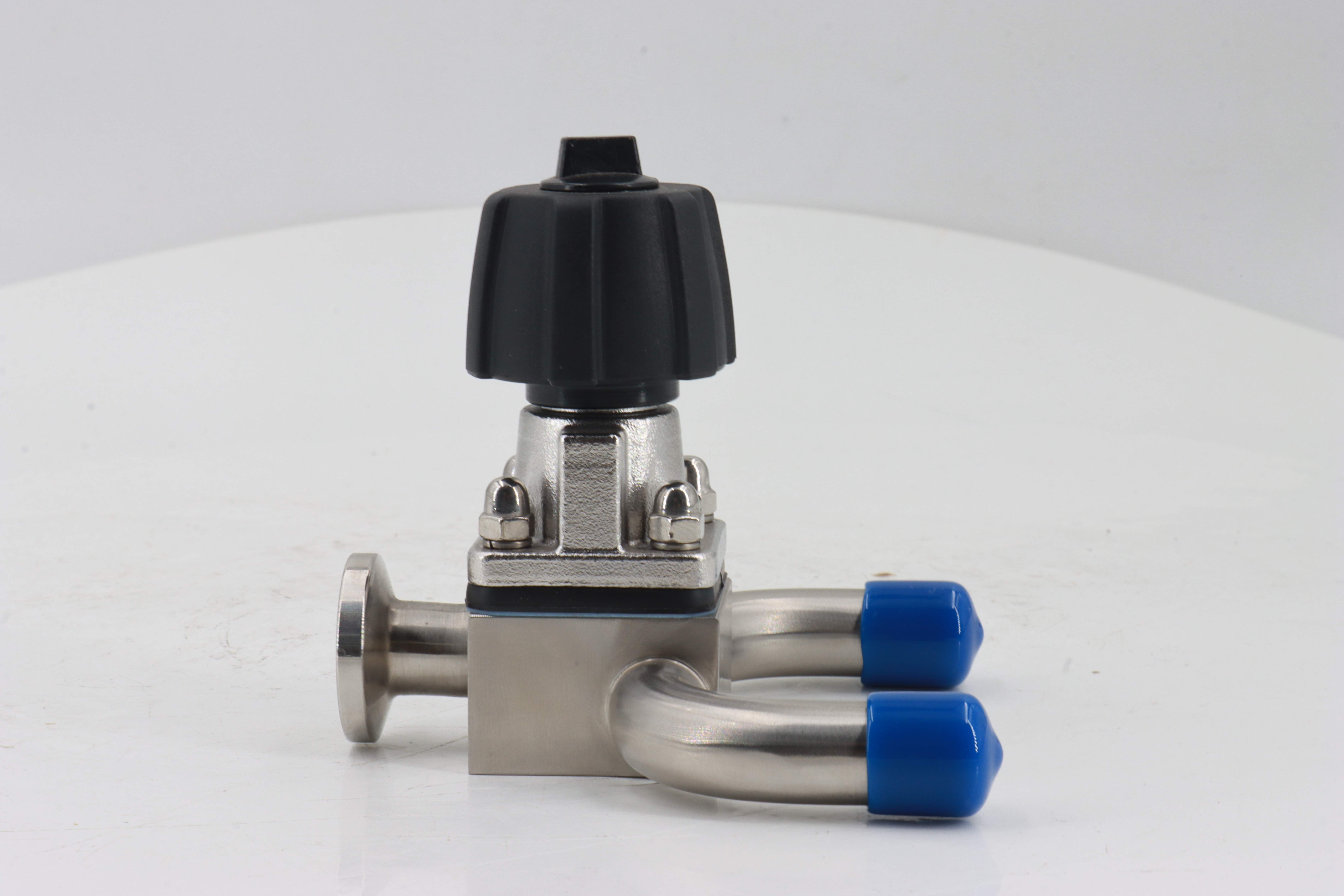

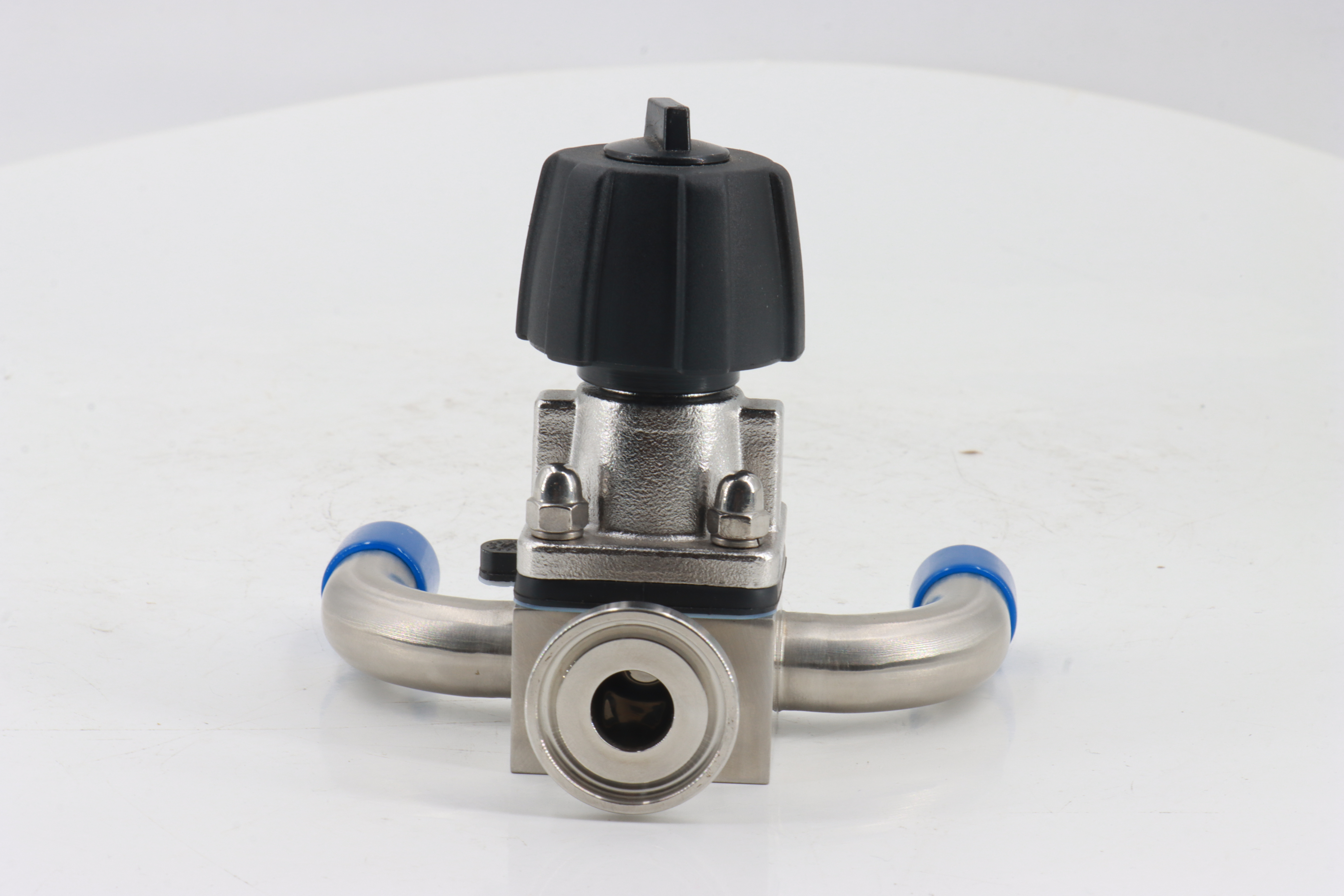

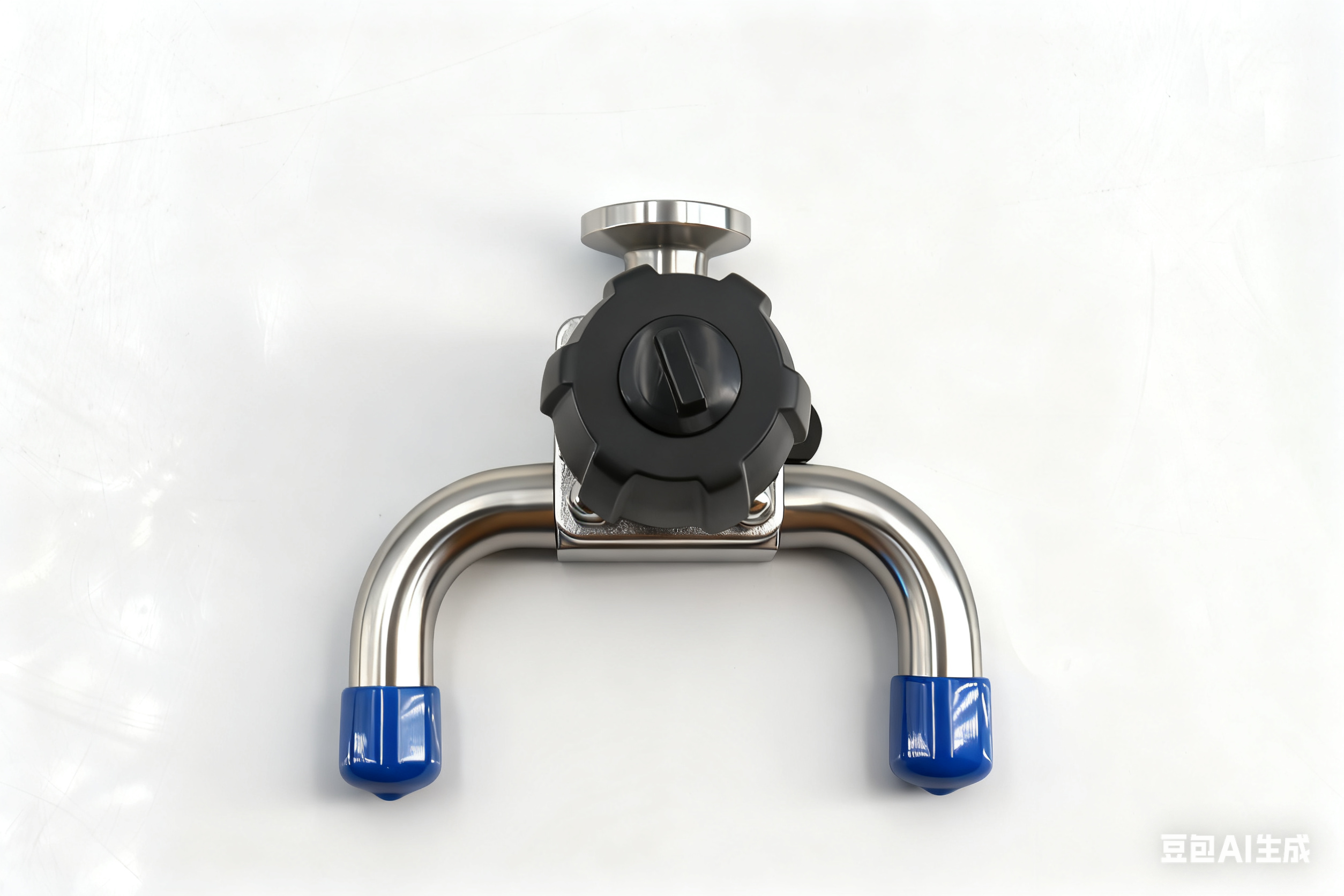

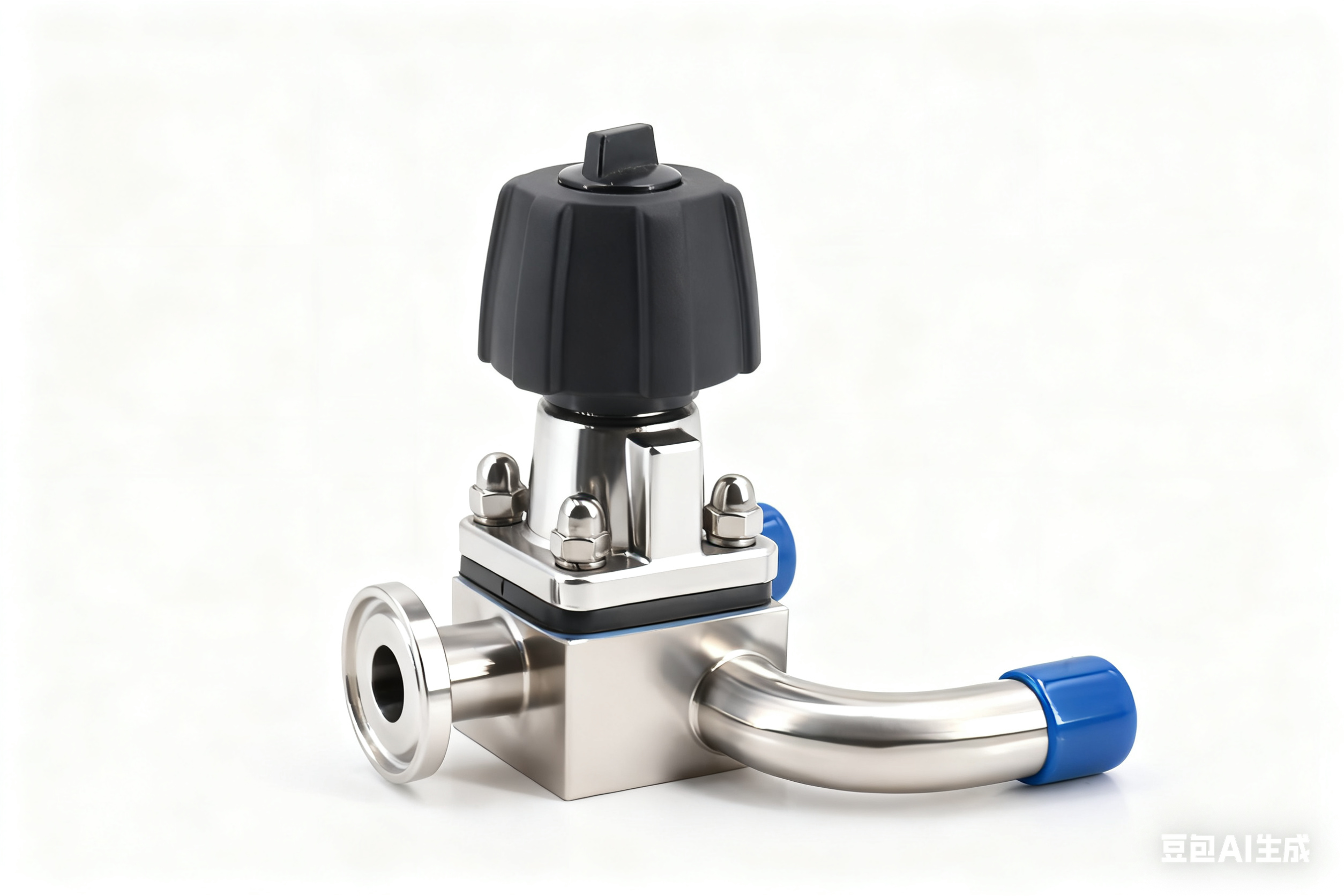

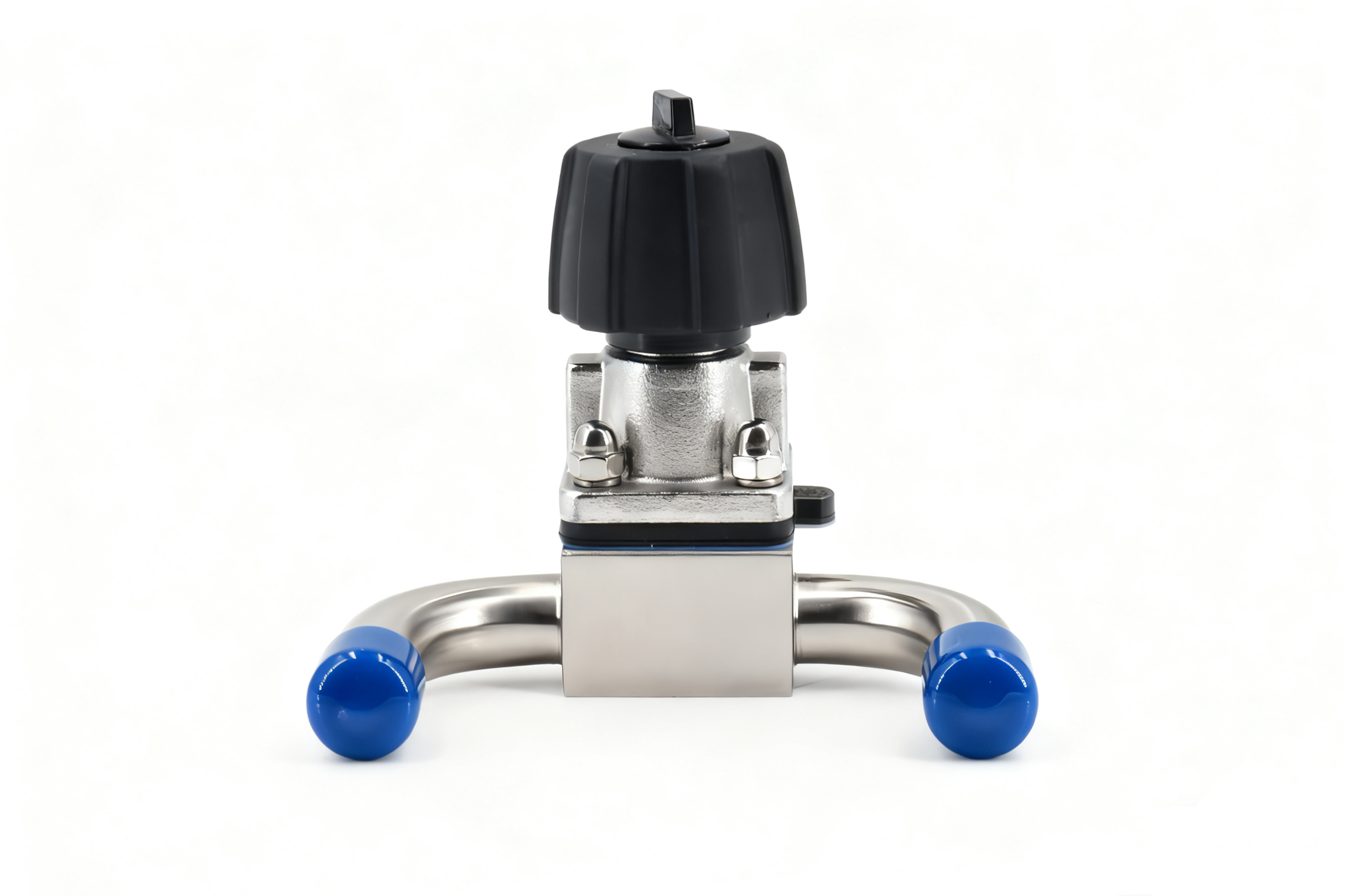

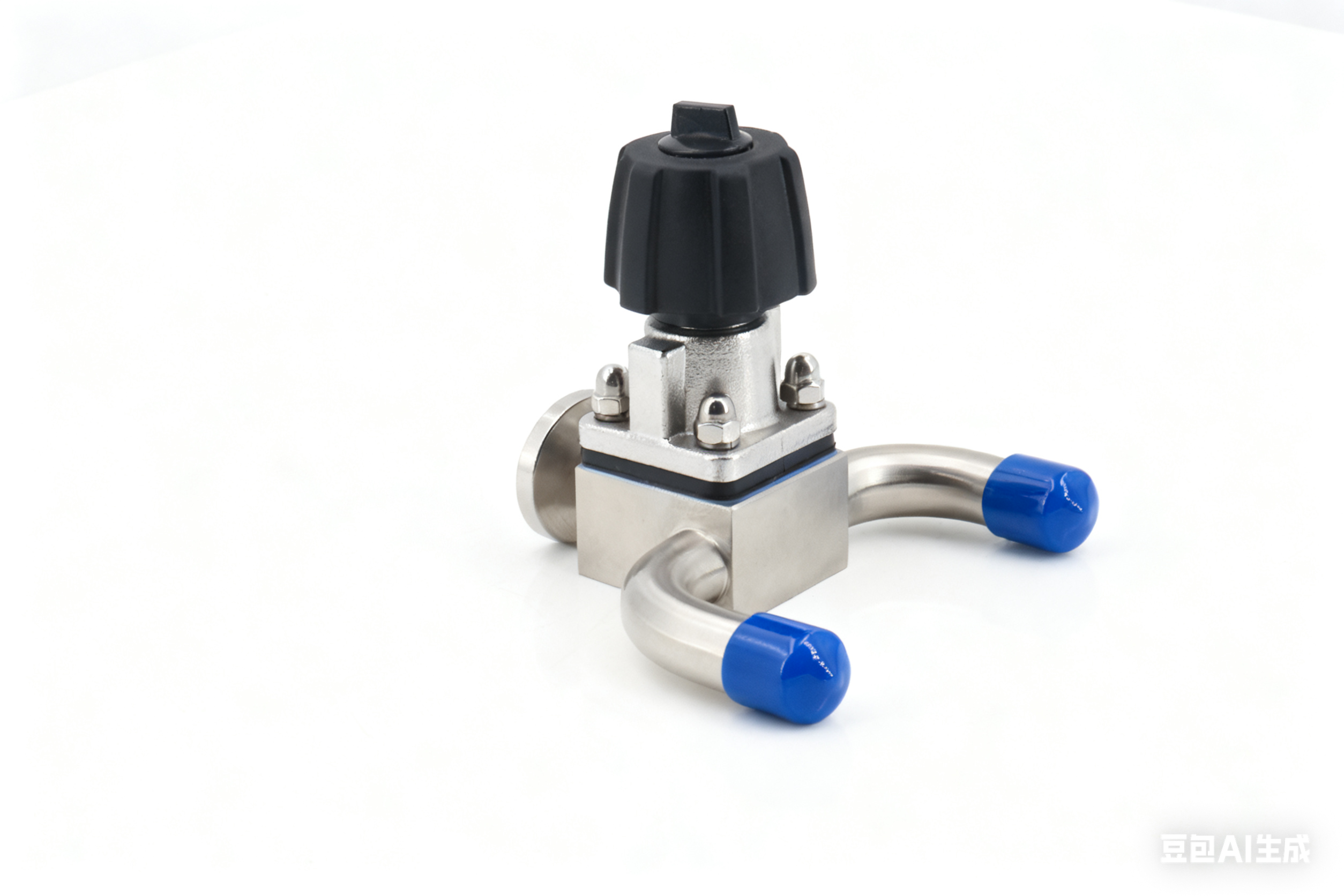

Stainless steel aseptic manual U-shaped diaphragm valve
The Stainless Steel Aseptic Manual U-Shaped Diaphragm Valve is a sanitary valve designed for manual flow control. Its U-shaped diaphragm ensures full drainage and leak-free operation, making it ideal for aseptic processes in pharmaceutical, biotech, and high-purity fluid systems
Working Principles
The Stainless Steel Aseptic Manual U-Shaped Diaphragm Valve operates by manually turning a handwheel or lever to press the U-shaped diaphragm onto the valve seat, controlling the flow of liquids or gases. The U-shaped design ensures complete drainage of the valve body, preventing fluid retention and contamination. When the diaphragm is lifted, the flow path opens, allowing media to pass through. The diaphragm forms a sterile barrier between the fluid and the mechanical components, ensuring aseptic operation. This design provides reliable, leak-free shutoff and smooth manual regulation, making it ideal for pharmaceutical, biotech, and other high-purity applications where hygiene is critical
Stainless Steel Diaphragm Valve Specification Chart
Valve Type | Manual Welded U-Type Diaphragm Valve |
Connection Type | Welded Ends |
Nominal Sizes | DN10-DN100/1/2-4” |
Working Pressure | 0-10 bar |
Operating Temperature | -10°C to to 150°C |
Flow Pattern | Straight-through (U-Type) |
Body Surface Finish | Ra ≤ 0.6 μm (inner), Ra ≤ 1.2 μm (outer) |
Cleaning Compatibility | CIP/SIP |
Diaphragm Materials | EPDM, EPDM+PTFE, FPM |
Body Materials | AISI 316L/AISI 304 |
| Handwheel Material | Stainless Steel / Plastic / Aluminum Alloy |
| Mounting Orientation | Horizontal or Vertical |
Features
U-Shaped Diaphragm Design – Ensures complete drainage, preventing fluid retention and contamination, ideal for aseptic and high-purity applications.
Manual Operation – Handwheel or lever allows precise, reliable control of flow without requiring external power.
Aseptic Construction – Smooth, sanitary stainless steel surfaces minimize contamination risk and comply with pharmaceutical and biotech hygiene standards.
Leak-Free Seal – The diaphragm provides a tight seal against the valve seat, ensuring safe, leak-proof operation.
Durable Stainless Steel Body – Resistant to corrosion and wear, suitable for demanding sanitary environments and repeated cleaning processes.
Easy Maintenance – Simple design allows quick disassembly, cleaning, and replacement of diaphragms, supporting efficient operation and hygiene
Application
The Stainless Steel Aseptic Manual U-Shaped Diaphragm Valve is widely used in industries requiring sterile and precise flow control. Typical applications include pharmaceutical manufacturing, biotechnology, aseptic liquid processing, high-purity water systems, and food and beverage production, where leak-free, hygienic operation and complete drainage are essential
