Stainless Steel Sanitary Butterfly Valve is consist of four parts: handle, butterfly disc, sealing ring and valve flange. The butterfly valve can be controlled manually or with pneumatic actuator or electrical actuators.
Not only simple in structure, low in material consumption, small in installation size, small in driving torque, easy and fast in operation, but also has good flow regulation function and closing and sealing characteristics at the same time.

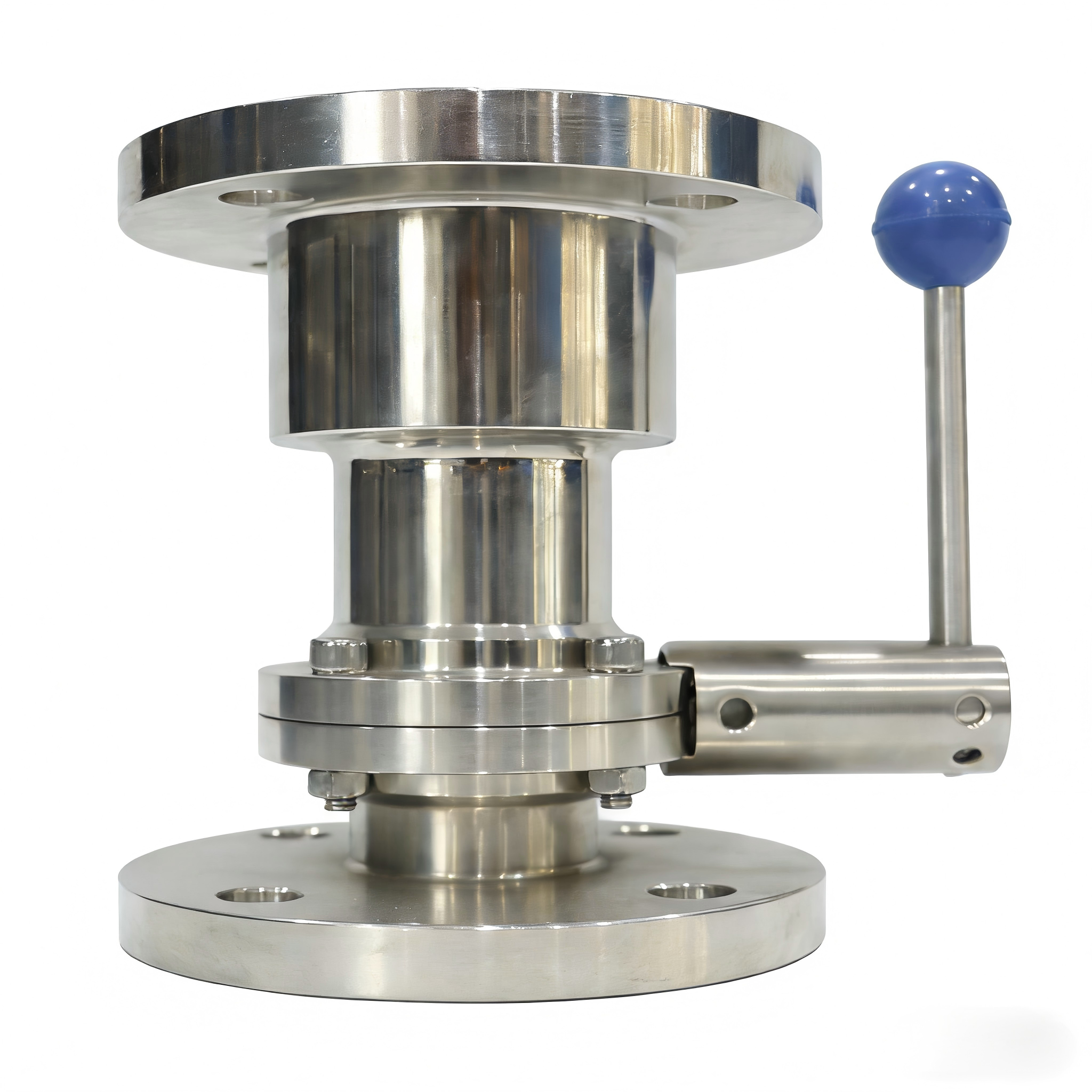

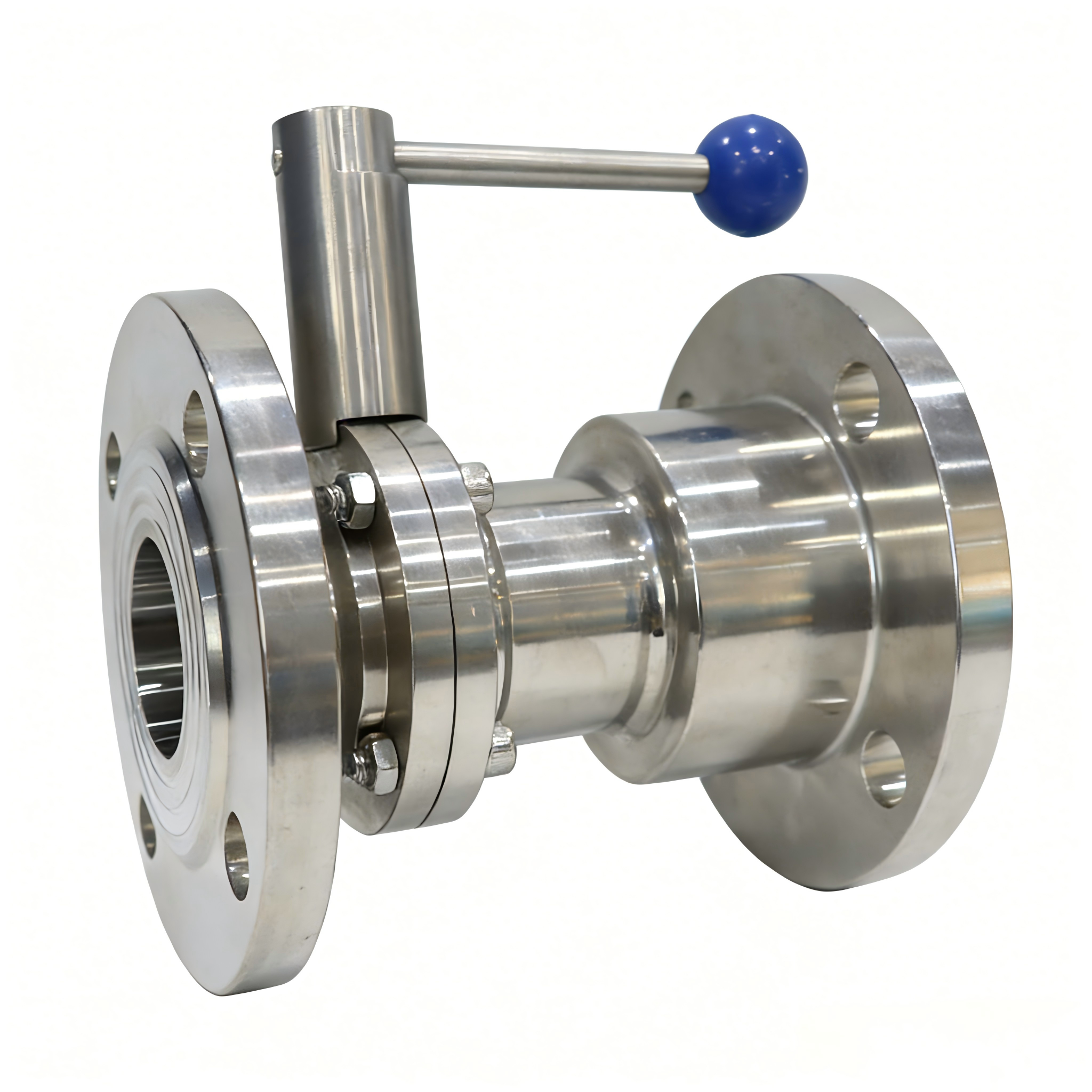

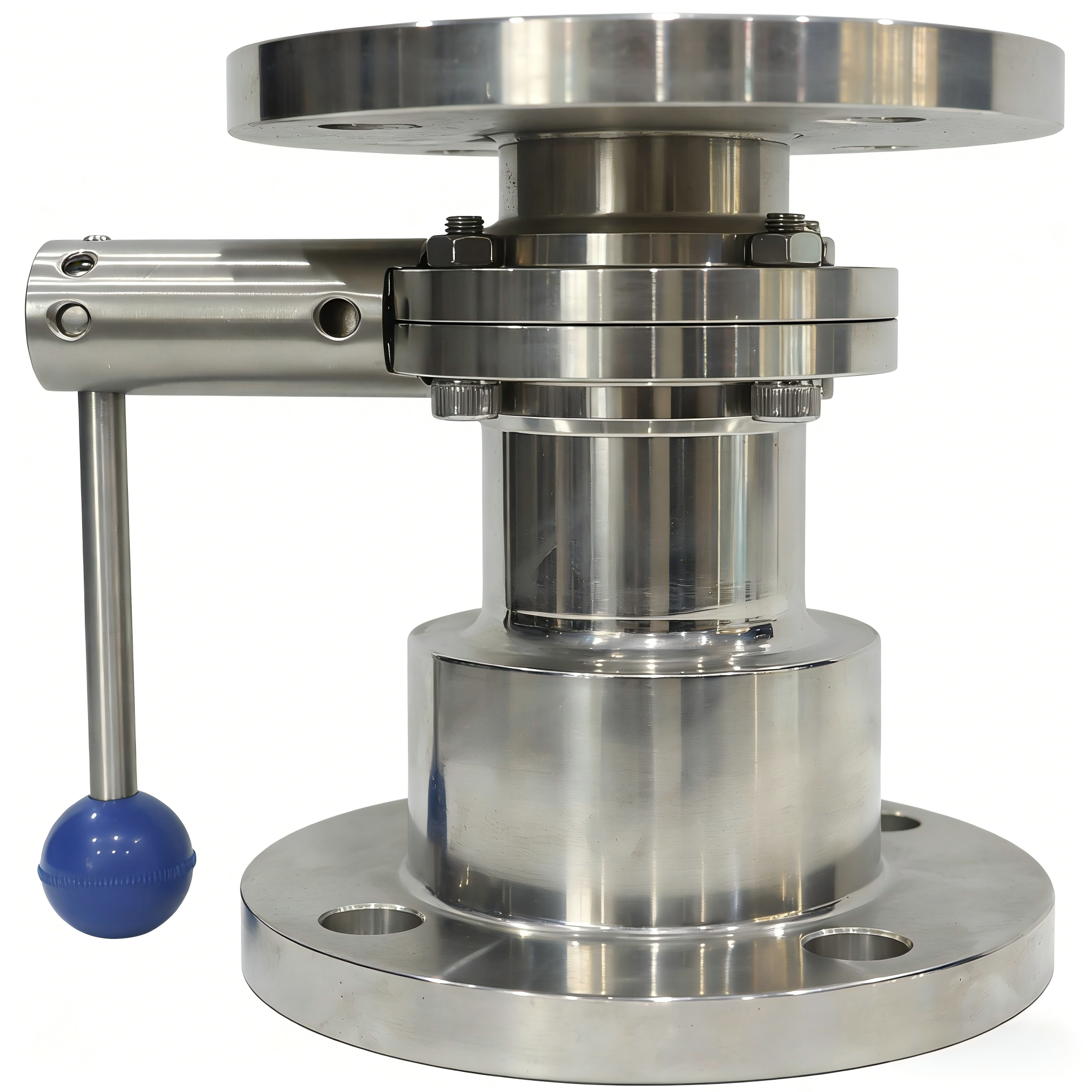

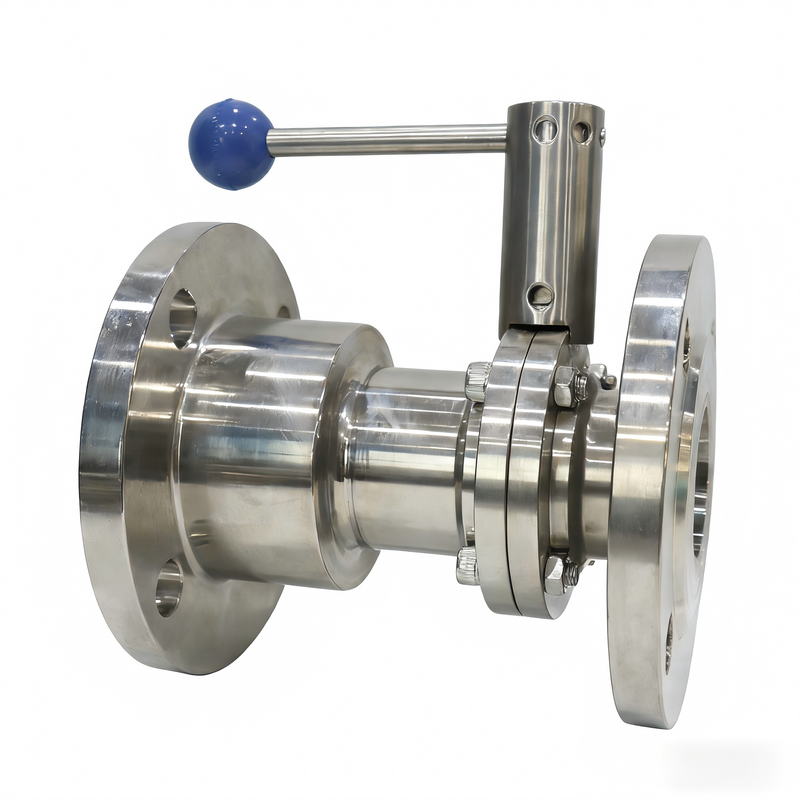

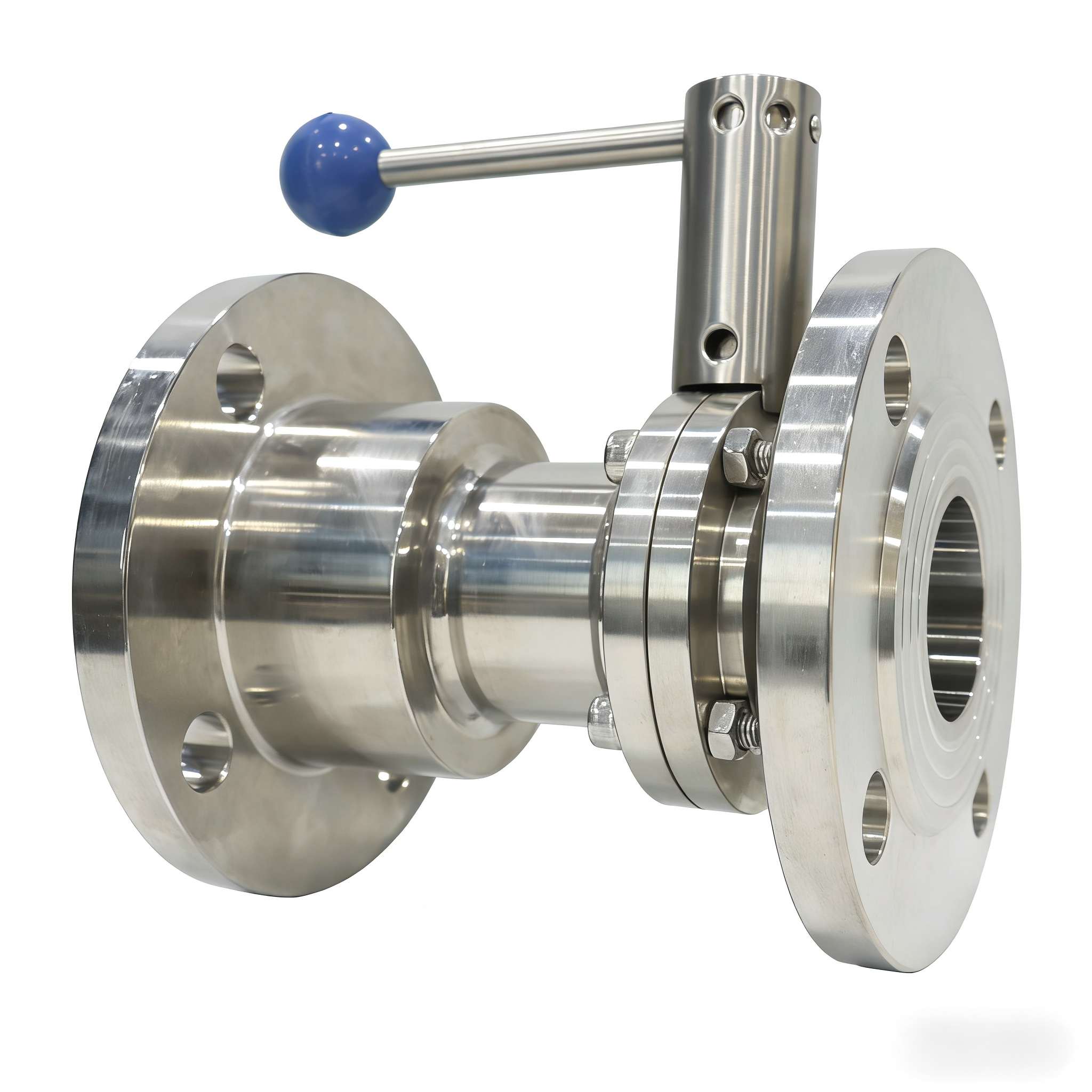

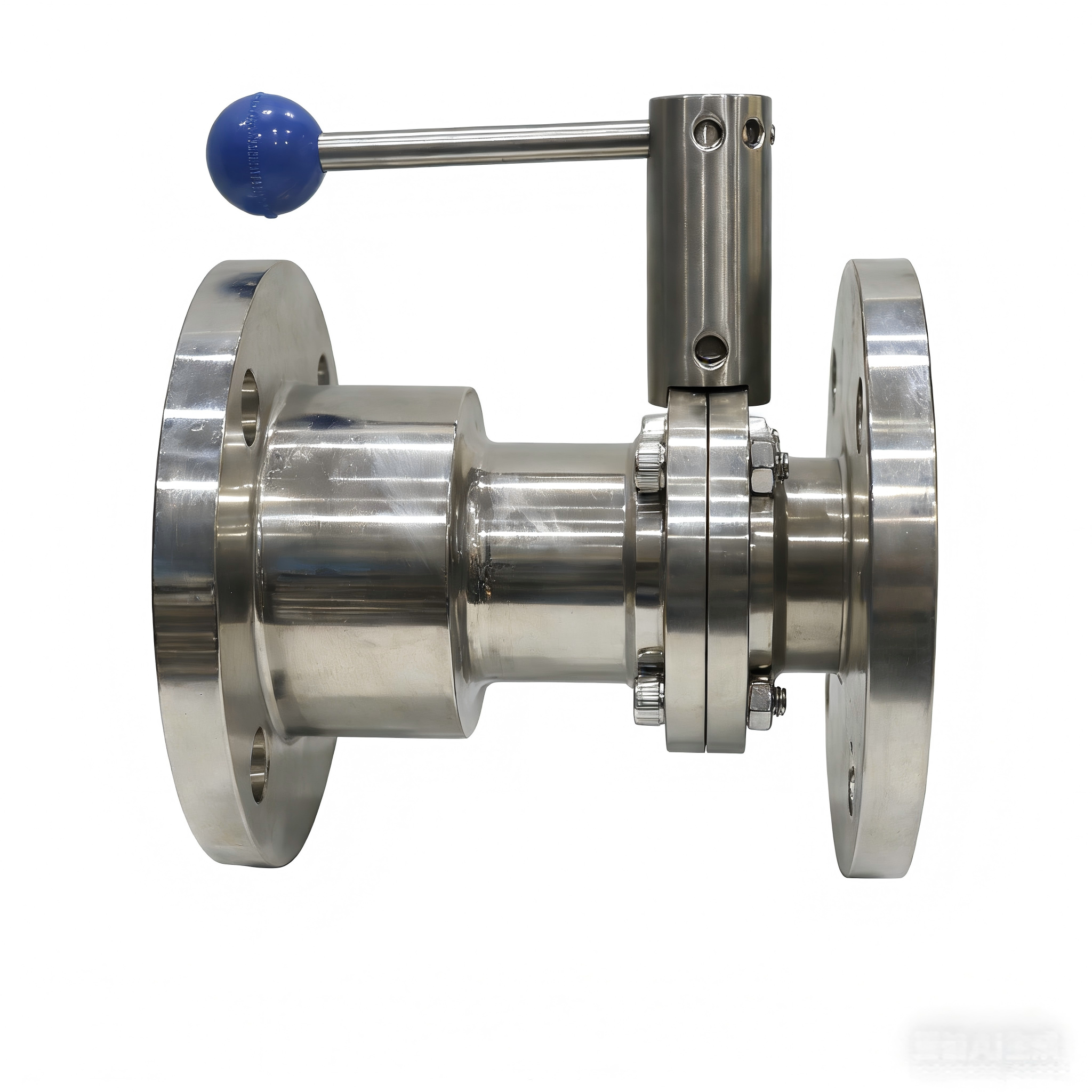

The stainless steel flange type manual DN100 milk water butterfly valve works by rotating a circular disc mounted on a shaft inside the valve body. When the hand lever or handwheel is turned, the disc rotates 90 degrees. In the open position, the disc aligns with the flow direction, allowing milk or water to pass smoothly with low pressure loss. When closed, the disc turns perpendicular to the flow and presses evenly against the valve seat, forming a tight seal to prevent leakage. The flanged connection ensures stable installation and good alignment. Stainless steel construction provides hygiene, corrosion resistance, and suitability for food, dairy, and water processing systems.
Working Pressure | 10 Bar (Max. Pressure is 16bar for but welded connection in small sizes |
Working temperature | -10ºC TO + 120ºC |
Size | 1/2”-12”, DN15-DN300 |
Grade | AISI304 and AISI316L |
FDA approved gaskets in silicone, EPDM, viton, PTFE | |
Connection | Clamp, Weld, Thread,male threaded; female threaded; flange end;union connection |
Surface | Sanitary inside polish (Ra ≤ 0.8 μm) |
Sanitary outside polish (Ra ≤1.6 μm) | |
Standard | ISO, 3A, SMS, RJT, DIN and so on |
Butterfly valve disc and body is made from forging | |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. | |
Body | Stainless steel AISI316L or AISI 304 (1.4301/1.4404) |
Disc | AISI304 or AISI316L |
Pull-position handle | Stainless Steel Material, Round type or square type |
Multi-position Gripper Handle | ABS gripper handle, SS gripper handle, 2/3/4/12 positions to adjustment, Universal type |
Gasket | EPDM, VITON(FPM), Silicone, different color is available |
Bushing | EPDM or PTFE, other material request |
Nut | Stainless Steel 304 or 316 Material or other request |
Bolt | Stainless Steel 304 or 316 Material or other request |
Made from stainless steel, the valve offers excellent corrosion resistance, hygienic performance, and durability, making it suitable for milk, water, and other food-grade fluid applications.
The flange type connection provides strong mechanical stability, easy alignment, and reliable sealing in DN100 pipeline installations under continuous operating conditions.
Manual operation using a lever or handwheel allows simple, precise flow control without external power, reducing maintenance needs and operating costs.
The smooth internal surface and sanitary design minimize fluid retention, support easy cleaning, and help meet strict hygiene standards in dairy processing systems.
Sanitary Butterfly valve widely use in low and medium viscosity liquid for food and beverage, beer, dairy, pharmaceutical etc with high precision and purity requirements industries.
Working Principles
The stainless steel flange type manual DN100 milk water butterfly valve works by rotating a circular disc mounted on a shaft inside the valve body. When the hand lever or handwheel is turned, the disc rotates 90 degrees. In the open position, the disc aligns with the flow direction, allowing milk or water to pass smoothly with low pressure loss. When closed, the disc turns perpendicular to the flow and presses evenly against the valve seat, forming a tight seal to prevent leakage. The flanged connection ensures stable installation and good alignment. Stainless steel construction provides hygiene, corrosion resistance, and suitability for food, dairy, and water processing systems.
Feature and Specification
Stainless Steel Butterfly Valve Specification Chart
Working Pressure | 10 Bar (Max. Pressure is 16bar for but welded connection in small sizes |
Working temperature | -10ºC TO + 120ºC |
Size | 1/2”-12”, DN15-DN300 |
Grade | AISI304 and AISI316L |
FDA approved gaskets in silicone, EPDM, viton, PTFE | |
Connection | Clamp, Weld, Thread,male threaded; female threaded; flange end;union connection |
Surface | Sanitary inside polish (Ra ≤ 0.8 μm) |
Sanitary outside polish (Ra ≤1.6 μm) | |
Standard | ISO, 3A, SMS, RJT, DIN and so on |
Butterfly valve disc and body is made from forging | |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. | |
Features
Made from stainless steel, the valve offers excellent corrosion resistance, hygienic performance, and durability, making it suitable for milk, water, and other food-grade fluid applications.
The flange type connection provides strong mechanical stability, easy alignment, and reliable sealing in DN100 pipeline installations under continuous operating conditions.
Manual operation using a lever or handwheel allows simple, precise flow control without external power, reducing maintenance needs and operating costs.
The smooth internal surface and sanitary design minimize fluid retention, support easy cleaning, and help meet strict hygiene standards in dairy processing systems.
Application
Sanitary Butterfly valve widely use in low and medium viscosity liquid for food and beverage, beer, dairy, pharmaceutical etc with high precision and purity requirements industries.
