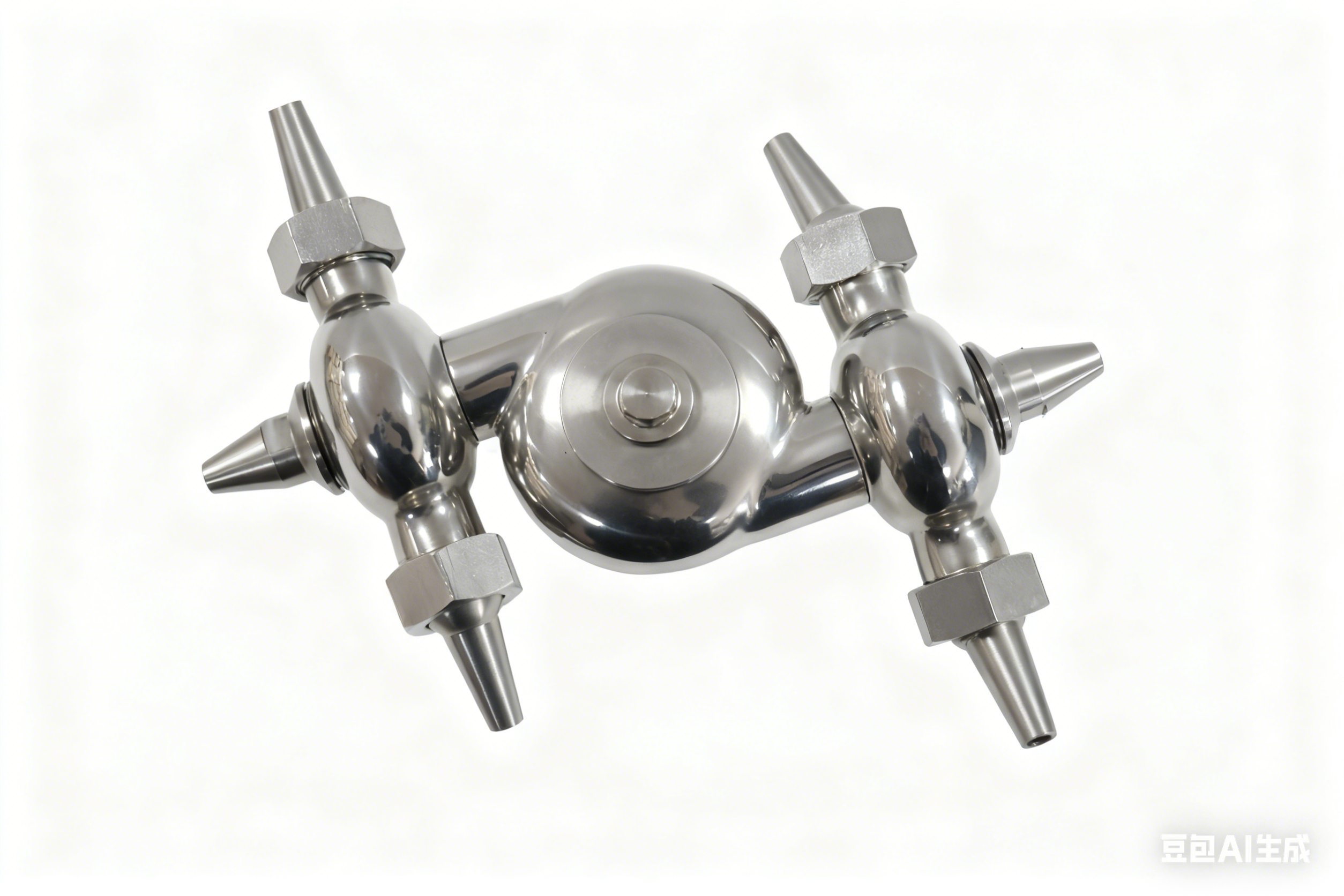

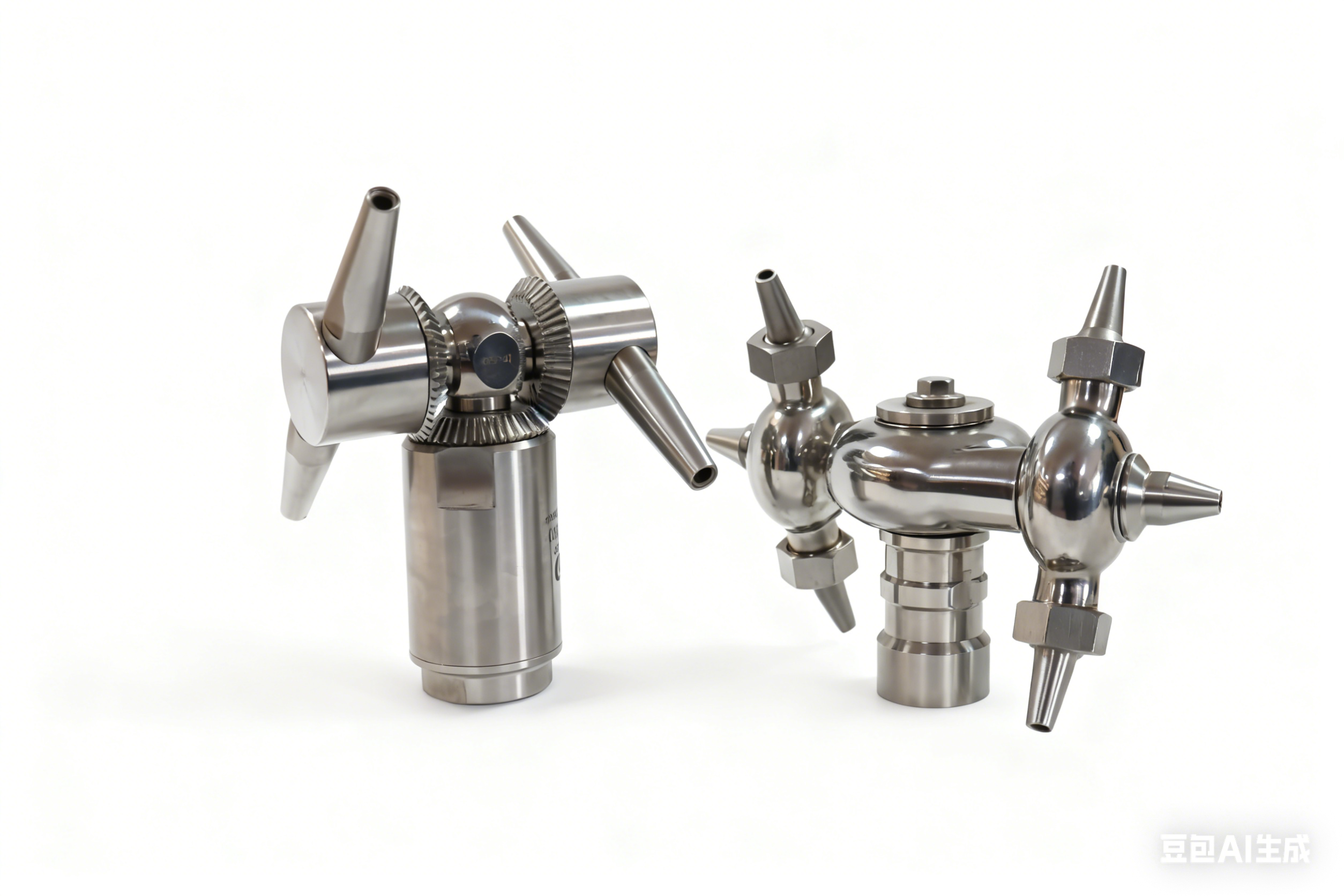

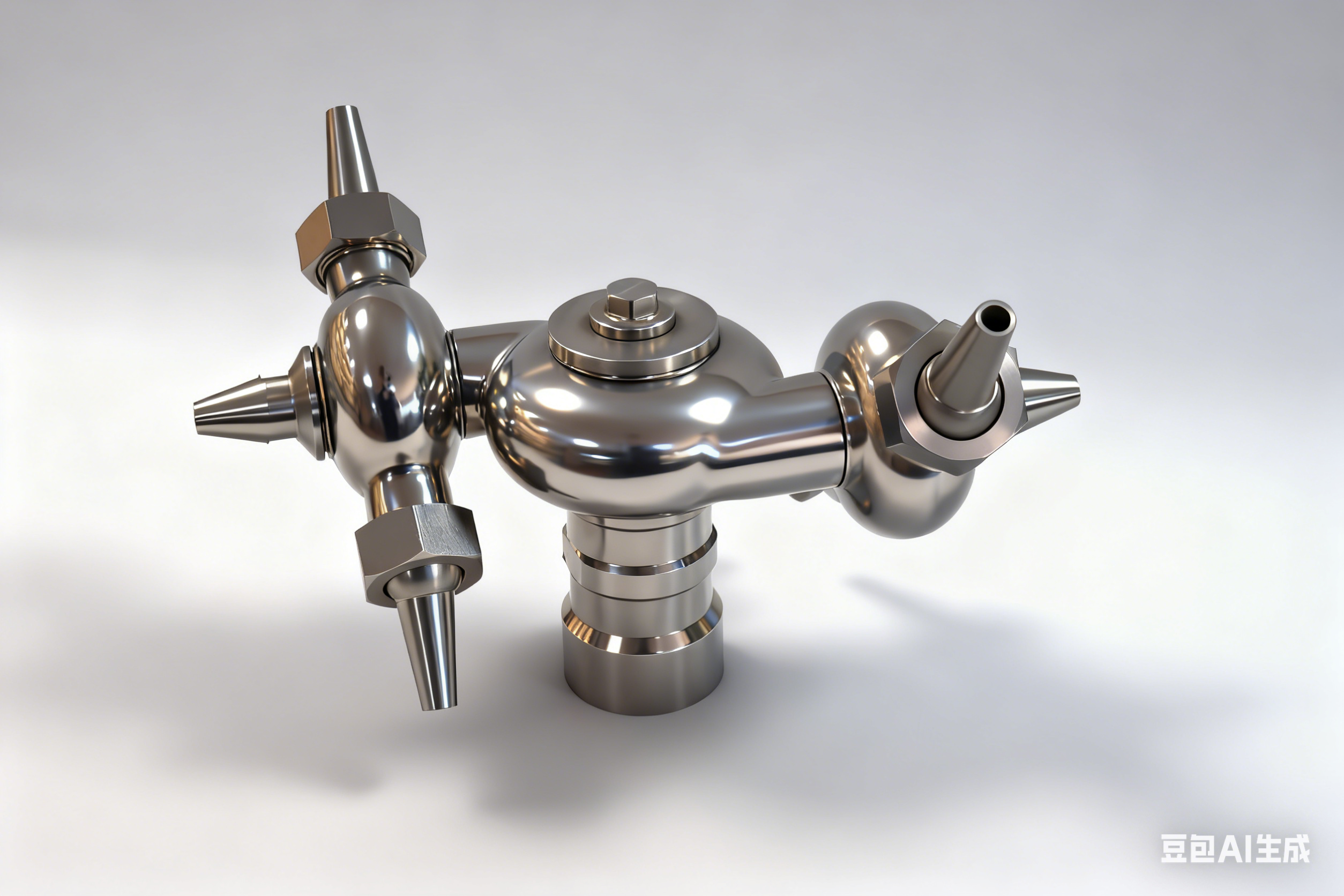

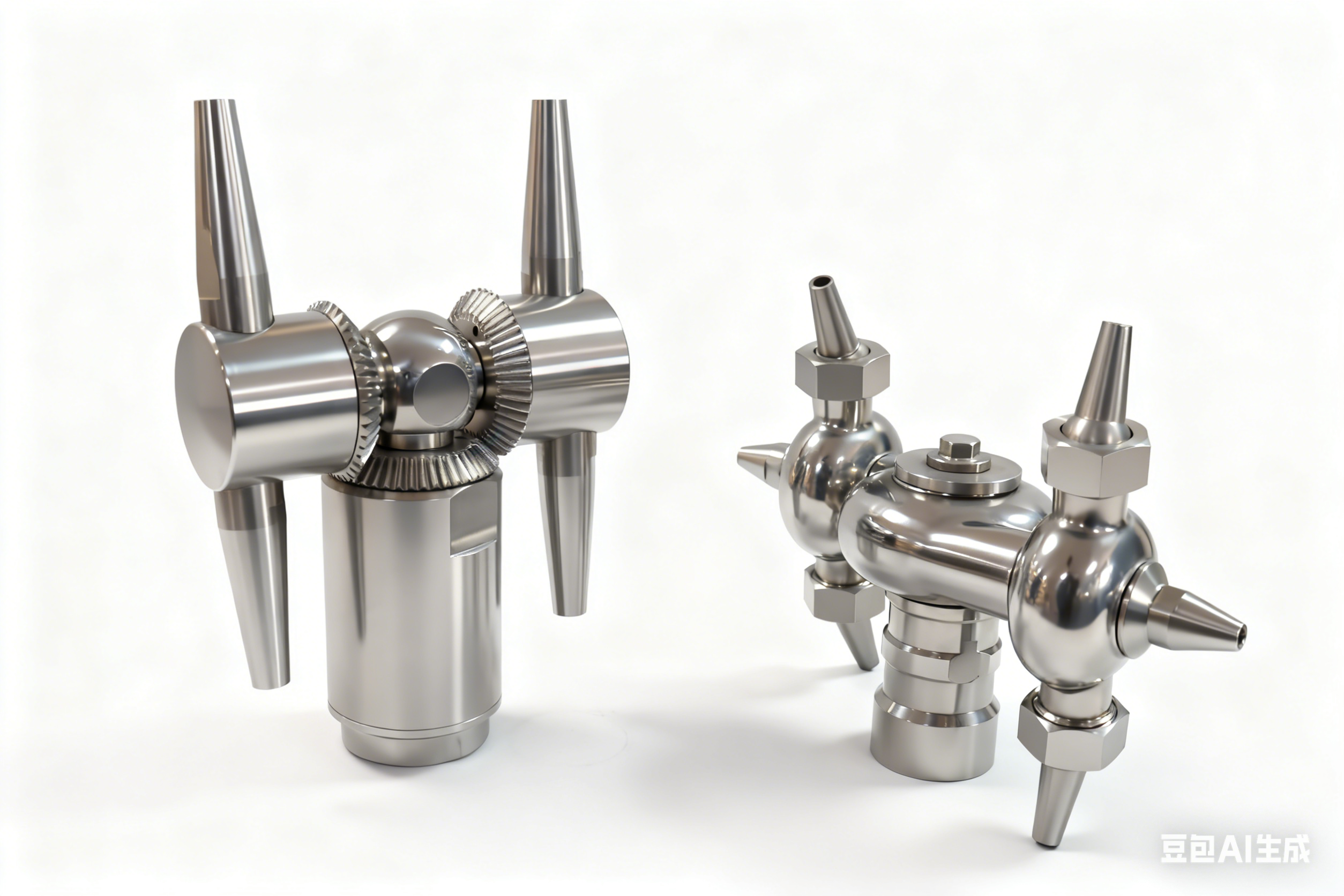

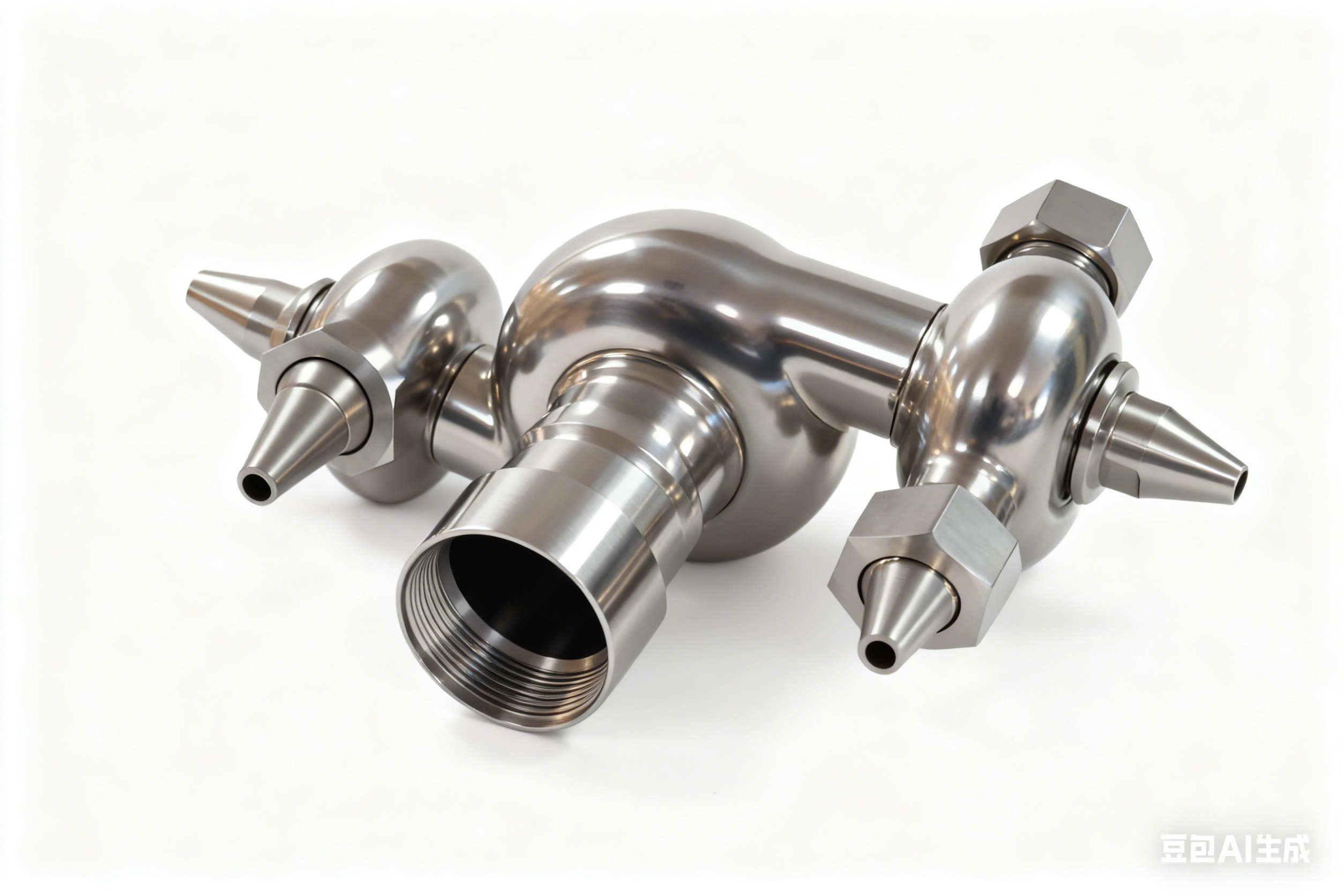

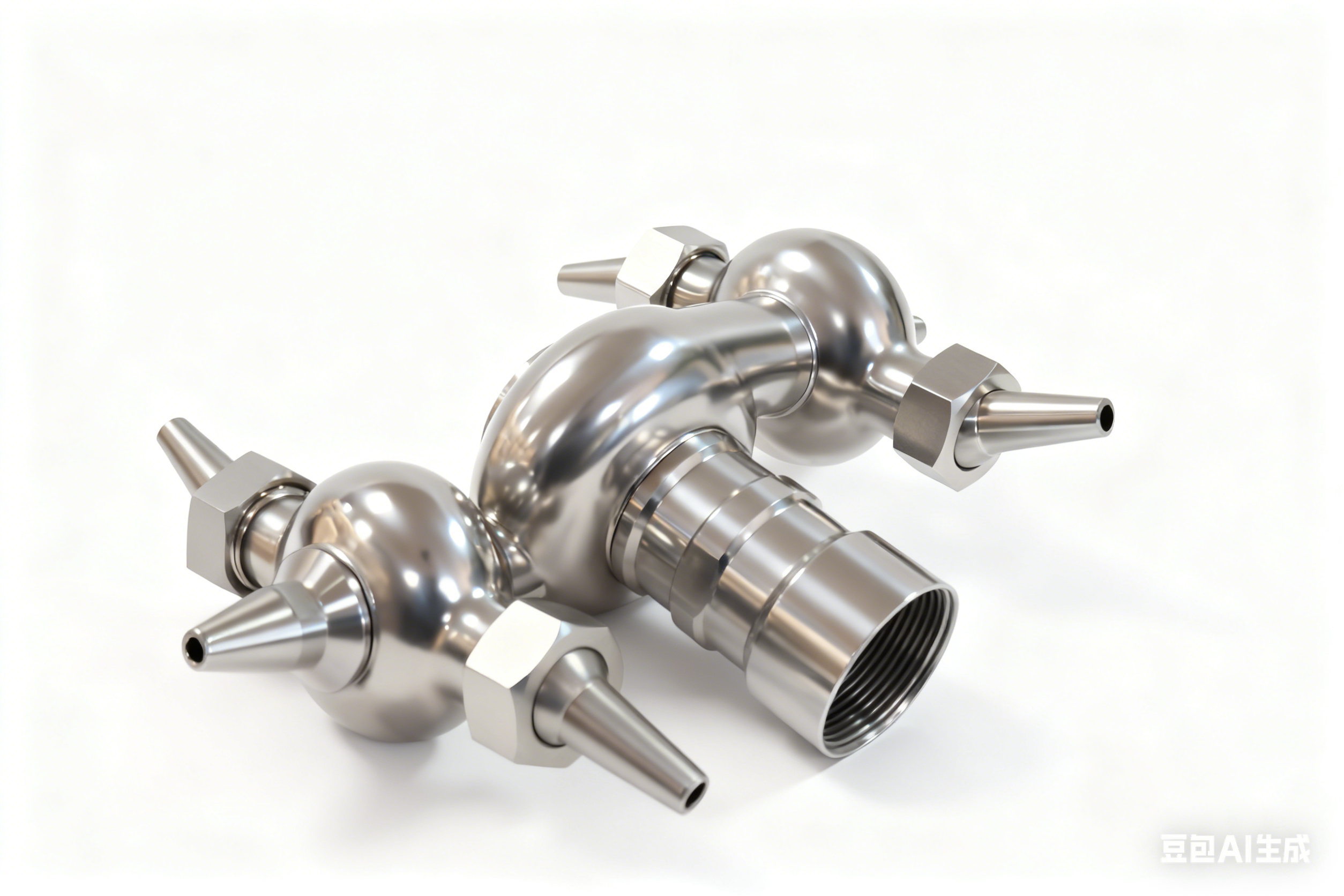

Stainless steel tank with rotating horn-shaped cleaning ball

Stainless steel tank with rotating horn-shaped cleaning ball

The stainless steel tank horn rotating cleaning ball is a device specially designed for sanitary tank cleaning. It is made of high-quality stainless steel such as 304 and 316L, featuring excellent corrosion resistance and hygienic performance. With a horn-like structure and multiple sets of rotatable nozzles, it can perform 360° dead-angle-free cleaning inside the tank through rotating spraying during operation. This equipment is widely used in industries with extremely high hygiene requirements such as pharmaceuticals, food and beverage, and chemical engineering, for cleaning various tanks like fermentation tanks, reaction kettles, and storage tanks. It can effectively remove residual materials and impurities in the tanks, ensuring the cleanliness of the production process and product quality. It is one of the key devices to realize automatic tank cleaning and improve production efficiency.

Working principle

The working principle of the stainless steel sanitary 360-degree tank rotating cleaning spray head relies on the combination of fluid dynamic rotation and high-pressure water jet cleaning. When high-pressure water flows into the spray head, it drives the internal gear or vane structure (such as bevel gear components) to rotate, enabling the spray head to achieve 360-degree rotation. Meanwhile, the multiple nozzles eject high-pressure water with strong impact force, which can cover every corner inside the tank as the spray head rotates. The high-pressure water jet removes residual materials and stains from the tank wall through impact and stripping, thus realizing efficient and dead-corner-free cleaning, which meets the strict sanitary requirements of industries like food and pharmaceutical.

Stainless Steel Hose Adapter Specification Chart

Features

● Flexible movements and vibrations

● Vibration isolation: Rubber joints help reduce the transmission of vibrations to connected components.

● Noise reduction because of the isolated vibrations

● Misalignment compensation

● Thermal expansion and contraction

● Corrosion protection

● Cost effective solution

● Protection of the eqipment

Application

Rubber joints find their application where movement, vibration,  and flexibility are critical considerations. Some common applications of rubber joints include are Heating and cooling  devices, Materials handling technologies, Water pipes, Desalination plants, Compressors, Blowers and fans,  Cement industry, Chemical industry, Glass industy, Wood-processing industry, Pulp and paper industry, Railed vehicles,  Refineries, Shipbuilding, Steel mills, Sugar industry.
