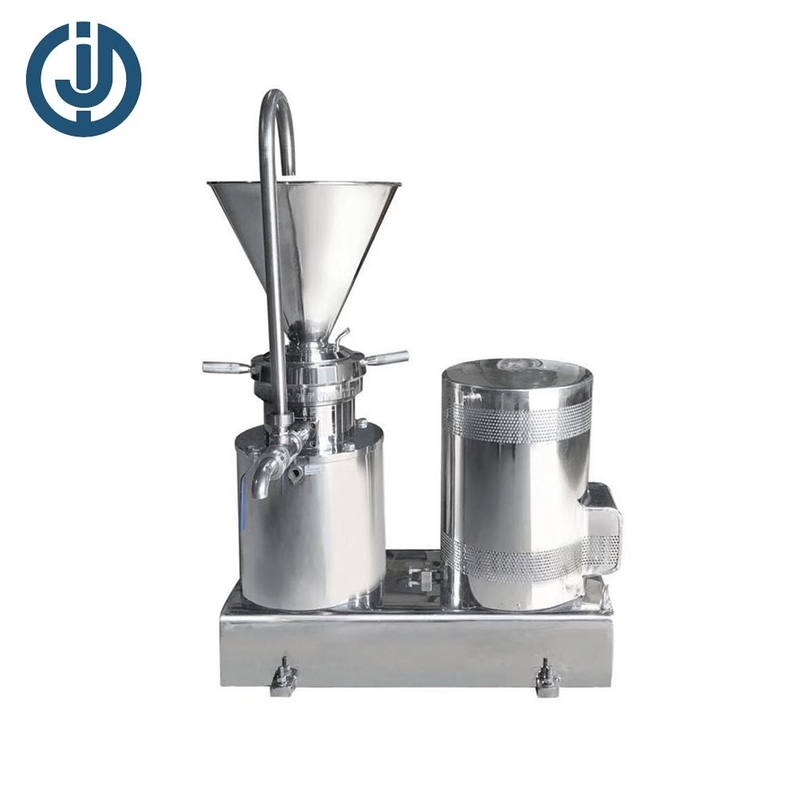

Bitumen Emulsion Homogenizer Industrial Colloid Mill is available in horizontal, vertical, and high-shear types, and is made of carbon steel, stainless steel, and wear-resistant alloys. It features high-shear emulsification, stable dispersion, continuous operation, high temperature resistance, and corrosion resistance.
JONENG
Bitumen Emulsion Homogenizer Industrial Colloid Mill is available in horizontal, vertical, and high-shear types, and is made of carbon steel, stainless steel, and wear-resistant alloys. It features high-shear emulsification, stable dispersion, continuous operation, high temperature resistance, and corrosion resistance.
Working Principles

During operation, the Bitumen Emulsion Homogenizer Industrial Colloid Mill uses a motor-driven rotor that rotates at high speed, creating a very small gap between the rotor and stator. Asphalt, water, and emulsifier enter the grinding zone and are rapidly refined under intense shearing, friction, and centrifugal forces. The material repeatedly passes through the rotor-stator gap, achieving particle crushing and uniform dispersion, while simultaneously completing the emulsification process. Continuous circulation ensures stable and uniformly distributed asphalt particle size, ultimately forming a highly stable and fluid asphalt emulsion suitable for continuous industrial production.

| Capacity | 100–2000 kg/h |
| Motor Power | 5.5–45 kW |
| Voltage | 220V / 380V / 415V / Custom |
| Frequency | 50 Hz / 60 Hz |
| Rotational Speed | 2800–3600 rpm |
| Grinding Fineness | 2–50 μm (adjustable) |
| Material (Product Contact) | SS304 / SS316L |
| Housing Material | Stainless Steel |
| Grinding Method | Rotor–Stator Colloid Grinding |

Designed with a high-precision rotor–stator system that ensures uniform particle size reduction, delivering smooth and consistent peanut butter texture while maintaining natural flavor and nutritional value.
Fully automatic operation with continuous feeding capability improves production efficiency, reduces manual labor, and ensures stable processing performance during long-time industrial food manufacturing.
Food-grade stainless steel construction provides excellent corrosion resistance, easy cleaning, and full compliance with hygienic standards required in peanut butter and nut paste processing industries.
Adjustable grinding clearance allows flexible control of fineness, enabling the machine to handle different nut materials, viscosities, and product requirements with reliable repeatability.
Integrated cooling system effectively controls processing temperature, preventing overheating, protecting product quality, and extending equipment service life during high-speed continuous grinding operations.
Compact structure with stable base design minimizes vibration and noise, ensuring safe operation, easy installation, and long-term mechanical stability in automated food processing lines.

Bitumen Emulsion Homogenizer Industrial Colloid Mill is widely used in road engineering, building materials, and chemical industries. For example, it is used in highway maintenance to produce emulsified asphalt, in the waterproofing materials industry to prepare waterproof coating emulsions, and in the chemical field for the industrial processing and formulation of asphalt-based functional emulsions.

Working Principles

During operation, the Bitumen Emulsion Homogenizer Industrial Colloid Mill uses a motor-driven rotor that rotates at high speed, creating a very small gap between the rotor and stator. Asphalt, water, and emulsifier enter the grinding zone and are rapidly refined under intense shearing, friction, and centrifugal forces. The material repeatedly passes through the rotor-stator gap, achieving particle crushing and uniform dispersion, while simultaneously completing the emulsification process. Continuous circulation ensures stable and uniformly distributed asphalt particle size, ultimately forming a highly stable and fluid asphalt emulsion suitable for continuous industrial production.
Feature and Specification

| Capacity | 100–2000 kg/h |
| Motor Power | 5.5–45 kW |
| Voltage | 220V / 380V / 415V / Custom |
| Frequency | 50 Hz / 60 Hz |
| Rotational Speed | 2800–3600 rpm |
| Grinding Fineness | 2–50 μm (adjustable) |
| Material (Product Contact) | SS304 / SS316L |
| Housing Material | Stainless Steel |
| Grinding Method | Rotor–Stator Colloid Grinding |
Stainless Steel colloid mill Specification Chart


Features

Designed with a high-precision rotor–stator system that ensures uniform particle size reduction, delivering smooth and consistent peanut butter texture while maintaining natural flavor and nutritional value.
Fully automatic operation with continuous feeding capability improves production efficiency, reduces manual labor, and ensures stable processing performance during long-time industrial food manufacturing.
Food-grade stainless steel construction provides excellent corrosion resistance, easy cleaning, and full compliance with hygienic standards required in peanut butter and nut paste processing industries.
Adjustable grinding clearance allows flexible control of fineness, enabling the machine to handle different nut materials, viscosities, and product requirements with reliable repeatability.
Integrated cooling system effectively controls processing temperature, preventing overheating, protecting product quality, and extending equipment service life during high-speed continuous grinding operations.
Compact structure with stable base design minimizes vibration and noise, ensuring safe operation, easy installation, and long-term mechanical stability in automated food processing lines.
Application

Bitumen Emulsion Homogenizer Industrial Colloid Mill is widely used in road engineering, building materials, and chemical industries. For example, it is used in highway maintenance to produce emulsified asphalt, in the waterproofing materials industry to prepare waterproof coating emulsions, and in the chemical field for the industrial processing and formulation of asphalt-based functional emulsions.
