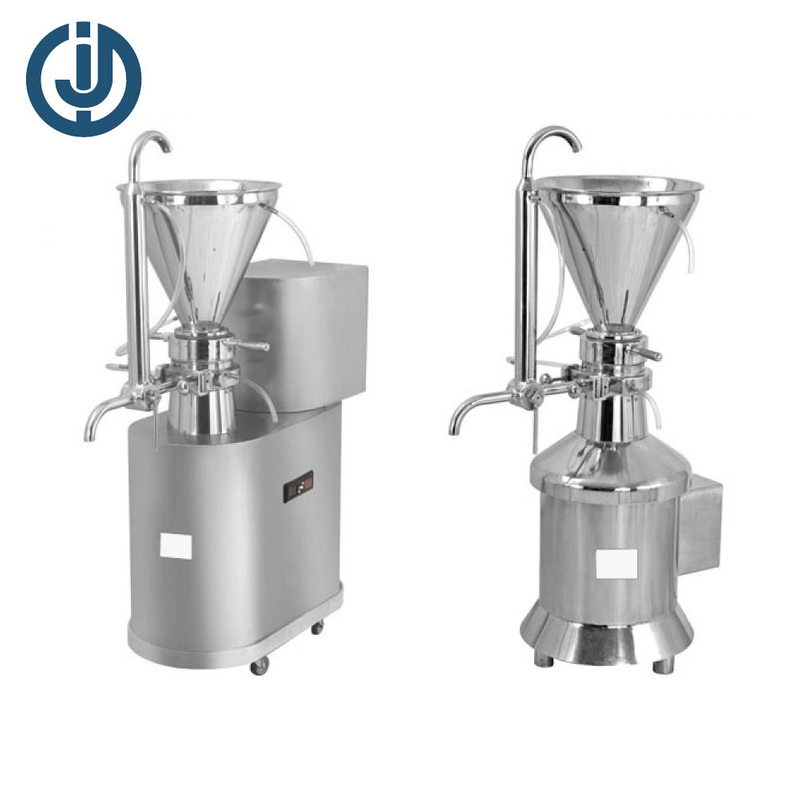

Colloid Mill is available in horizontal, vertical, and high-shear types, and is made of carbon steel, stainless steel, and wear-resistant alloys. It features high-shear emulsification, stable dispersion, continuous operation, high temperature resistance, and corrosion resistance.
JONENG
Colloid Mill is available in horizontal, vertical, and high-shear types, and is made of carbon steel, stainless steel, and wear-resistant alloys. It features high-shear emulsification, stable dispersion, continuous operation, high temperature resistance, and corrosion resistance.
Working Principles
The High-Capacity Chilli Paste Grinding Colloid Mill operates by creating a tiny gap between a high-speed rotating moving grinding disc and a stationary grinding disc. Upon entering the grinding chamber, chili peppers and other ingredients are subjected to intense shearing, friction, and compression, resulting in rapid pulverization and emulsification. The material repeatedly passes through the gap between the grinding discs in a continuous cycle, gradually refining and evenly dispersing the particles to form a viscous, uniform, and smooth-textured chili paste. The grinding disc gap and rotation speed are adjustable to control the fineness and rheological properties of the finished product, making it suitable for high-volume continuous production and industrial processing.
| Capacity | 100–2000 kg/h |
| Motor Power | 5.5–45 kW |
| Voltage | 220V / 380V / 415V / Custom |
| Frequency | 50 Hz / 60 Hz |
| Rotational Speed | 2800–3600 rpm |
| Grinding Fineness | 2–50 μm (adjustable) |
| Material (Product Contact) | SS304 / SS316L |
| Housing Material | Stainless Steel |
| Grinding Method | Rotor–Stator Colloid Grinding |
High-speed rotor–stator system provides strong shear and friction forces, ensuring uniform particle size and smooth, consistent chili paste texture.
Adjustable grinding gap allows precise control of fineness, meeting different product requirements and achieving repeatable results for industrial-scale production.
Food-grade stainless steel construction ensures excellent corrosion resistance, hygiene, and easy cleaning, complying with strict sanitary standards.
Continuous feeding and circulation system enables large-capacity, uninterrupted production, improving efficiency and reducing manual labor in processing lines.
Integrated cooling or water-jacket system prevents overheating, protecting flavor, color, and nutritional properties of chili paste during high-speed grinding.
Compact and stable design reduces vibration and noise, providing safe operation, easy installation, and long-term durability in factory environments.
Colloid Mill is widely used in road engineering, building materials, and chemical industries. For example, it is used in highway maintenance to produce emulsified asphalt, in the waterproofing materials industry to prepare waterproof coating emulsions, and in the chemical field for the industrial processing and formulation of asphalt-based functional emulsions.
Working Principles
The High-Capacity Chilli Paste Grinding Colloid Mill operates by creating a tiny gap between a high-speed rotating moving grinding disc and a stationary grinding disc. Upon entering the grinding chamber, chili peppers and other ingredients are subjected to intense shearing, friction, and compression, resulting in rapid pulverization and emulsification. The material repeatedly passes through the gap between the grinding discs in a continuous cycle, gradually refining and evenly dispersing the particles to form a viscous, uniform, and smooth-textured chili paste. The grinding disc gap and rotation speed are adjustable to control the fineness and rheological properties of the finished product, making it suitable for high-volume continuous production and industrial processing.
Feature and Specification
| Capacity | 100–2000 kg/h |
| Motor Power | 5.5–45 kW |
| Voltage | 220V / 380V / 415V / Custom |
| Frequency | 50 Hz / 60 Hz |
| Rotational Speed | 2800–3600 rpm |
| Grinding Fineness | 2–50 μm (adjustable) |
| Material (Product Contact) | SS304 / SS316L |
| Housing Material | Stainless Steel |
| Grinding Method | Rotor–Stator Colloid Grinding |
Stainless Steel colloid mill Specification Chart
Features
High-speed rotor–stator system provides strong shear and friction forces, ensuring uniform particle size and smooth, consistent chili paste texture.
Adjustable grinding gap allows precise control of fineness, meeting different product requirements and achieving repeatable results for industrial-scale production.
Food-grade stainless steel construction ensures excellent corrosion resistance, hygiene, and easy cleaning, complying with strict sanitary standards.
Continuous feeding and circulation system enables large-capacity, uninterrupted production, improving efficiency and reducing manual labor in processing lines.
Integrated cooling or water-jacket system prevents overheating, protecting flavor, color, and nutritional properties of chili paste during high-speed grinding.
Compact and stable design reduces vibration and noise, providing safe operation, easy installation, and long-term durability in factory environments.
Application
Colloid Mill is widely used in road engineering, building materials, and chemical industries. For example, it is used in highway maintenance to produce emulsified asphalt, in the waterproofing materials industry to prepare waterproof coating emulsions, and in the chemical field for the industrial processing and formulation of asphalt-based functional emulsions.
