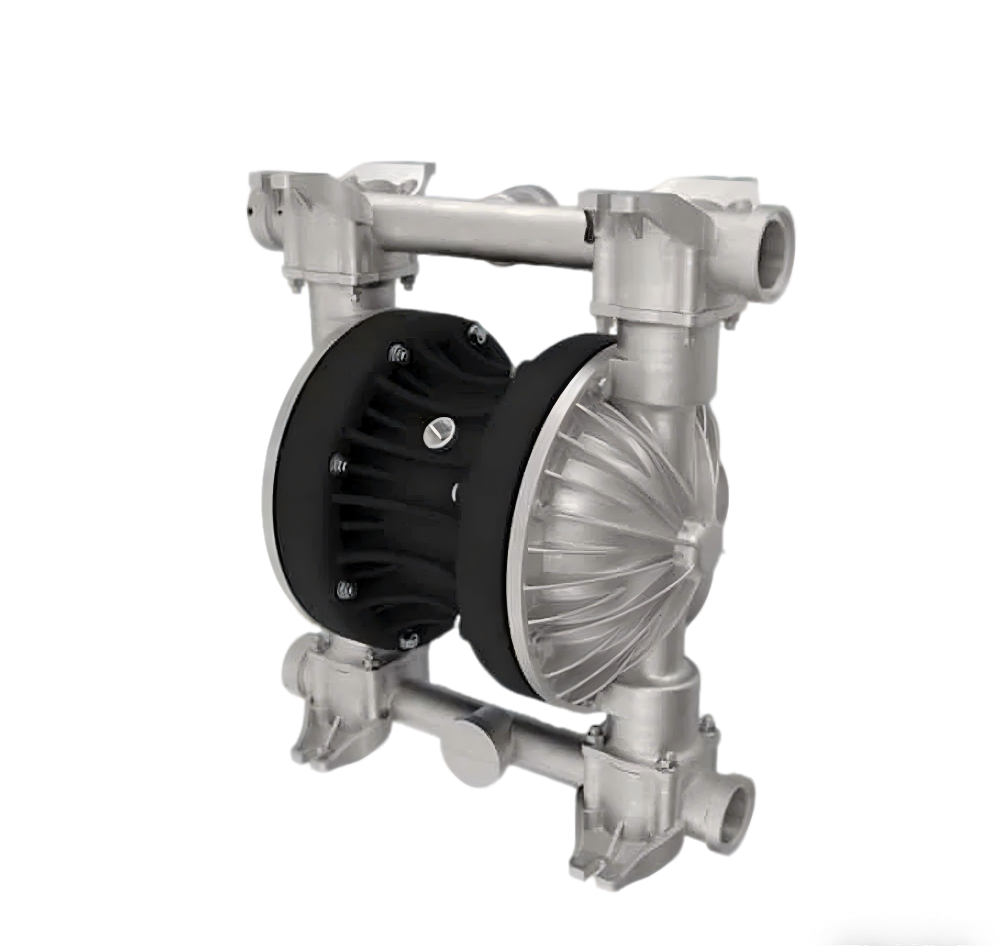

Mini 24V DC Electric Stainless Steel Double Diaphragm PUMP
We have WILDEN Pneumatic Diaphragm Pump，Aluminum Alloy Pneumatic Double Diaphragm Pump，Clamp-Type Quick-Installation Pneumatic Diaphragm Pump, with specifications covering small flow and low pressure. It is made of 304 or 316L stainless steel and features precise conveying, corrosion resistance, compact size, flexible operation and easy maintenance.
This mini 24V DC electric stainless steel double diaphragm pump uses a DC motor to drive two diaphragms in alternating reciprocating motion to achieve liquid transfer. When the diaphragms move outward, the pump chamber volume increases, and liquid enters the pump body from the suction port; when the diaphragms move inward, the liquid is forced out of the pump outlet. An internal check valve ensures unidirectional liquid flow, preventing backflow and leakage. The double diaphragm structure allows the pump to stably deliver low-flow, low-pressure liquids, while the diaphragms completely isolate the liquid from the drive components, ensuring hygiene, safety, and corrosion resistance. It is suitable for precision liquid transfer in chemical, food, pharmaceutical, and laboratory applications.
Max. flow rate | 50m3/h |
Frequency | 50HZ/60HZ |
Max. pressure | 8 bar |
Max. temperature | 110°C |
Material | SS304/SS316L |
| Inlet/outlet connection | Clamp, Weld, Flange |
| Inlet/outlet size | 1”-3” |
| Diaphragm | PTFE, PTFE with white back, EPDM, white EPDM, white NBR |
| Driving way | Air or Motor |
Compact 24V DC design allows portable, low-voltage operation, ideal for mobile or confined-space applications.
Constructed from 304 or 316L stainless steel, ensuring corrosion resistance and suitability for sanitary or chemical fluids.
Dual diaphragm mechanism provides smooth, precise pumping with minimal pulsation, suitable for low-flow applications.
Isolated diaphragm design prevents fluid contamination and leakage, maintaining hygienic and safe operation.
Easy to maintain and assemble, supporting quick cleaning, inspection, and reliable long-term performance.
The mini 24V DC electric stainless steel double diaphragm pump is suitable for the food, beverage and dairy industries for precise delivery of juices, flavorings or dairy products; in the chemical and laboratory fields, it can handle corrosive liquids, solvents or reagents, achieving small flow rates, high precision and safe and hygienic liquid transfer.
Working Principles
This mini 24V DC electric stainless steel double diaphragm pump uses a DC motor to drive two diaphragms in alternating reciprocating motion to achieve liquid transfer. When the diaphragms move outward, the pump chamber volume increases, and liquid enters the pump body from the suction port; when the diaphragms move inward, the liquid is forced out of the pump outlet. An internal check valve ensures unidirectional liquid flow, preventing backflow and leakage. The double diaphragm structure allows the pump to stably deliver low-flow, low-pressure liquids, while the diaphragms completely isolate the liquid from the drive components, ensuring hygiene, safety, and corrosion resistance. It is suitable for precision liquid transfer in chemical, food, pharmaceutical, and laboratory applications.
Specification Chart
Max. flow rate | 50m3/h |
Frequency | 50HZ/60HZ |
Max. pressure | 8 bar |
Max. temperature | 110°C |
Material | SS304/SS316L |
| Inlet/outlet connection | Clamp, Weld, Flange |
| Inlet/outlet size | 1”-3” |
| Diaphragm | PTFE, PTFE with white back, EPDM, white EPDM, white NBR |
| Driving way | Air or Motor |
Features
Compact 24V DC design allows portable, low-voltage operation, ideal for mobile or confined-space applications.
Constructed from 304 or 316L stainless steel, ensuring corrosion resistance and suitability for sanitary or chemical fluids.
Dual diaphragm mechanism provides smooth, precise pumping with minimal pulsation, suitable for low-flow applications.
Isolated diaphragm design prevents fluid contamination and leakage, maintaining hygienic and safe operation.
Easy to maintain and assemble, supporting quick cleaning, inspection, and reliable long-term performance.
Application
The mini 24V DC electric stainless steel double diaphragm pump is suitable for the food, beverage and dairy industries for precise delivery of juices, flavorings or dairy products; in the chemical and laboratory fields, it can handle corrosive liquids, solvents or reagents, achieving small flow rates, high precision and safe and hygienic liquid transfer.
