Pneumatic butterfly valve is consist of manual butterfly valve and a pneumatic actuator . The valve is consist of four parts: handle, butterfly disc, sealing ring and valve flange.
The pneumatic butterfly valves are mechanical polished as standard, with a smooth surface to ensure cleanliness and no areas to create potential contamination. Quick-operation makes the valve open and maintenance safe and easy, reducing process downtime.
JONENG

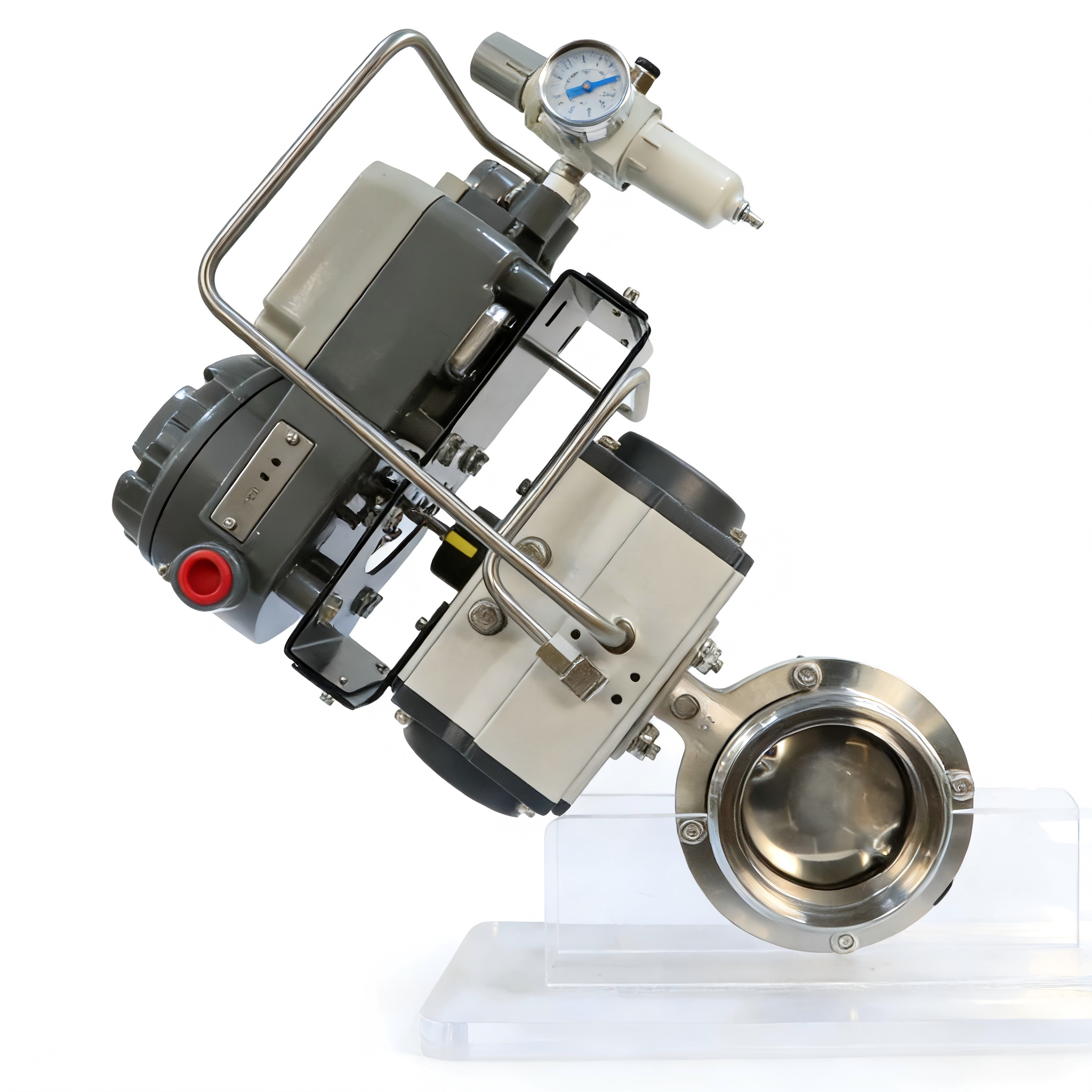

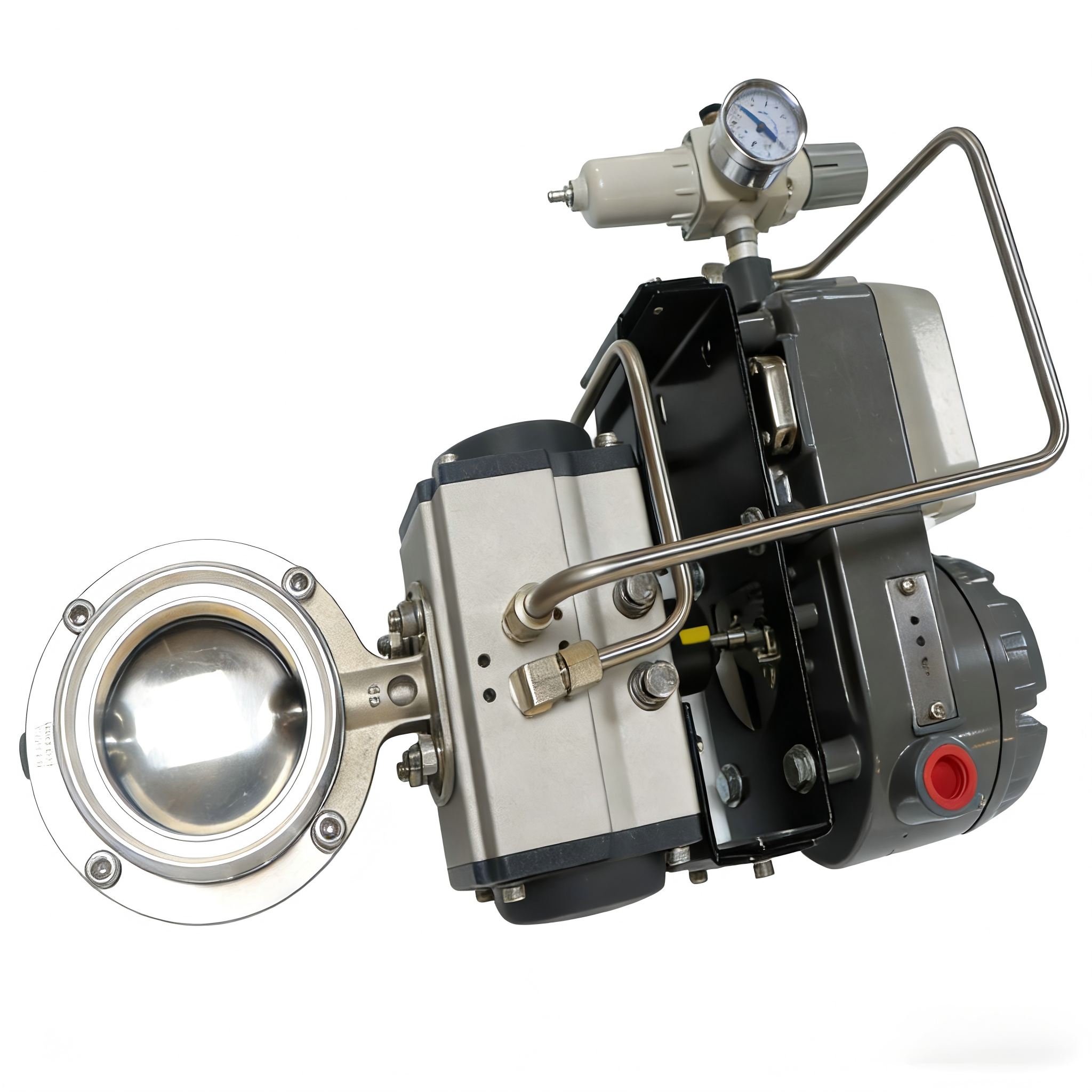

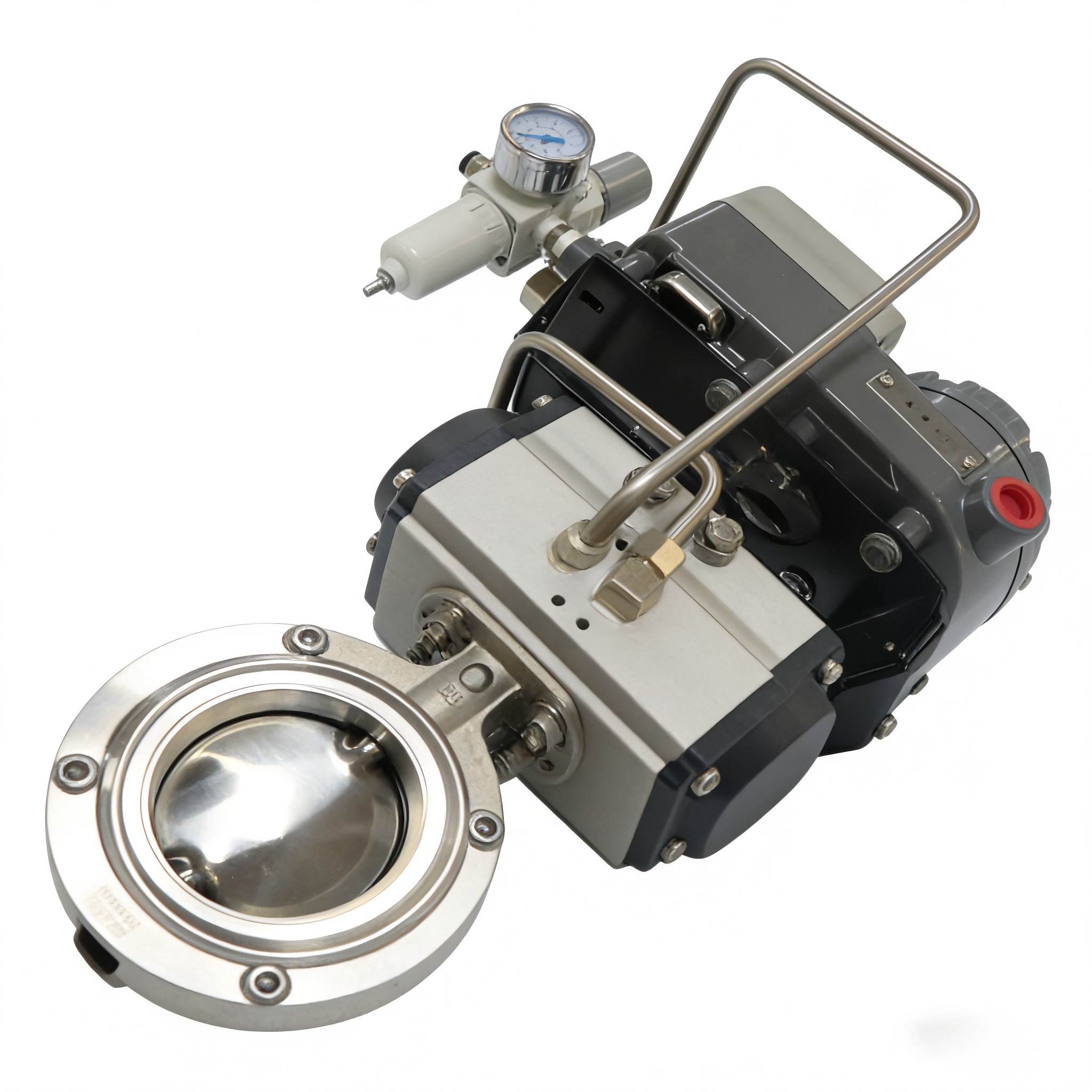

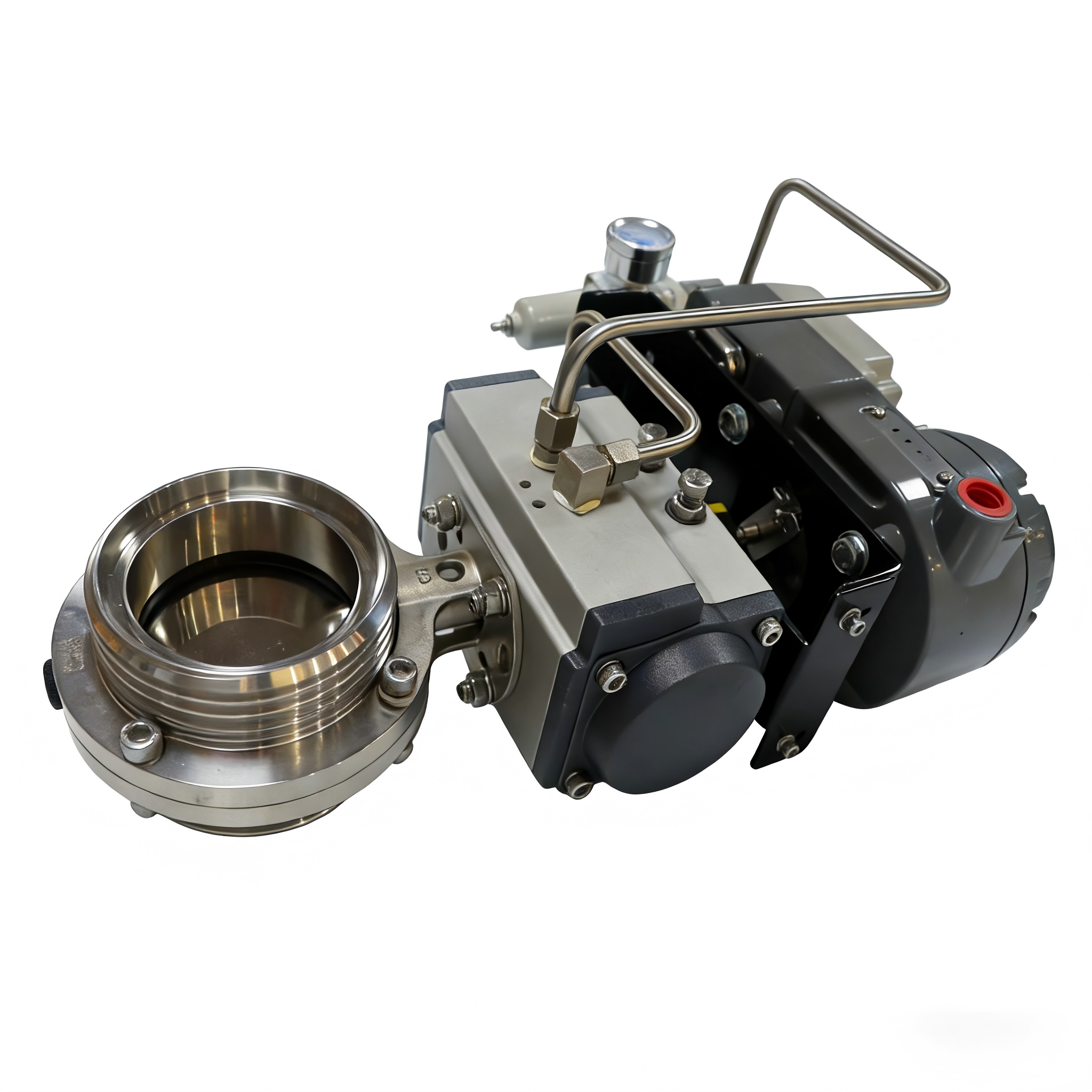

STAINLESS STEEL Electric Lug DN25 Manual Actuator butterfly valve
The pneumatic butterfly valve is controlled by compressed air through an aluminum piston or stainless steel piston . The piston controls the disc to work at 90 degree to open or close the valve. Pneumatic actuators can be disassembled and serviced. The pneumatic actuator has large torque and is easy to install and operate.
Working Principles
The stainless steel electric lug DN25 butterfly valve operates by using an electric actuator to drive the valve stem and rotate the disc inside the valve body. When the actuator receives an electrical signal, it converts electrical energy into mechanical motion, turning the disc to the open or closed position. In the open state, the disc aligns with the flow direction, allowing fluid to pass with minimal resistance. When closing, the disc rotates to press against the valve seat, forming a tight seal to prevent leakage. The lug-type body provides secure pipeline installation, while the DN25 size allows precise flow control in compact piping systems.
Stainless Steel Butterfly Valve Specification Chart
Working Pressure | 10 Bar (Max. Pressure is 16bar for but welded connection in small sizes |
Working temperature | -10ºC TO + 120ºC |
Size | 1/2”-12”, DN15-DN300 |
Grade | AISI304 and AISI316L |
FDA approved gaskets in silicone, EPDM, viton, PTFE | |
Connection | Clamp, Weld, Thread,male threaded; female threaded; flange end;union connection |
Surface | Sanitary inside polish (Ra ≤ 0.8 μm) |
Sanitary outside polish (Ra ≤1.6 μm) | |
Standard | ISO, 3A, SMS, RJT, DIN and so on |
Butterfly valve disc and body is made from forging | |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. | |
Required compressed air | 4-8Bar |
Connection of compressed air | G 1/8’’ |
Limit switch | 6-36V, DC 2nos of NPN or PNP( to be chose |
Valve parts
Body | Stainless steel AISI316L or AISI 304 (1.4301/1.4404) |
Disc | AISI304 or AISI316L |
Pull-position handle | Stainless Steel Material, Round type or square type |
Multi-position Gripper Handle | ABS gripper handle, SS gripper handle, 2/3/4/12 positions to adjustment, Universal type |
Gasket | EPDM, VITON(FPM), Silicone, different color is available |
Bushing | EPDM or PTFE, other material request |
Nut | Stainless Steel 304 or 316 Material or other request |
Bolt | Stainless Steel 304 or 316 Material or other request |
Features
● Seats and seals comply with FDA approved
● Special gasket design, fluid free of residue
● Better acid proof, alkali proof
● Small torque, light weight,simple structure
● 360 degree installation
● 100% tested and inspected
● Cost-efficient leakage protection
● More than thirty thousand safety test
● Low pressure losses
● Thorough cleaning,Hygienic exterior design
● Minimize turbulence and maximize fluid flow trough
Application
The stainless steel electric lug DN25 butterfly valve is commonly applied in water treatment, HVAC systems, chemical processing, and industrial automation lines. For example, it is used in cooling water circulation systems to regulate flow remotely, or in chemical dosing pipelines to control corrosive liquids safely while ensuring stable and accurate operation in limited installation spaces.
