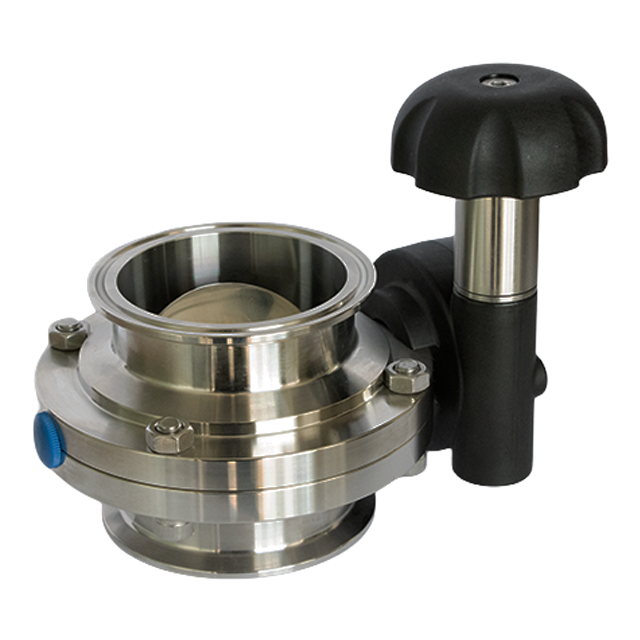

STAINLESS STEEL Sanitary Wafer Dosing DN25 butterfly valve
The STAINLESS STEEL Sanitary butterfly valve is a compact, food-grade valve designed for precise dosing and flow control in hygienic pipelines, featuring stainless steel construction and wafer-type installation.
Working Principles
The stainless steel sanitary wafer dosing DN25 butterfly valve operates by precisely controlling fluid flow through the rotation of a centrally mounted butterfly disc. When the actuator or manual handle is adjusted, the valve shaft rotates, moving the disc to a specific angle that determines the flow rate. Unlike simple on–off valves, the dosing design allows fine positioning of the disc, enabling accurate and repeatable flow regulation for small volumes. The sanitary stainless steel body features smooth internal surfaces to minimize residue buildup and support effective cleaning. The wafer-type structure allows the valve to be installed between pipe flanges with minimal space requirements. This working principle makes the valve suitable for hygienic dosing applications in food, beverage, pharmaceutical, and biotechnology processing systems where precision, cleanliness, and reliability are essential.

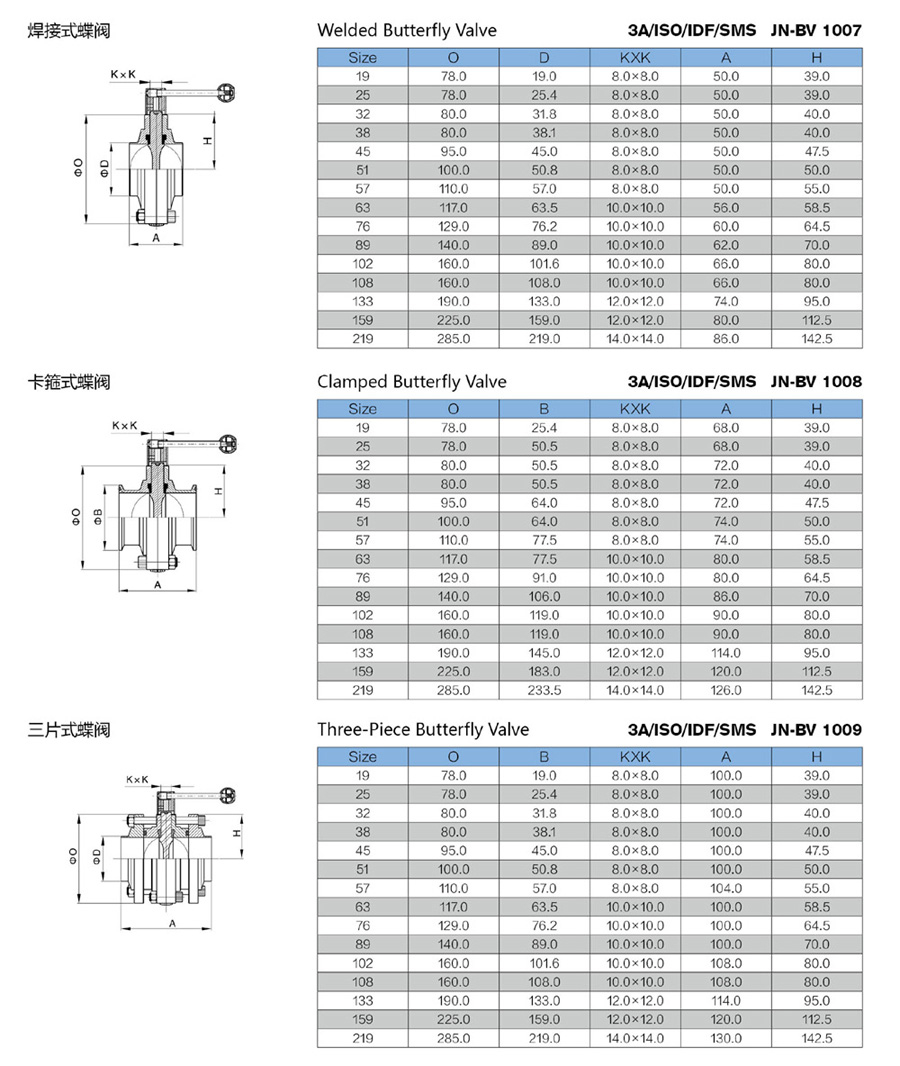

Stainless Steel Butterfly Valve Specification Chart
Working Pressure |
10 Bar (Max. Pressure is 16bar for but welded connection in small sizes
|
Working temperature
|
-10ºC TO + 120ºC |
Size |
1/2”-12”, DN15-DN300
|
Grade |
AISI304 and AISI316L |
FDA approved gaskets in silicone, EPDM, viton, PTFE |
Connection
|
Clamp, Weld, Thread,male threaded; female threaded; flange end;union connection |
Surface | Sanitary inside polish (Ra ≤ 0.8 μm) |
Sanitary outside polish (Ra ≤1.6 μm) |
Standard | ISO, 3A, SMS, RJT, DIN and so on |
Butterfly valve disc and body is made from forging |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. |
Required compressed air | 4-8Bar |
Connection of compressed air | G 1/8’’ |
Limit switch | 6-36V, DC 2nos of NPN or PNP( to be chose |
Valve parts
Body | Stainless steel AISI316L or AISI 304 (1.4301/1.4404) |
Disc | AISI304 or AISI316L |
Pull-position handle | Stainless Steel Material, Round type or square type |
Multi-position Gripper Handle | ABS gripper handle, SS gripper handle, 2/3/4/12 positions to adjustment, Universal type |
Gasket | EPDM, VITON(FPM), Silicone, different color is available |
Bushing | EPDM or PTFE, other material request |
Nut | Stainless Steel 304 or 316 Material or other request |
Bolt | Stainless Steel 304 or 316 Material or other request |
Features
● Seats and seals comply with FDA approved
● Special gasket design, fluid free of residue
● Better acid proof, alkali proof
● Small torque, light weight,simple structure
● 360 degree installation
● 100% tested and inspected
● Cost-efficient leakage protection
● More than thirty thousand safety test
● Low pressure losses
● Thorough cleaning,Hygienic exterior design
● Minimize turbulence and maximize fluid flow trough
Application
The stainless steel sanitary wafer dosing DN25 butterfly valve is widely used in industries requiring precise and hygienic fluid control. It is ideal for food and beverage production, such as syrup or flavor dosing in beverage lines, dairy processing for milk or yogurt additives, and pharmaceutical applications for accurate chemical or solution dosing. Its stainless steel construction and sanitary design ensure contamination-free operation and easy cleaning, making it suitable for any process that demands high hygiene standards and accurate small-volume flow control.
