| Quantity: | |
|---|---|
DIN JN-BV 1001
JONENG
8481804090

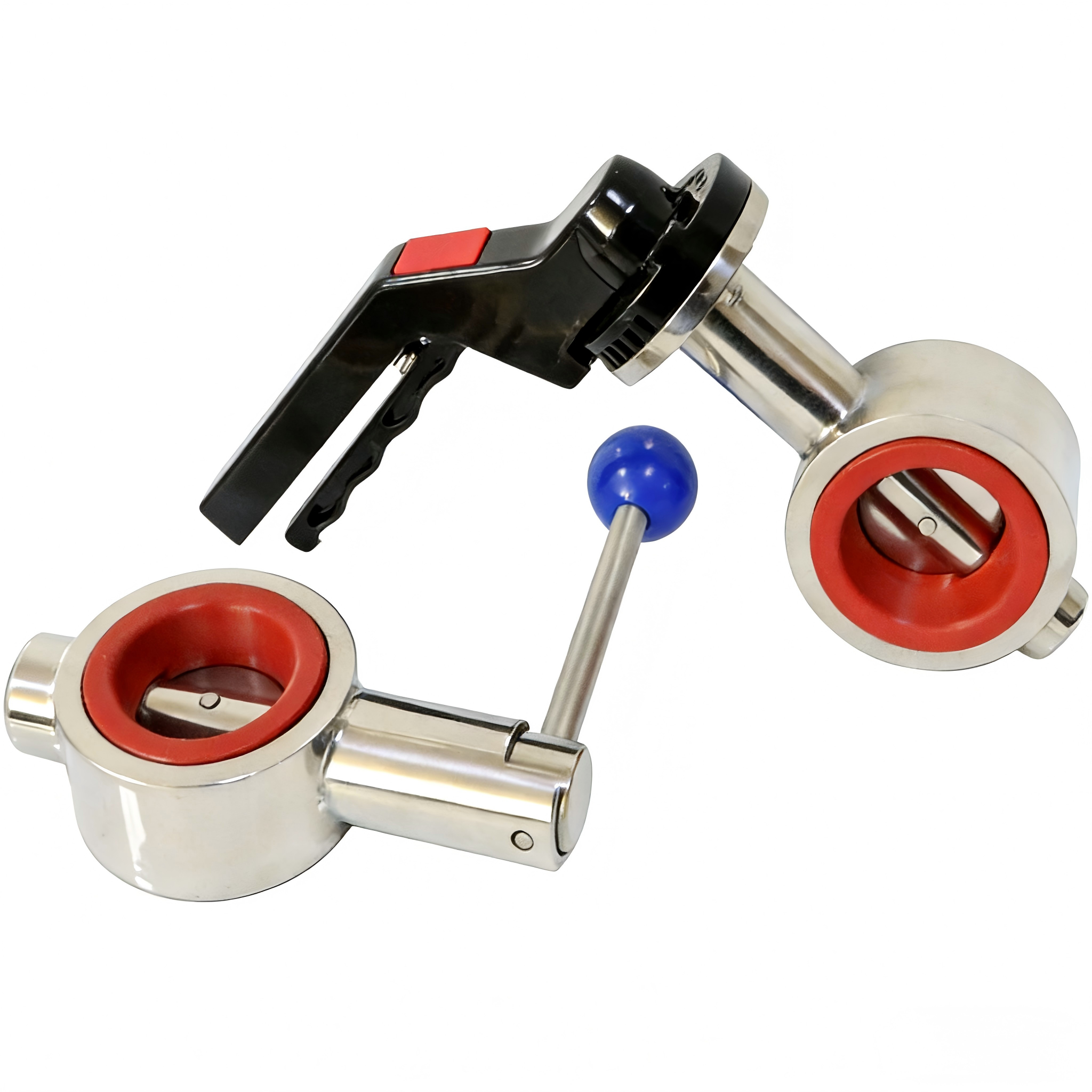

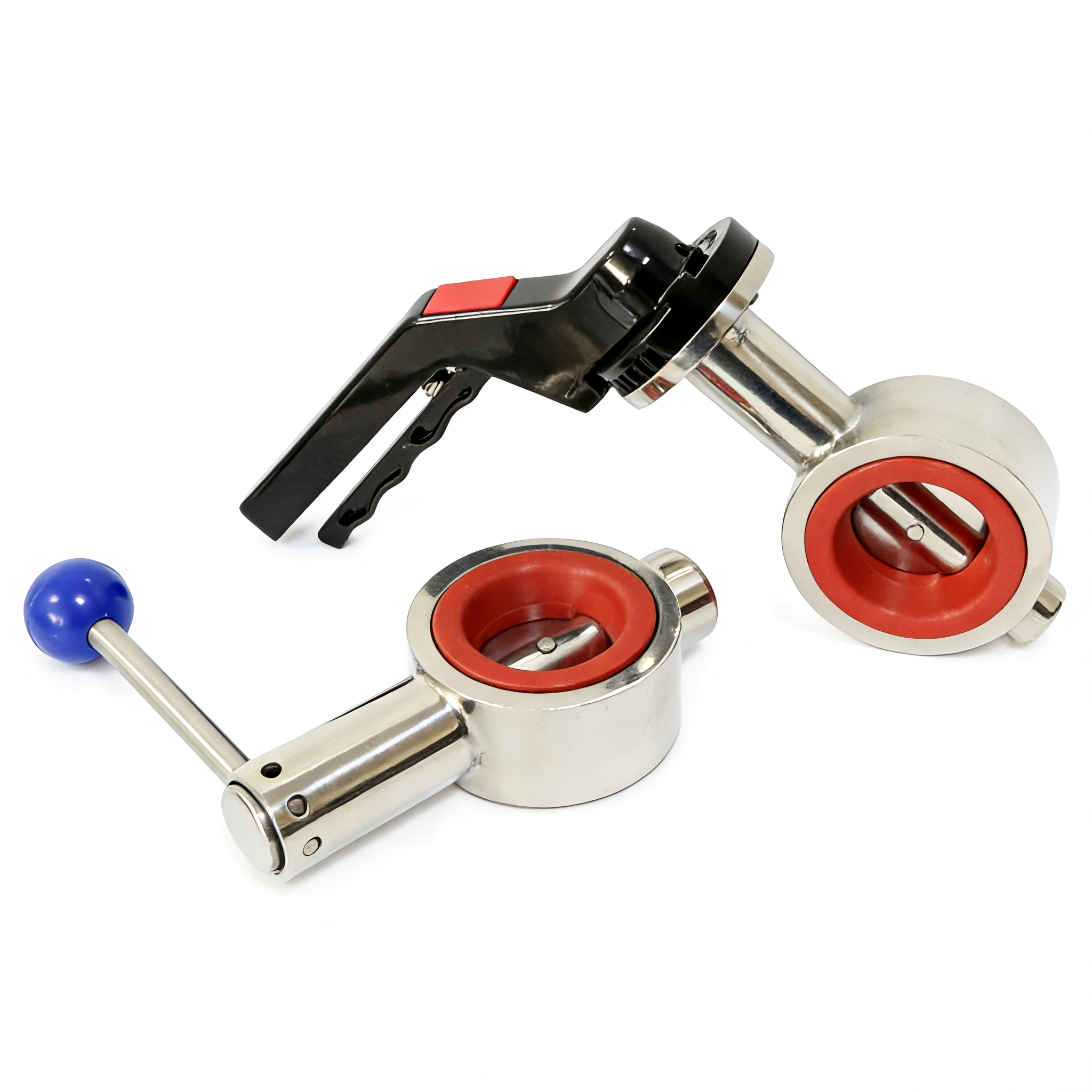

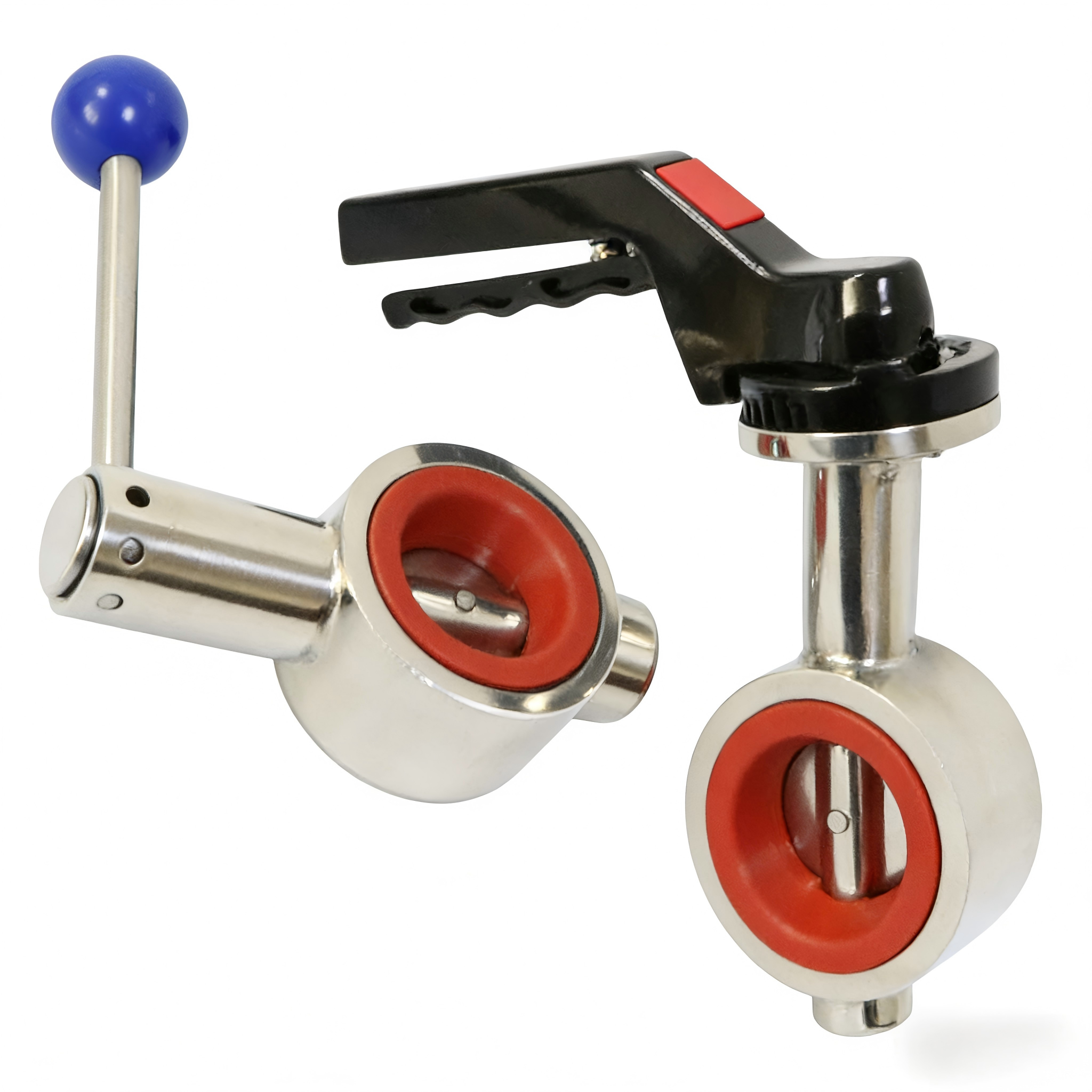

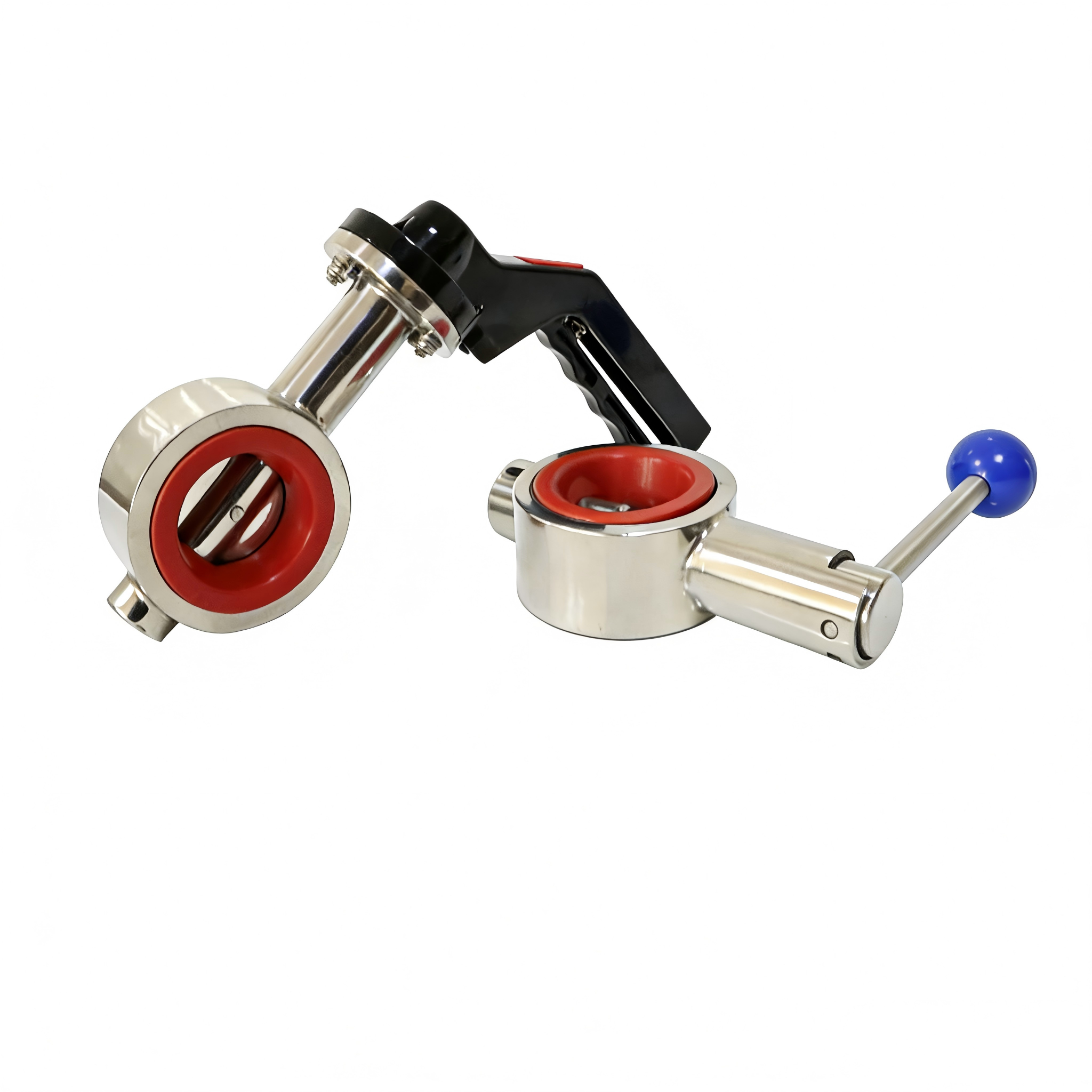

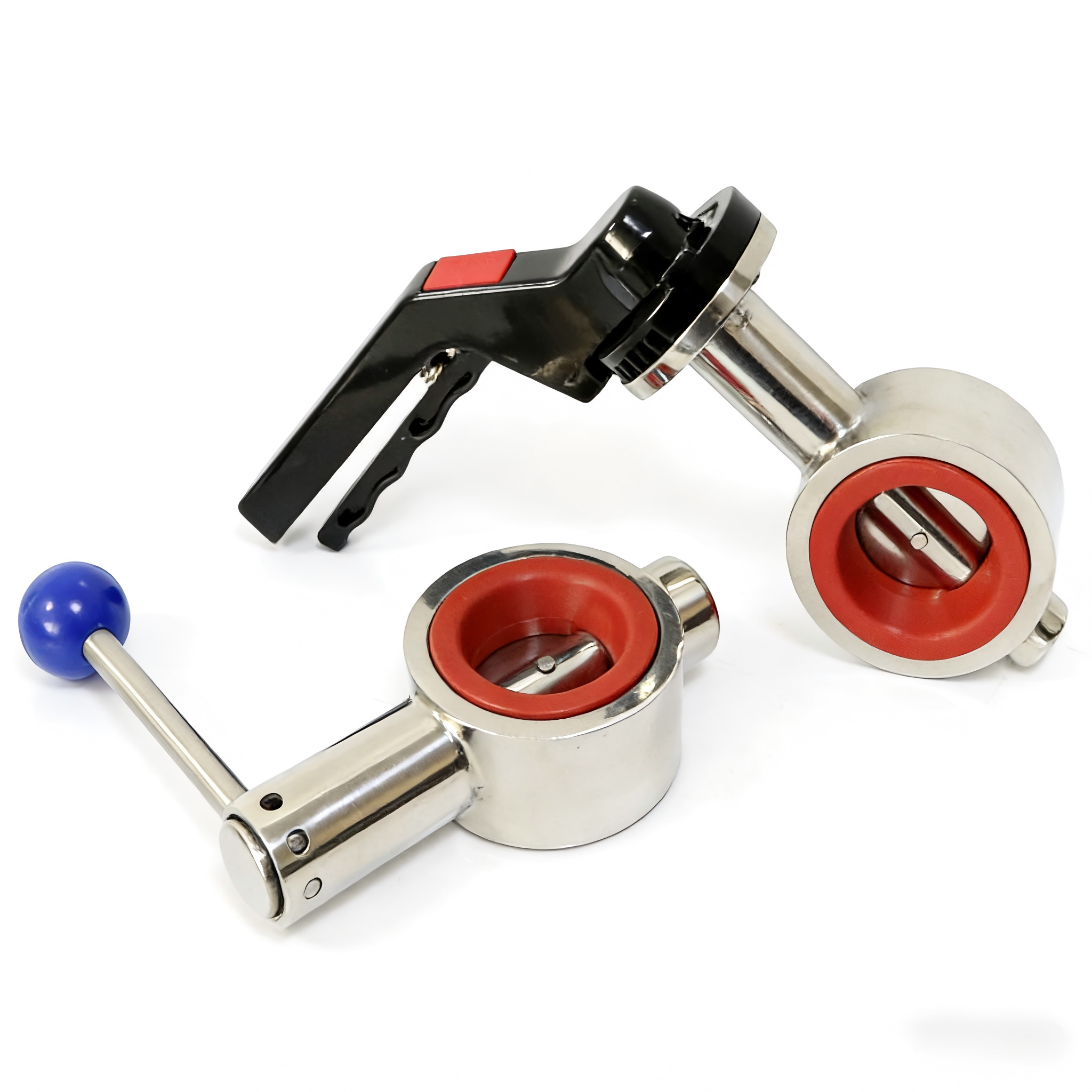

Stainless Steel Sanitary Butterfly Valve is consist of four parts: handle, butterfly disc, sealing ring and valve flange. The butterfly valve can be controlled manually or with pneumatic actuator or electrical actuators.Not only simple in structure, low in material consumption, small in installation size, small in driving torque, easy and fast in operation, but also has good flow regulation function and closing and sealing characteristics at the same time.
The stainless steel triple offset lug 316L actuator butterfly valve operates through a disc engineered with three offset geometries between the shaft, disc, and sealing surface. When the actuator drives the shaft, the disc rotates away from the seat without rubbing contact, minimizing friction and wear. During closing, the disc moves into precise alignment with the seat and forms a tight seal only at the final position. The 316L stainless steel body provides excellent corrosion resistance and strength. The lug-type connection allows secure mounting between flanges, while the actuator enables automated, accurate, and repeatable valve operation in demanding process systems.
Working Pressure | 10 Bar (Max. Pressure is 16bar for but welded connection in small sizes |
Working temperature | -10ºC TO + 120ºC |
Size | 1/2”-12”, DN15-DN300 |
Grade | AISI304 and AISI316L |
FDA approved gaskets in silicone, EPDM, viton, PTFE | |
Connection | Clamp, Weld, Thread,male threaded; female threaded; flange end;union connection |
Surface | Sanitary inside polish (Ra ≤ 0.8 μm) |
Sanitary outside polish (Ra ≤1.6 μm) | |
Standard | ISO, 3A, SMS, RJT, DIN and so on |
Butterfly valve disc and body is made from forging | |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. | |
Required compressed air | 4-8Bar |
Connection of compressed air | G 1/8’’ |
Limit switch | 6-36V, DC 2nos of NPN or PNP( to be chose |
Body | Stainless steel AISI316L or AISI 304 (1.4301/1.4404) |
Disc | AISI304 or AISI316L |
Pull-position handle | Stainless Steel Material, Round type or square type |
Multi-position Gripper Handle | ABS gripper handle, SS gripper handle, 2/3/4/12 positions to adjustment, Universal type |
Gasket | EPDM, VITON(FPM), Silicone, different color is available |
Bushing | EPDM or PTFE, other material request |
Nut | Stainless Steel 304 or 316 Material or other request |
Bolt | Stainless Steel 304 or 316 Material or other request |
● Seats and seals comply with FDA approved
● Special gasket design, fluid free of residue
● Better acid proof, alkali proof
● Small torque, light weight,simple structure
● 360 degree installation
● 100% tested and inspected
● Cost-efficient leakage protection
● More than thirty thousand safety test
● Low pressure losses
● Thorough cleaning,Hygienic exterior design
● Minimize turbulence and maximize fluid flow trough
The stainless steel butterfly valve is widely used in industries requiring reliable shutoff and corrosion resistance. Typical applications include chemical processing plants handling corrosive fluids, oil and gas pipelines for automated flow isolation, and power generation systems with high-temperature steam. It is also suitable for food, pharmaceutical, and water treatment facilities, where hygienic design, precise control, and automated operation are essential for maintaining process safety and efficiency.
Working Principles
The stainless steel triple offset lug 316L actuator butterfly valve operates through a disc engineered with three offset geometries between the shaft, disc, and sealing surface. When the actuator drives the shaft, the disc rotates away from the seat without rubbing contact, minimizing friction and wear. During closing, the disc moves into precise alignment with the seat and forms a tight seal only at the final position. The 316L stainless steel body provides excellent corrosion resistance and strength. The lug-type connection allows secure mounting between flanges, while the actuator enables automated, accurate, and repeatable valve operation in demanding process systems.
Feature and Specification
Stainless Steel Butterfly Valve Specification Chart
Working Pressure | 10 Bar (Max. Pressure is 16bar for but welded connection in small sizes |
Working temperature | -10ºC TO + 120ºC |
Size | 1/2”-12”, DN15-DN300 |
Grade | AISI304 and AISI316L |
FDA approved gaskets in silicone, EPDM, viton, PTFE | |
Connection | Clamp, Weld, Thread,male threaded; female threaded; flange end;union connection |
Surface | Sanitary inside polish (Ra ≤ 0.8 μm) |
Sanitary outside polish (Ra ≤1.6 μm) | |
Standard | ISO, 3A, SMS, RJT, DIN and so on |
Butterfly valve disc and body is made from forging | |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. | |
Required compressed air | 4-8Bar |
Connection of compressed air | G 1/8’’ |
Limit switch | 6-36V, DC 2nos of NPN or PNP( to be chose |
Valve parts
Body | Stainless steel AISI316L or AISI 304 (1.4301/1.4404) |
Disc | AISI304 or AISI316L |
Pull-position handle | Stainless Steel Material, Round type or square type |
Multi-position Gripper Handle | ABS gripper handle, SS gripper handle, 2/3/4/12 positions to adjustment, Universal type |
Gasket | EPDM, VITON(FPM), Silicone, different color is available |
Bushing | EPDM or PTFE, other material request |
Nut | Stainless Steel 304 or 316 Material or other request |
Bolt | Stainless Steel 304 or 316 Material or other request |
Features
● Seats and seals comply with FDA approved
● Special gasket design, fluid free of residue
● Better acid proof, alkali proof
● Small torque, light weight,simple structure
● 360 degree installation
● 100% tested and inspected
● Cost-efficient leakage protection
● More than thirty thousand safety test
● Low pressure losses
● Thorough cleaning,Hygienic exterior design
● Minimize turbulence and maximize fluid flow trough
Application
The stainless steel butterfly valve is widely used in industries requiring reliable shutoff and corrosion resistance. Typical applications include chemical processing plants handling corrosive fluids, oil and gas pipelines for automated flow isolation, and power generation systems with high-temperature steam. It is also suitable for food, pharmaceutical, and water treatment facilities, where hygienic design, precise control, and automated operation are essential for maintaining process safety and efficiency.
