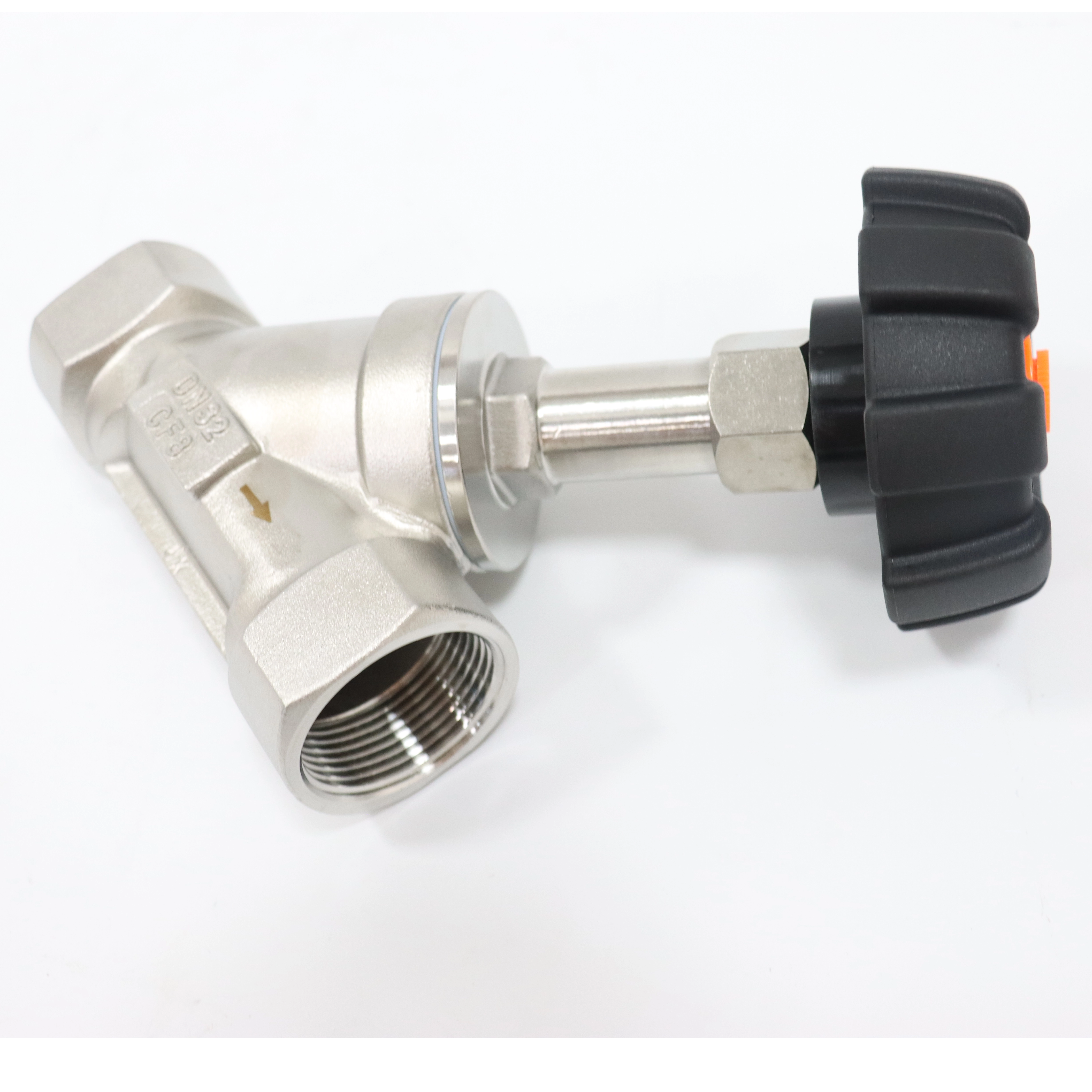

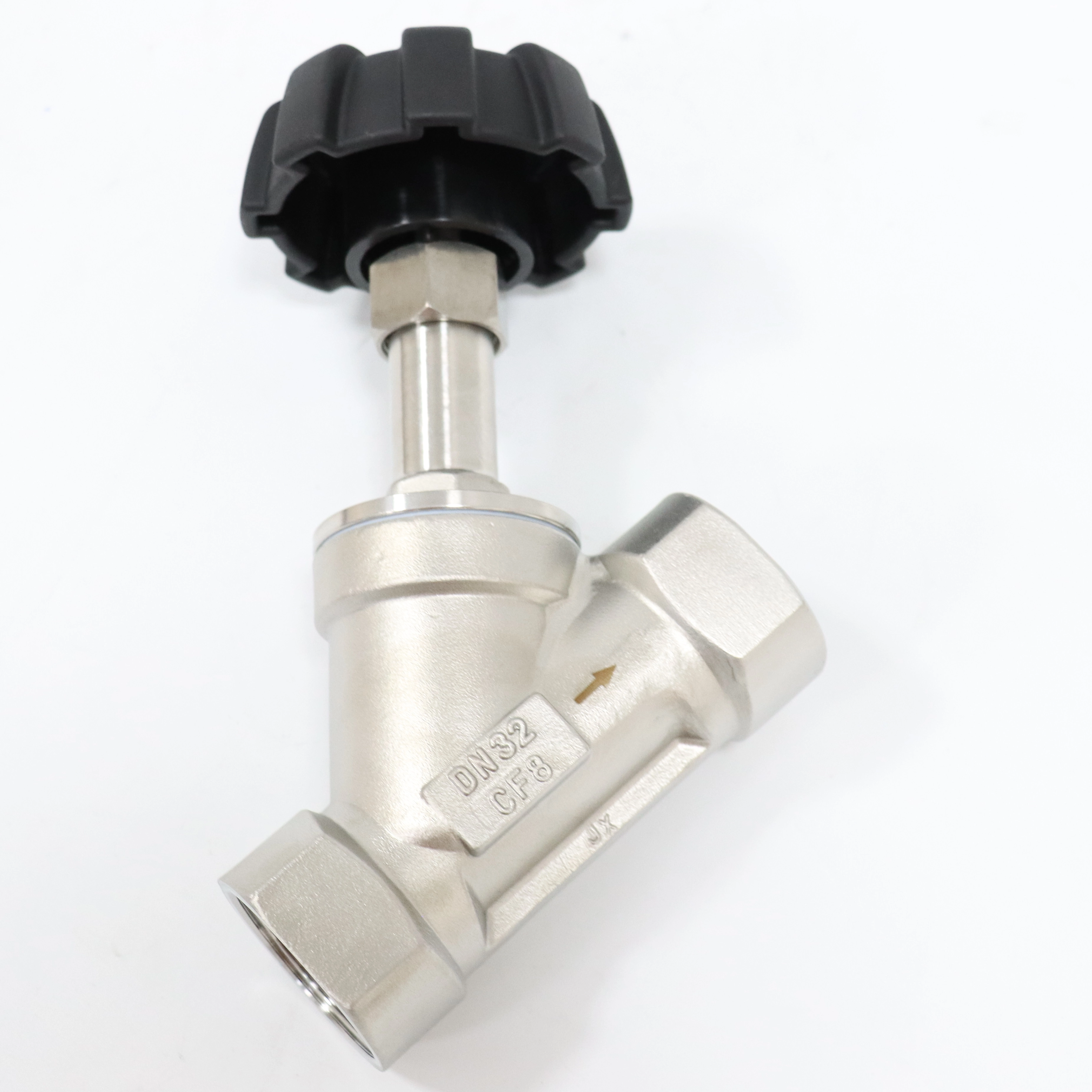

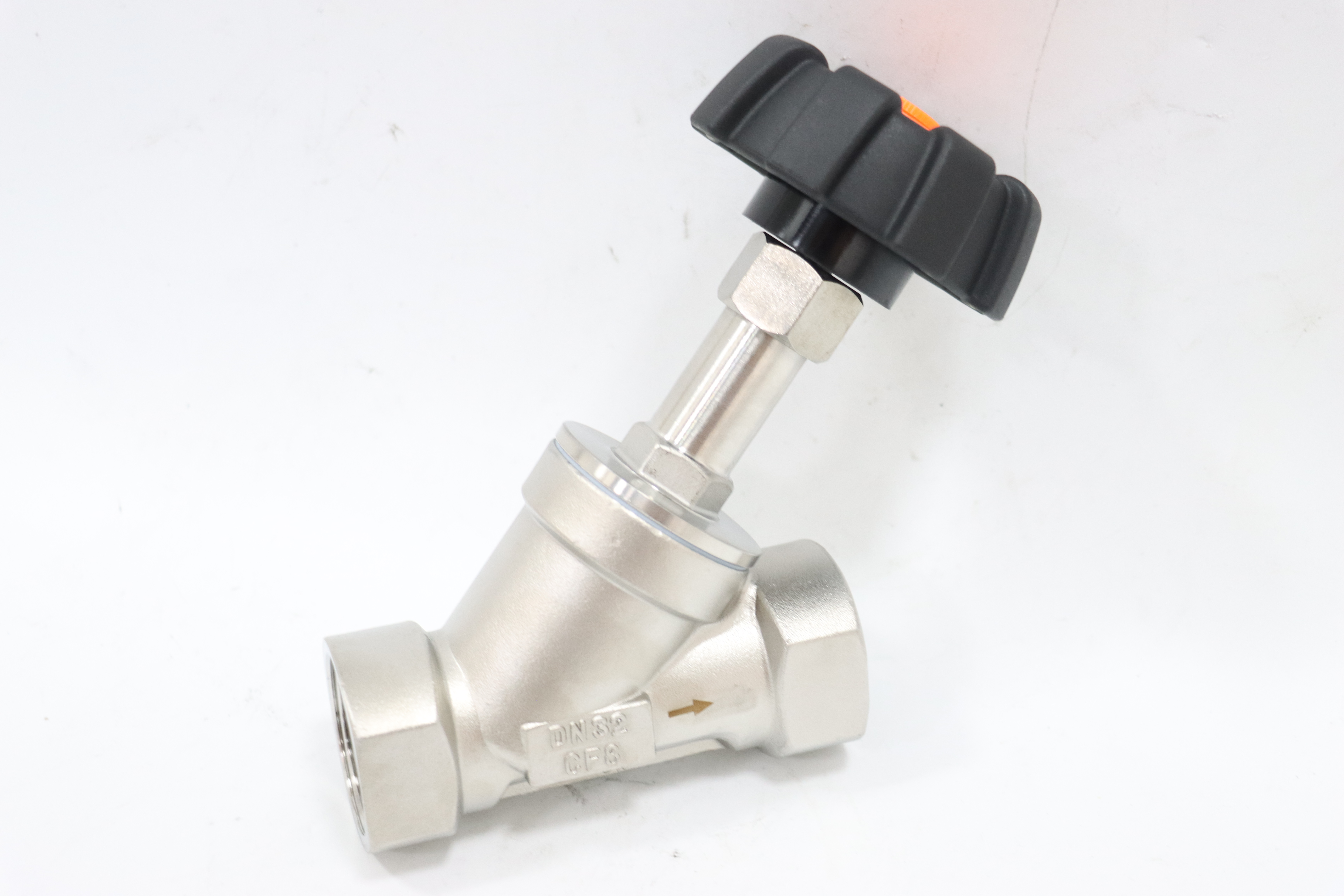

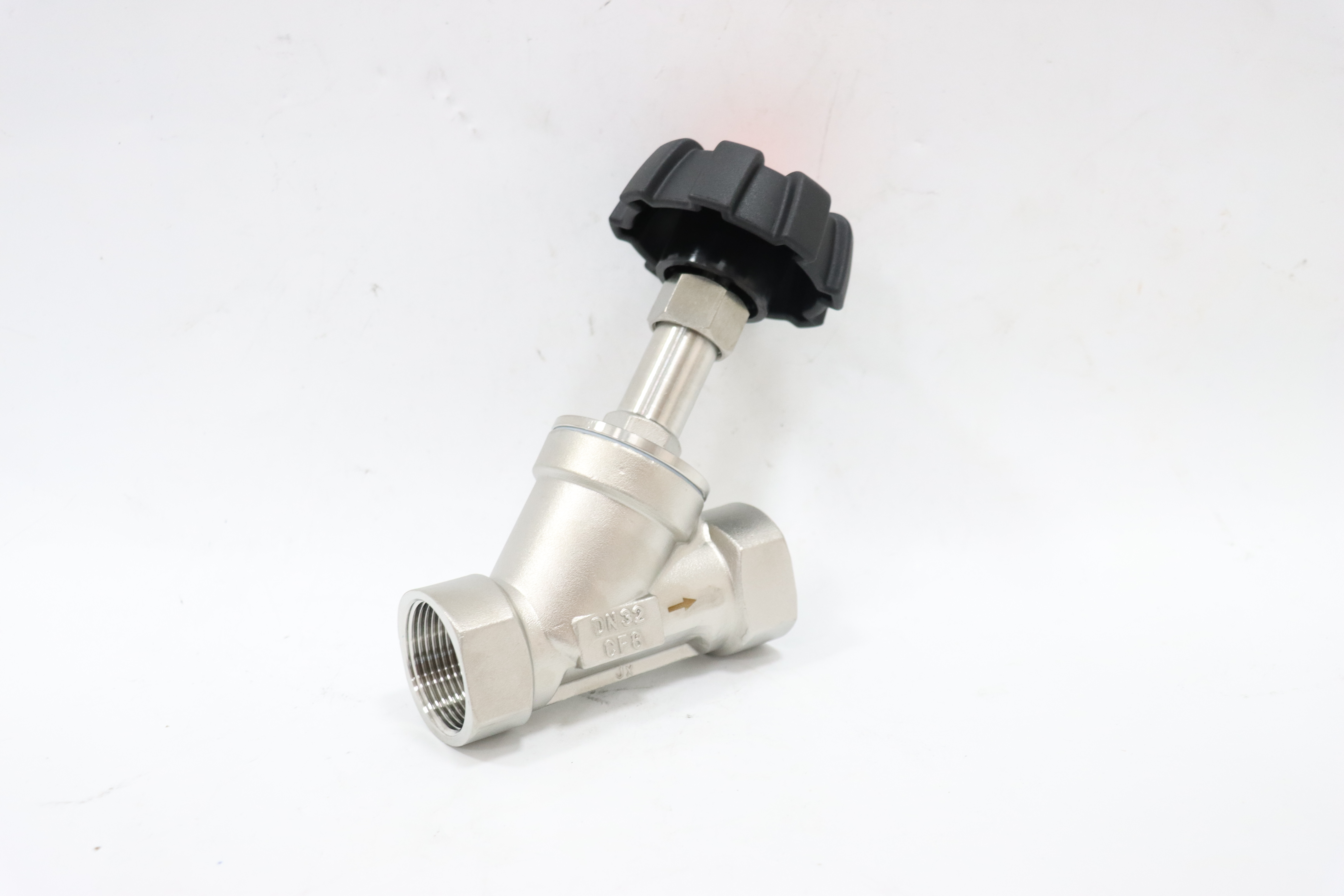

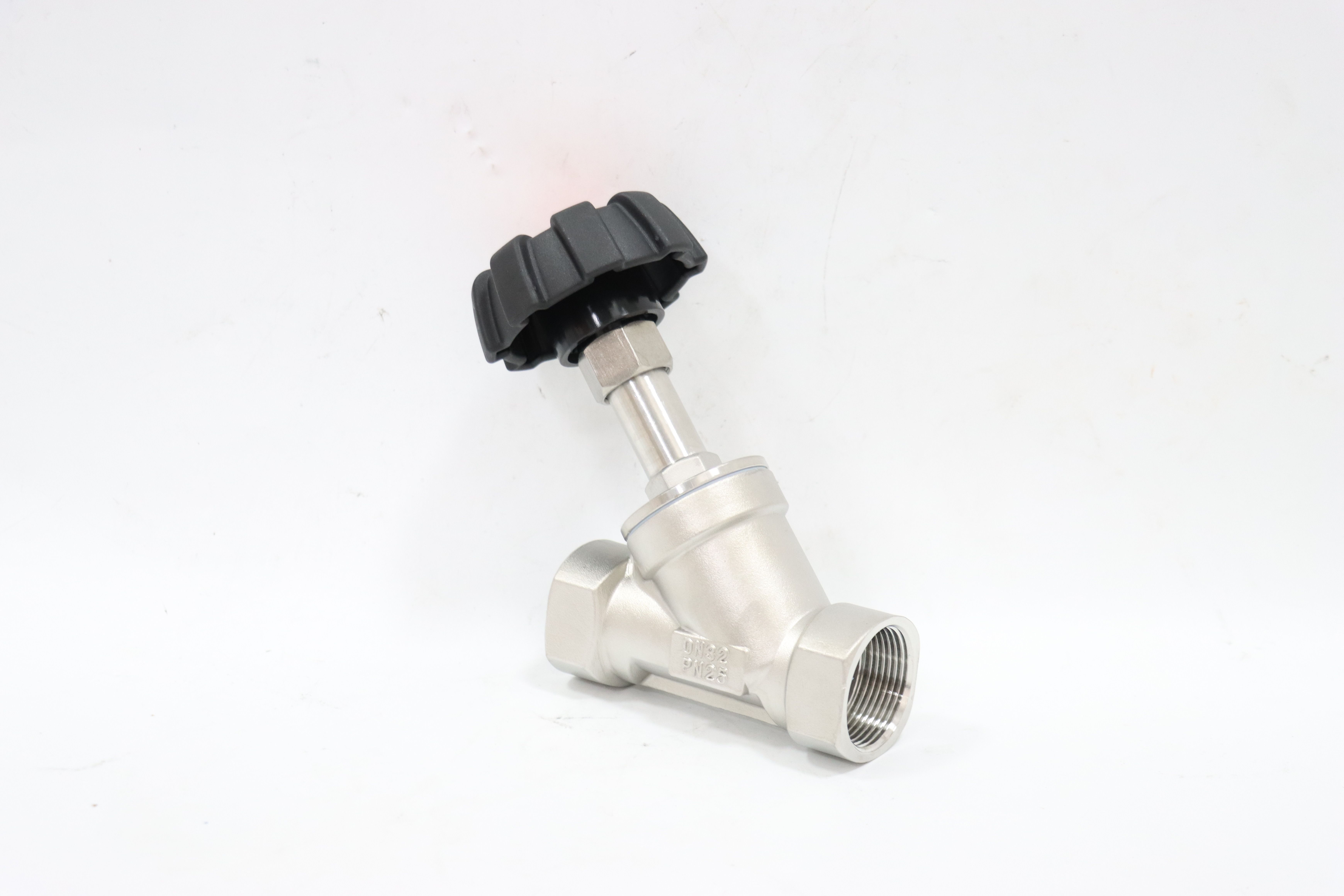

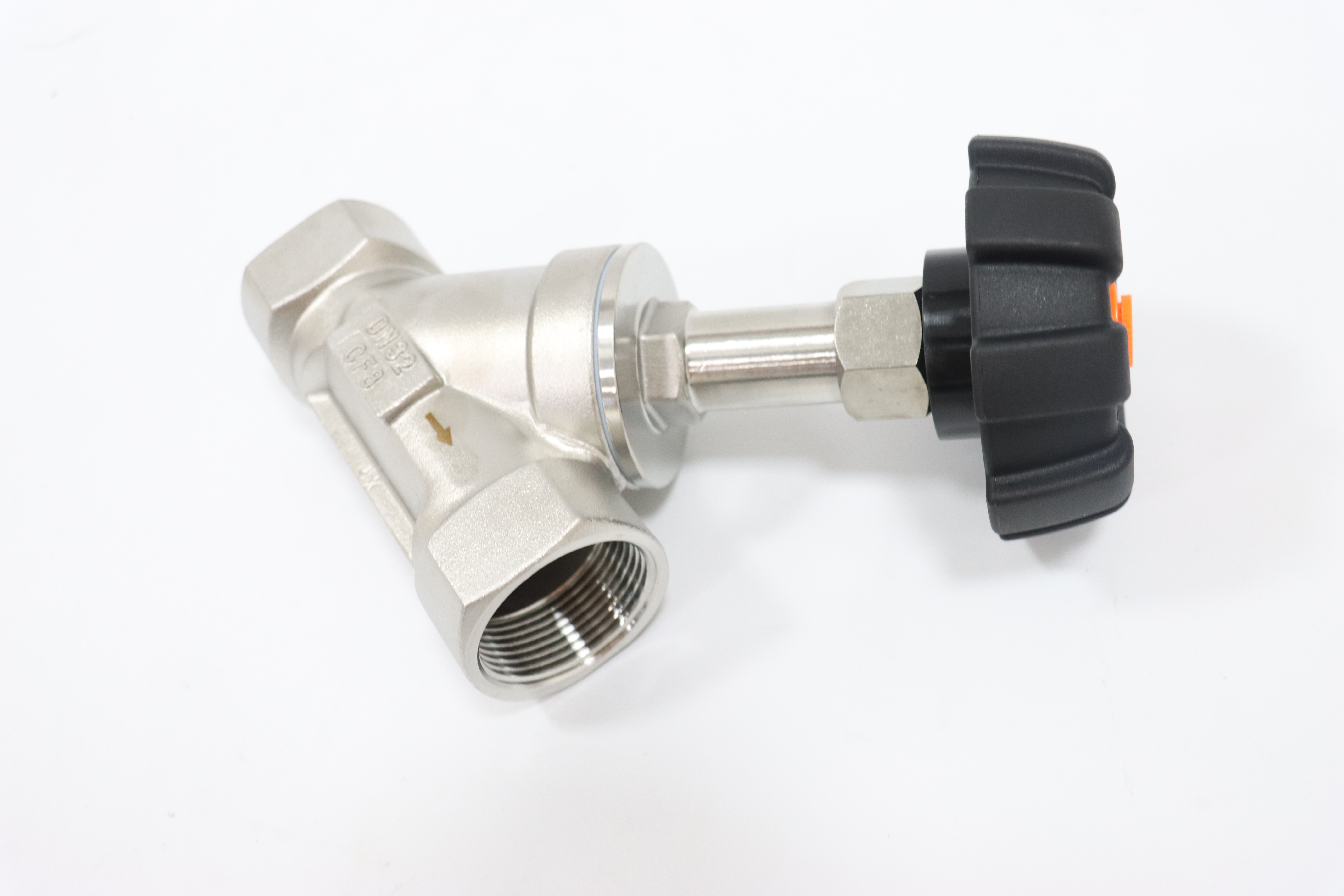

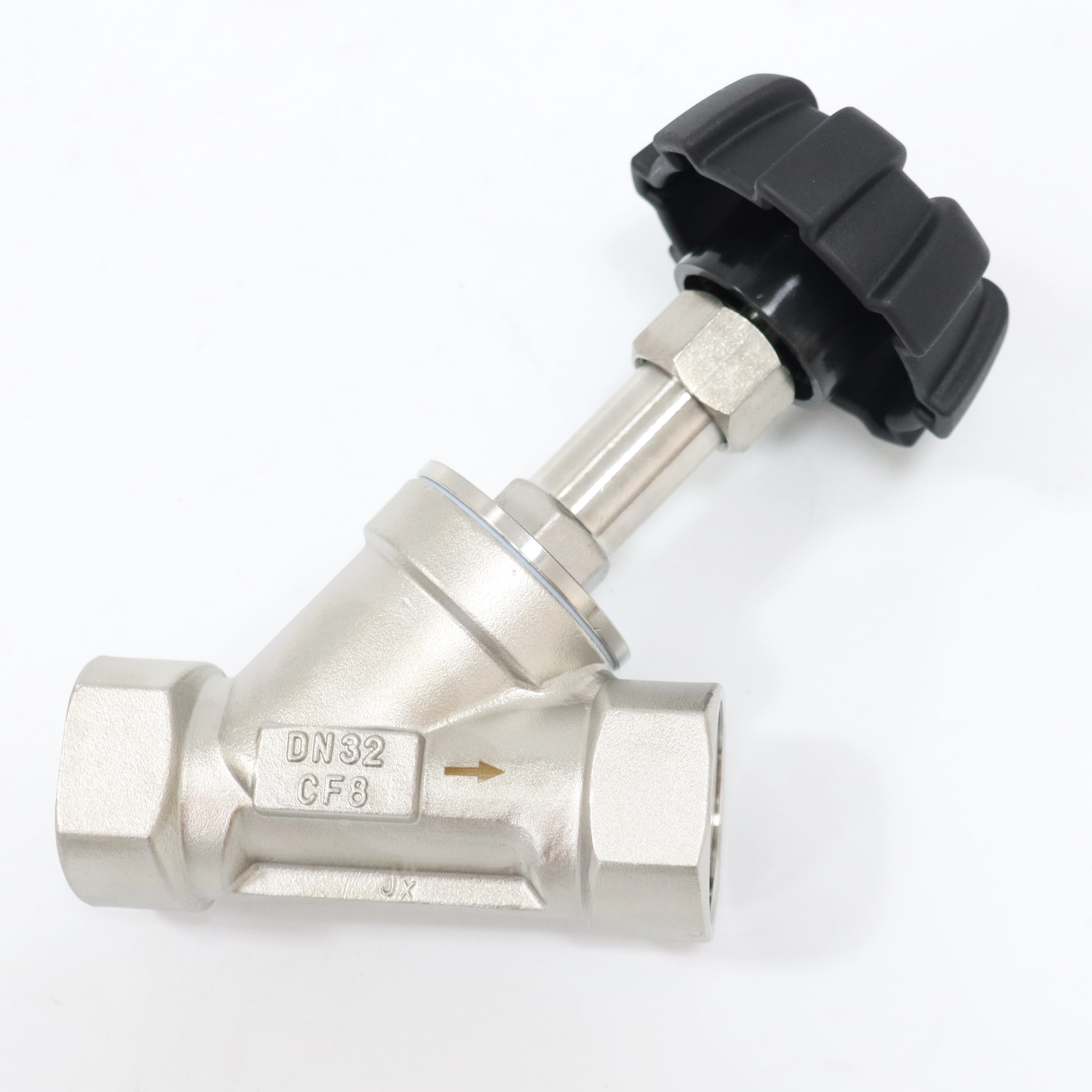

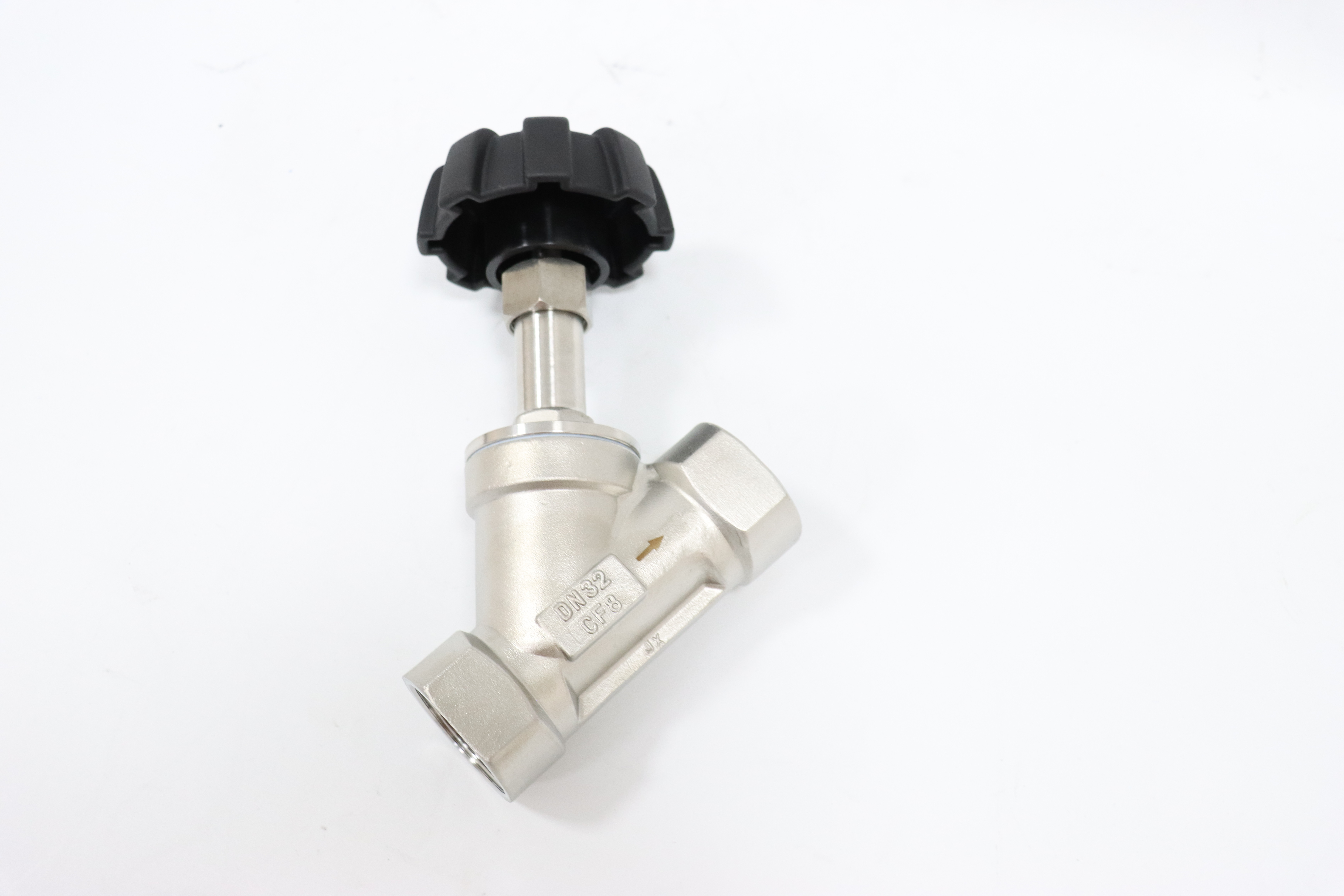

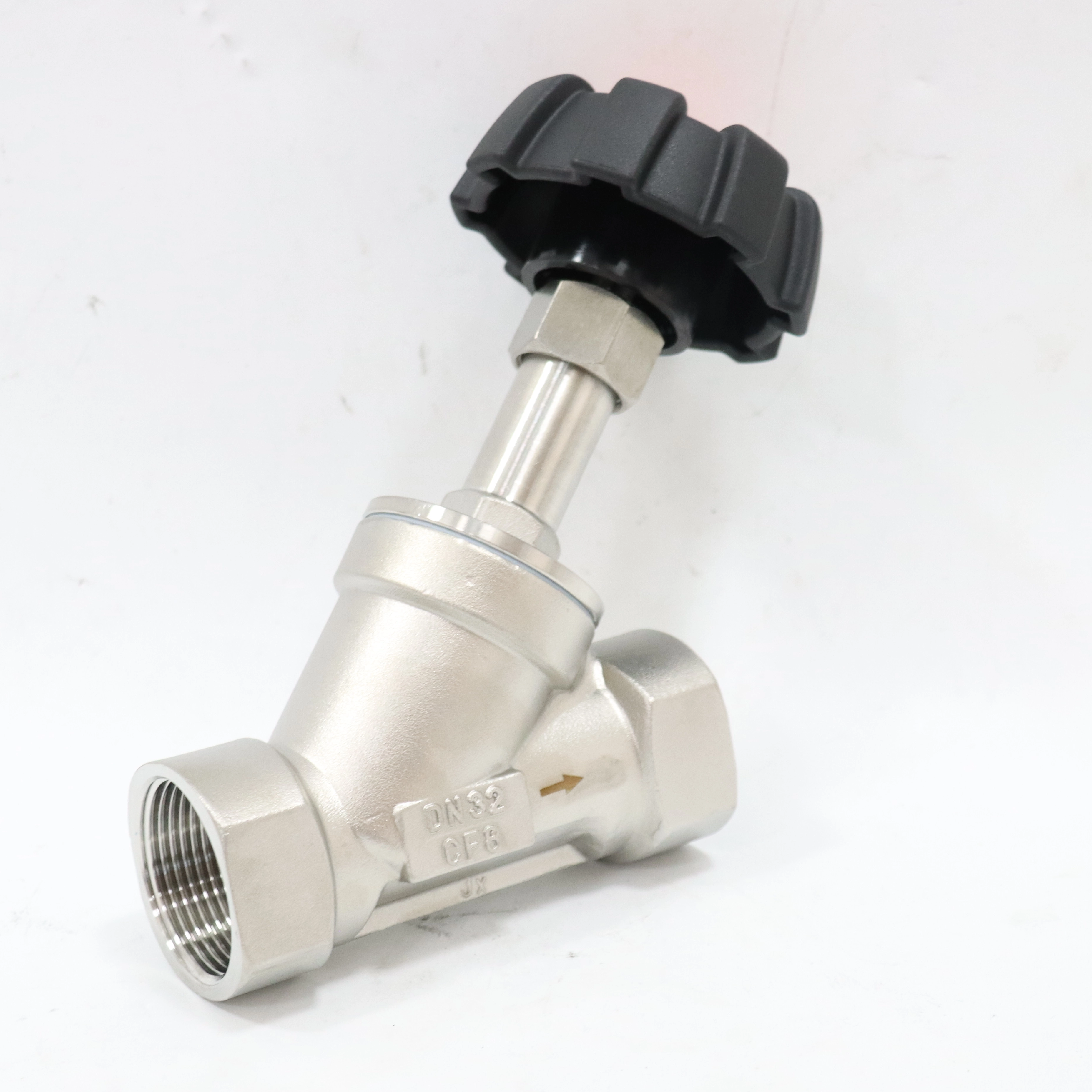

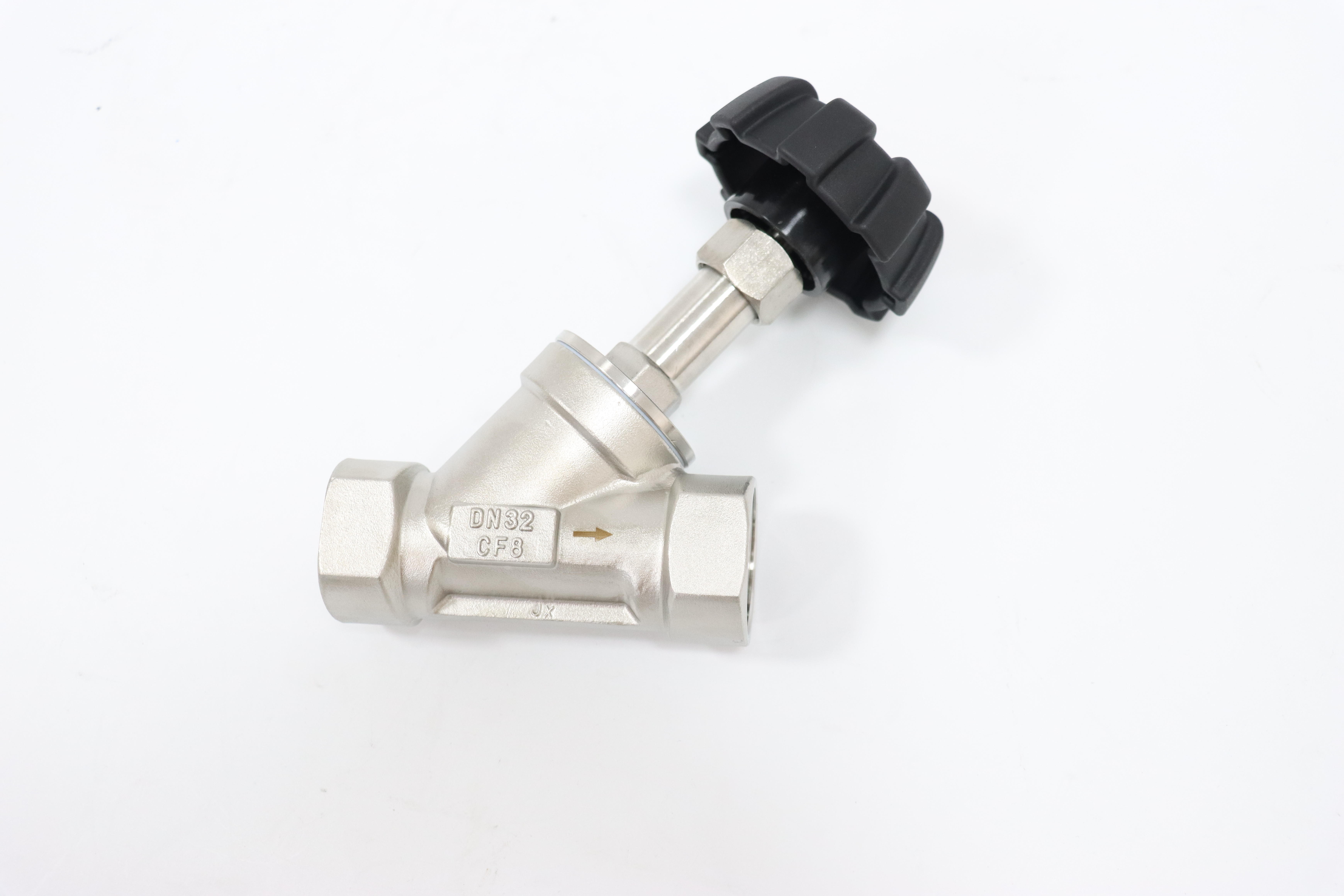

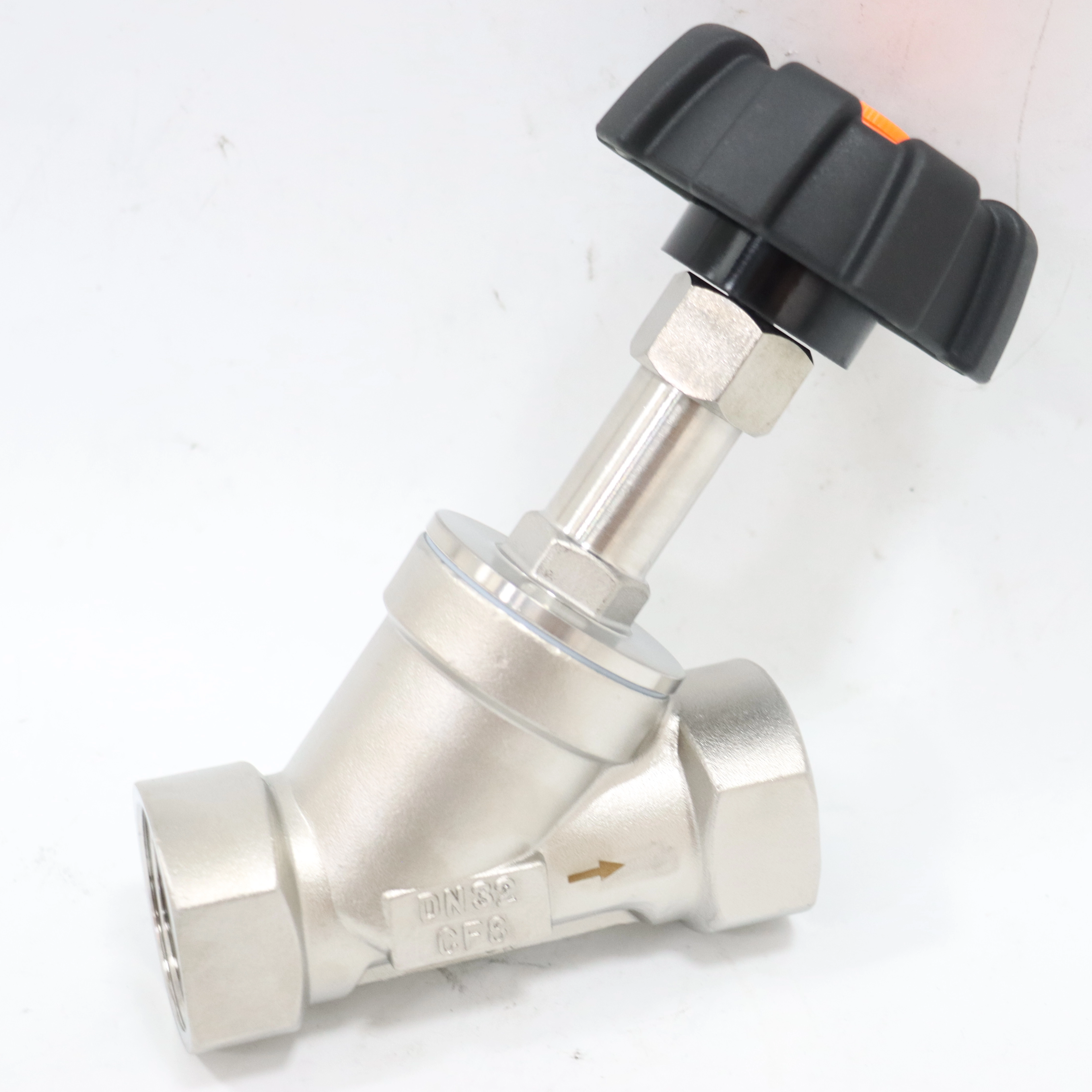

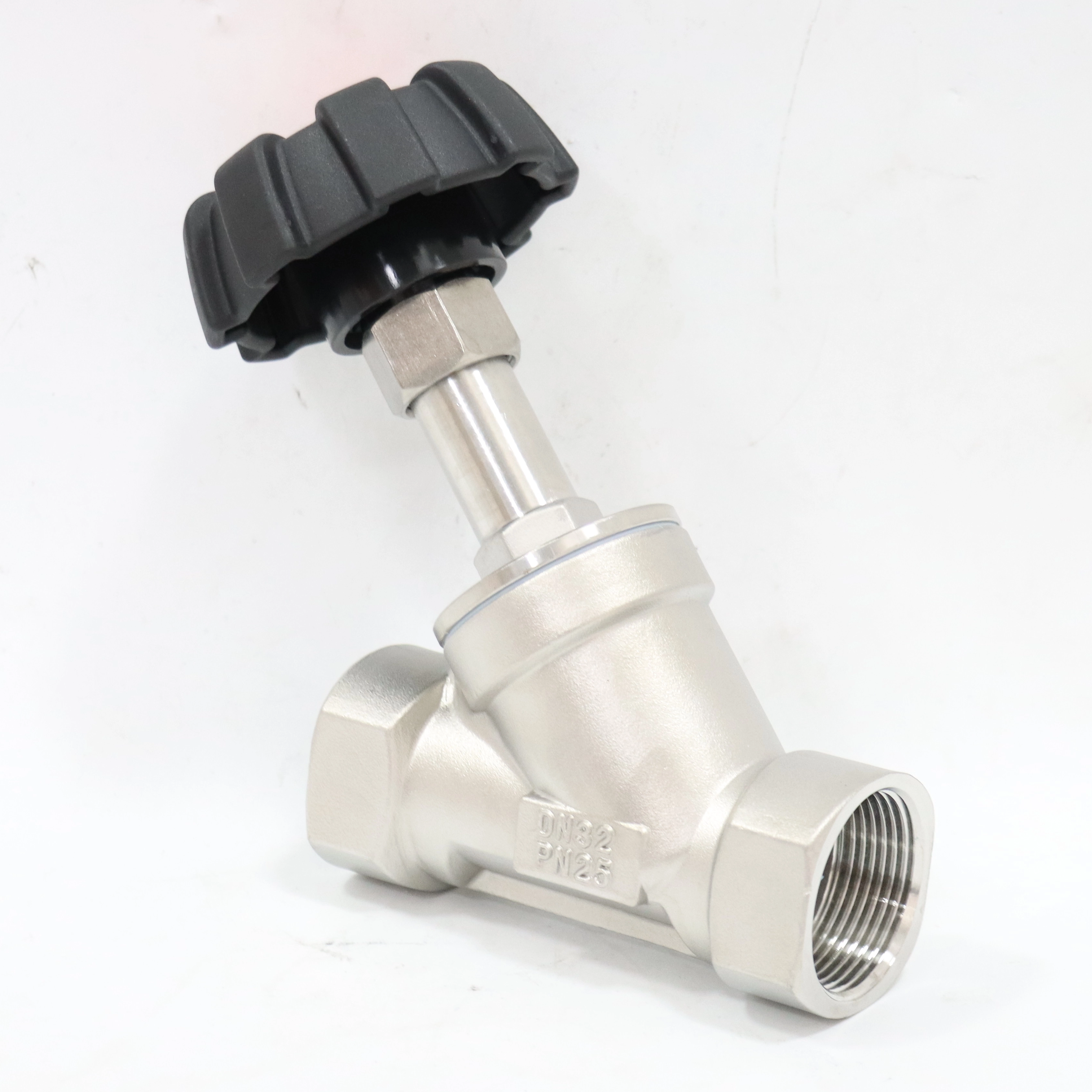

Sanitary Stainless Steel High-temperature Resistant Plastic Head Manual Threaded Angle Seat Valve
Sanitary Stainless Steel High-Temperature Resistant Plastic Head Manual Threaded Angle Seat Valve is a manually operated valve designed for controlling high-temperature fluids. Its plastic handhead reduces weight, while the threaded and angle seat design ensures smooth flow, tight sealing, and hygienic operation in sanitary systems
Working Principles
The working principle of a Sanitary Stainless Steel High-Temperature Resistant Plastic Head Manual Threaded Angle Seat Valve involves manually controlling fluid flow through an angled seat. Turning the plastic handhead moves the valve stem, lifting the plug from the seat to open the flow path and allow high-temperature fluid to pass smoothly. The angled seat reduces flow resistance and ensures efficient discharge. To stop the flow, the handhead is turned in the opposite direction, pressing the plug firmly against the seat to achieve a secure seal. The threaded connection allows easy installation or removal, while the high-temperature resistant design ensures reliable operation in sanitary systems handling hot fluids
Specification Chart
Max Working Pressure | 1.6MPa |
Medium Temperature | -10℃~+180℃ |
Ambient Temperature | -10℃~+55℃ |
Body Materials | CF8M(SS316),CF8(SS304) |
Sealing Material | PTFE |
Operation | Normally Closed, Normally Open, Double-acting or Manually |
Connection End | Female, Weld,Clamp, Flange or on request |
Size Range | DN10-DN100 |
Surface treatment | Ra 16 ~ 32µin (0.4 ~ 0.8µm) |
Standards | DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE. |
Control type | Single acting, double acting |
Features
Constructed from stainless steel with high-temperature resistance, ensuring long-lasting durability in hot fluid applications.
Plastic handhead allows lightweight, ergonomic manual operation with precise control over fluid flow.
Threaded connection enables easy installation, removal, and maintenance in sanitary piping systems.
Angle seat design ensures smooth flow, minimizes pressure loss, and promotes efficient discharge.
Hygienic polished surfaces and reliable sealing prevent leaks, supporting safe and clean operation in sanitary applications
Application
Sanitary Stainless Steel Head Manual Threaded Angle Seat Valves are widely used in the dairy and beverage industries for manually controlling milk, juice, or water flow in sanitary pipelines. They are also applied in pharmaceutical and cosmetic production for precise, hygienic flow control of liquids in small-scale or laboratory systems. Their threaded design, angle seat structure, and stainless steel construction make them suitable for applications requiring easy installation, manual operation, and compliance with strict sanitary standards
