JONENG

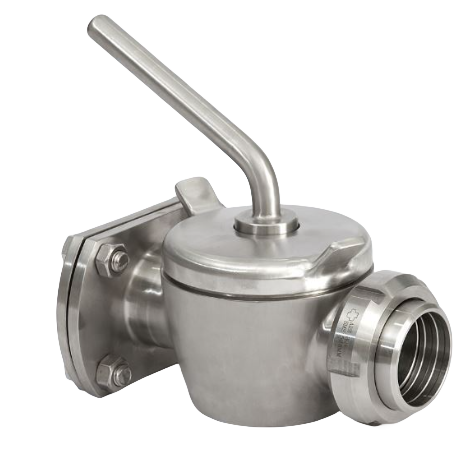

Stainless Steel High Polish 2 Way Threaded manufacturer Plug Valve
Stainless Steel High Polish 2 Way Threaded Manufacturer Plug Valve is a compact shut-off valve designed for precise on/off flow control. Its high-polish stainless steel body ensures corrosion resistance and smooth media handling, while threaded connections allow easy installation in industrial and sanitary piping systems
Working Principles
The working principle of a Stainless Steel High Polish 2 Way Threaded Manufacturer Plug Valve is based on a rotatable cylindrical or conical plug that controls flow through the valve. By turning the plug 90 degrees using a handle or actuator, the internal passage aligns with the pipeline, allowing fluid to pass, or rotates perpendicular to the flow to stop it. The high-polish stainless steel surface reduces friction, prevents media buildup, and ensures smooth operation. Threaded connections enable secure installation in piping systems. This simple yet effective design provides reliable on/off control for liquids or gases in industrial, sanitary, or high-purity applications
Stainless Steel Plug Valve Specification Chart
Working temperature | -10°C ~ 150°C |
Working Pressure | 1bar |
Working operate | Manual |
Connection end | Weld, Tri-clamped , union, male type |
Standard | DIN, 3A, RJT, SMS |
Body Material | AISI 304, AISI 316L |
Inside surface finish | Ra0.4 |
Size | DN25-DN100 , 1"-4" |
Type | 2 way, 3way:T type or L type ball core, 4 way |
Features
Constructed from high-polish stainless steel, providing excellent corrosion resistance and smooth surfaces for hygienic and industrial applications.
Two-way design allows straightforward on/off flow control with simple 90-degree rotation of the plug.
Threaded connections enable easy installation, removal, and integration into piping systems without welding.
Compact and durable structure ensures reliable performance under high pressure and frequent operation cycles.
Low-friction polished surfaces reduce media buildup, ensuring smooth operation and minimizing maintenance requirements
Application
Stainless Steel High Polish 2 Way Threaded Manufacturer Plug Valves are commonly used in chemical and petrochemical industries for precise on/off control of liquids and gases. They are also applied in food and beverage processing, pharmaceuticals, and sanitary pipelines, where corrosion resistance, smooth surfaces, and reliable sealing are essential. Their high-polish finish and threaded connections make them suitable for applications requiring easy installation, minimal maintenance, and hygienic operation
Working Principles
The working principle of a Stainless Steel High Polish 2 Way Threaded Manufacturer Plug Valve is based on a rotatable cylindrical or conical plug that controls flow through the valve. By turning the plug 90 degrees using a handle or actuator, the internal passage aligns with the pipeline, allowing fluid to pass, or rotates perpendicular to the flow to stop it. The high-polish stainless steel surface reduces friction, prevents media buildup, and ensures smooth operation. Threaded connections enable secure installation in piping systems. This simple yet effective design provides reliable on/off control for liquids or gases in industrial, sanitary, or high-purity applications
Feature and Specification
Stainless Steel Plug Valve Specification Chart
Working temperature | -10°C ~ 150°C |
Working Pressure | 1bar |
Working operate | Manual |
Connection end | Weld, Tri-clamped , union, male type |
Standard | DIN, 3A, RJT, SMS |
Body Material | AISI 304, AISI 316L |
Inside surface finish | Ra0.4 |
Size | DN25-DN100 , 1"-4" |
Type | 2 way, 3way:T type or L type ball core, 4 way |
Features
Constructed from high-polish stainless steel, providing excellent corrosion resistance and smooth surfaces for hygienic and industrial applications.
Two-way design allows straightforward on/off flow control with simple 90-degree rotation of the plug.
Threaded connections enable easy installation, removal, and integration into piping systems without welding.
Compact and durable structure ensures reliable performance under high pressure and frequent operation cycles.
Low-friction polished surfaces reduce media buildup, ensuring smooth operation and minimizing maintenance requirements
Application
Stainless Steel High Polish 2 Way Threaded Manufacturer Plug Valves are commonly used in chemical and petrochemical industries for precise on/off control of liquids and gases. They are also applied in food and beverage processing, pharmaceuticals, and sanitary pipelines, where corrosion resistance, smooth surfaces, and reliable sealing are essential. Their high-polish finish and threaded connections make them suitable for applications requiring easy installation, minimal maintenance, and hygienic operation
