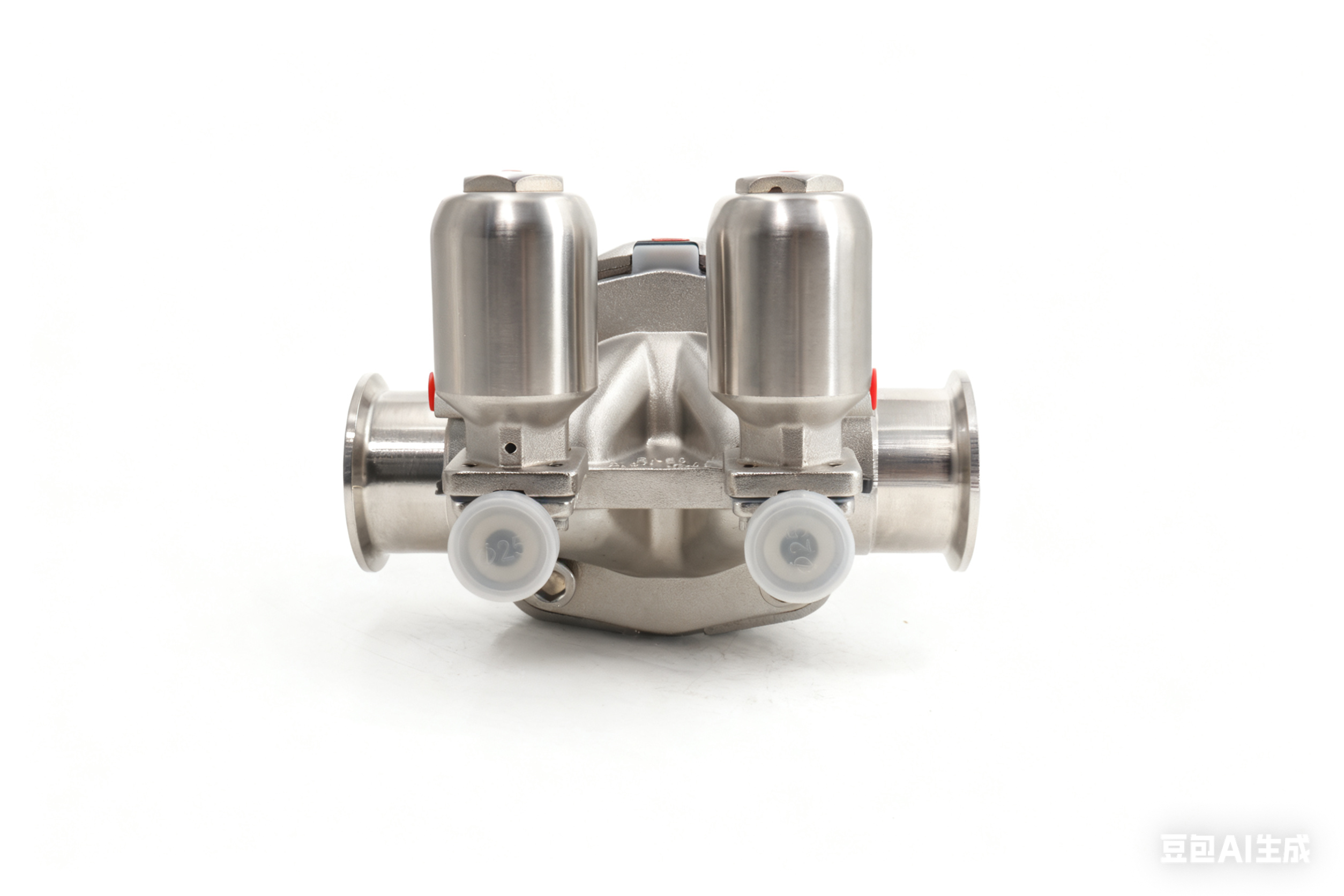

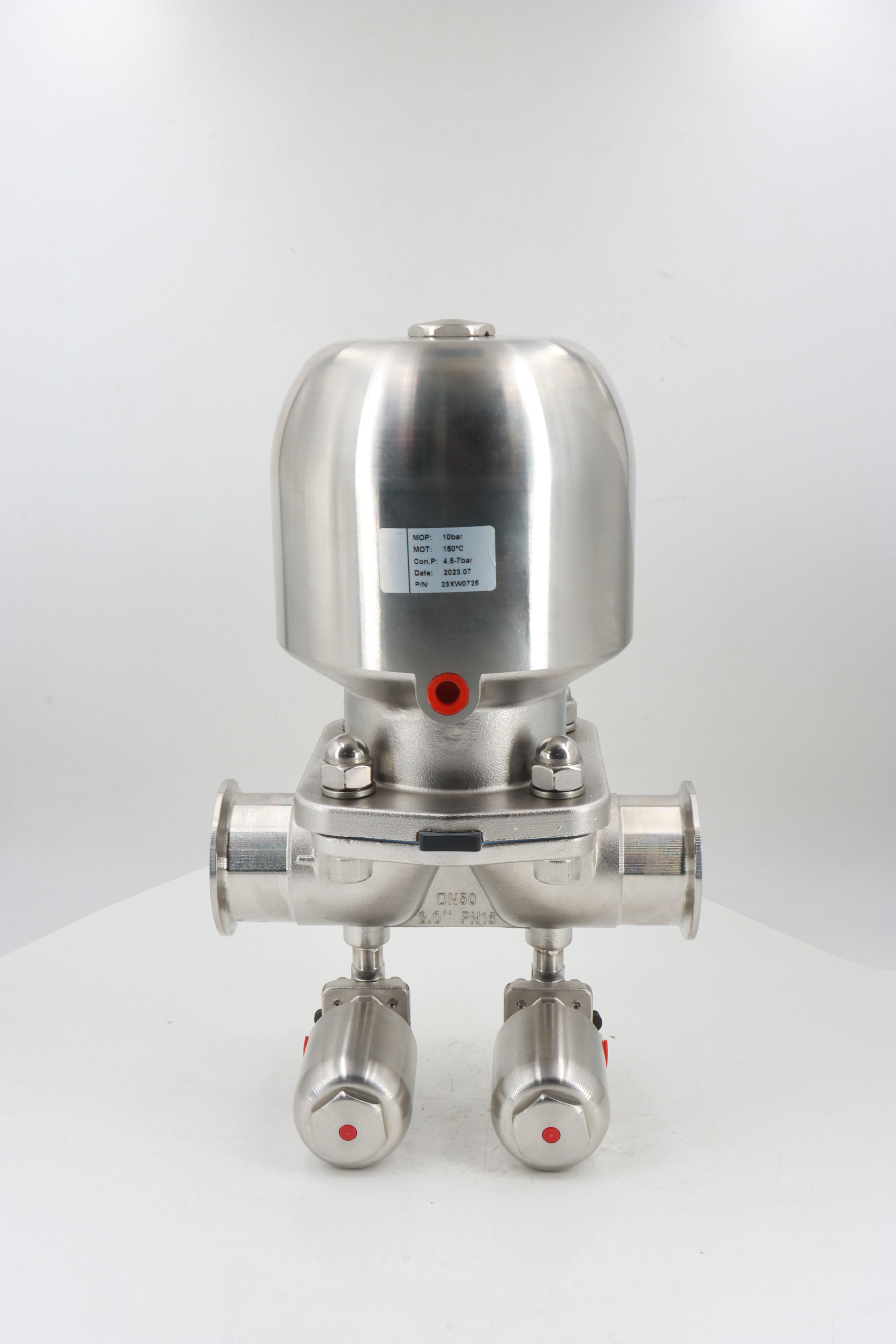

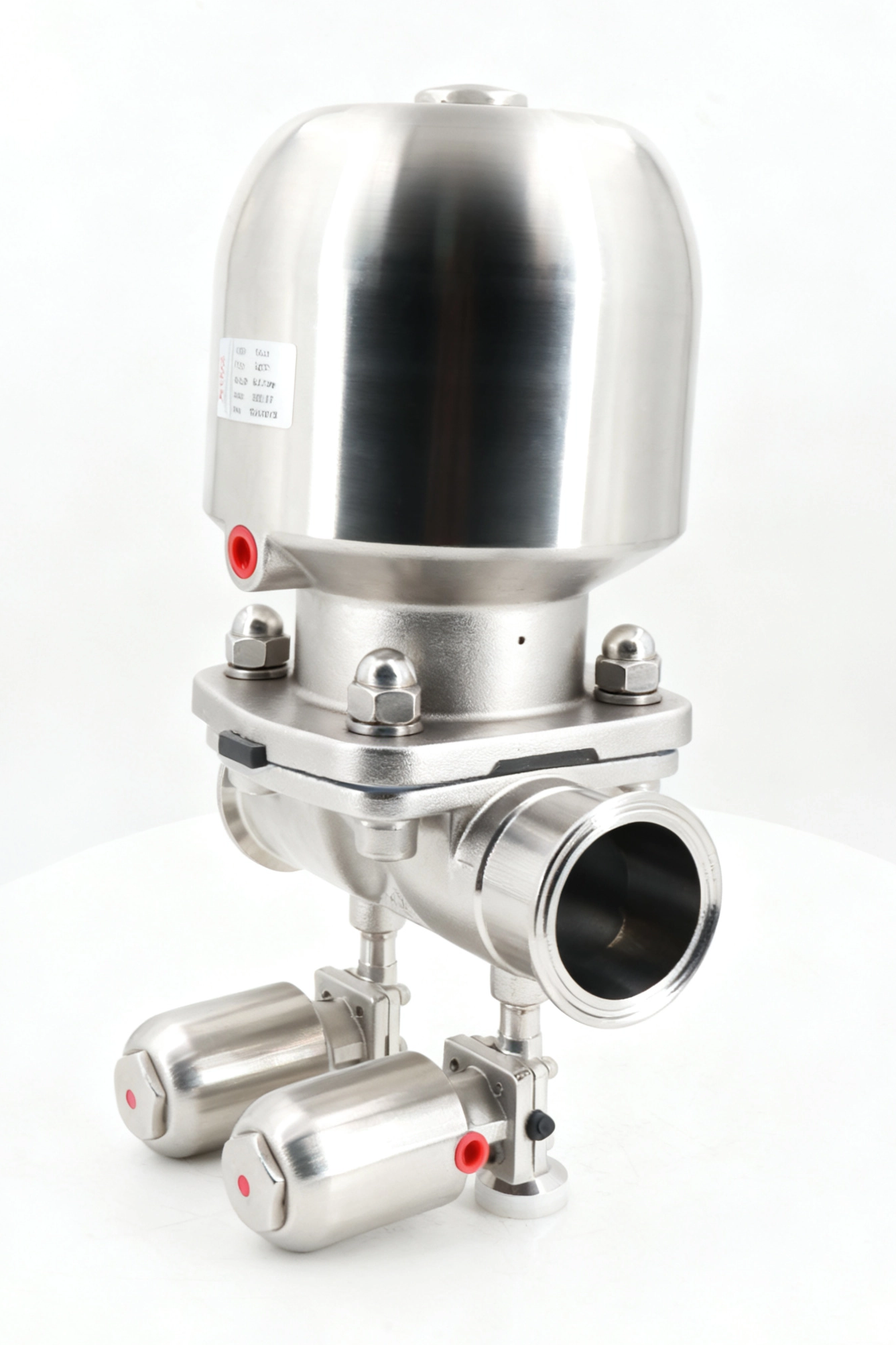

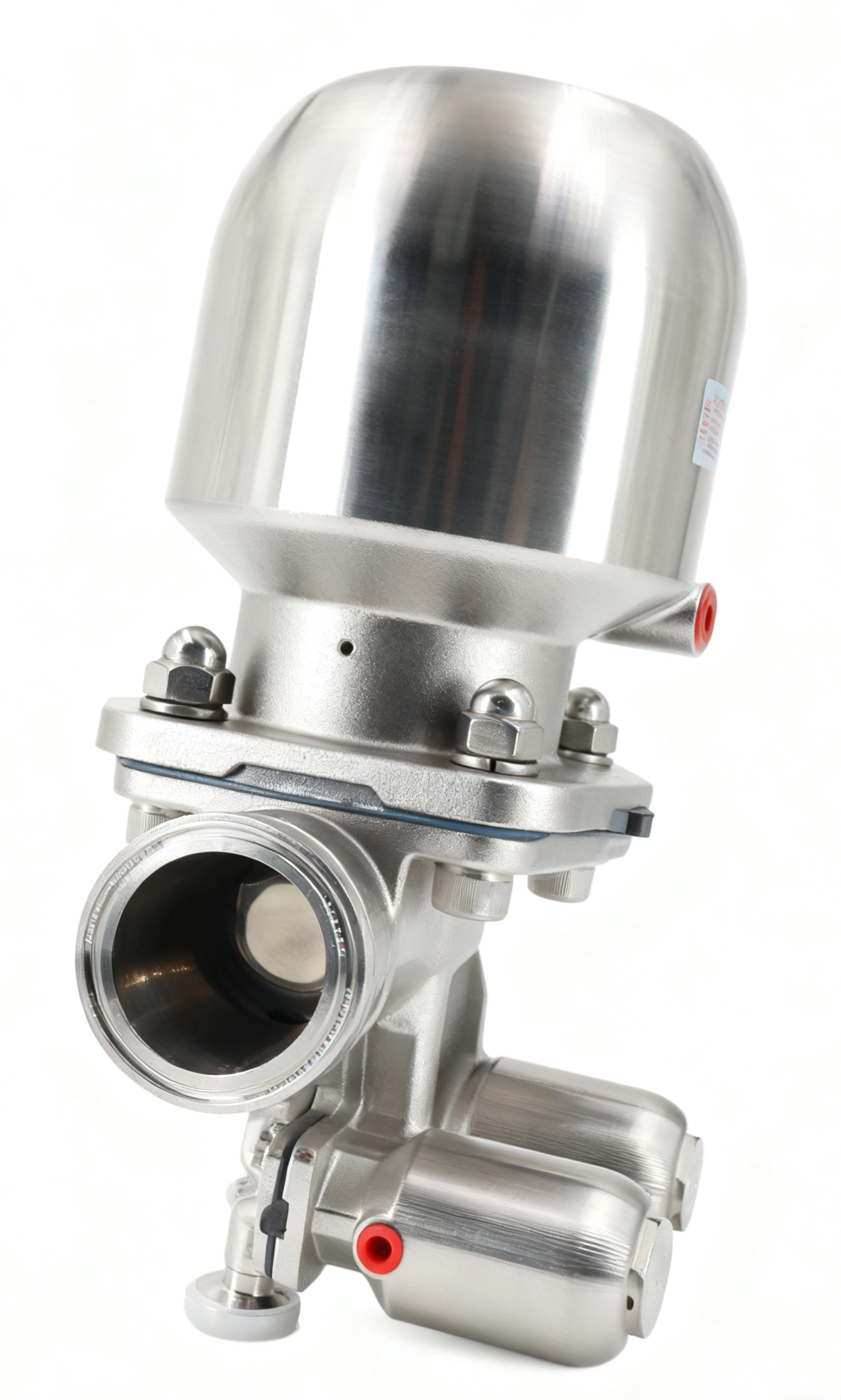

Stainless Steel Quick-Installation Welded Threaded Pneumatic gemu Diaphragm Valve
The Stainless Steel Quick-Installation Welded Threaded Pneumatic Gemu Diaphragm Valve is an automated valve with a pneumatic actuator. Its welded or threaded connections allow fast installation, while the diaphragm ensures leak-free, reliable flow control in sanitary or industrial fluid systems
Working Principles
The Stainless Steel Quick-Installation Welded Threaded Pneumatic Gemu Diaphragm Valve operates using a pneumatic actuator that converts compressed air into mechanical motion to control the diaphragm. When air pressure is applied, the actuator pushes or lifts the diaphragm, opening or closing the flow path. The diaphragm forms a tight seal against the valve seat, preventing leaks and ensuring hygienic or controlled fluid handling. Its quick-installation welded or threaded connections allow easy integration into piping systems. This design provides rapid response, smooth flow regulation, and reliable shutoff, making it suitable for sanitary, food, pharmaceutical, and industrial process applications
Stainless Steel Diaphragm Valve Specification Chart
| Parameter | Specification |
|---|---|
| Material | Stainless Steel 304 / 316L |
| Valve Type | Pneumatic Diaphragm Valve, Welded / Threaded, Quick-Installation |
| Actuator Type | Pneumatic Double-Acting or Spring-Return |
| Control Signal | 0.2–1.0 MPa Air Pressure |
| Flow Characteristic | Linear / Equal Percentage |
| Connection Type | Welded or Threaded (Sanitary Standard) |
| Pressure Rating | Up to 10 bar (depending on size and model) |
| Temperature Range | -10°C to 150°C (diaphragm dependent) |
| Diaphragm Material | PTFE / EPDM / FDA-compliant options |
| Response Time | 1–3 seconds (actuator dependent) |
| Applications | Food, Pharmaceutical, Biotech, High-purity and Industrial Systems |
Features
Pneumatic Actuation – Uses compressed air for fast, automated opening and closing, reducing manual intervention and improving process efficiency.
Diaphragm Seal Design – Ensures leak-free operation and maintains hygienic flow, suitable for liquids, gases, or mildly corrosive media.
Quick-Installation Connections – Welded or threaded ends allow rapid assembly and flexible integration into piping systems.
Stainless Steel Construction – Durable and corrosion-resistant, ideal for sanitary, food, pharmaceutical, and industrial applications.
Rapid and Stable Response – Provides smooth, reliable flow control with minimal hysteresis and high precision.
Hygienic and Easy to Clean – Smooth, crevice-free surfaces reduce contamination risk and support clean-in-place (CIP) processes
Application
The Stainless Steel Quick-Installation Welded Threaded Pneumatic Gemu Diaphragm Valve is widely used in industries requiring automated and hygienic flow control. Typical applications include food and beverage processing, pharmaceutical and biotechnology production, chemical processing, and high-purity water systems, where rapid response, leak-free operation, and sanitary performance are essential
Working Principles
The Stainless Steel Quick-Installation Welded Threaded Pneumatic Gemu Diaphragm Valve operates using a pneumatic actuator that converts compressed air into mechanical motion to control the diaphragm. When air pressure is applied, the actuator pushes or lifts the diaphragm, opening or closing the flow path. The diaphragm forms a tight seal against the valve seat, preventing leaks and ensuring hygienic or controlled fluid handling. Its quick-installation welded or threaded connections allow easy integration into piping systems. This design provides rapid response, smooth flow regulation, and reliable shutoff, making it suitable for sanitary, food, pharmaceutical, and industrial process applications
Feature and Specification
Stainless Steel Diaphragm Valve Specification Chart
| Parameter | Specification |
|---|---|
| Material | Stainless Steel 304 / 316L |
| Valve Type | Threaded Diaphragm, Proportional Regulating |
| Actuator Type | Electric or Pneumatic Proportional Actuator |
| Control Signal | 4–20 mA (Electric) / 0.2–1.0 MPa (Pneumatic) |
| Flow Characteristic | Linear / Equal Percentage |
| Connection Type | Threaded (Sanitary Standard) |
| Pressure Rating | Up to 10 bar (depends on size) |
| Temperature Range | -10°C to 150°C (diaphragm dependent) |
| Diaphragm Material | PTFE / EPDM / FDA-compliant options |
| Response Time | 1–3 seconds (actuator dependent) |
| Applications | Food, Pharmaceutical, Biotech, High-purity Systems |
Features
Pneumatic Actuation – Uses compressed air for fast, automated opening and closing, reducing manual intervention and improving process efficiency.
Diaphragm Seal Design – Ensures leak-free operation and maintains hygienic flow, suitable for liquids, gases, or mildly corrosive media.
Quick-Installation Connections – Welded or threaded ends allow rapid assembly and flexible integration into piping systems.
Stainless Steel Construction – Durable and corrosion-resistant, ideal for sanitary, food, pharmaceutical, and industrial applications.
Rapid and Stable Response – Provides smooth, reliable flow control with minimal hysteresis and high precision.
Hygienic and Easy to Clean – Smooth, crevice-free surfaces reduce contamination risk and support clean-in-place (CIP) processes
Application
The Stainless Steel Quick-Installation Welded Threaded Pneumatic Gemu Diaphragm Valve is widely used in industries requiring automated and hygienic flow control. Typical applications include food and beverage processing, pharmaceutical and biotechnology production, chemical processing, and high-purity water systems, where rapid response, leak-free operation, and sanitary performance are essential
