JONENG
8481804090

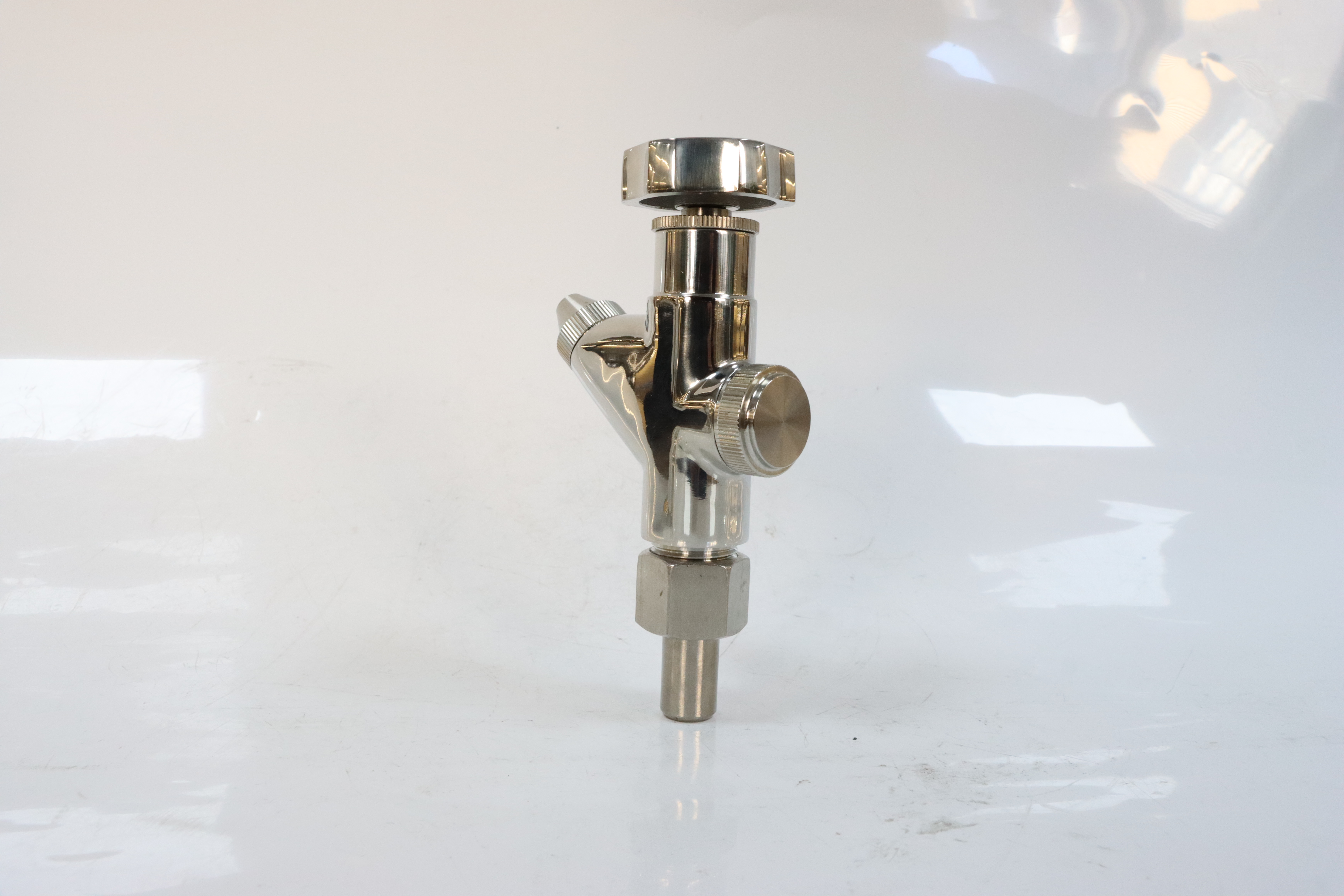

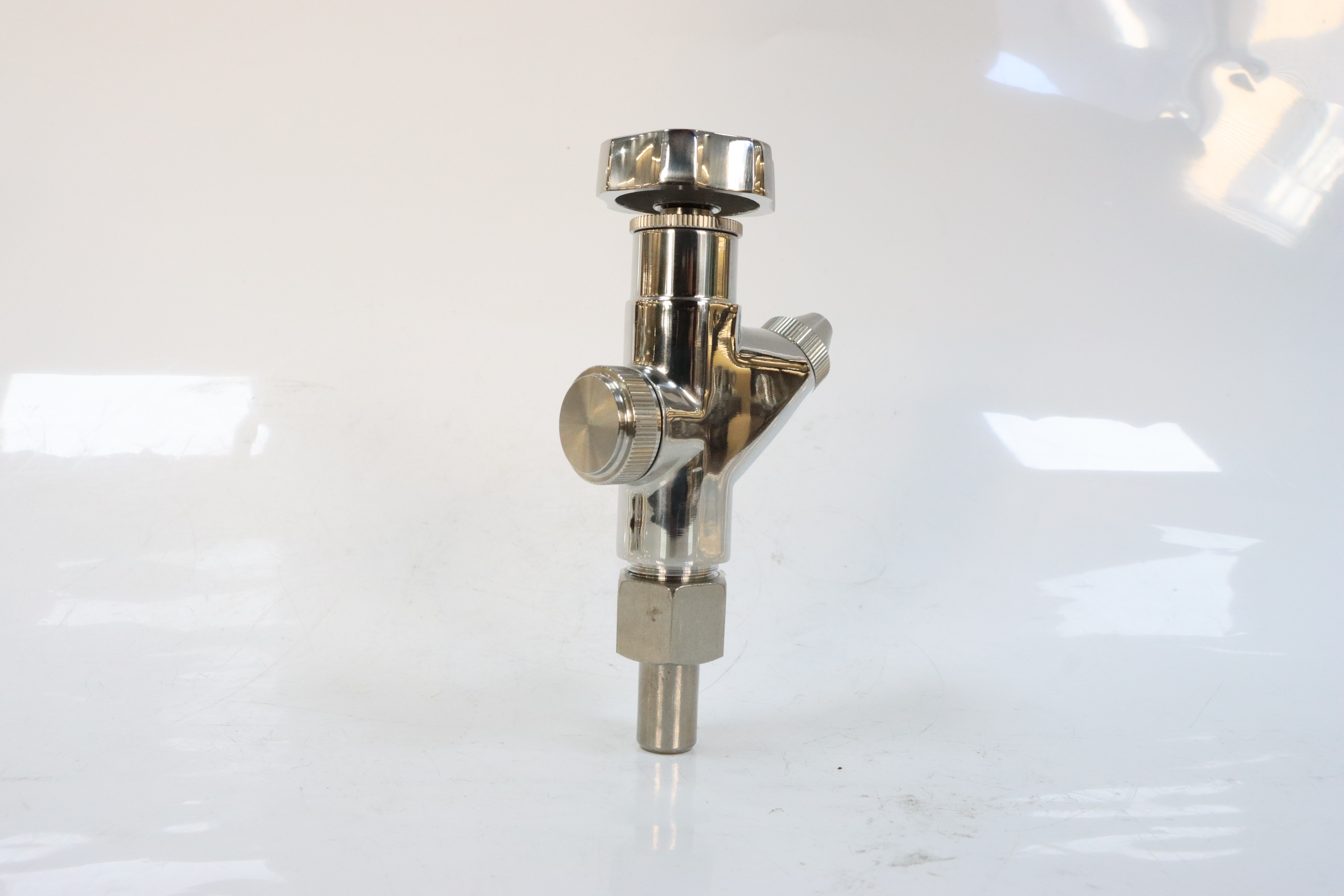

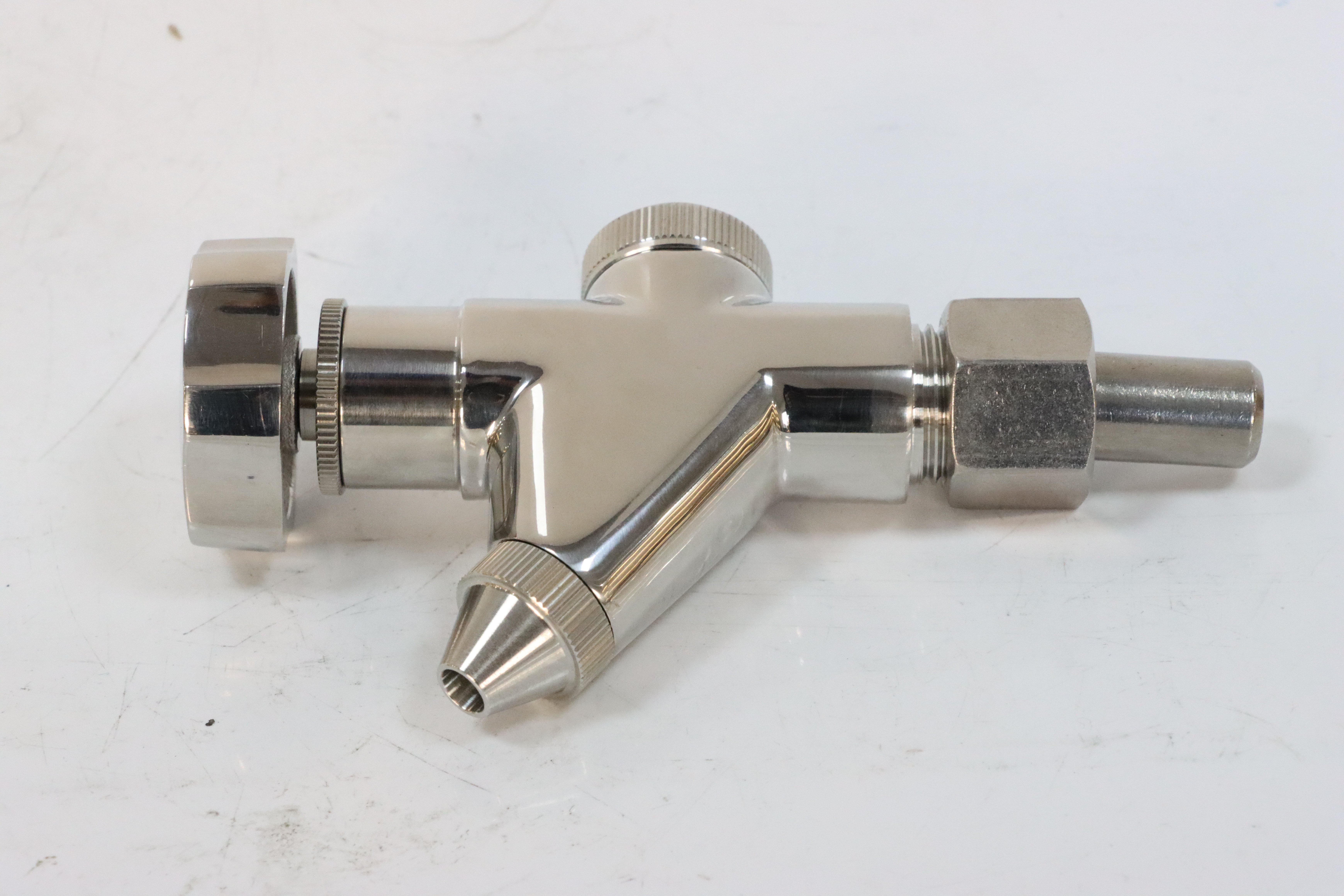

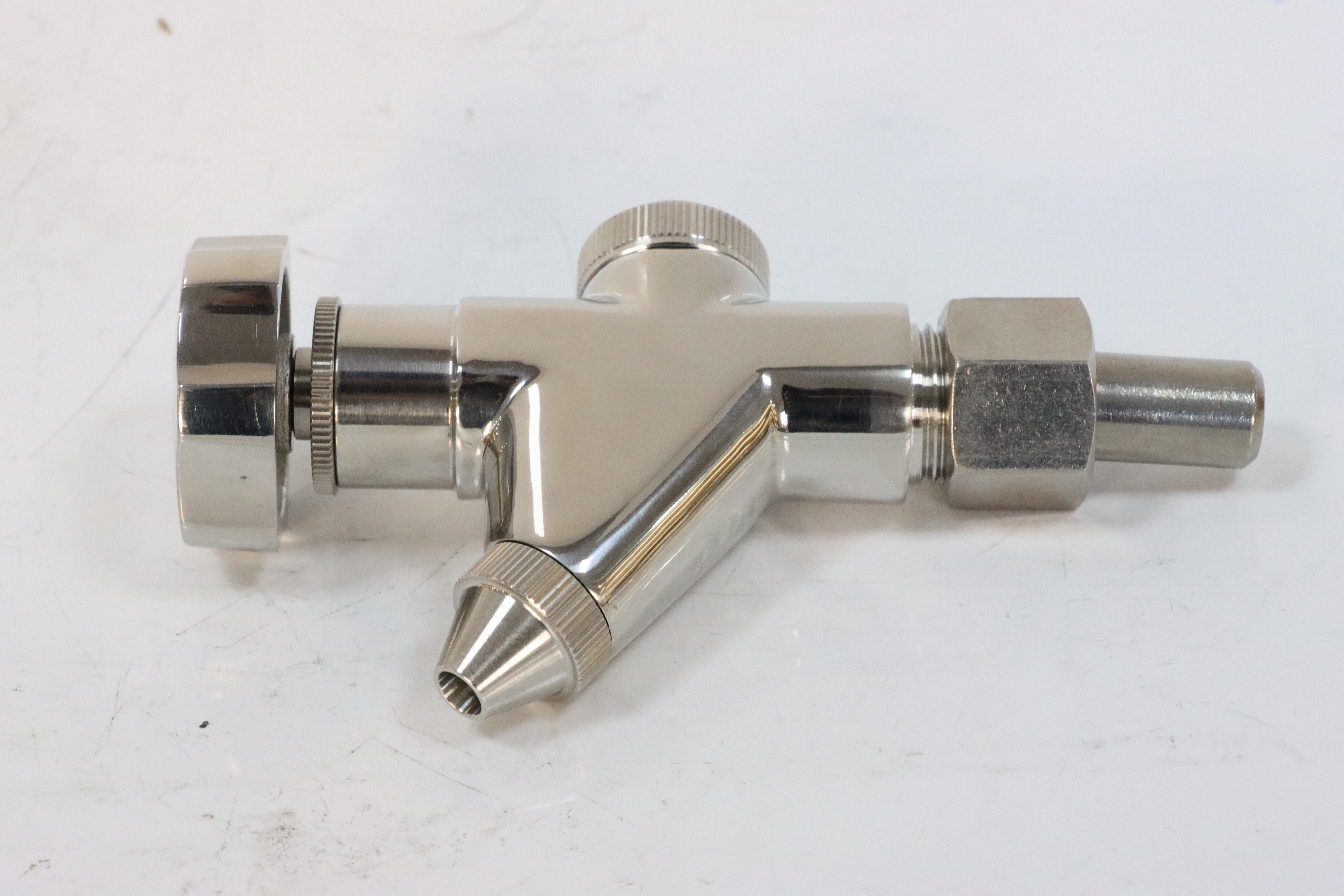

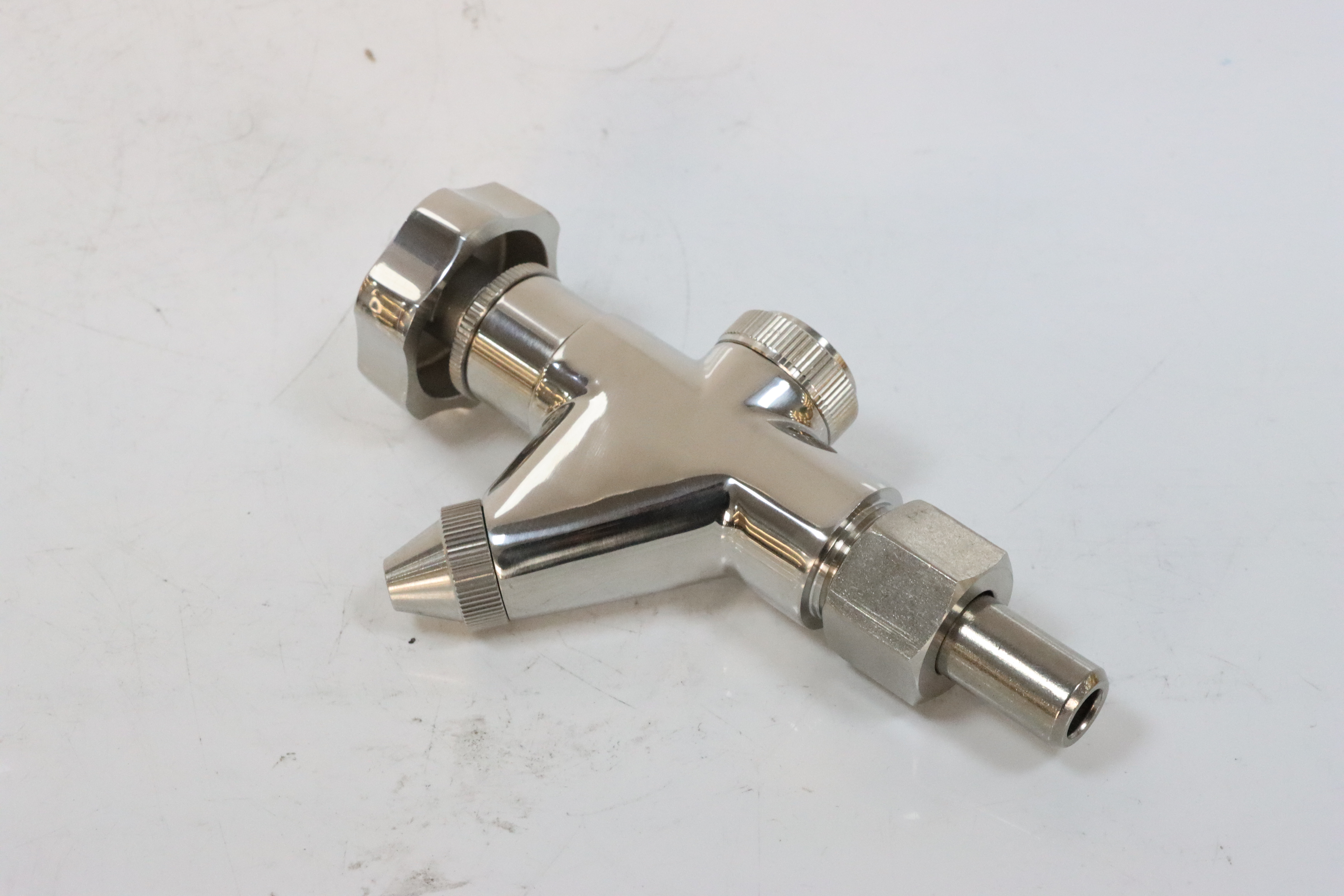

Stainless Steel Sanitary European Pfa Lined Oil Sampling Valve
Stainless Steel Sanitary European PFA Lined Oil Sampling Valve is a hygienic sampling valve designed for precise oil and fluid extraction. It features a corrosion-resistant stainless steel body with a smooth PFA lining, ensuring chemical compatibility, clean sampling performance, and compliance with strict European sanitary standards
Working Principles
The Stainless Steel Sanitary European PFA Lined Oil Sampling Valve operates by using a manually or pneumatically actuated mechanism to control a sealed sampling channel. Under normal conditions, the valve remains closed, with the PFA lining isolating the process medium from the metal body to prevent contamination and corrosion. When sampling is required, the actuator opens the internal plug or diaphragm, allowing a controlled amount of oil to flow through the hygienic outlet. The smooth PFA-lined passage ensures low adhesion and easy cleaning, while maintaining chemical stability at elevated temperatures. After sampling, the valve returns to the closed position, restoring a tight seal and ensuring safe, sanitary operation without leakage or product loss
Stainless Steel Sampling Valve Specification Chart
Size | 1/2",1-1/2" |
Connections | thread,clamp,weld |
Max.pressure | 10bar 145psi |
Min.pressure | Vacuum |
Temperature | -10℃ 50 F-120℃/248℃ |
Standard | 3A,ISO,DIN |
Body material | AISI1304, AISI316L |
Seal material | PTFE |
USAGR | Handle quick-opening type, handle wheel fine-turning type, pneumatic and hand-gas integrated four open mode |
Features
PFA-lined internal surfaces provide excellent chemical resistance and prevent oil contamination, ensuring stable performance when handling aggressive or high-purity lubricants under sanitary processing conditions.
Sanitary stainless steel body features smooth finishes and crevice-free construction, supporting hygienic operation, easy cleaning, and full compliance with European sanitary standards.
Precise sampling mechanism allows controlled, repeatable oil extraction without interrupting the main process flow or causing pressure fluctuations in the pipeline.
Leak-tight sealing design ensures safe operation during sampling, minimizing product loss while protecting operators and surrounding equipment from spills or exposure.
Application
The stainless steel sanitary European PFA lined oil sampling valve is widely used in industries requiring clean and accurate oil analysis. Typical applications include pharmaceutical manufacturing for sampling process oils, food and beverage plants for edible oil quality control, chemical processing facilities handling corrosive lubricants, and biotechnology laboratories where contamination-free sampling is essential for safety and compliance.
