The stainless steel sanitary three-pin clamp is a connector used in pipeline systems. Its design ensures stronger sealing and stability. It is especially suitable for industries with high hygiene requirements and has the characteristics of vibration resistance and high pressure resistance. The stainless steel sanitary three-pin clamp is mainly used in pipeline systems in the food, beverage, pharmaceutical and other industries. It is usually installed at the connection parts of the pipeline, such as the inlet and outlet of the pipeline, branch points or connections with equipment. Standard three-pin clamp, heavy-duty three-pin clamp, light three-pin clamp, high-temperature three-pin clamp, low-temperature three-pin clamp, quick-release three-pin clamp.
JONENG
8481804090

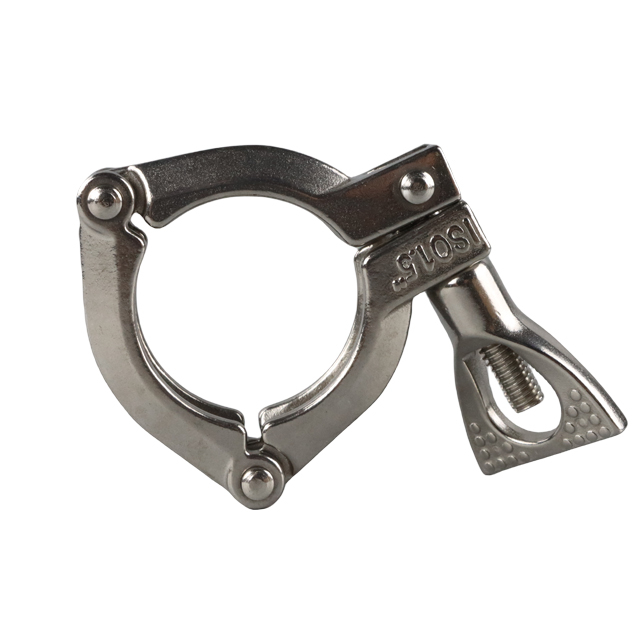

Stainless Steel Sanitary High Performance Adjustable Three-pin Clamp
The stainless steel sanitary three-pin clamp is designed to provide more efficient and reliable pipeline connections than traditional clamps. Through the three-point locking mechanism, it can provide a long-lasting and stable seal in high-pressure, high-flow and vibration environments to prevent the pipe joints from loosening or leaking. This design is particularly suitable for industries that require frequent disassembly and assembly and have
Working Principles
The working principle of the stainless steel sanitary three-pin clamp is based on a three-point locking structure. When in use, the pipe ports at both ends of the clamp are tightly surrounded by the clamp ring, and the sealing ring ensures a tight seal at the pipe connection. During installation, the clamp ring is locked by three locking pins to firmly connect the two ends of the pipe. As the locking pins are locked, the clamp ring and the pipe contact surface generate uniform pressure to ensure that the connection part will not loosen or leak due to pipe vibration, pressure changes or temperature fluctuations. The use of stainless steel sanitary three-pin clamps is highly adaptable and can flexibly respond to various pipe connection requirements and provide more precise solutions.
The options of stainless steel sanitary three-pin clamps include:
Clamp material: such as 304, 316L stainless steel.
Seal ring material: silicone, fluororubber, EPDM, etc.
Connection method: such as quick-disassembly type or fixed type.
Dimensions: customized according to pipe diameter and flow requirements.
Surface treatment: such as polishing or electrolytic treatment to improve corrosion resistance.
Specification Chart
Size | ½ " to 12 " |
Material | AISI 304，AISI201,SS201 |
Gasket | Silicone, PTFE, EPDM, viton |
Made from precise casting | |
Features
● The stainless steel sanitary three-pin clamp adopts a unique three-point locking design, and forms a firm connection structure through three locking pins.
● The locking pin and contact surface design of the stainless steel sanitary three-pin clamp can adjust the contact angle to meet the actual needs of different pipeline interfaces.
● The inner and outer sealing structure of the stainless steel sanitary three-pin clamp adopts a double sealing ring design to ensure good sealing even in the case of pipeline vibration or temperature fluctuations
● The circumferential distribution of the locking pin and the clamp ring of the stainless steel sanitary three-pin clamp is precisely optimized to ensure that the pressure is evenly distributed throughout the clamp joint.
● The design of the stainless steel sanitary three-pin clamp allows the locking pin to automatically adjust the tightening force to maintain the sealing effect when the pipeline temperature or pressure fluctuates.
● The stainless steel sanitary three-pin clamp adopts an anti-falling design, and the connection between the locking pin and the clamp is prevented from falling off under extreme conditions by a special mechanism.
Application
Stainless steel sanitary three-pin clamps are widely used in the following industries: Food processing industry: ensure the hygiene of pipeline connections and prevent contamination. Pharmaceutical industry: used in aseptic production environments to ensure drug safety. Dairy industry: connect equipment to ensure milk processing hygiene. Beverage industry: used for filling lines to keep beverages pure. Cosmetics industry: connect production equipment to ensure product hygiene. Brewing industry: used in wine production lines to ensure the purity of wine. Chemical industry: used for connecting pipelines for corrosive media. Water treatment industry: used for pure water treatment systems to ensure water quality.
