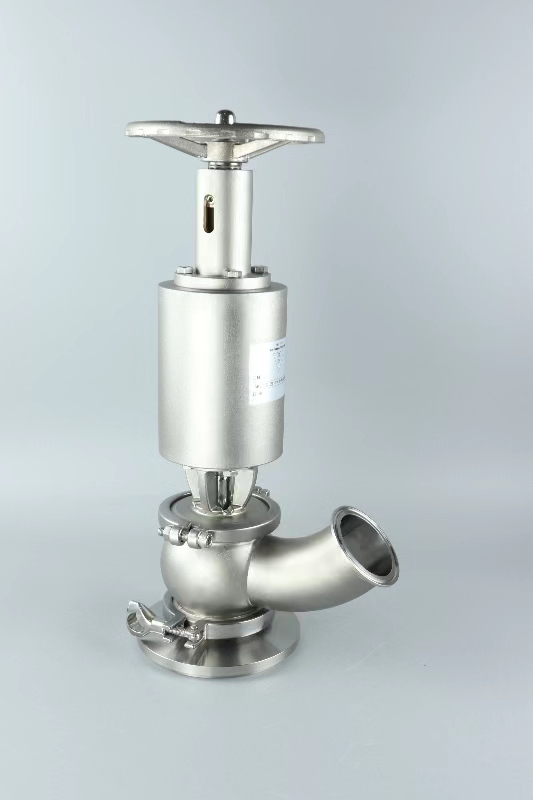

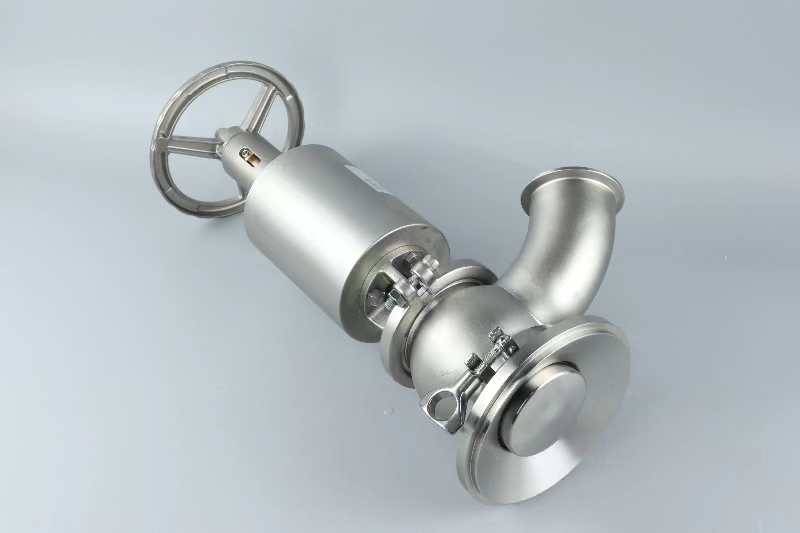

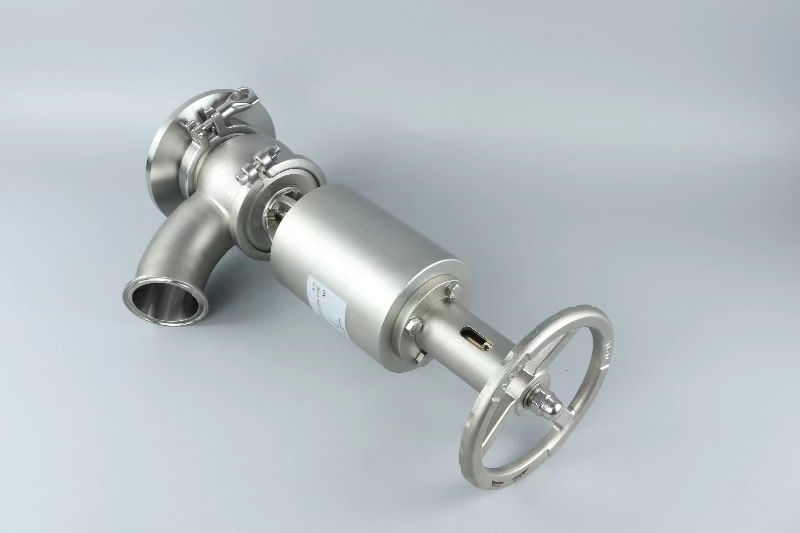

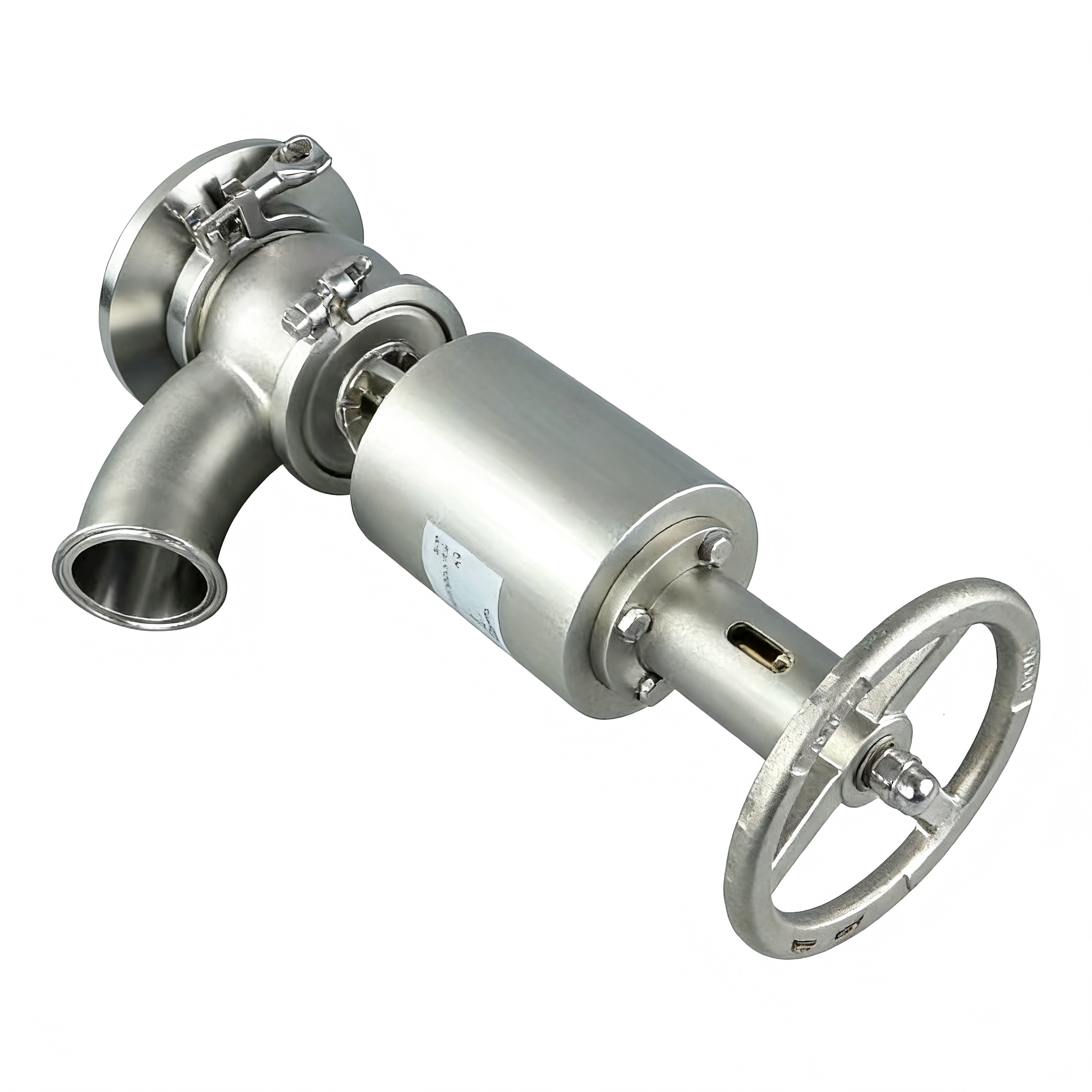

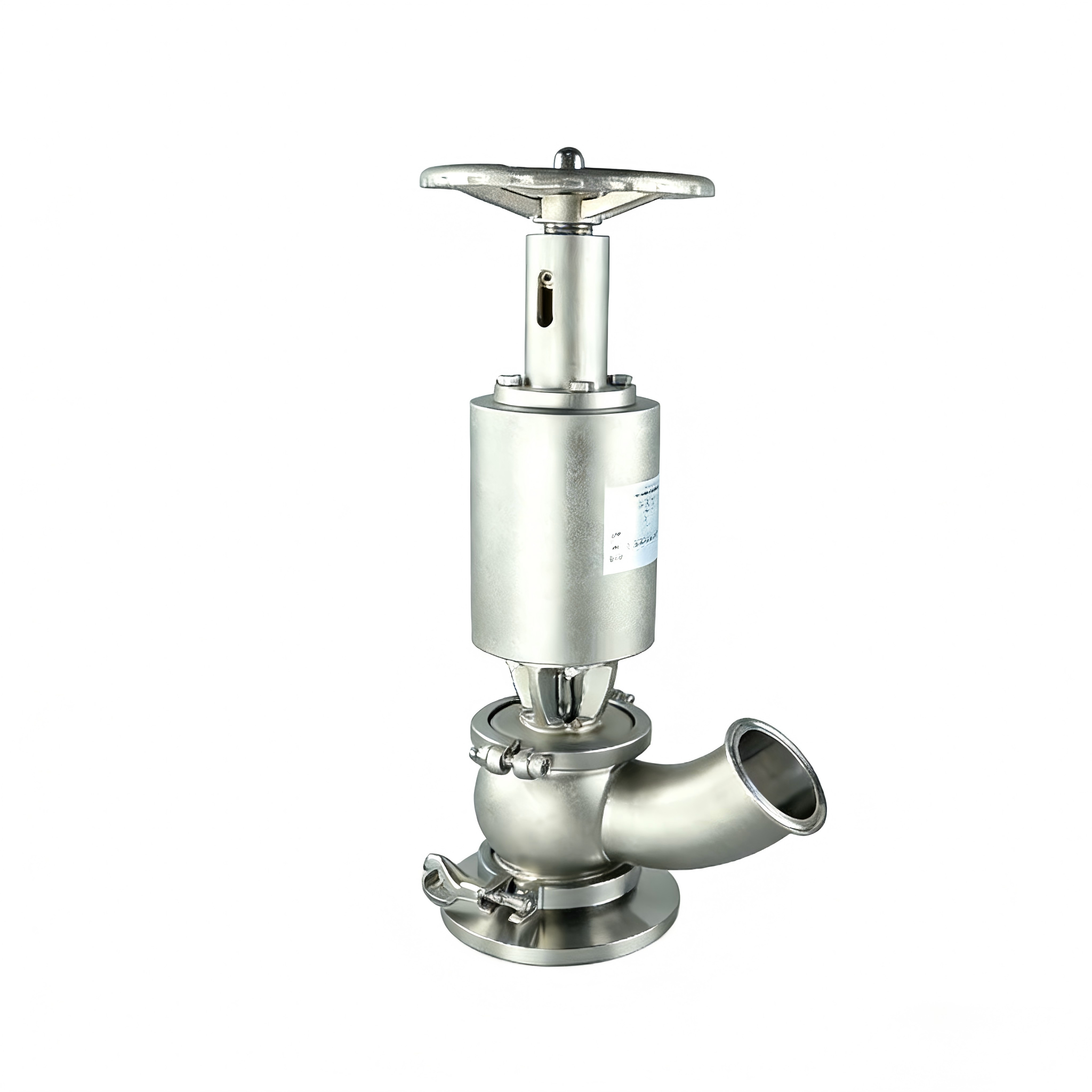

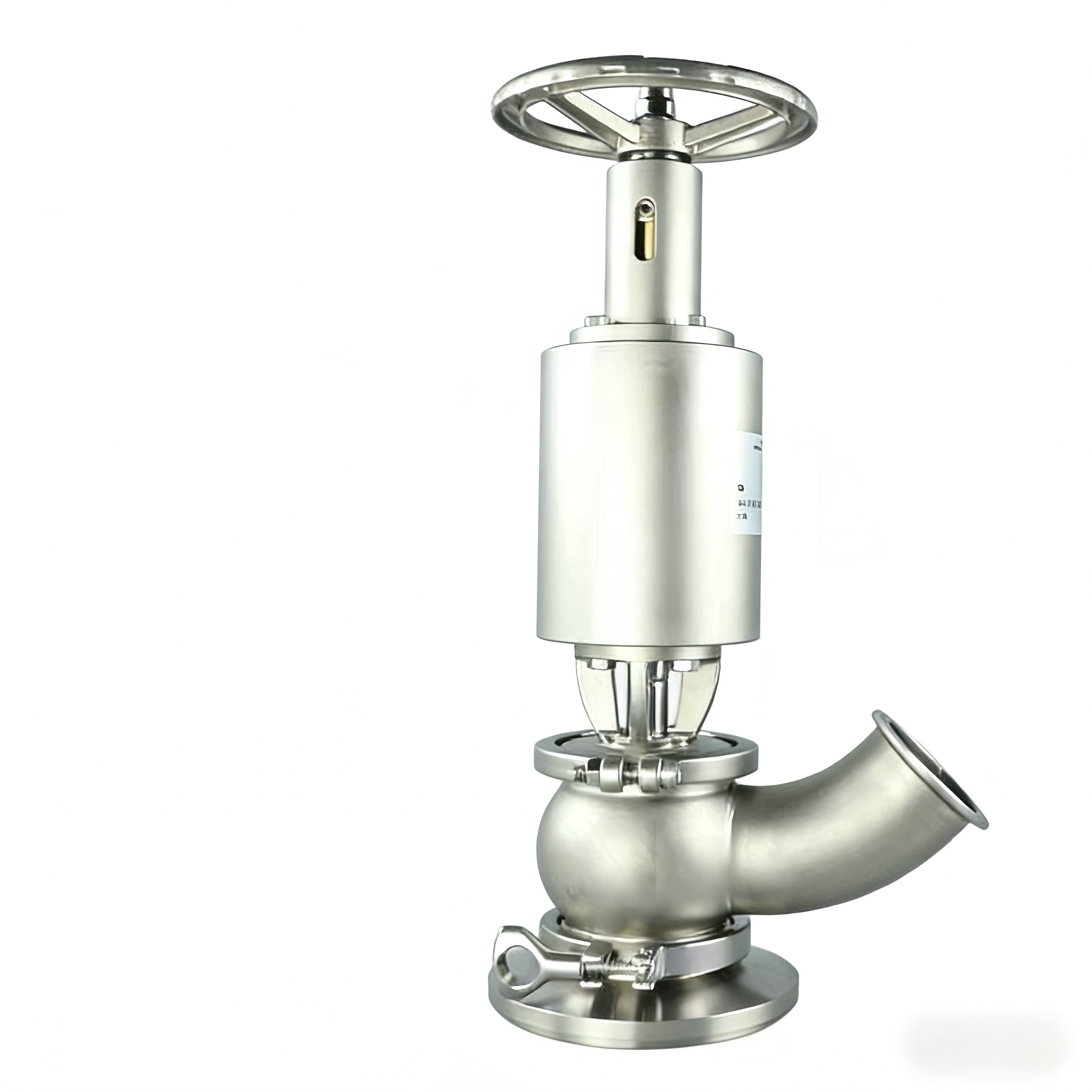

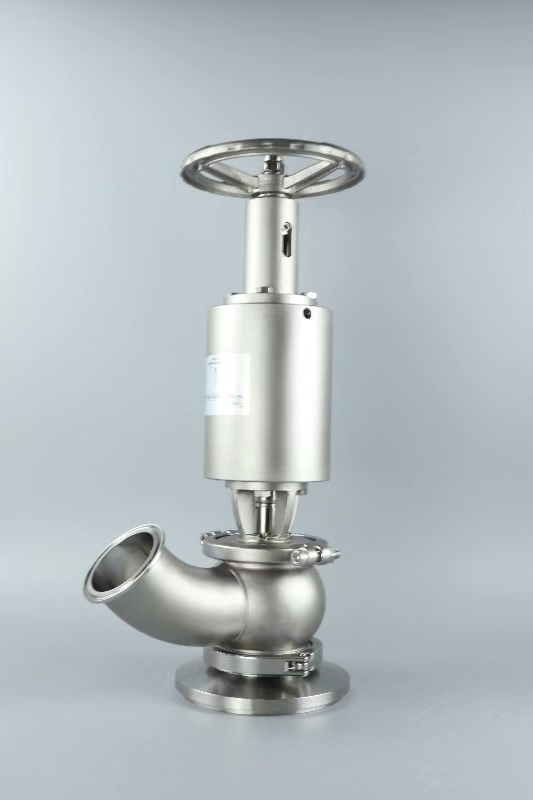

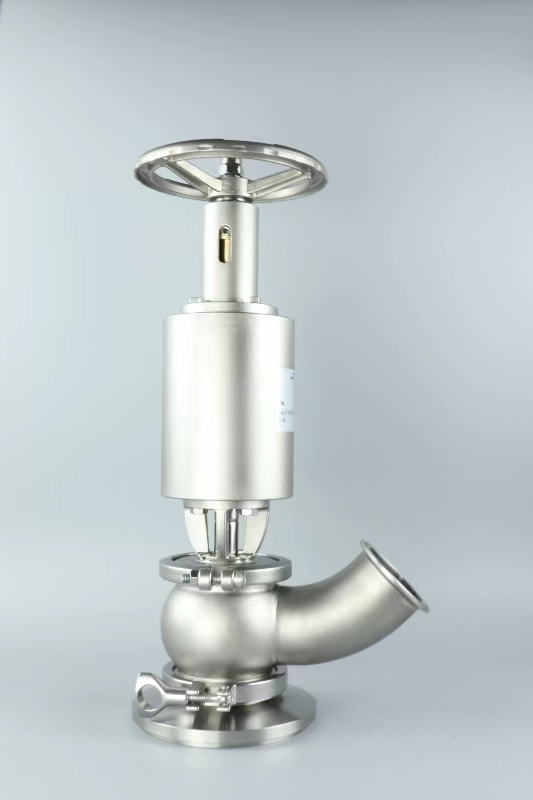

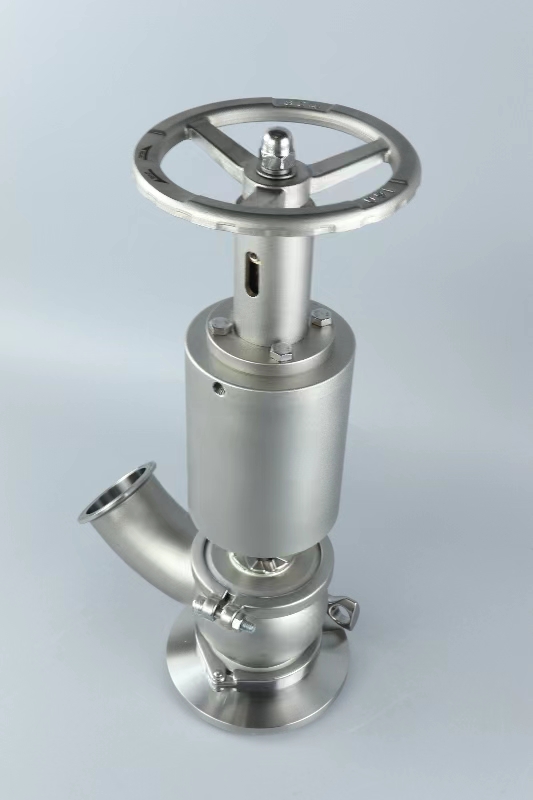

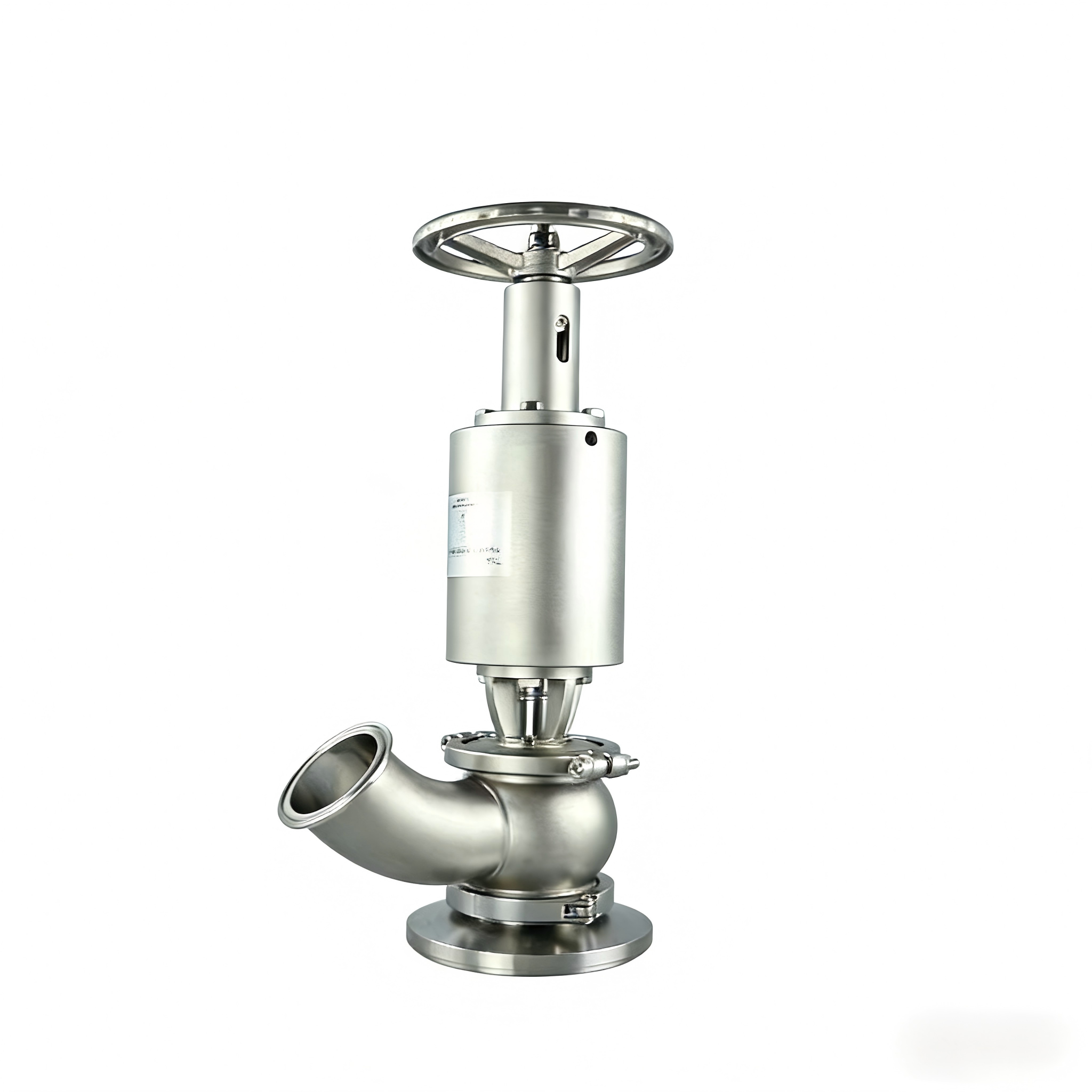

Stainless Steel Sanitary LPG Elbow Tank Bottom Valve
Stainless Steel Sanitary LPG Elbow Tank Bottom Valve is a specialized valve designed for angled discharge of LPG or liquid gases from tanks. Its elbow configuration allows smooth flow direction changes, tight sealing, and safe operation in sanitary and pressurized environments.
Working Principles
The working principle of a Stainless Steel Sanitary LPG Elbow Tank Bottom Valve relies on controlling the flow of LPG or other liquid gases through an angled outlet. When the valve is opened manually or via an actuator, the internal plug or disc moves away from the seat, allowing the pressurized liquid gas to flow through the elbow-shaped channel. The elbow design changes the flow direction smoothly while minimizing turbulence and pressure loss. Closing the valve pushes the plug firmly against the seat, ensuring a secure seal to prevent leaks. This design supports safe handling, efficient drainage, and compliance with sanitary and pressurized system requirements
Stainless Steel Diaphragm Valve Specification Chart
Max. working pressure | 10 Bar |
Temperature range | -10° ~ +120°C or higher upon request |
Sizes available | 1" to 6" |
End connection | Clamp, Weld, Flange, Thread |
Body material | AISI 316L |
Body structure | 2 way, 3-way, Casting Tee type,U type,Forged Tee type, with draining port, Non dead leg diaphragm block valves |
Seal material | Single diaphragm EPDM,EPDM+PTFE bounded membrane , EPDM/PTFE 2pieces membrane |
Operation | plastic or stainless hand wheel,Pneumatic plastic actuator,Pneumatic stainless steel actuator, Electric actuator |
Surface treatment | Ra 0.4 ~ 0.8µm |
Standards | 3A, SMS, DIN, ISO |
Features
Features an elbow-shaped flow path that allows smooth directional changes, reducing turbulence and pressure loss during LPG or liquid gas discharge.
Made from high-quality stainless steel with polished surfaces, providing excellent corrosion resistance and meeting sanitary and hygienic standards.
Bottom-mounted design ensures complete drainage of pressurized tanks, minimizing residual product and maintaining operational safety.
Equipped with a reliable sealing mechanism to prevent leaks and ensure safe handling of flammable or pressurized media.
Compatible with manual or automated actuation, allowing precise control and integration into industrial LPG or liquid gas processing systems
Application
Stainless Steel Sanitary LPG Elbow Tank Bottom Valves are primarily used in the liquefied gas and chemical industries for safe discharge of LPG, propane, or other pressurized gases from storage tanks. They are also applied in food and beverage production for controlled handling of liquid carbon dioxide. Their elbow design, hygienic construction, and reliable sealing make them suitable for industries requiring safe, efficient, and contamination-free transfer of pressurized or flammable fluids
