JONENG

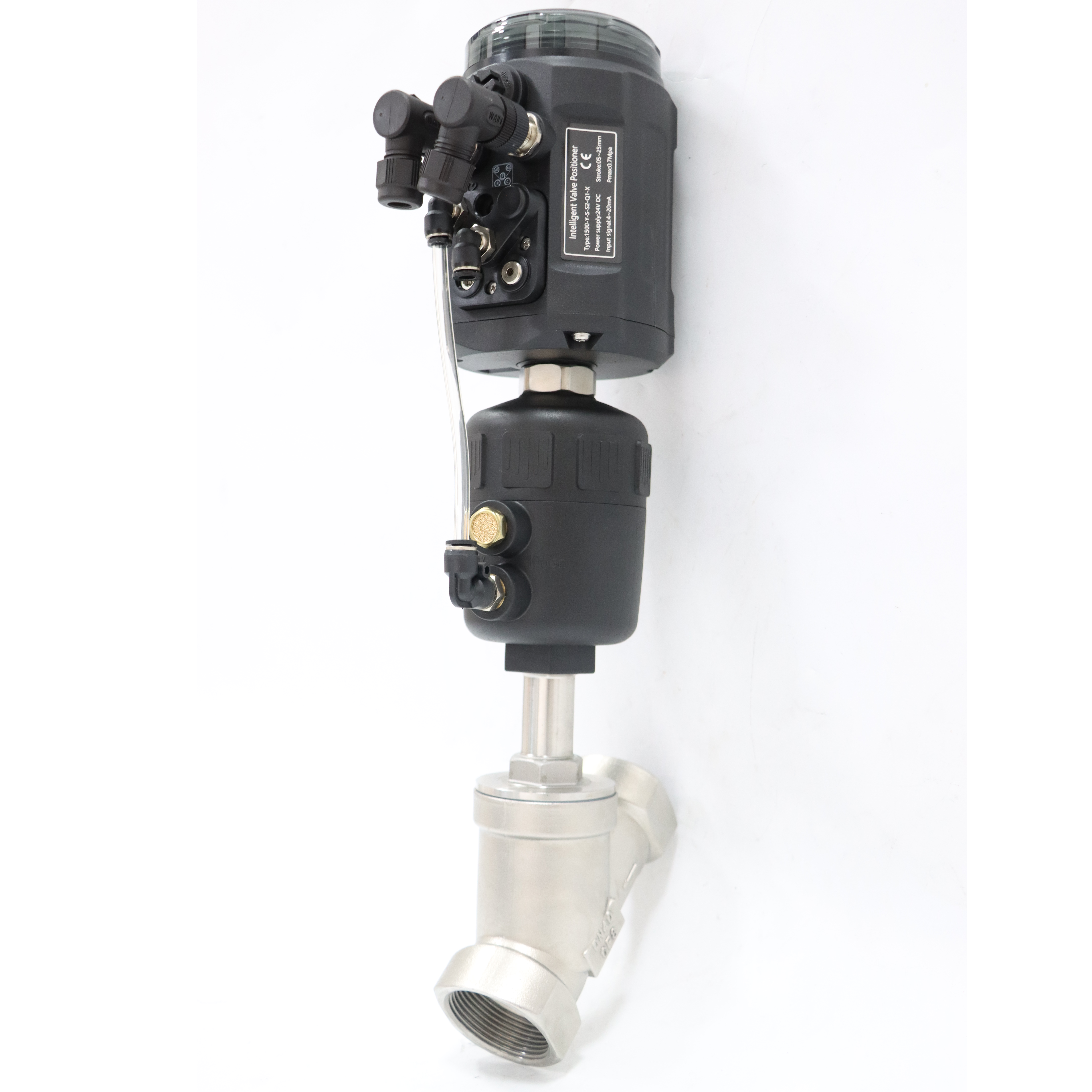

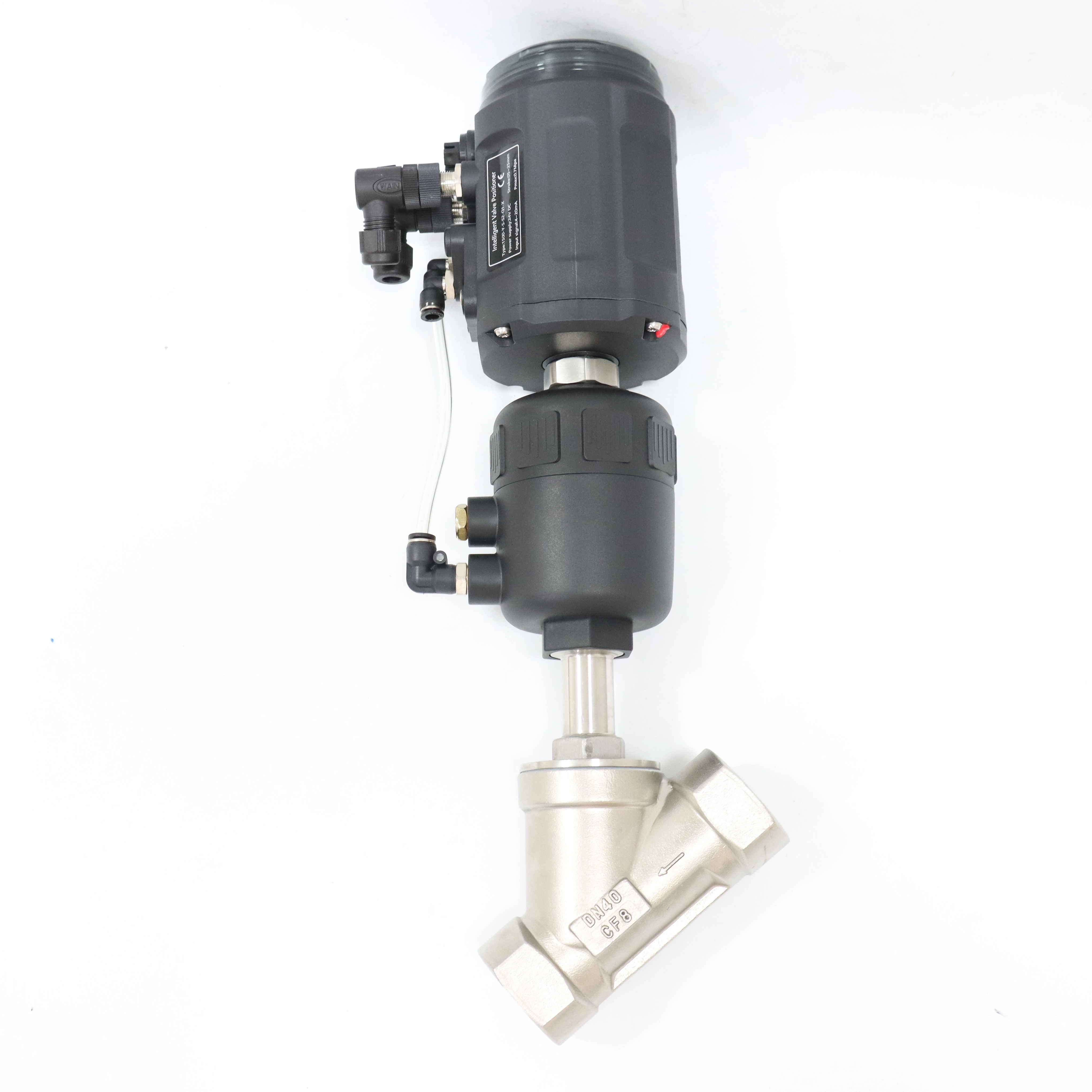

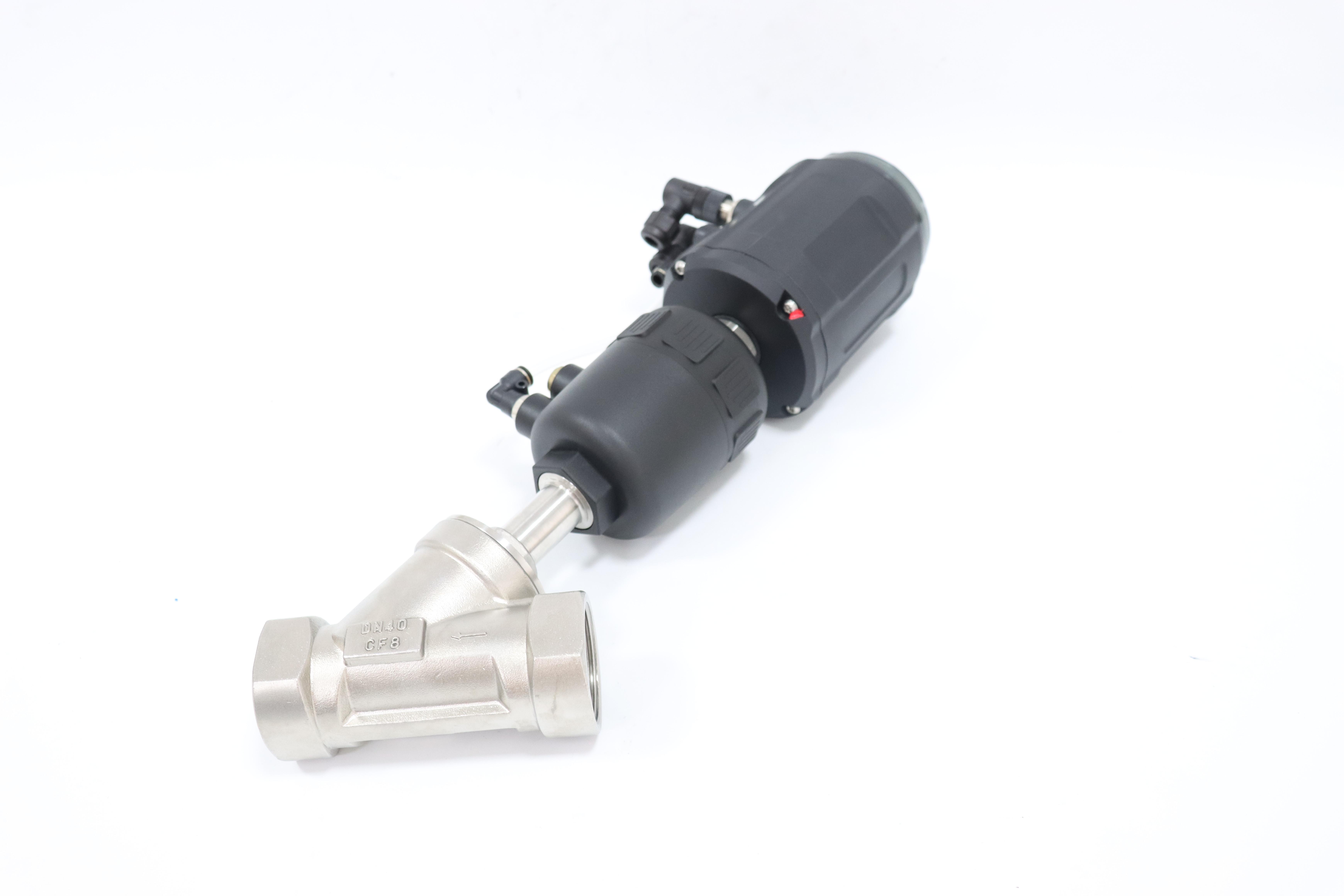

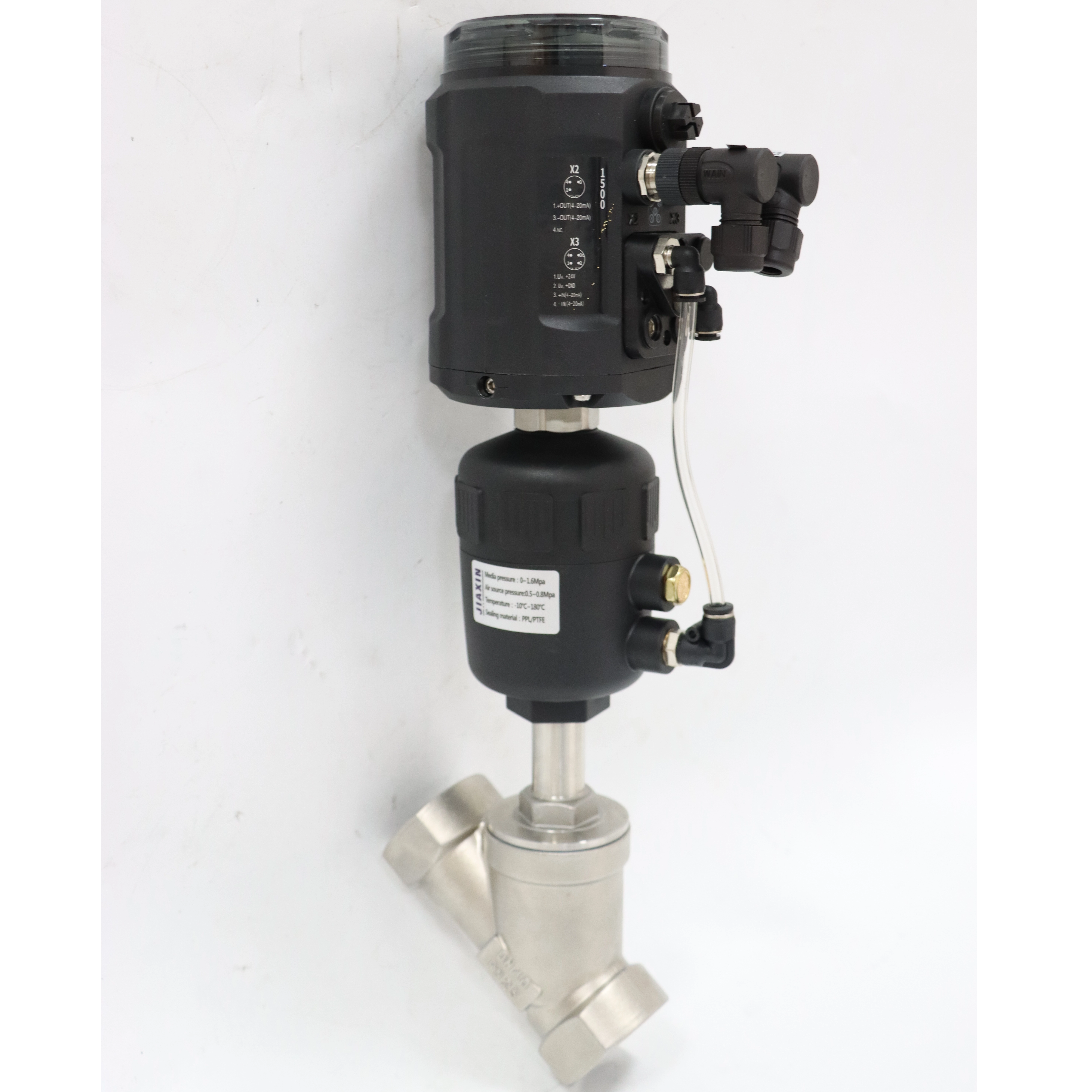

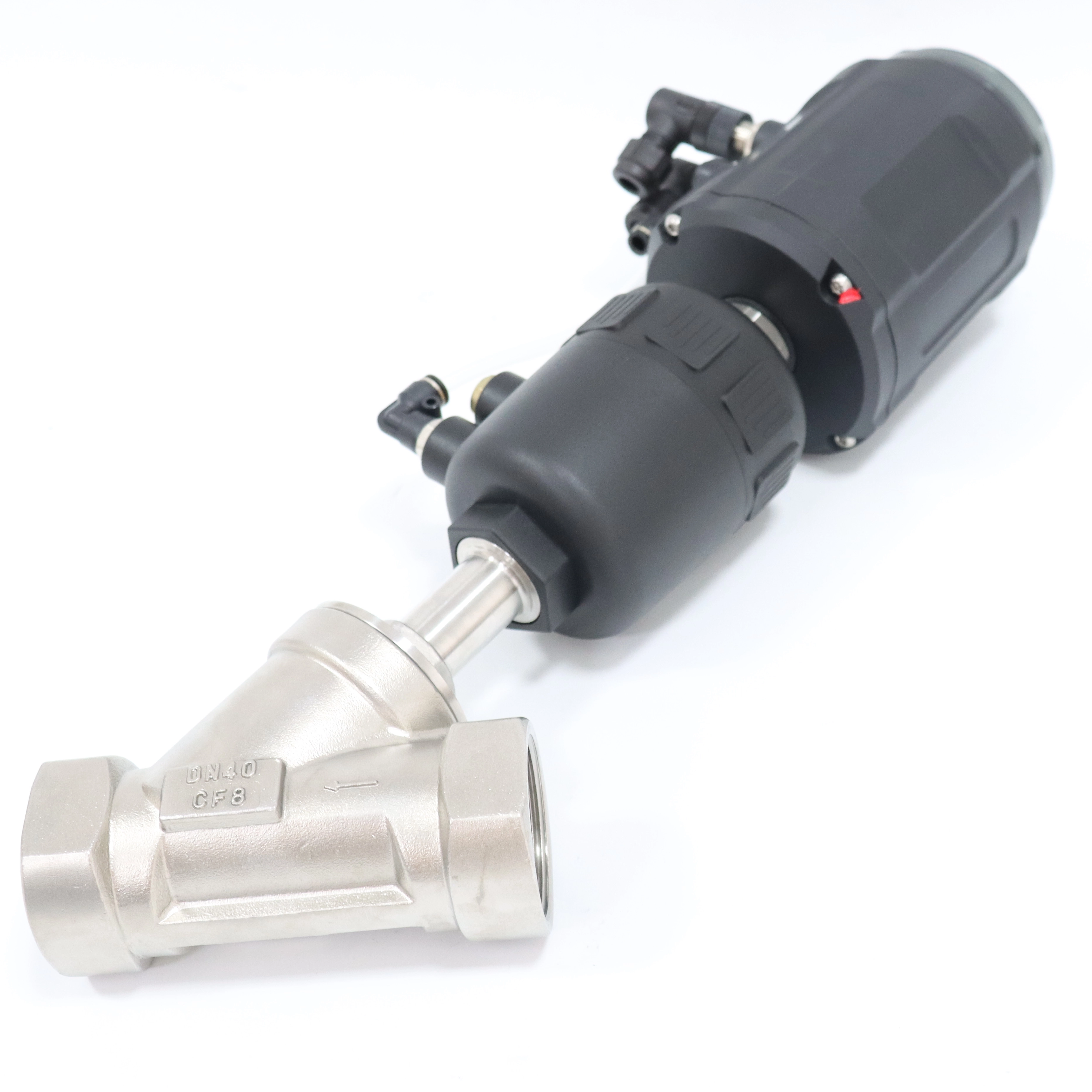

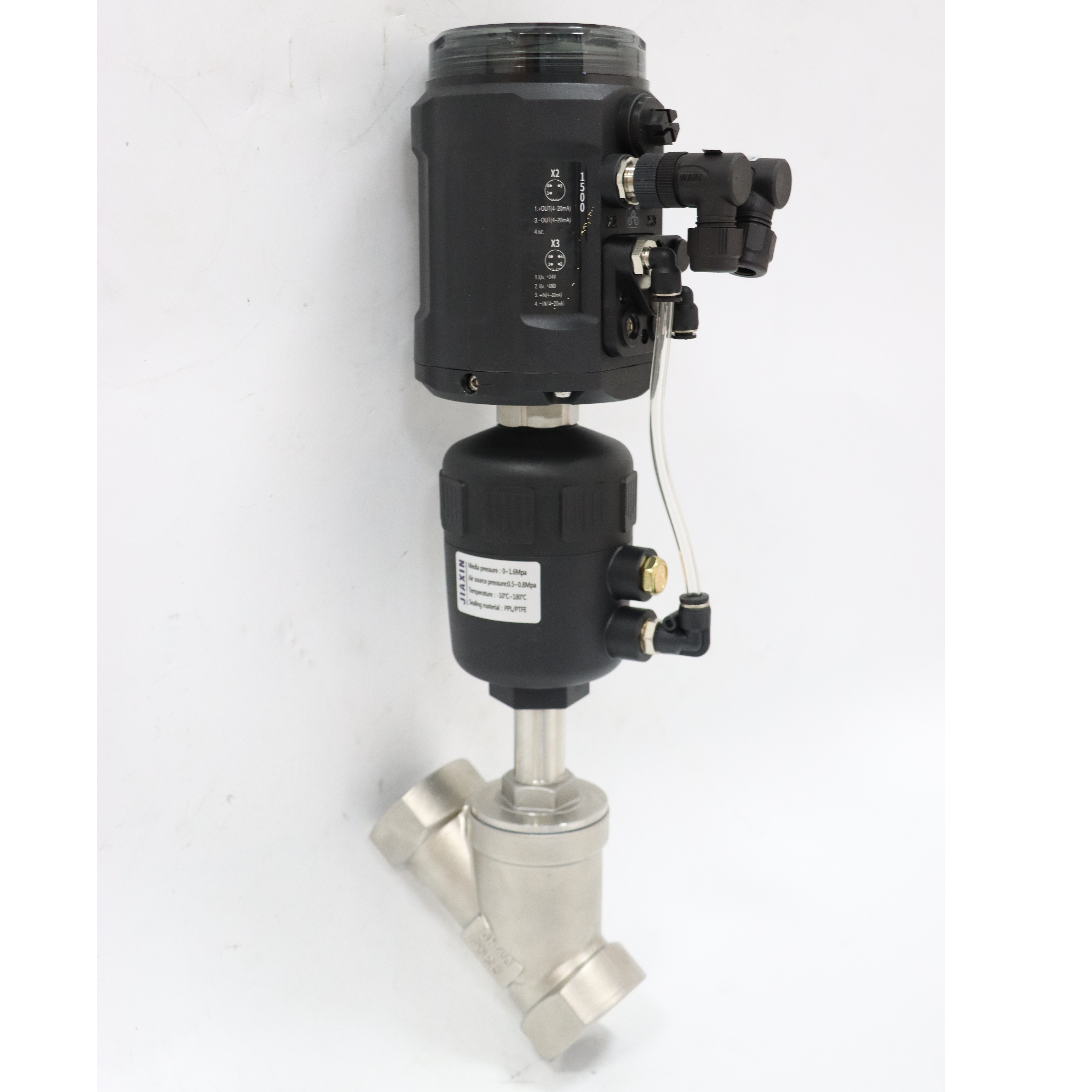

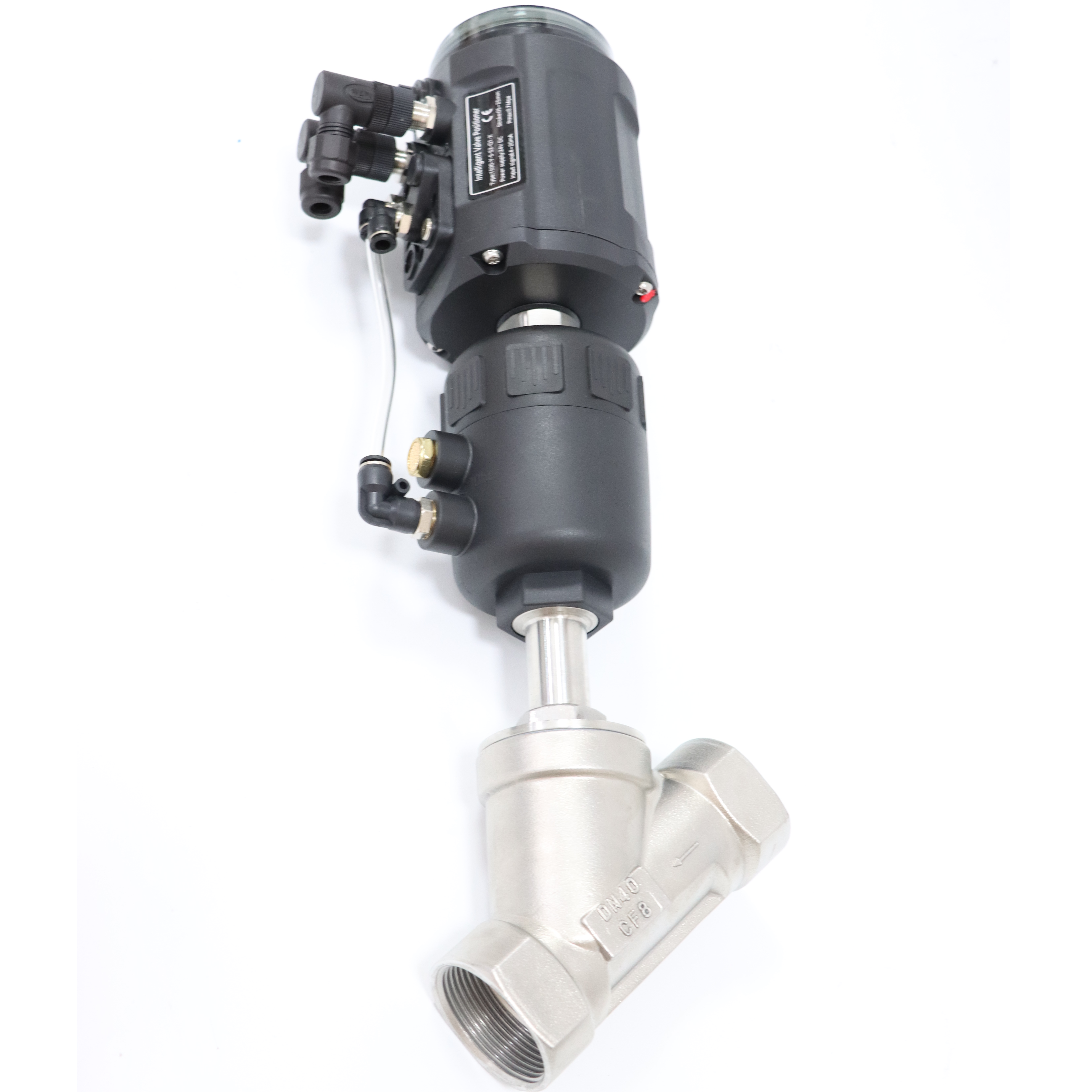

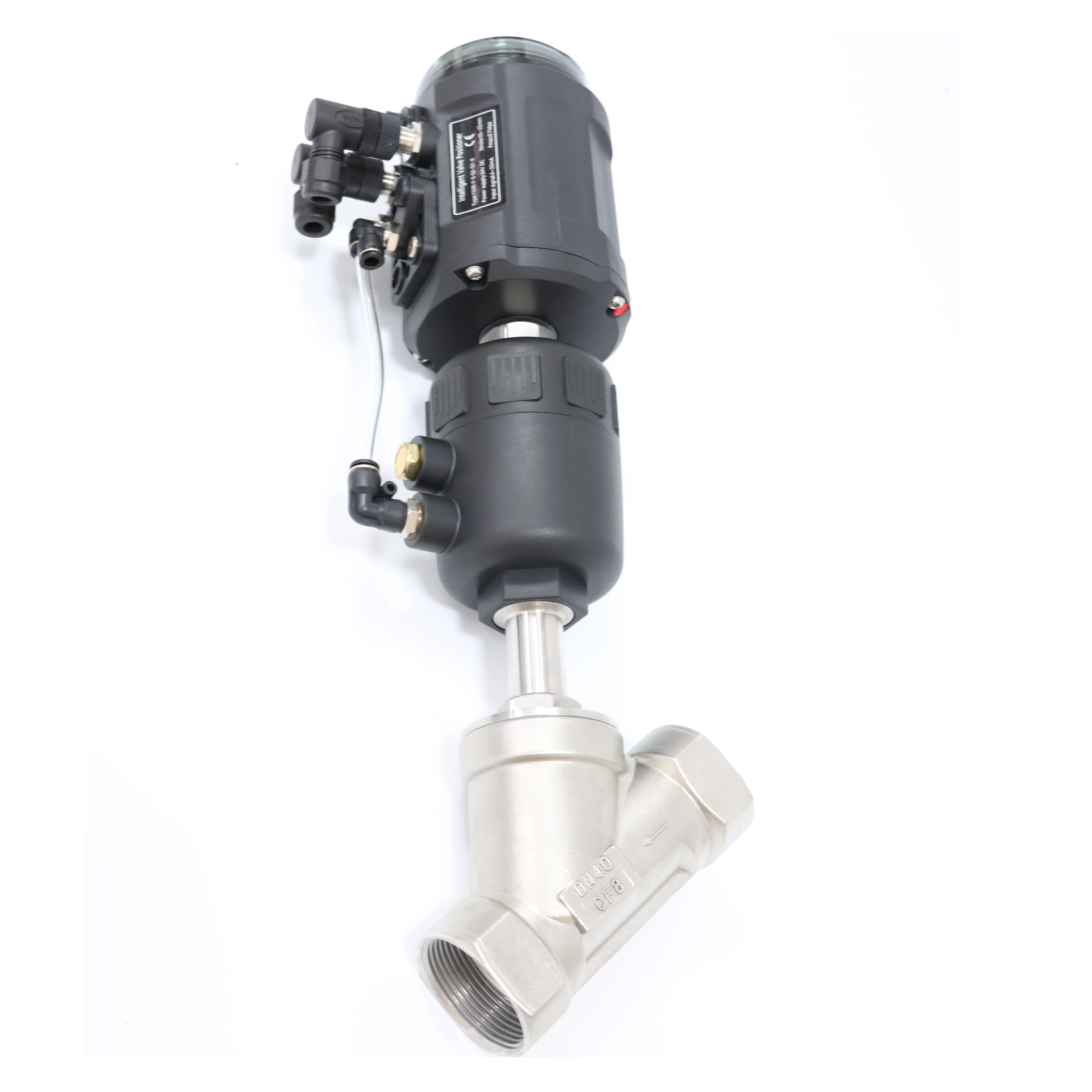

Stainless Steel Sanitary Pneumatic Plastic Head Intelligent Positioning Angle Seat Valve
Stainless Steel Sanitary Pneumatic Plastic Head Intelligent Positioning Angle Seat Valve is an automated valve designed for precise fluid control. Its lightweight plastic actuator head and intelligent positioning system enable accurate flow regulation while maintaining hygienic, smooth operation in sanitary processing applications
Working Principles
The working principle of a Stainless Steel Sanitary Pneumatic Plastic Head Intelligent Positioning Angle Seat Valve involves controlling fluid flow through an angled seat using a pneumatic actuator combined with an intelligent positioning system. When a control signal is received, compressed air moves the actuator piston, lifting the valve plug from the seat and allowing fluid to flow smoothly. The intelligent positioning module continuously monitors and adjusts the valve position to maintain precise flow rates. Closing the valve reverses the actuator motion, pressing the plug securely against the seat to form a tight seal. The plastic actuator head reduces weight and corrosion, while the angled seat ensures hygienic operation and minimal flow resistance
Specification Chart
Max Working Pressure | 1.6MPa |
Medium Temperature | -10℃~+180℃ |
Ambient Temperature | -10℃~+55℃ |
Body Materials | CF8M(SS316),CF8(SS304) |
Sealing Material | PTFE |
Operation | Normally Closed, Normally Open, Double-acting or Manually |
Connection End | Female, Weld,Clamp, Flange or on request |
Size Range | DN10-DN100 |
Surface treatment | Ra 16 ~ 32µin (0.4 ~ 0.8µm) |
Standards | DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE. |
Control type | Single acting, double acting |
Features
Constructed from high-quality stainless steel, ensuring corrosion resistance, durability, and suitability for hygienic processing environments.
Pneumatic actuator with intelligent positioning provides precise, automated control of fluid flow for consistent process performance.
Angle seat design ensures smooth flow, reduces pressure loss, and supports efficient discharge in sanitary piping systems.
Hygienic polished surfaces and tight sealing prevent leakage, enabling clean-in-place (CIP) and sterilize-in-place (SIP) operations.
Compatible with control systems, offering real-time position feedback for accurate monitoring and integration into automated production lines
Application
Stainless Steel Sanitary Pneumatic Intelligent Positioning Angle Seat Valves are widely used in pharmaceutical and biotechnology industries for precise, automated control of sterile liquids in production lines. They are also applied in food and beverage manufacturing for controlling flow during mixing, filling, or heating processes. The combination of pneumatic actuation and intelligent positioning ensures accurate flow regulation, hygienic operation, and seamless integration into automated systems, making them suitable for industries requiring high precision, sanitary standards, and reliable process control
